2017 JohnDeere E240

1/4
Buy JohnDeere E240 Used Excavator / 1

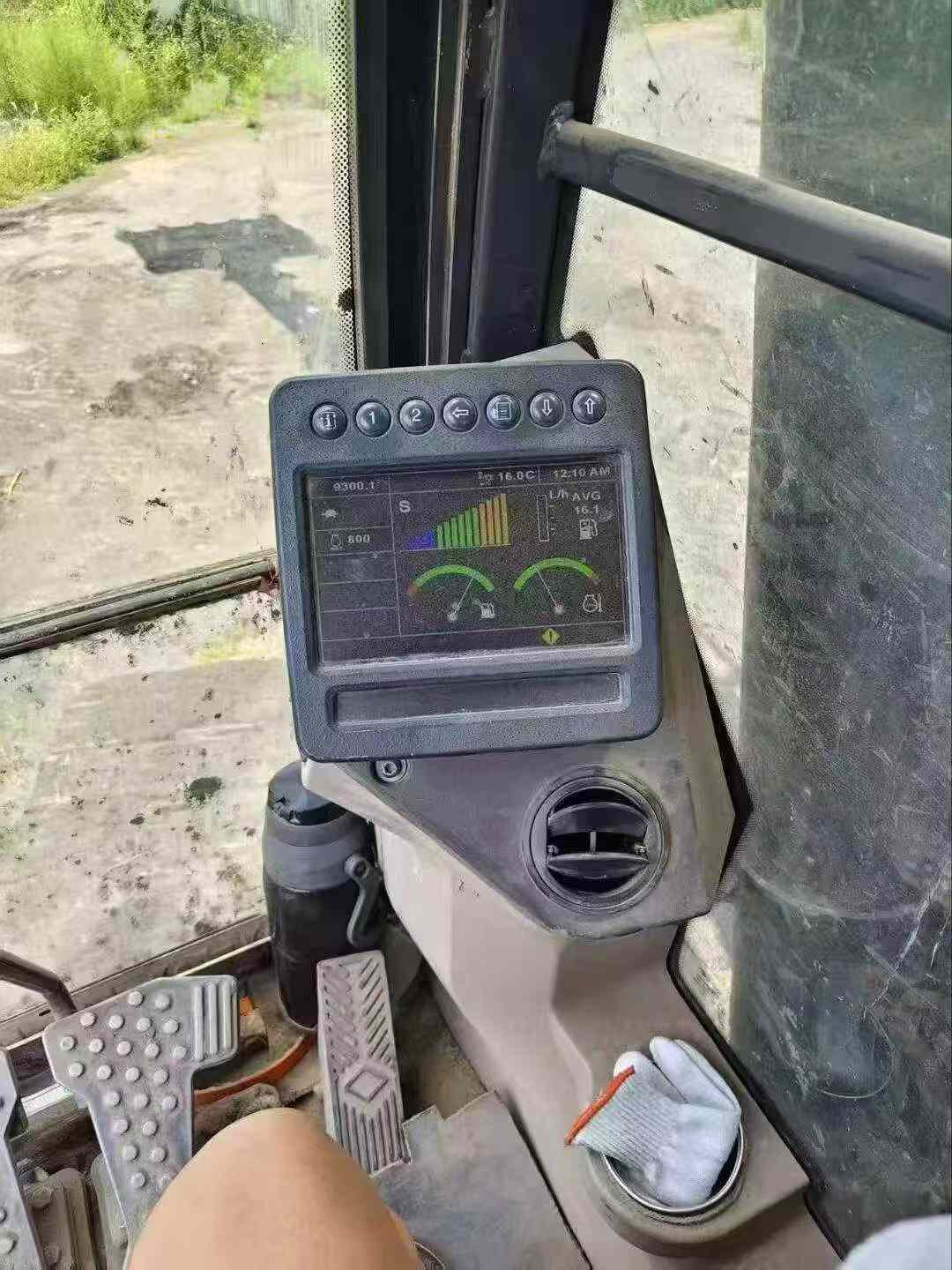

Buy JohnDeere E240 Used Excavator / 2

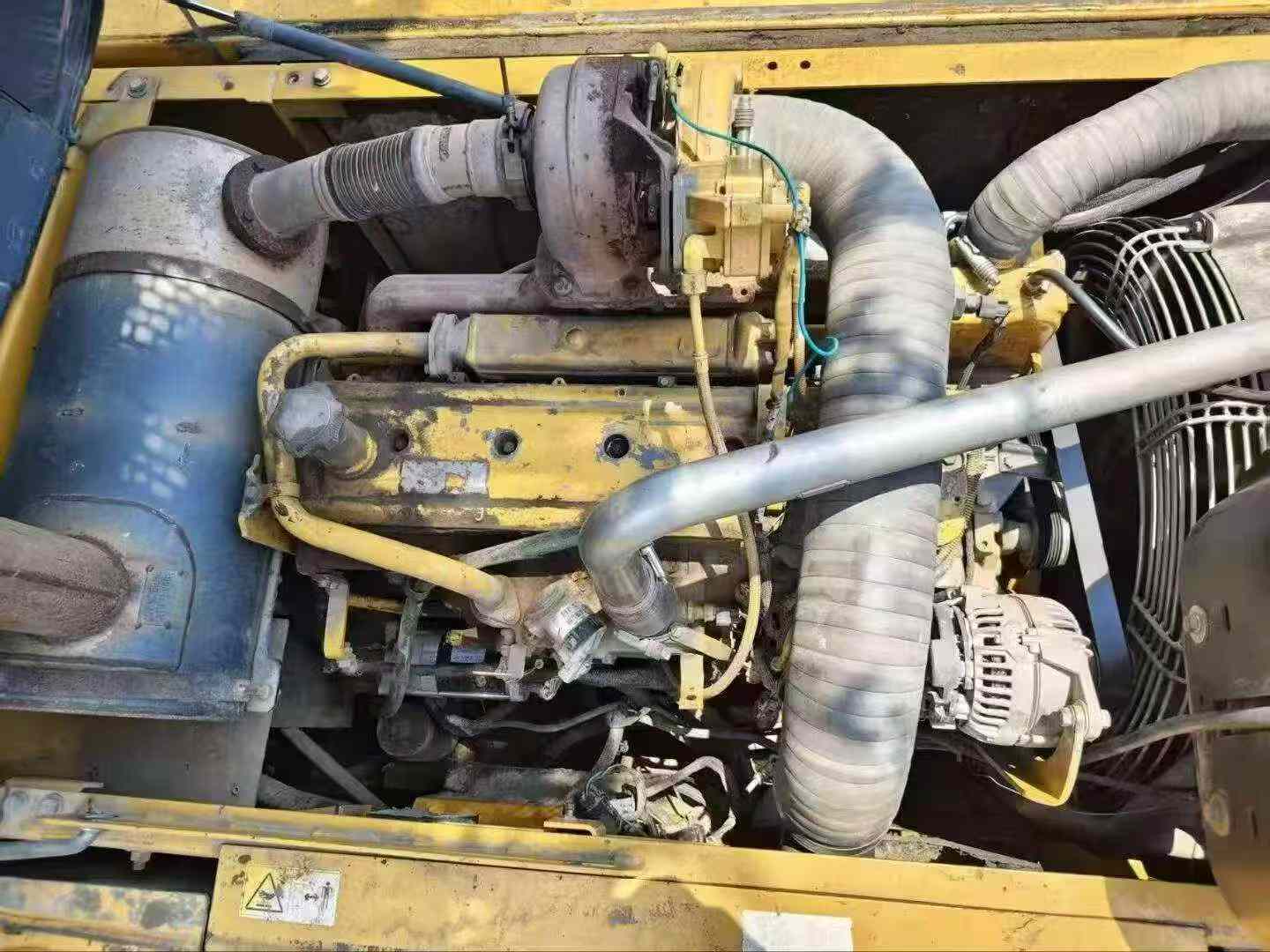

Buy JohnDeere E240 Used Excavator / 3

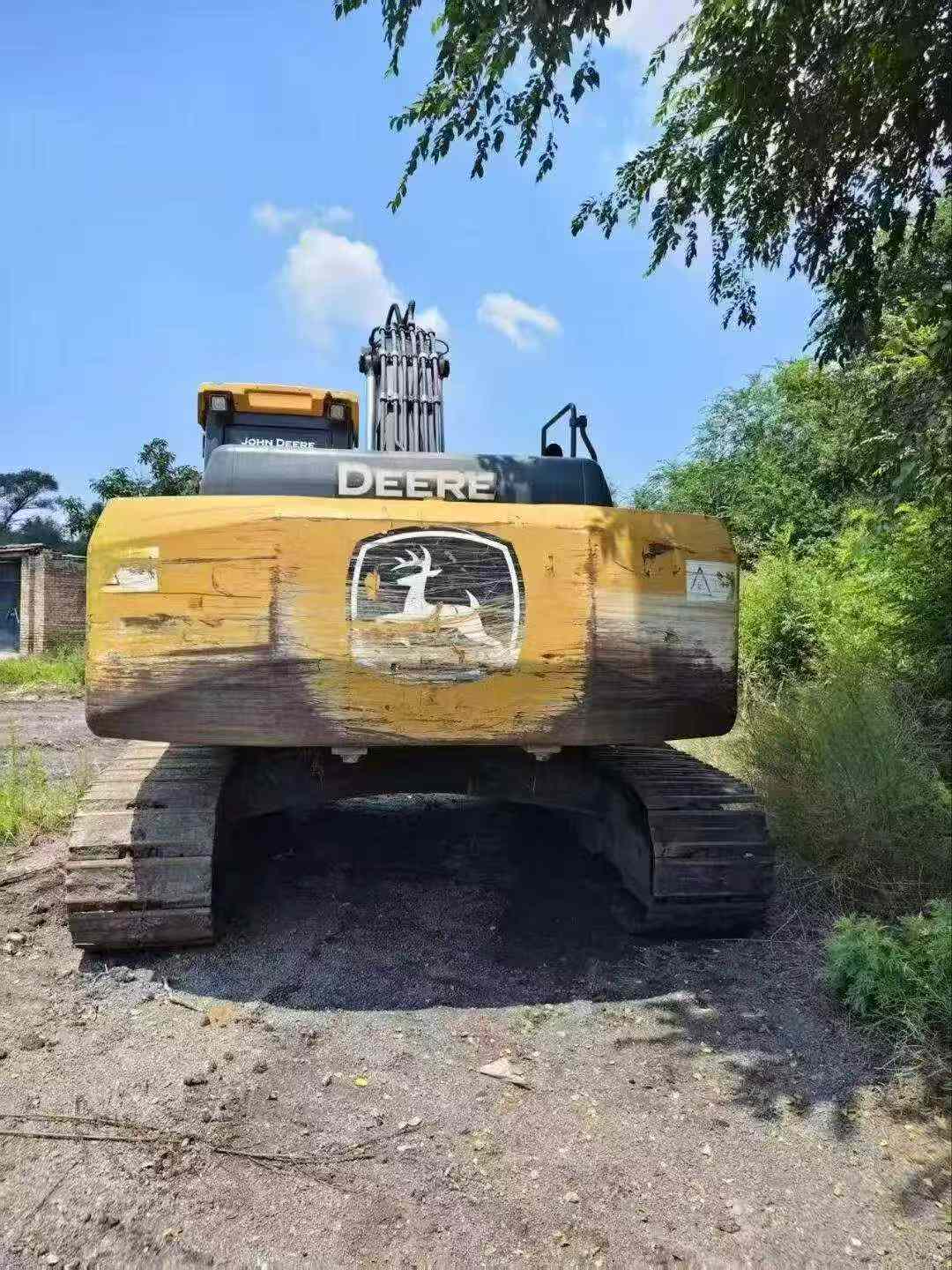

Buy JohnDeere E240 Used Excavator / 4

Product Description

This 2017 John Deere E240 excavator offers reliable performance for demanding construction and earthmoving applications. Manufactured by a leading heavy equipment brand, this mid-size crawler excavator combines proven hydraulic technology with operator comfort features suitable for extended work cycles.

Key features include:

  • 2017 model year with established service history
  • John Deere E240 platform designed for versatility across job sites
  • Currently located in Sichuan, China for inspection and logistics coordination
  • Competitively priced for international buyers seeking value in used equipment

This machine represents an opportunity for contractors and fleet operators looking to expand capacity without new equipment premiums. Standard excavator capabilities apply to foundation work, trenching, material handling, and site preparation projects. Inspection and third-party verification available upon request.

SpecificationsValue
No.1172583
Tonnage (tons)24
Working weight (kg)24200-25600
Bucket capacity (m³)1.3
Boom length (mm)5900
Rod length (mm)3000
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type
Rated power (kw/rpm)143/2000
Maximum torque (N.m)927/1400
Number of cylinders (PCS)6
Displacement (L)6.8
Working form
Ground specific pressure (Kpa)53.1
Rotation speed (rpm)10.8
Climbing ability (%)70 (35°)
Bucket digging force (kN)176
Rod digging force (kN)134
Maximum tractive force (kN)228
Travel speed (km/h)3.4/5.7
Turning torque (Nm)69
Maximum flow of main pump (l/min)2 x 234
Traveling Hydraulic Circuit (Mpa)36.4
Rotary Hydraulic Circuit (Mpa)25.5
Main pump type
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)20
Fuel Tank (L)390
Hydraulic Tank (L)141
Engine Oil changes (L)20
Coolant (L)30
Hydraulic System (L)260
Total transport length (mm)10180
Total transport width (mm)2980
Total transport height (mm)3346
Full cab height (mm)3027
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)445
Minimum turning radius of front working device (mm)4010
Back end turning radius (mm)3100
Onboard width (mm)2710
Total track length (mm)4262
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3834
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10370
Maximum digging depth (mm)7160
Maximum excavation height (mm)9810
Maximum unloading height (mm)6870
Maximum vertical digging depth (mm)6200
Maximum excavation radius of stop surface (mm)10140
see more

Overview

No.1172583

Brand Name:

JohnDeere

Model Number:

E240

Year:

2017

Location:

Sichuan China

Pub Date:

Are you interested in this machine?

Please contact us
