Product Description

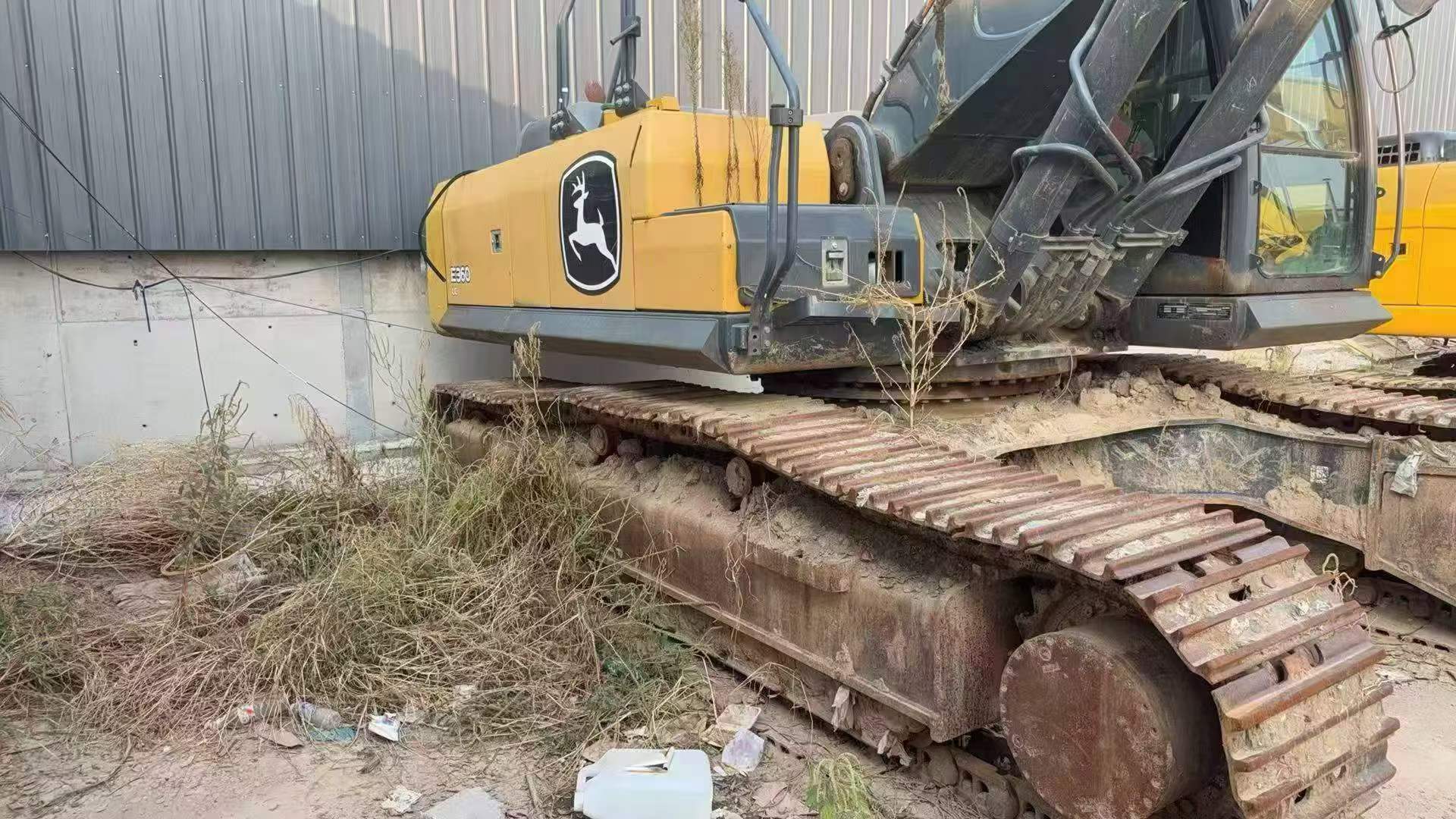

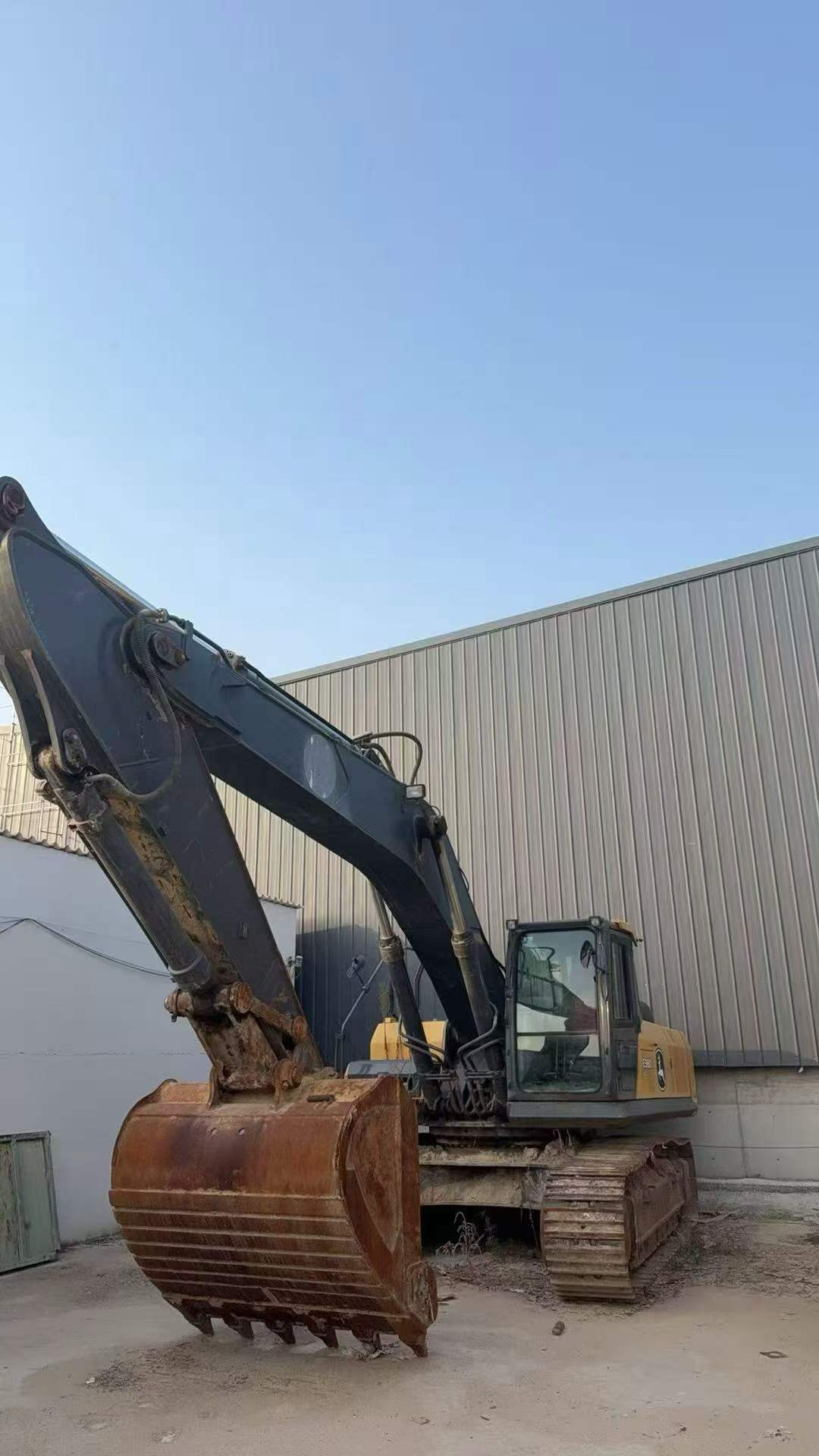

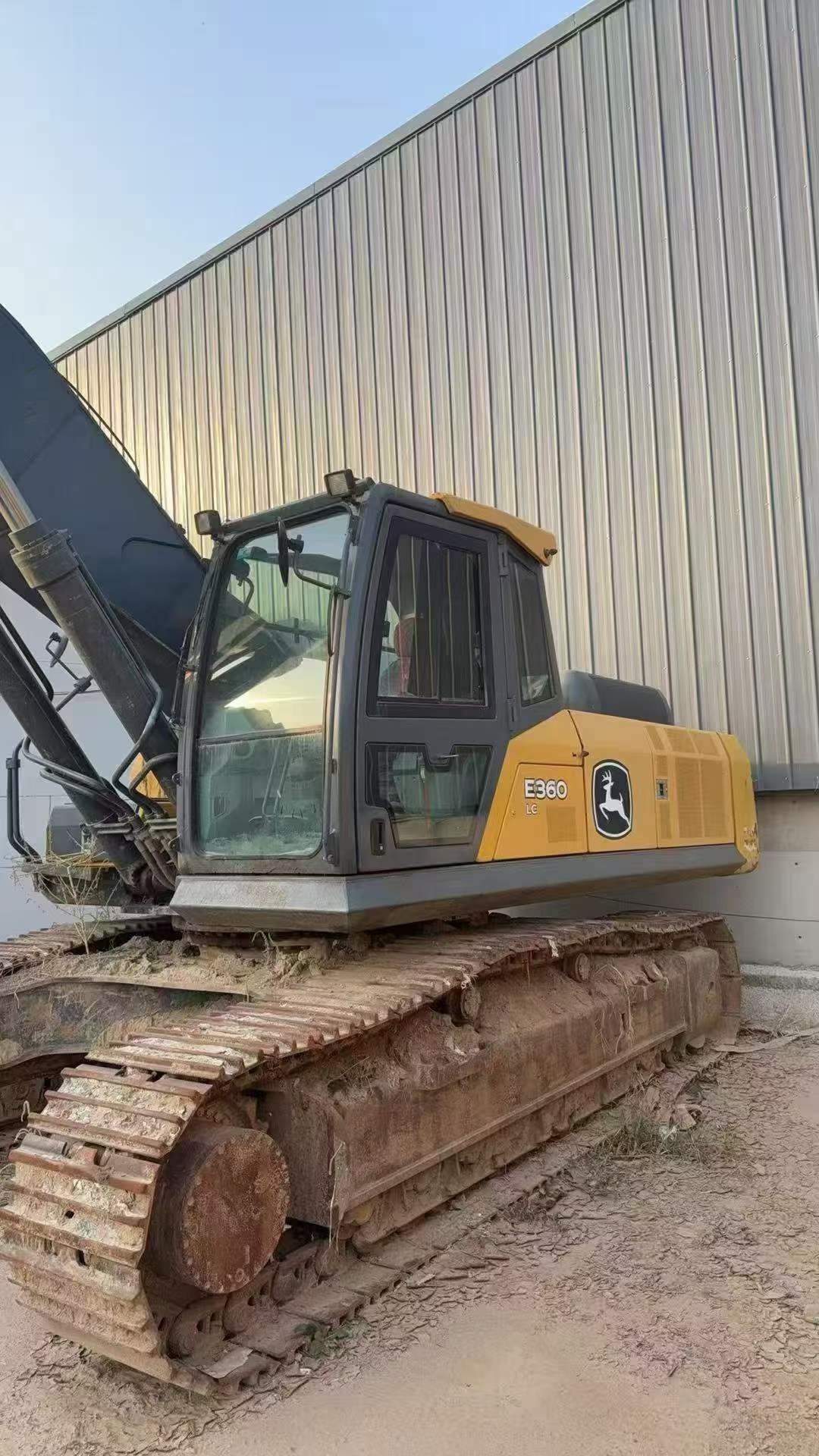

This 2017 John Deere E360 excavator represents a well-maintained machine from a trusted manufacturer in the heavy equipment sector. Currently located in Zhejiang, China, this unit is reported to be in excellent cosmetic and operational condition, making it an attractive option for contractors and construction firms seeking reliable performance without the premium of new equipment.
The John Deere E360 series is engineered for medium to heavy-duty excavation applications, offering operators a balance of digging force, fuel efficiency, and operational versatility. With approximately six years of service, this machine falls within the optimal window for used equipment acquisition—beyond initial depreciation but well before major component overhaul intervals.
- Year of Manufacture: 2017
- Make and Model: John Deere E360
- Current Location: Zhejiang Province, China
- Condition: Reported as excellent
- Availability: Ready for inspection and acquisition
Interested parties are encouraged to arrange direct communication for detailed inspection reports, service history, and commercial terms.
| Specifications | Value |
|---|---|
| No. | 1164027 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33400-34800 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 204/2000 |
| Maximum torque (N.m) | 1310/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.0 |
| Working form | |
| Ground specific pressure (Kpa) | 67.8 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 218 |
| Rod digging force (kN) | 180-196 |
| Maximum tractive force (kN) | 297 |
| Travel speed (km/h) | 3.1/5.2 |
| Turning torque (Nm) | 106.3 |
| Maximum flow of main pump (l/min) | 294x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.4 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Fuel Tank (L) | 600 |
| Hydraulic Tank (L) | 259 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 33 |
| Hydraulic System (L) | 484 |
| Total transport length (mm) | 11230 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3510 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1150 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3400 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4620 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11250 |
| Maximum digging depth (mm) | 7260-7660 |
| Maximum excavation height (mm) | 10470 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 6490 |
| Maximum excavation radius of stop surface (mm) | 10990 |
