Product Description

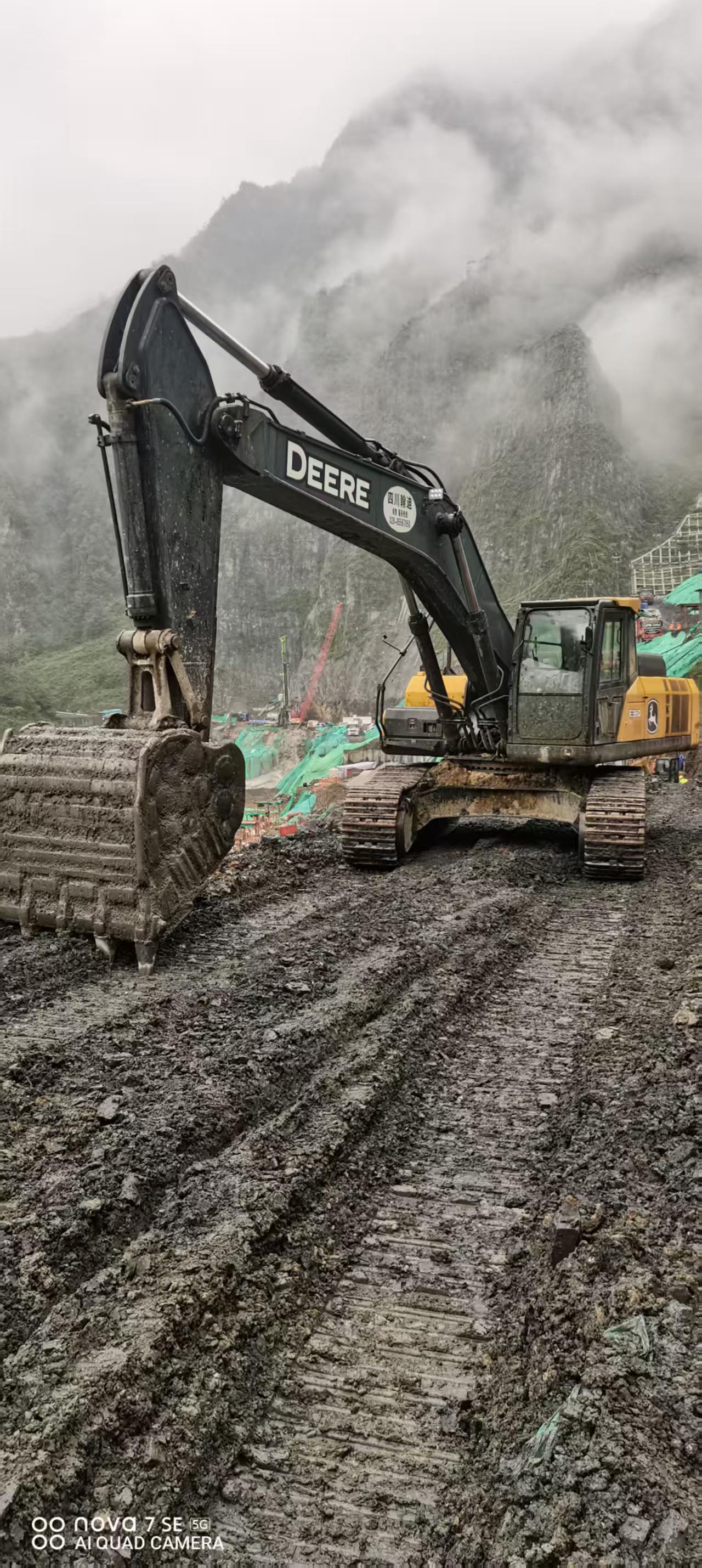

This 2019 John Deere E360 excavator offers reliable performance for demanding construction and earthmoving applications. Currently located in Sichuan, China, this machine combines John Deere's proven engineering with the versatility needed for various job sites. The E360 is designed to deliver efficient digging power and operational productivity in a mid-size platform.
- Year of Manufacture: 2019
- Make: John Deere
- Model: E360
- Location: Sichuan Province, China
- Category: Hydraulic Excavator
- Condition: Used
Ideal for contractors seeking dependable equipment with established service support. This excavator represents a practical investment for operations requiring proven hydraulic excavator technology. Contact us for detailed inspection reports, current machine hours, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1170952 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33400-34800 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 204/2000 |
| Maximum torque (N.m) | 1310/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.0 |
| Working form | |
| Ground specific pressure (Kpa) | 67.8 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 218 |
| Rod digging force (kN) | 180-196 |
| Maximum tractive force (kN) | 297 |
| Travel speed (km/h) | 3.1/5.2 |
| Turning torque (Nm) | 106.3 |
| Maximum flow of main pump (l/min) | 294x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.4 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Fuel Tank (L) | 600 |
| Hydraulic Tank (L) | 259 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 33 |
| Hydraulic System (L) | 484 |
| Total transport length (mm) | 11230 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3510 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1150 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3400 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4620 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11250 |
| Maximum digging depth (mm) | 7260-7660 |
| Maximum excavation height (mm) | 10470 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 6490 |
| Maximum excavation radius of stop surface (mm) | 10990 |
