Product Description

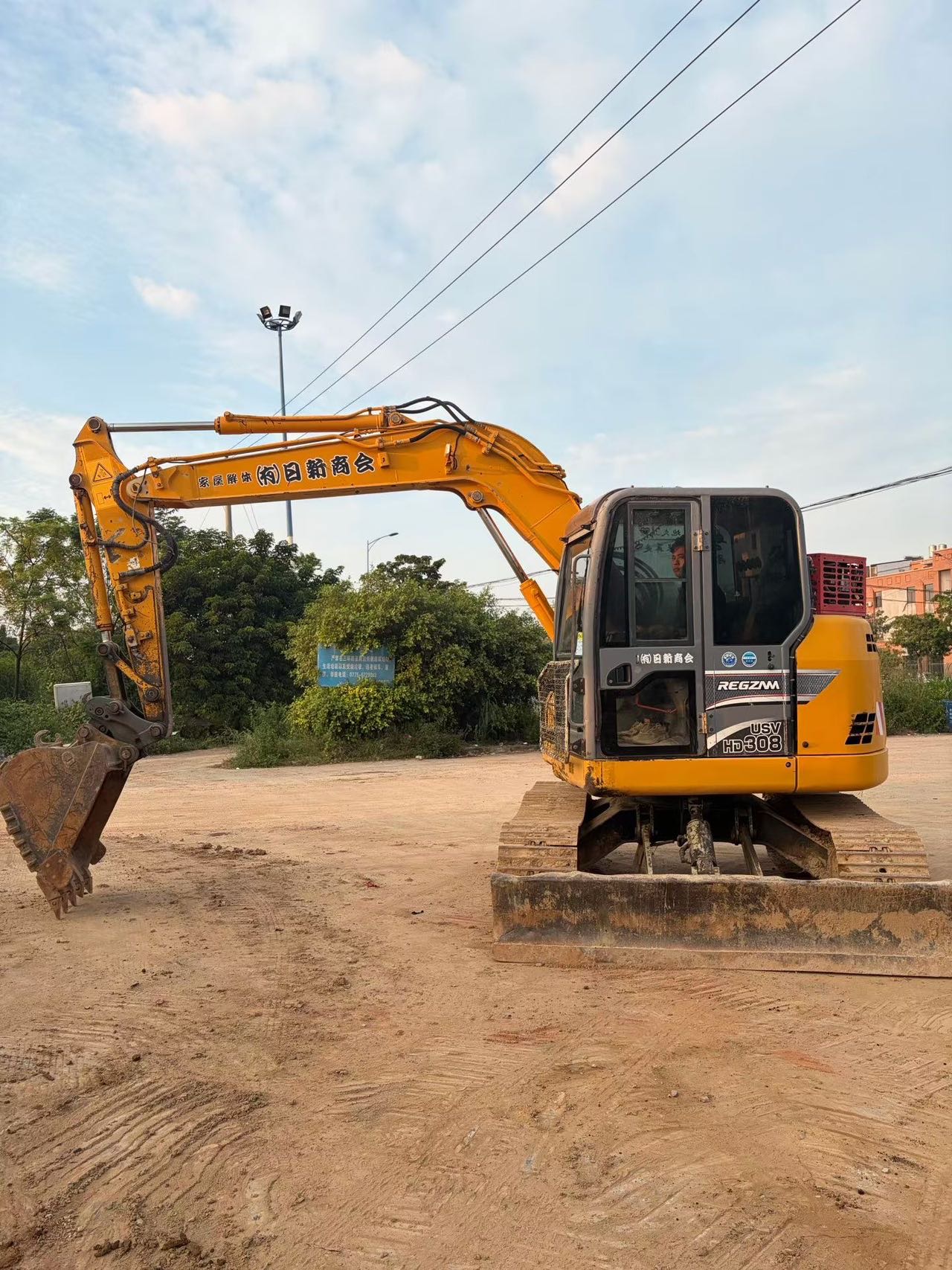

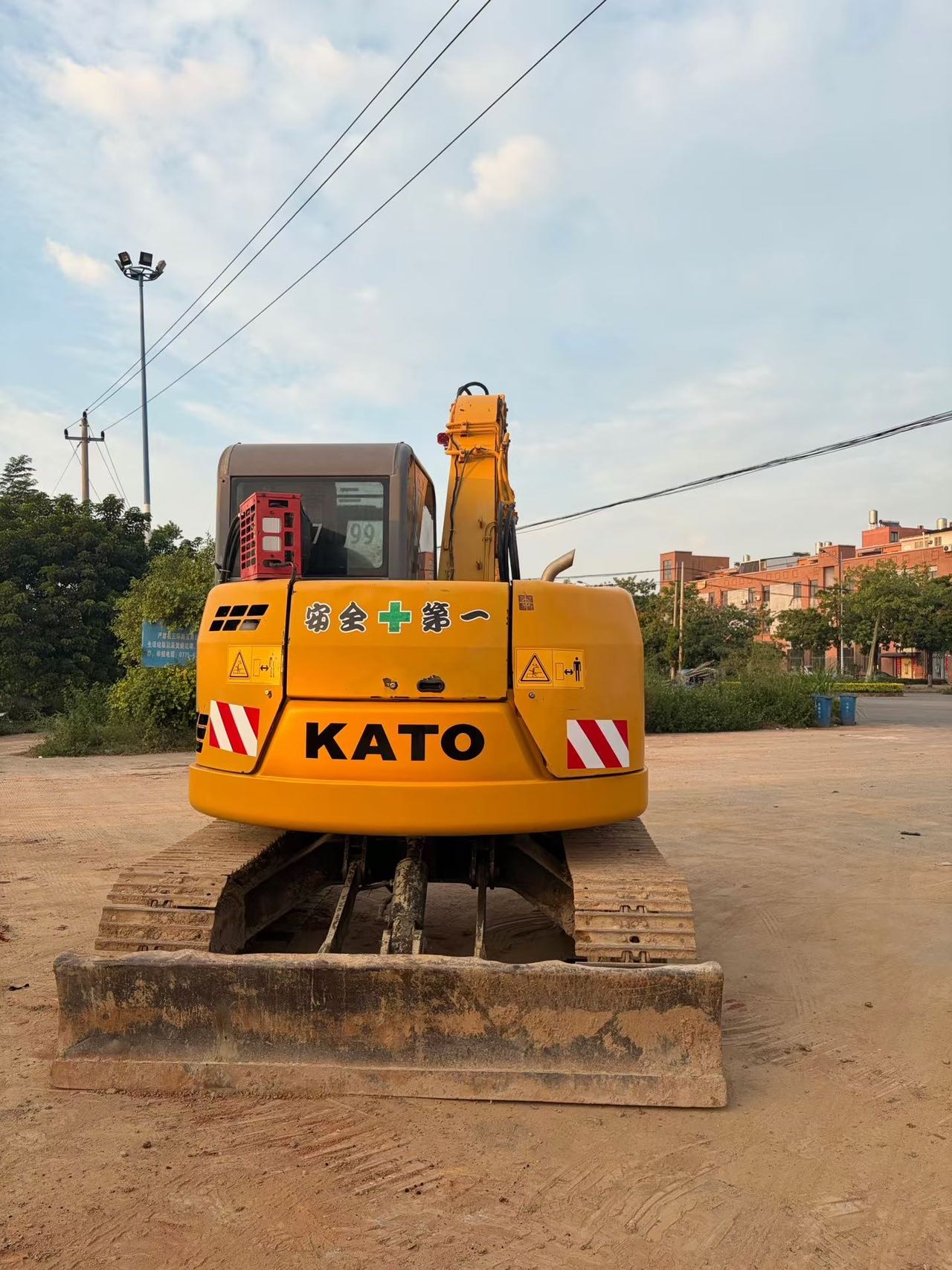

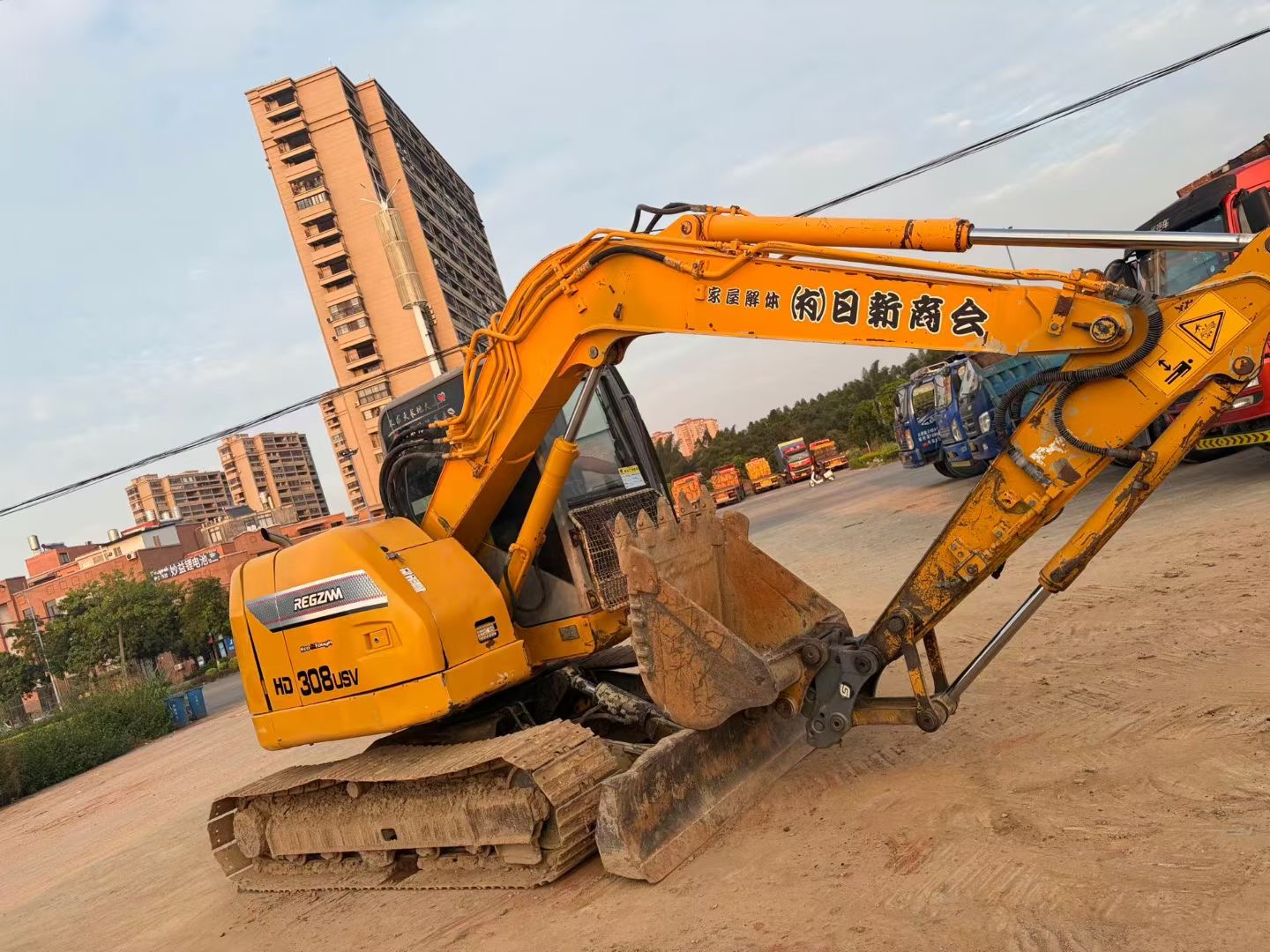

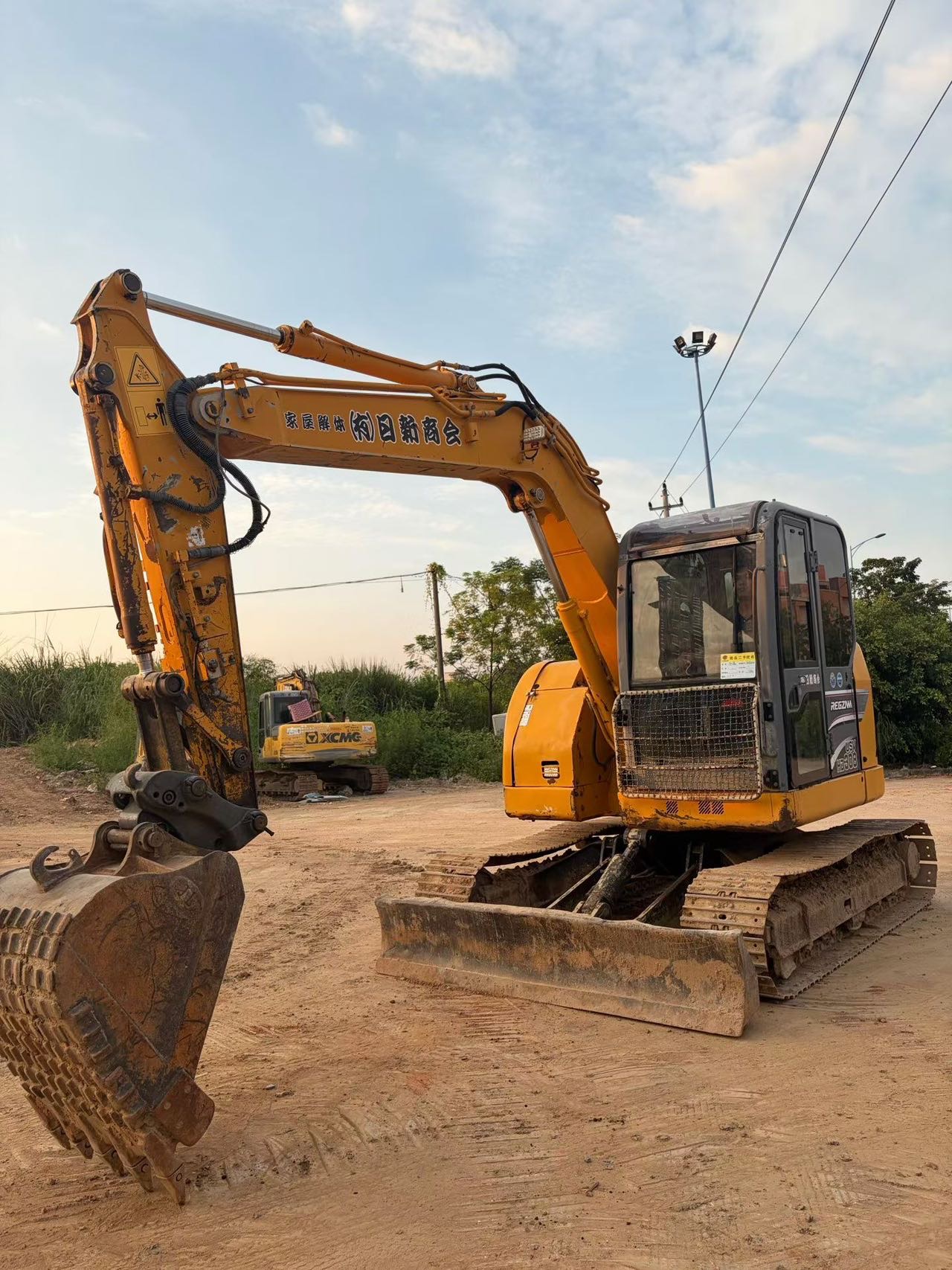

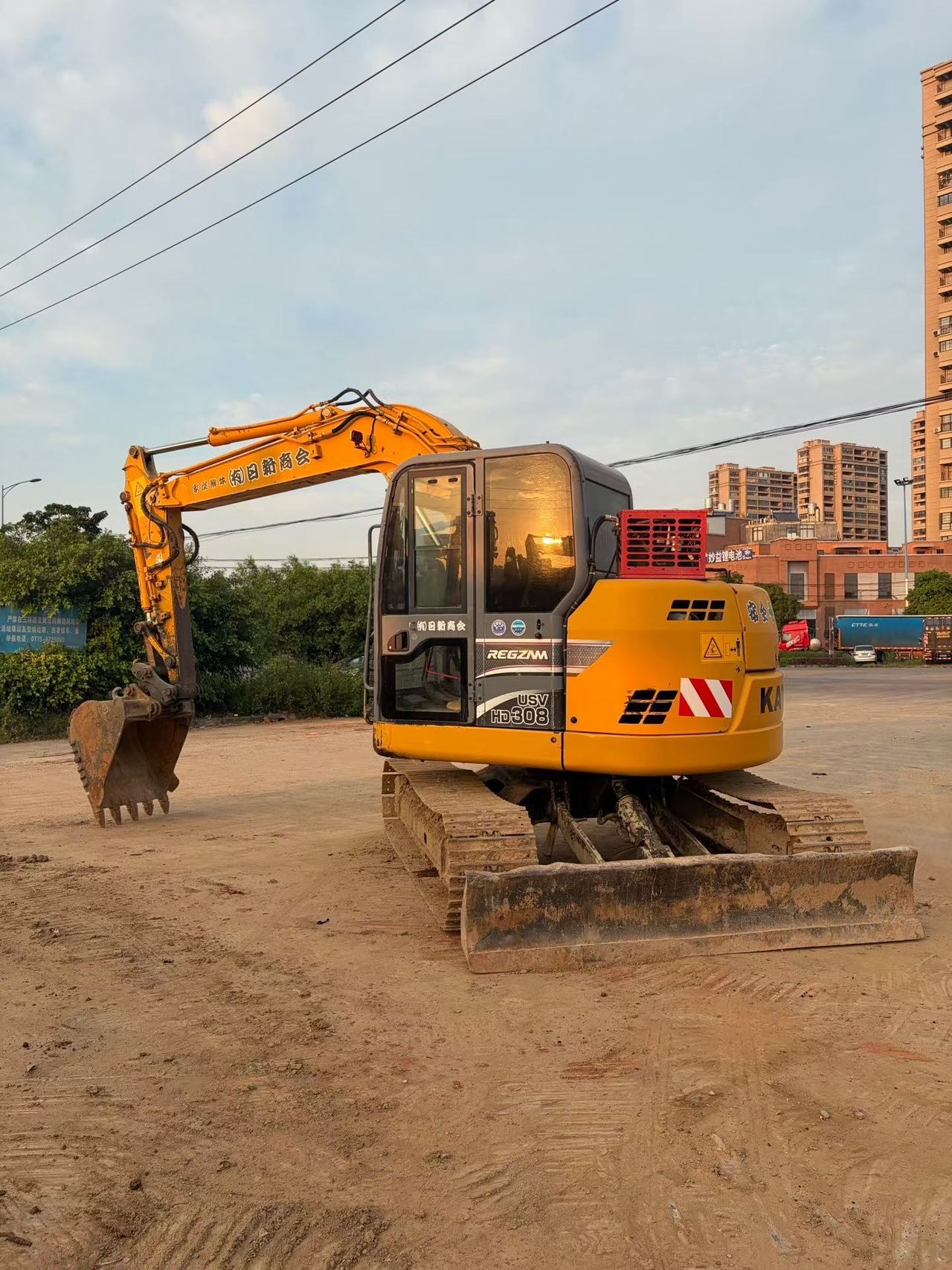

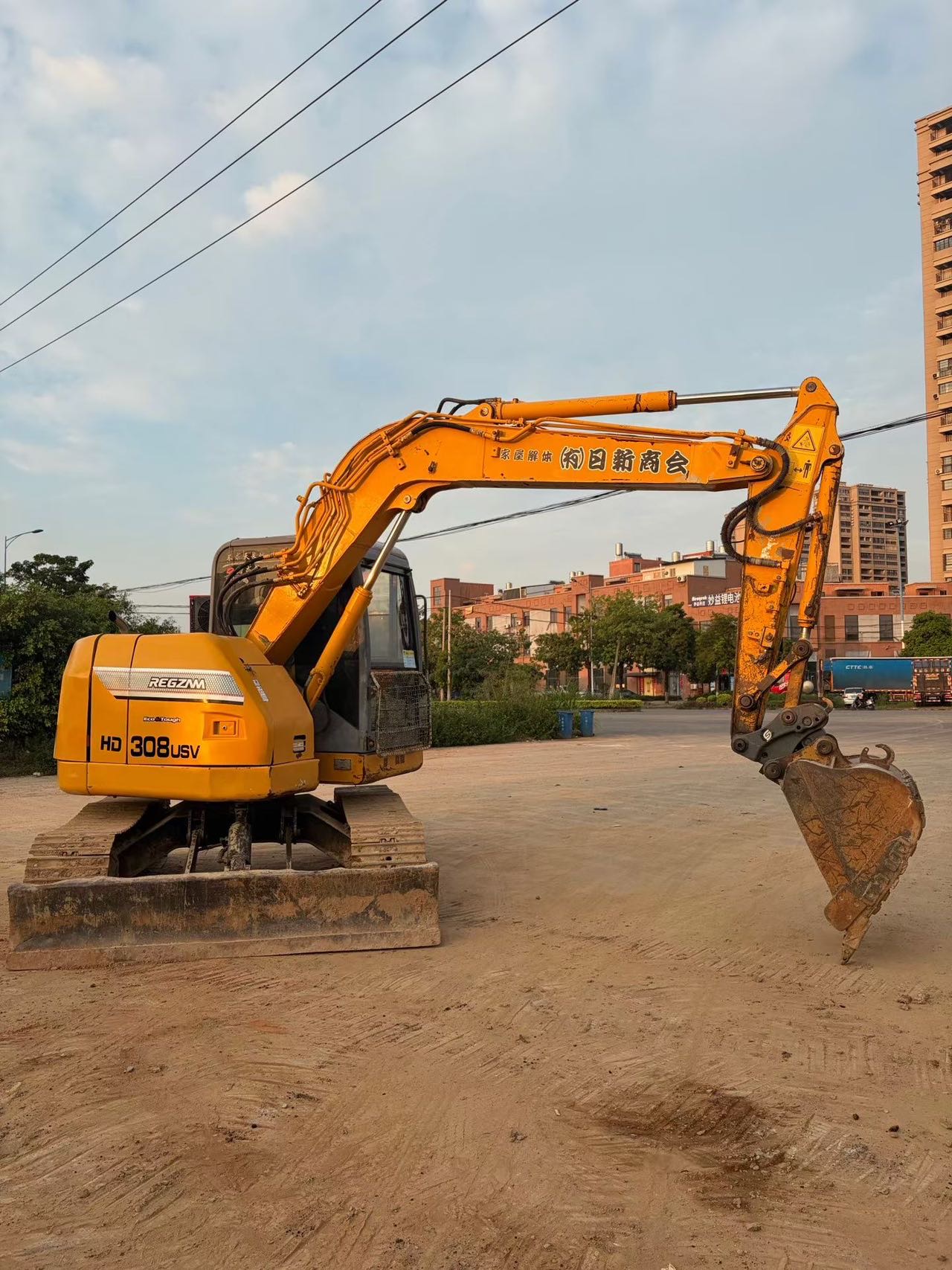

This 2020 Kato 308US mini excavator offers reliable performance for construction and earthmoving applications. Kato's 308US series is known for its compact footprint and operational efficiency, making it suitable for urban construction sites, utility work, and landscaping projects where space is limited.
Currently located in Guangxi, China, this unit represents an opportunity to acquire proven Japanese engineering at a competitive price point. The 308US features a compact design that balances maneuverability with digging capability, typical of Kato's mini excavator range.
- Year of Manufacture: 2020
- Manufacturer: Kato
- Model: 308US
- Location: Guangxi, China
- Condition: Used
This machine is available for inspection by qualified buyers. Contact us for additional operational details, service history, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1143135 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7600 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3830 |
| Rod length (mm) | 1620 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95.4 x 107 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 31.4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 61.4 |
| Rod digging force (kN) | 42.2 |
| Travel speed (km/h) | 2.0/3.4/5.0 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 77.7 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 745 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 920 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 x 960 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 48 |
| Engine Oil changes (L) | 9.6 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 95 |
| Total transport length (mm) | 6300 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 740 |
| Minimum turning radius of front working device (mm) | 1630 |
| Back end turning radius (mm) | 1190 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2260 |
| Maximum digging radius (mm) | 6470 |
| Maximum digging depth (mm) | 4120 |
| Maximum excavation height (mm) | 7430 |
| Maximum unloading height (mm) | 5320 |
| Maximum vertical digging depth (mm) | 3620 |
| Bulldozer lift or depth (mm) | 430/330 |
| Dodging plate width × height (mm) | 2300 x 360 |
