Product Description

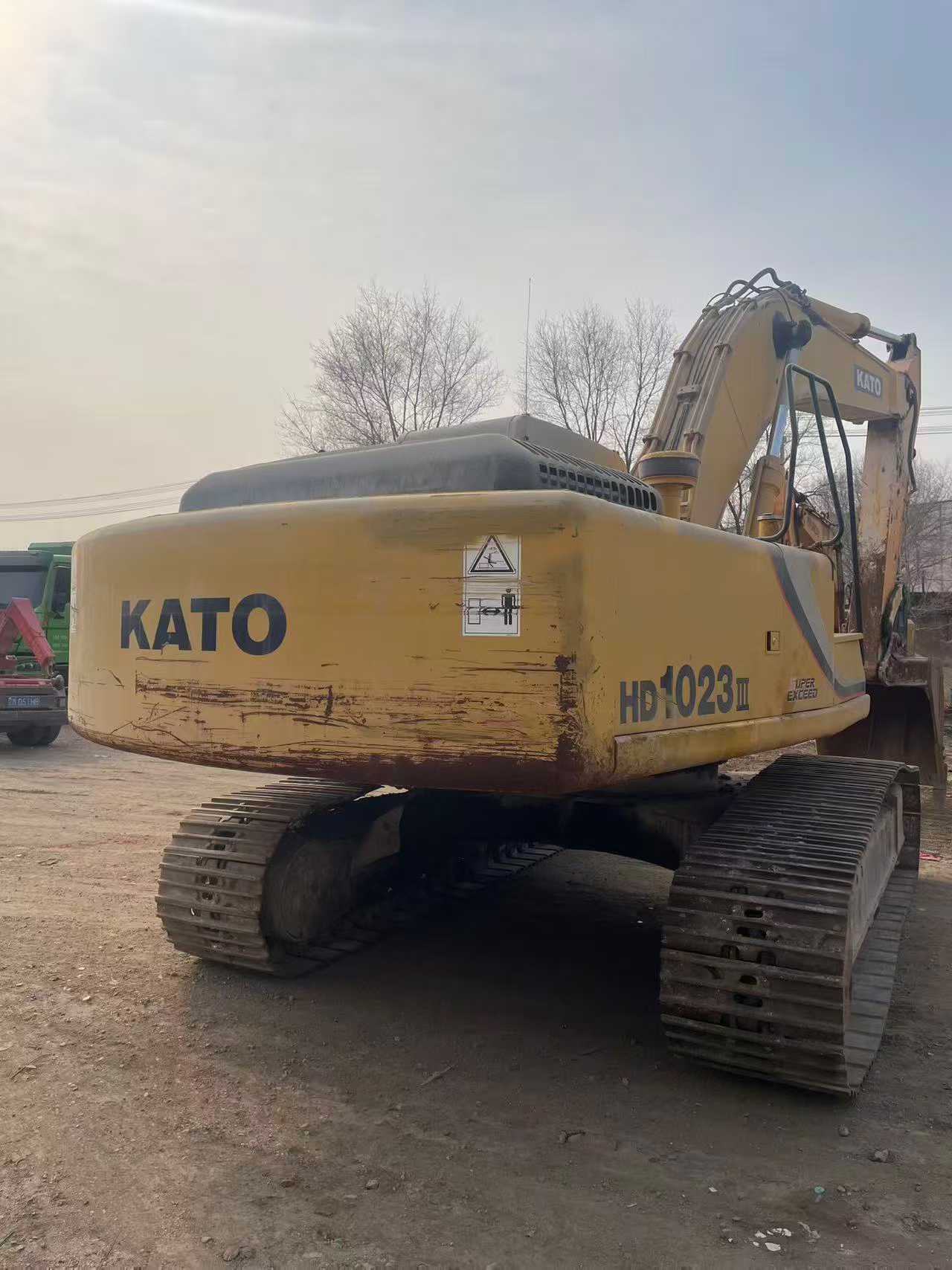

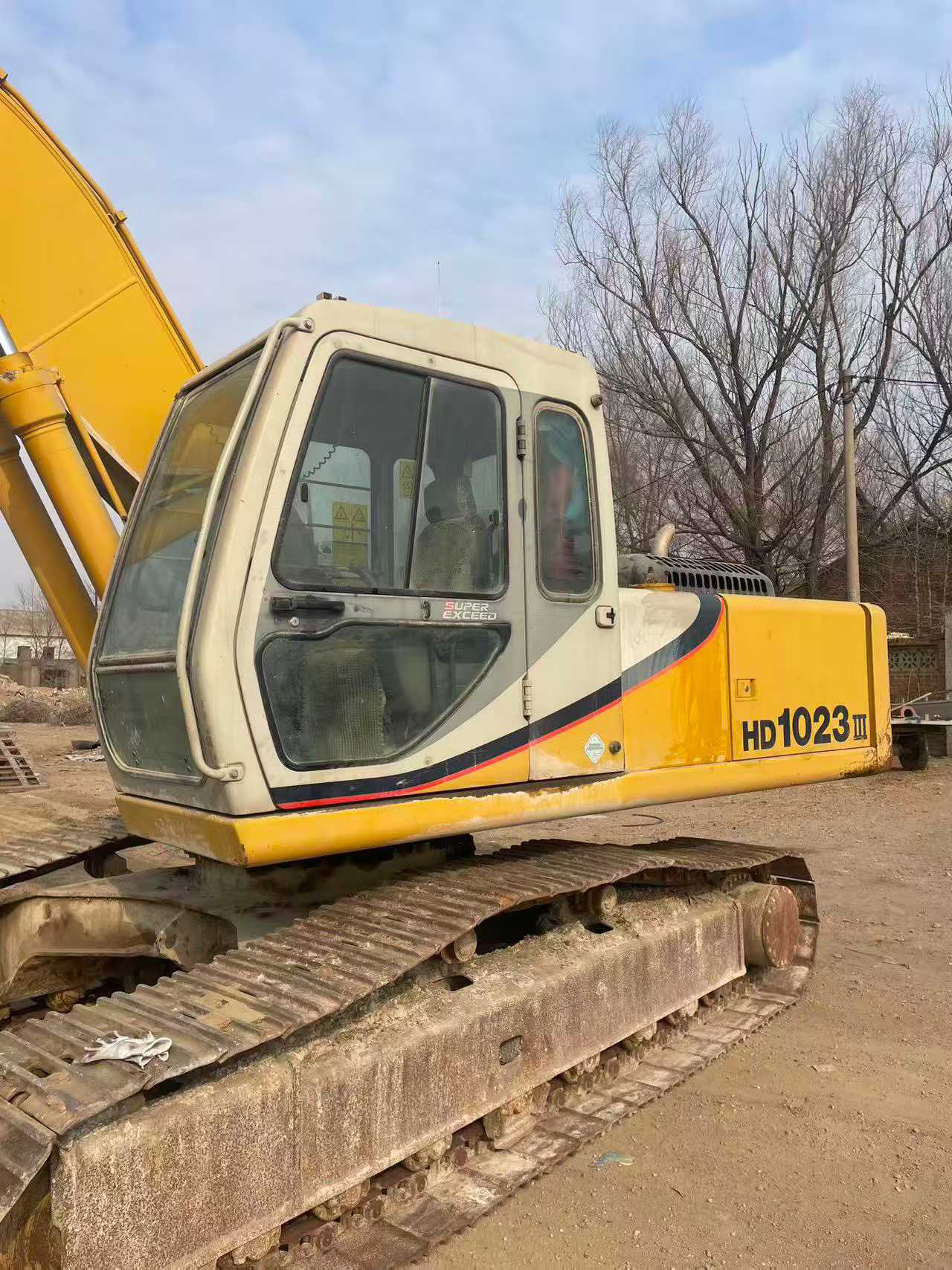

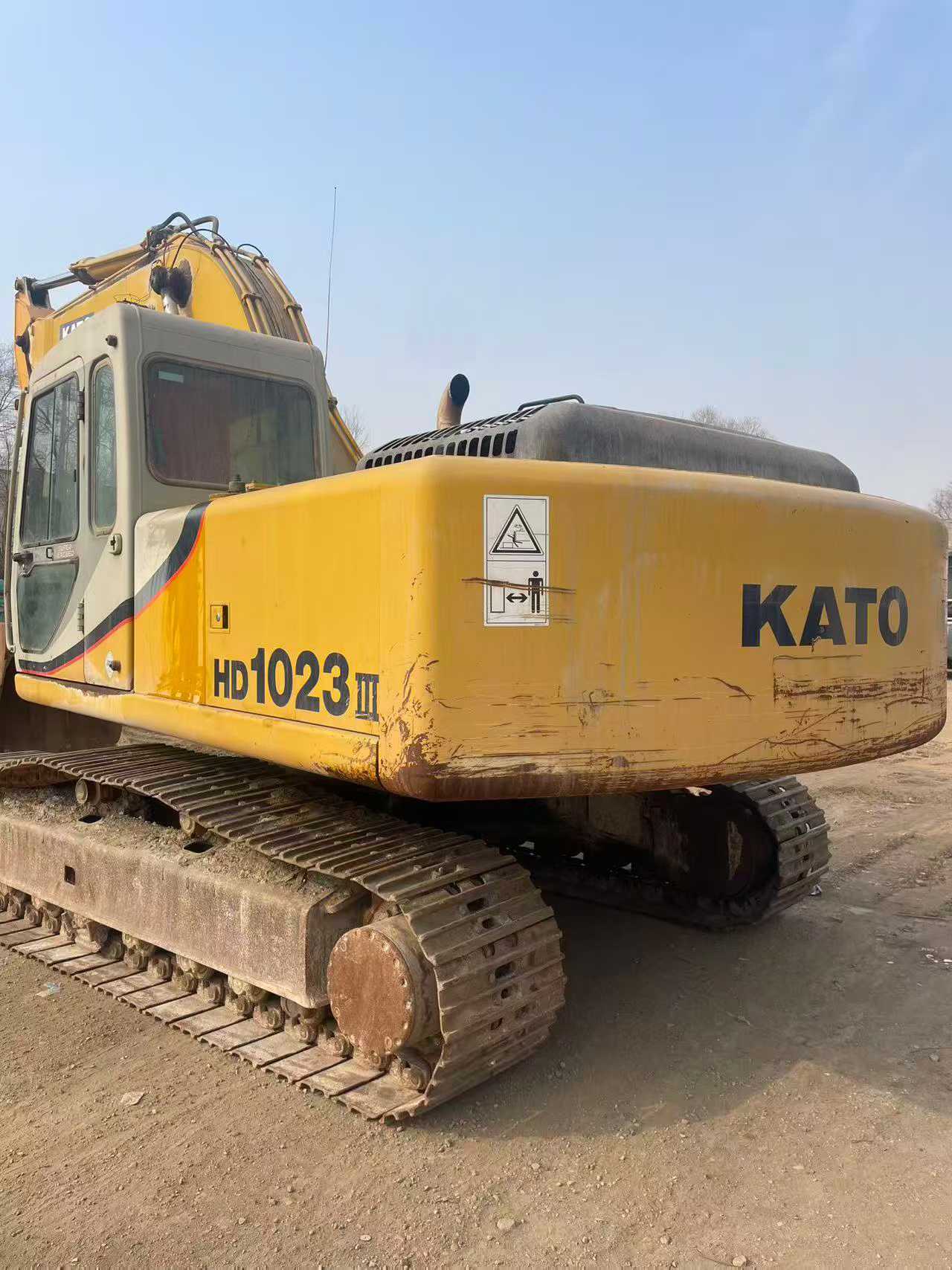

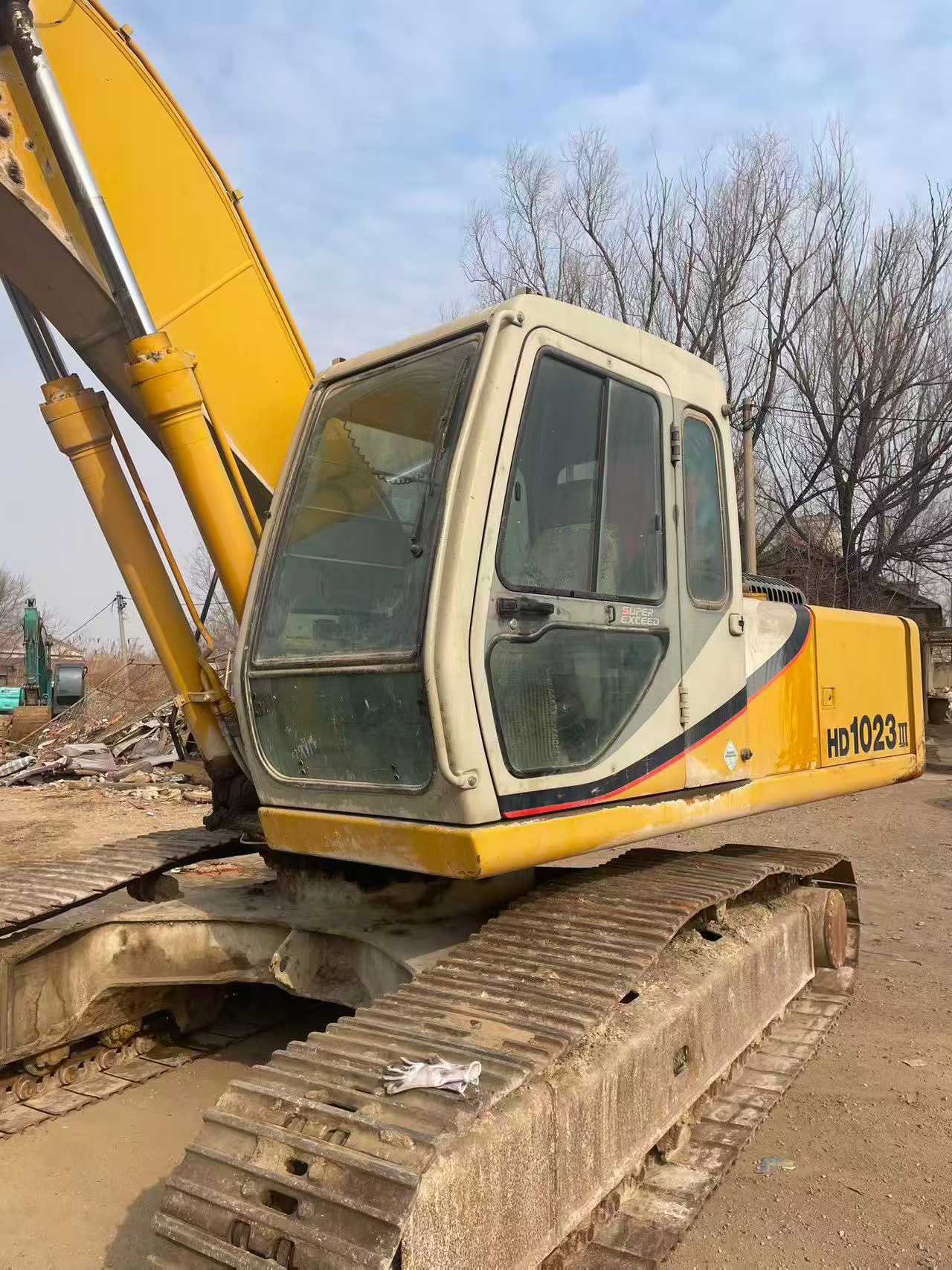

Engineered with precision by Kato's Japanese-led joint venture, this 2016 HD1023-LC delivers 23-ton class performance through proven mechanical architecture. Powered by a Mitsubishi 6D16-TE1 water-cooled diesel engine producing 125 kW at 2200 rpm, the machine combines a 7.545L displacement with direct injection efficiency for consistent output across demanding jobsites. Dual variable axial piston pumps supply 249 L/min each, driving a robust hydraulic system operating at 29.4 MPa working pressure—engineered to maximize digging forces of 174.6 kN (bucket) and 125.5 kN (arm) in Extra mode.
Heavy-duty construction is evident throughout: a 23,600 kg working weight distributed across 600mm triple-grouser tracks maintains 47.1 kPa ground pressure, while the 5,870mm boom and 2,960mm arm configuration achieves a 10,350mm maximum reach radius and 7,010mm dig depth. Variable bucket capacity from 0.55–1.5 m³ adapts to material density requirements. With 70% gradeability, 11 rpm slew speed, and triple travel speeds up to 5.5 km/h, this Shenzhen-based excavator represents Kato's commitment to hydraulic precision and structural integrity for large-scale earthmoving operations.
| Specifications | Value |
|---|---|
| No. | 1034730 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23600 |
| Bucket capacity (m³) | 0.55-1.5 |
| Boom length (mm) | 5870 |
| Rod length (mm) | 2960 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D16-TE1 |
| Rated power (kw/rpm) | 125/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 47.1 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 156.9 (Standard mode) /174.6 (Extra mode) |
| Rod digging force (kN) | 112.8 (Standard mode) /125.5 (Extra mode) |
| Travel speed (km/h) | 2.7/3.9/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 249 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 25.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10080 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3120 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 3100 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3840 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10170 |
| Maximum effective digging depth (mm) | 6850 |
