Product Description

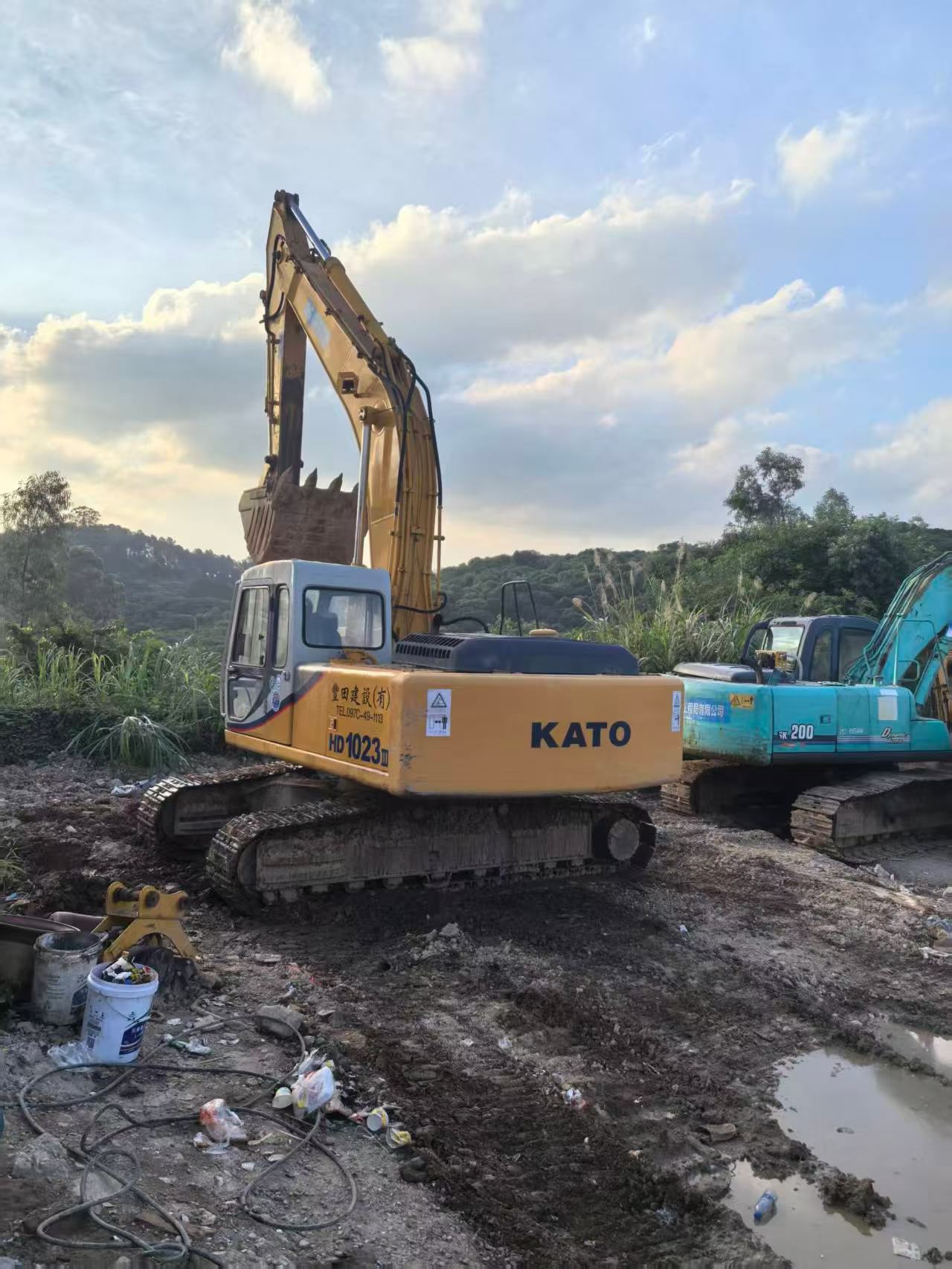

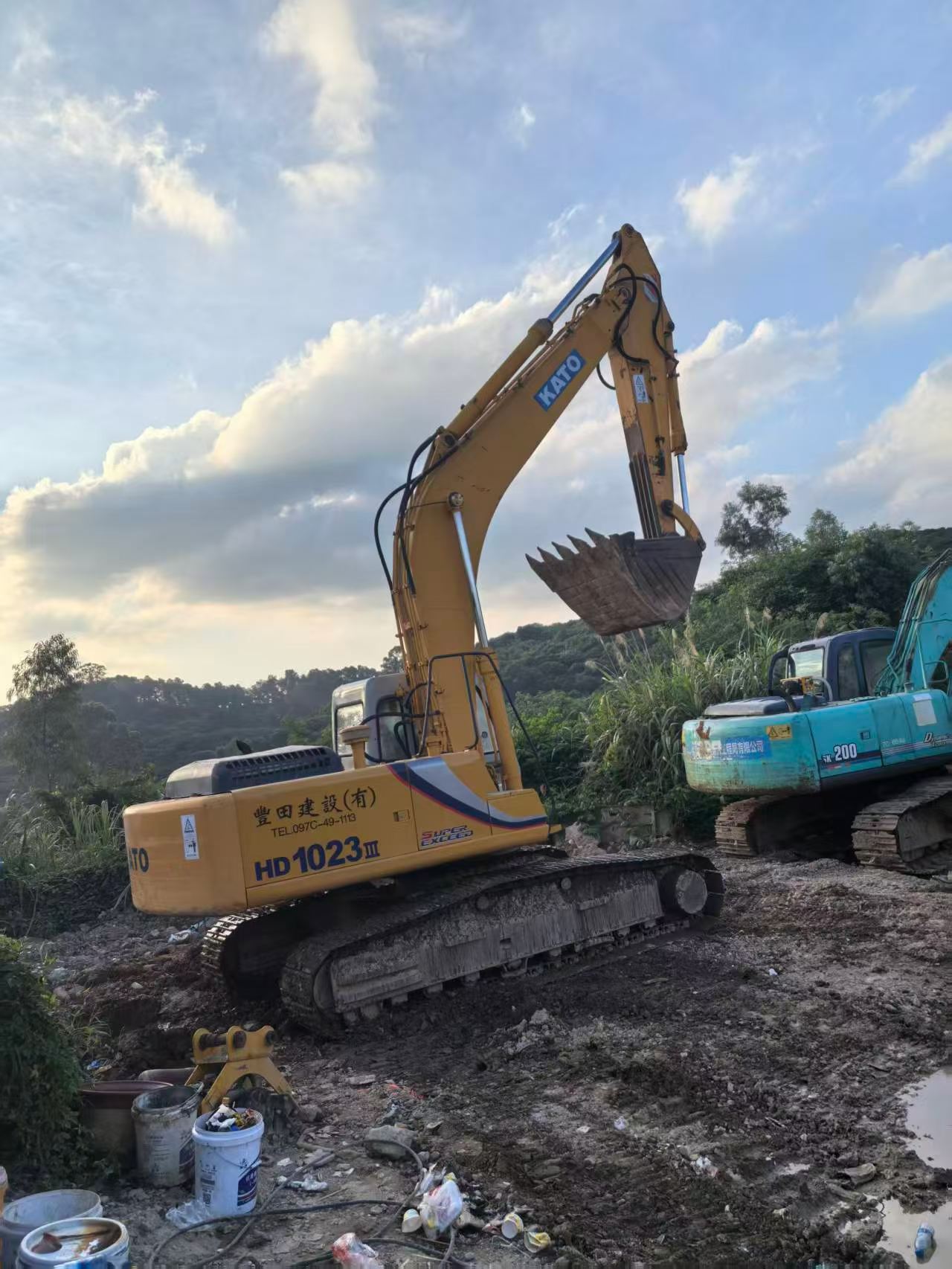

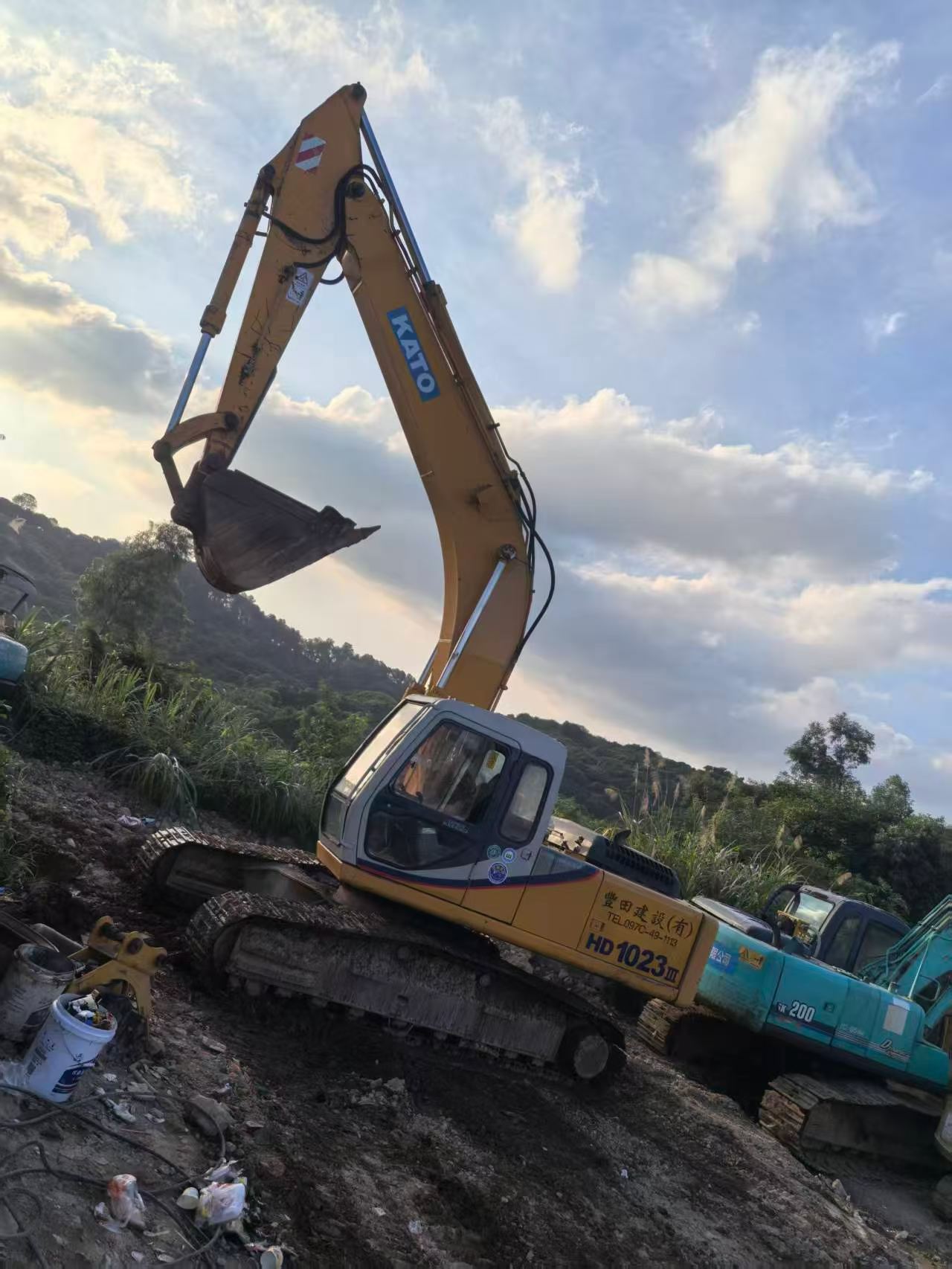

This 2020 Kato HD1023-LC hydraulic excavator is available in Guangdong, China, offering reliable performance for immediate deployment. The machine has been maintained to operational standards and is ready for site work without requiring additional inspections.
The HD1023-LC is designed for medium-duty excavation, trenching, and material handling applications. Its compact footprint and efficient hydraulics make it suitable for urban construction sites and infrastructure projects where maneuverability is essential.
- Year of Manufacture: 2020
- Manufacturer: Kato
- Model: HD1023-LC
- Location: Guangdong Province, China
- Condition: Operational, performance verified
- Availability: Ready for immediate site deployment
This unit represents a cost-effective solution for contractors seeking dependable excavation equipment with minimal downtime. Inspection and viewing can be arranged at the Guangdong location.
| Specifications | Value |
|---|---|
| No. | 1072699 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23600 |
| Bucket capacity (m³) | 0.55-1.5 |
| Boom length (mm) | 5870 |
| Rod length (mm) | 2960 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

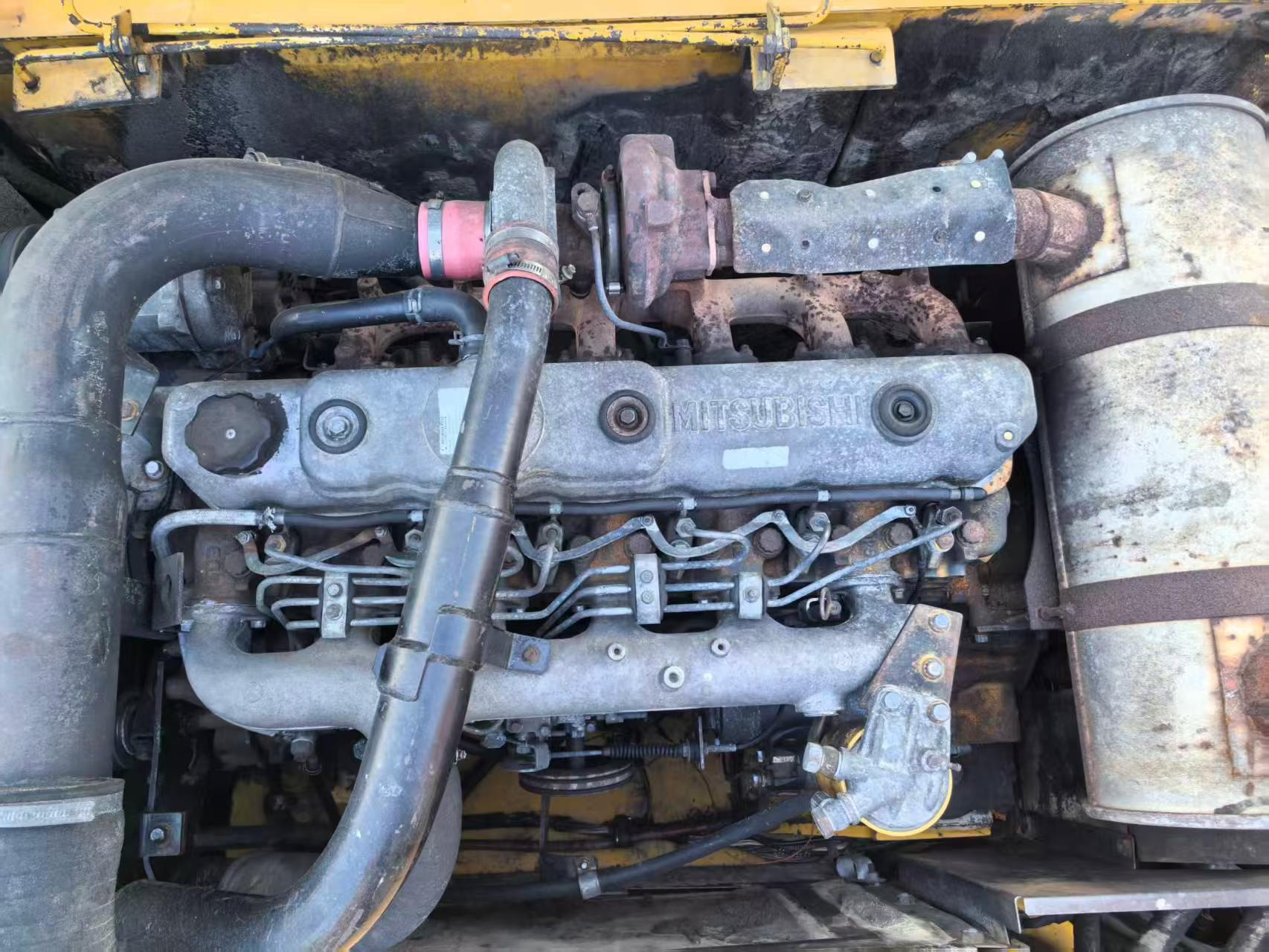

| Engine type | Mitsubishi 6D16-TE1 |
| Rated power (kw/rpm) | 125/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 47.1 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 156.9 (Standard mode) /174.6 (Extra mode) |
| Rod digging force (kN) | 112.8 (Standard mode) /125.5 (Extra mode) |
| Travel speed (km/h) | 2.7/3.9/5.5 |

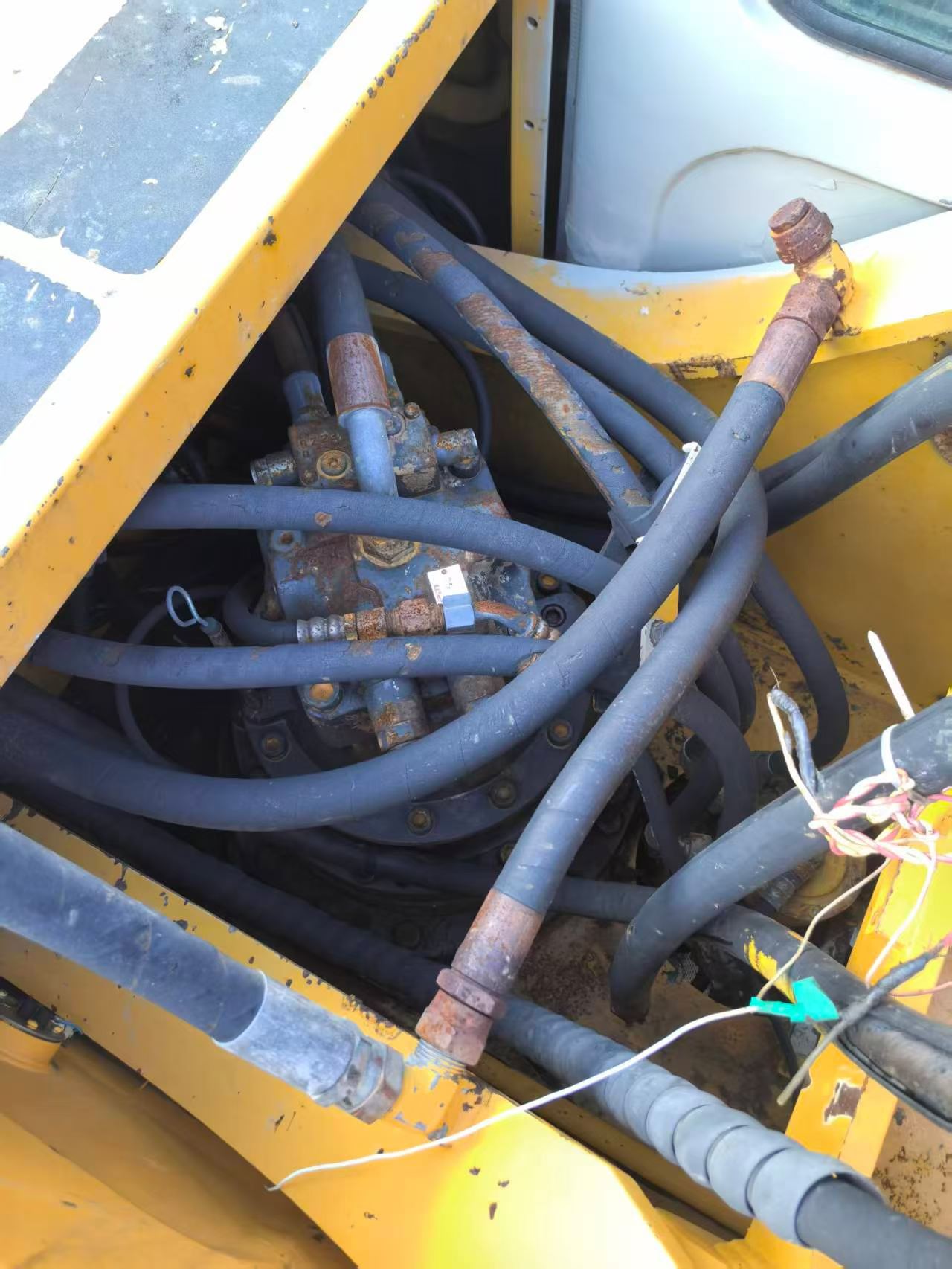

| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 249 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Hydraulic crushing pipeline is standard | no |

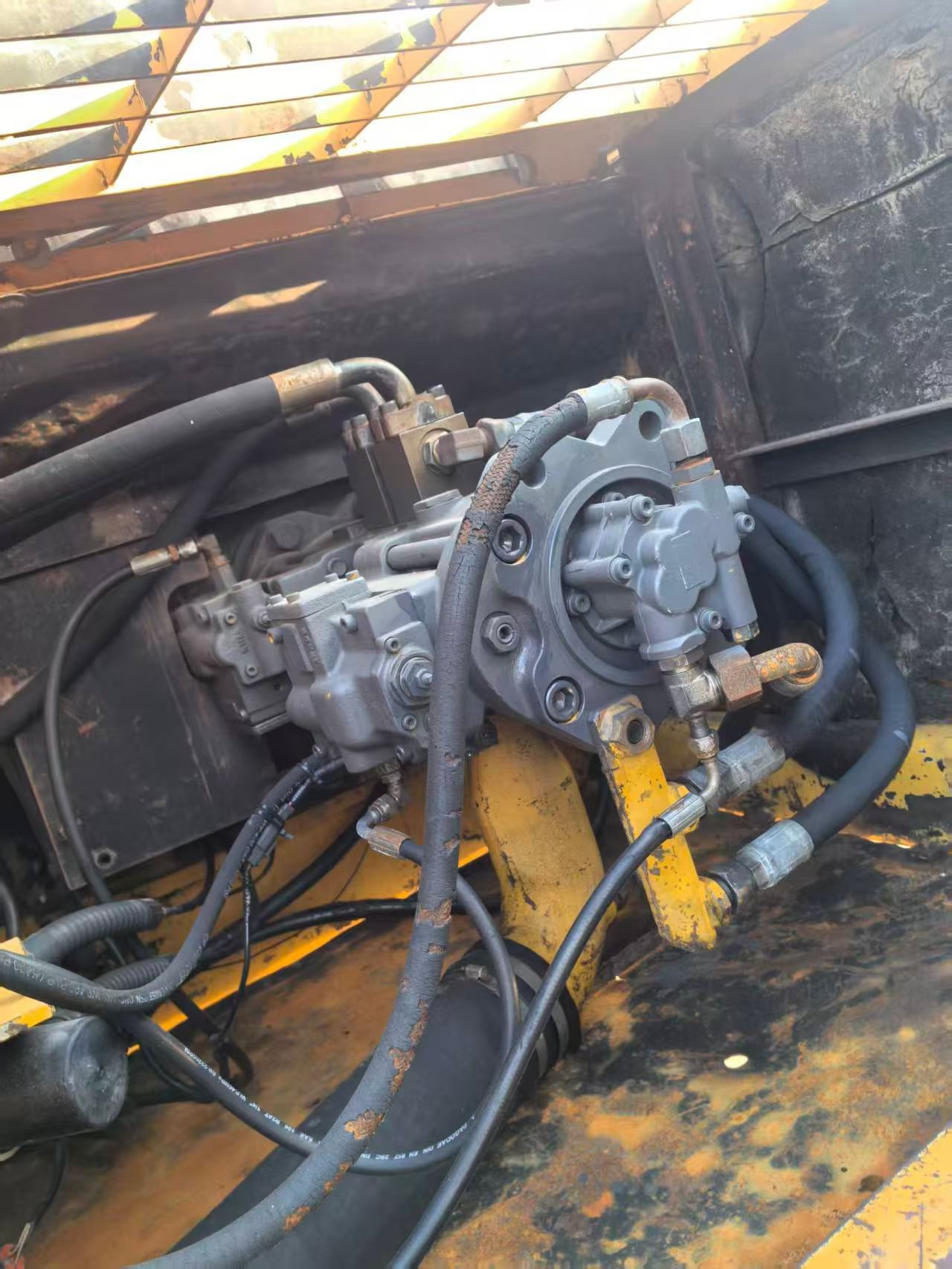

| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 25.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10080 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3120 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 3100 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3840 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10170 |
| Maximum effective digging depth (mm) | 6850 |
