Product Description
This 2020 Kato HD1430R crawler crane is currently located in Guangdong, China. As a mid-sized hydraulic crawler crane from Kato's HD series, this machine is designed for lifting operations in construction, infrastructure, and industrial projects. The HD1430R offers reliable performance with proven Japanese engineering, making it suitable for contractors requiring dependable lifting capacity on job sites with varying ground conditions.
- Year of Manufacture: 2020
- Manufacturer: Kato (Japan)
- Model: HD1430R
- Type: Hydraulic Crawler Crane
- Current Location: Guangdong Province, China
- Condition: Used
This unit represents an opportunity to acquire Japanese-manufactured lifting equipment at used equipment pricing. Ideal for buyers seeking crawler crane capacity for medium-duty applications. Available for inspection in Guangdong. Contact us for detailed specifications, current condition assessment, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1167451 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30700 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

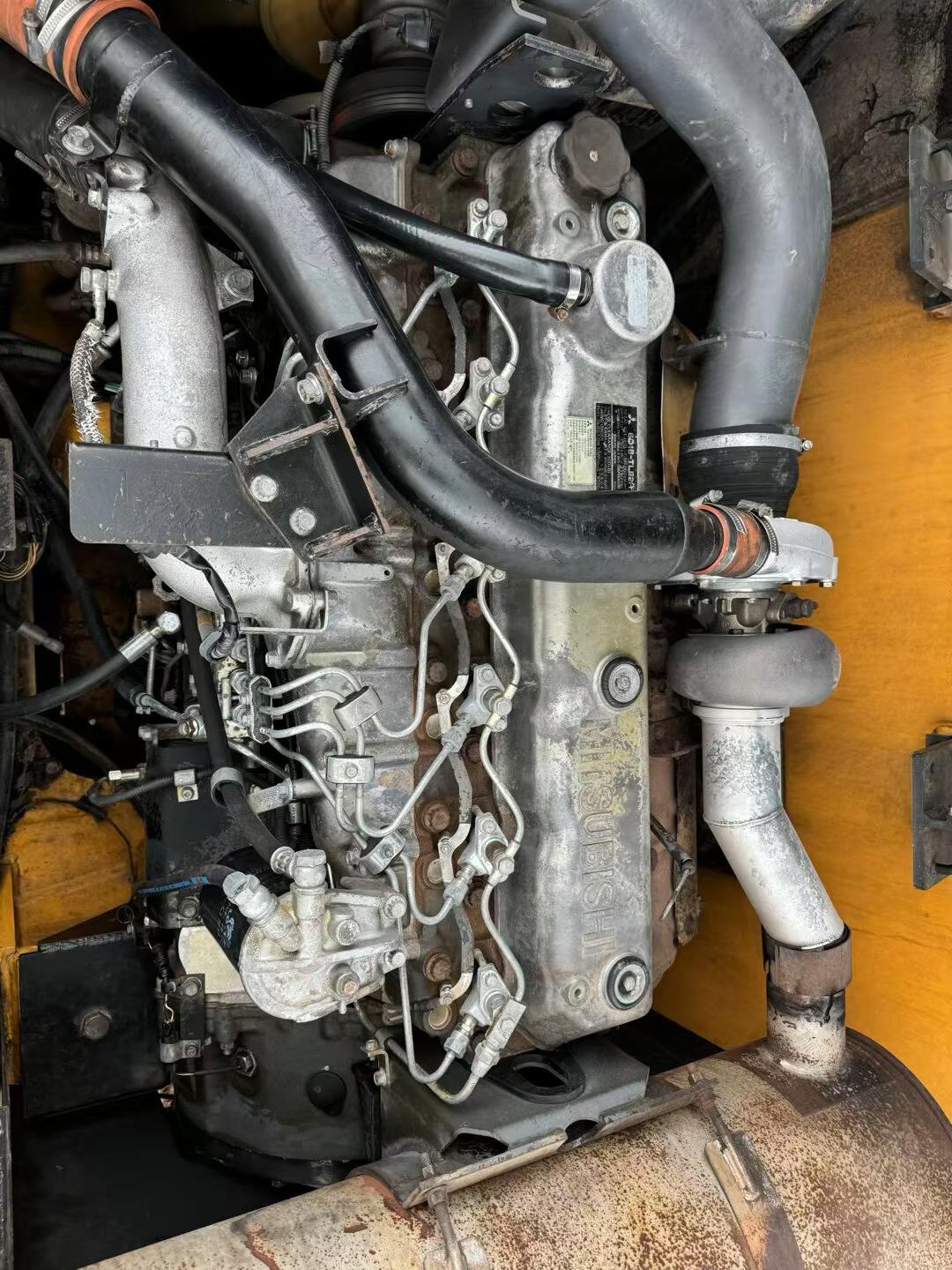

| Engine type | Mitsubishi 6D16-TLC1A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 225 (Standard mode) /236 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /167 (Power mode) |
| Travel speed (km/h) | 3.7/5.5 |

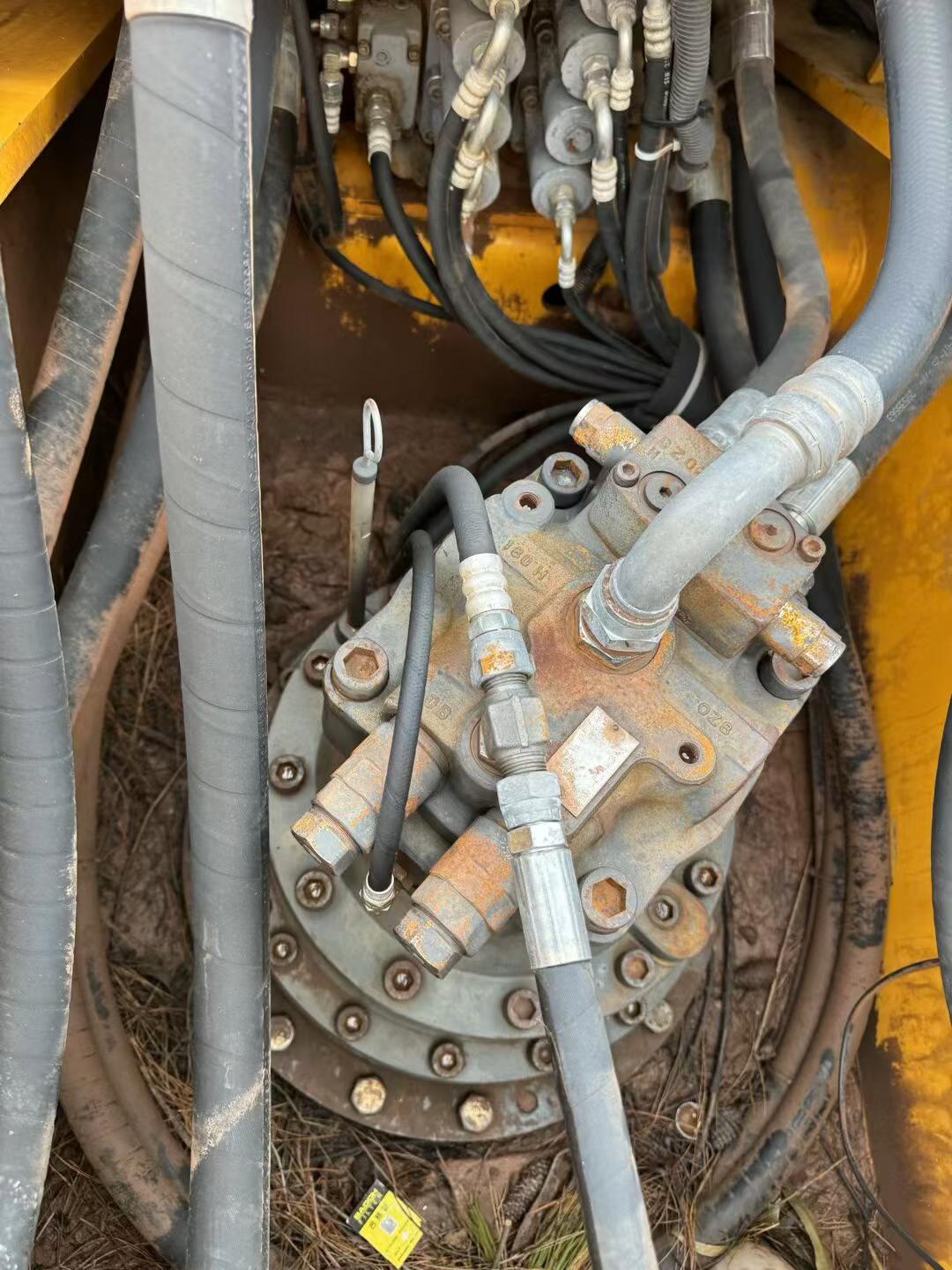

| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 301 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |

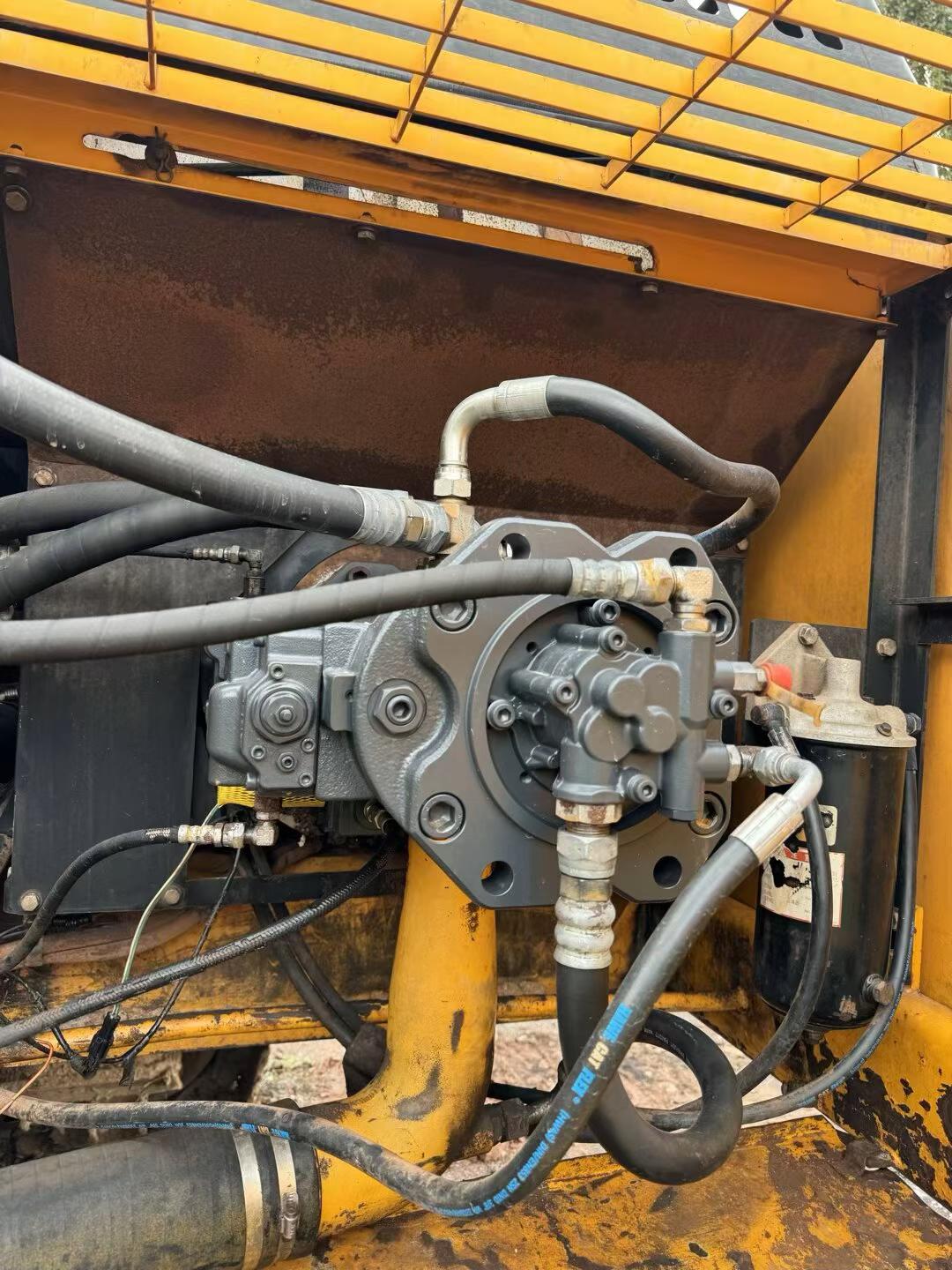

| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 37 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3380 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |

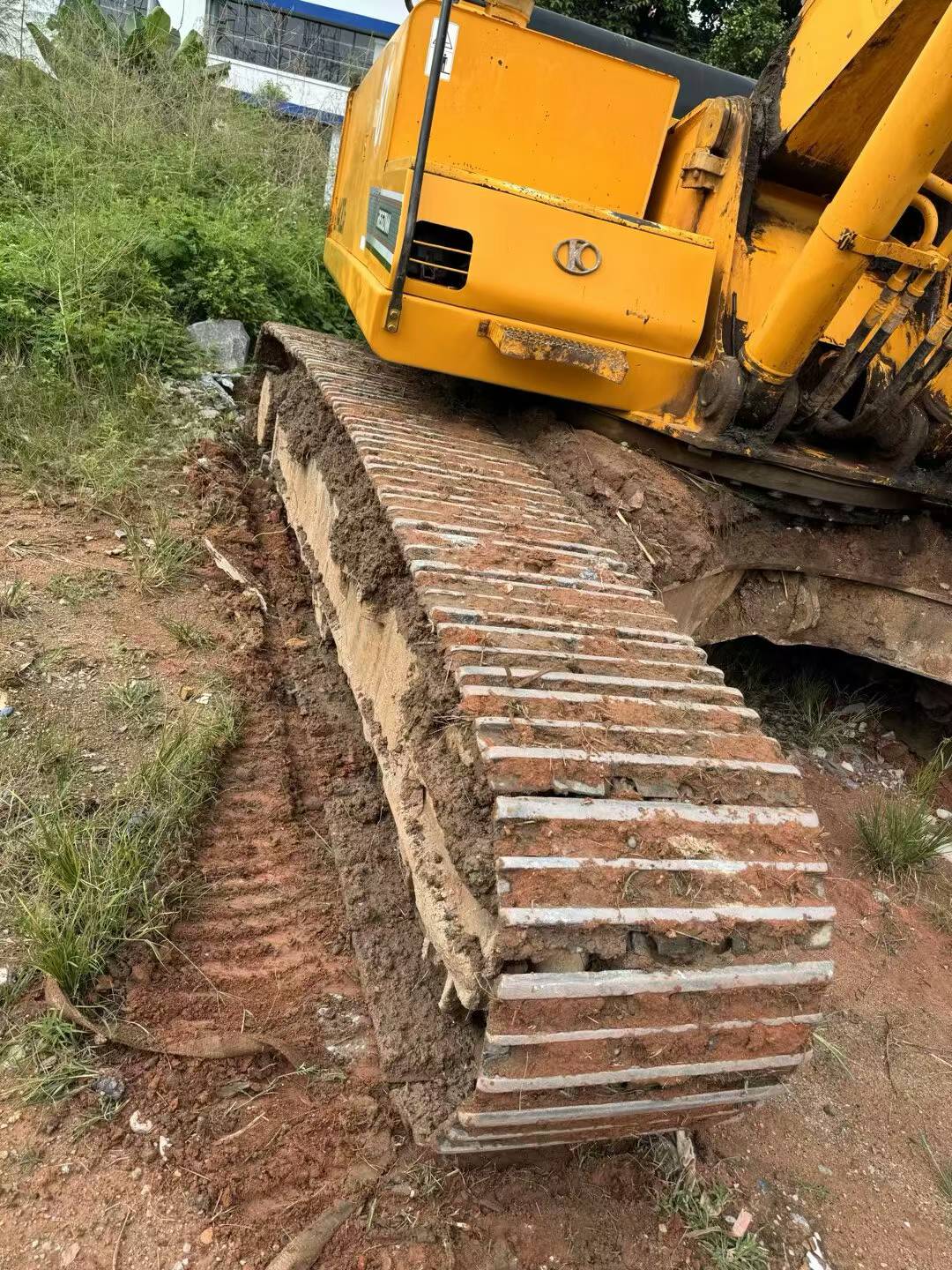

| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11160 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 5920 |
