Product Description

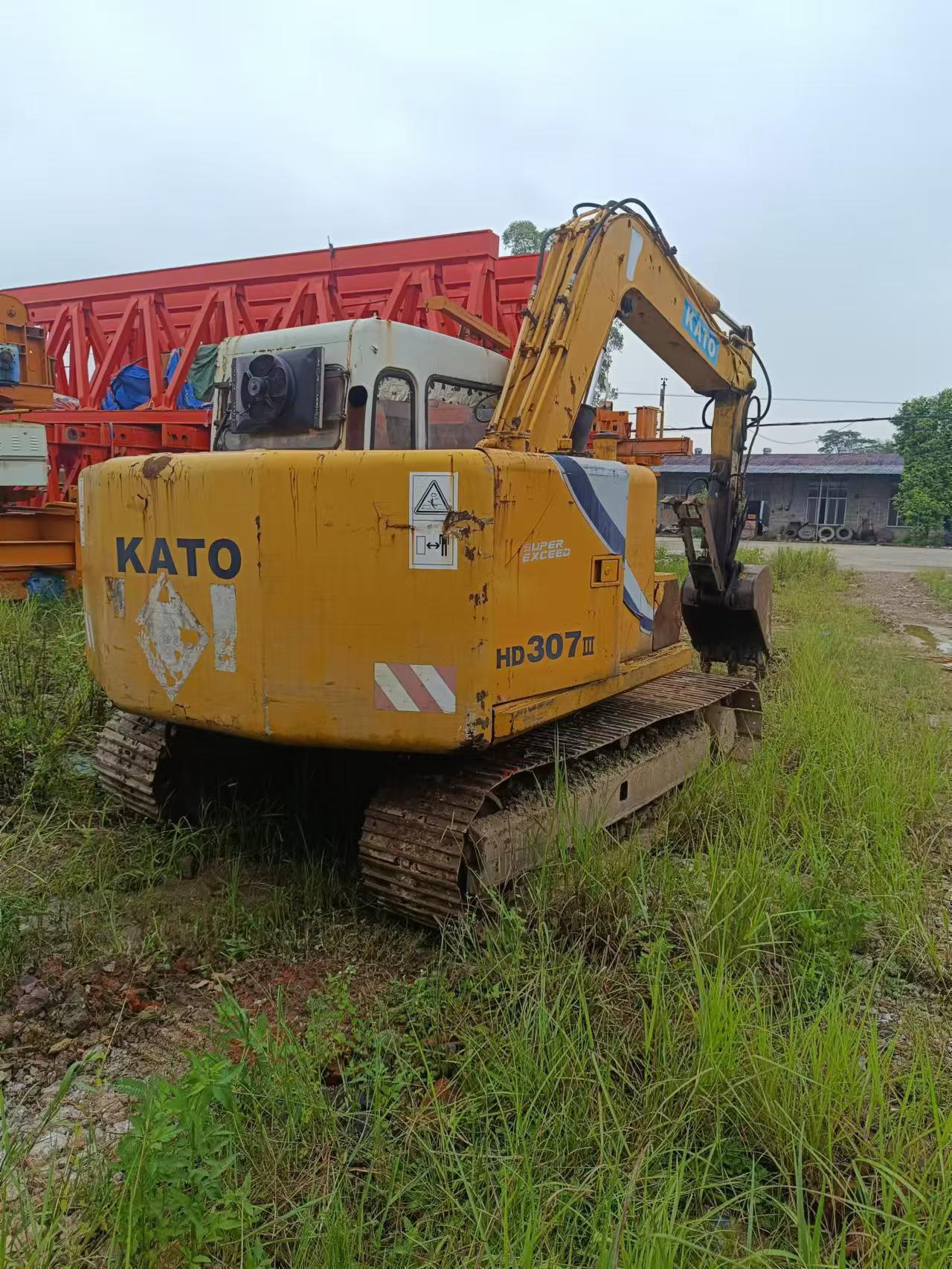

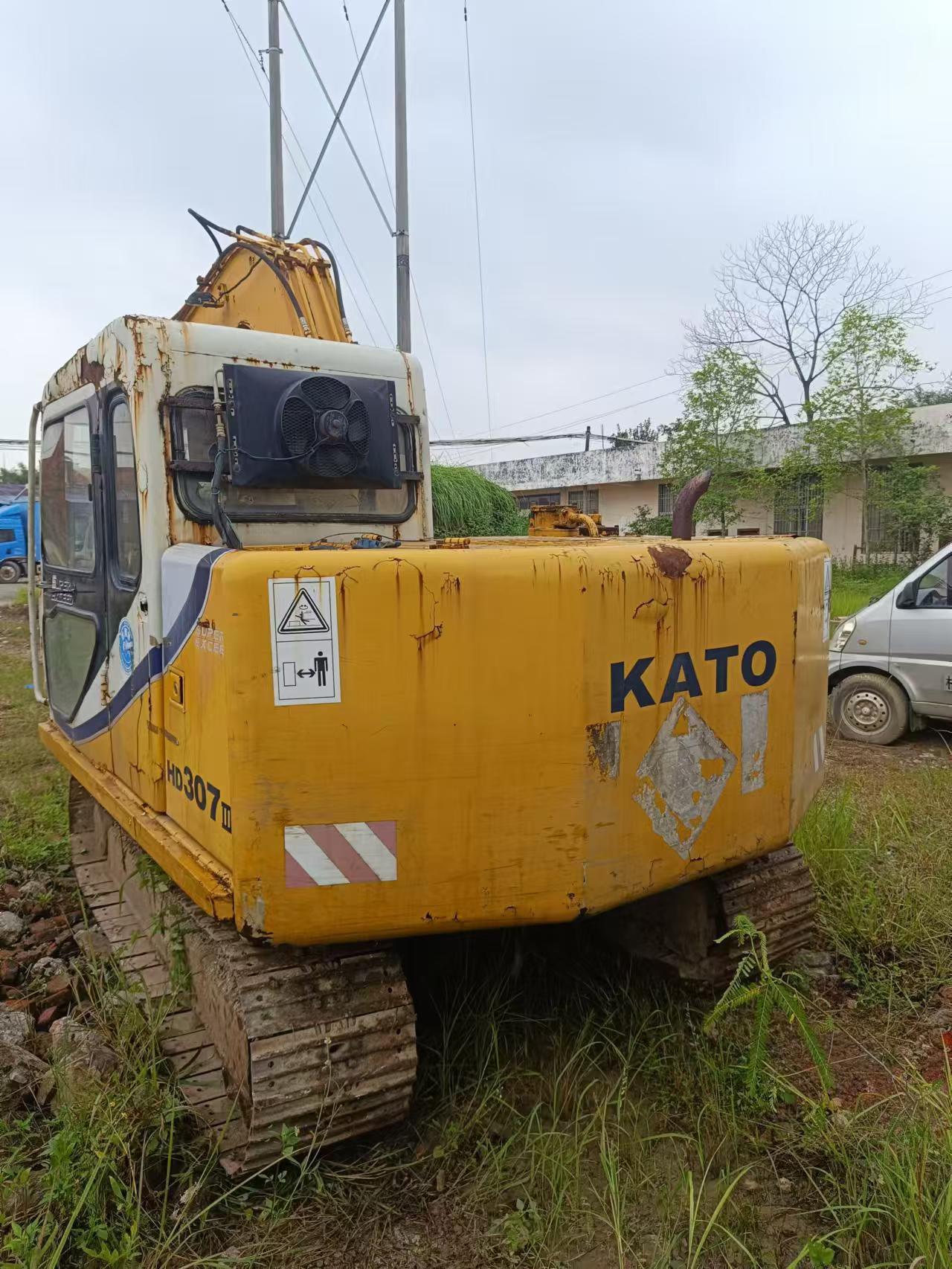

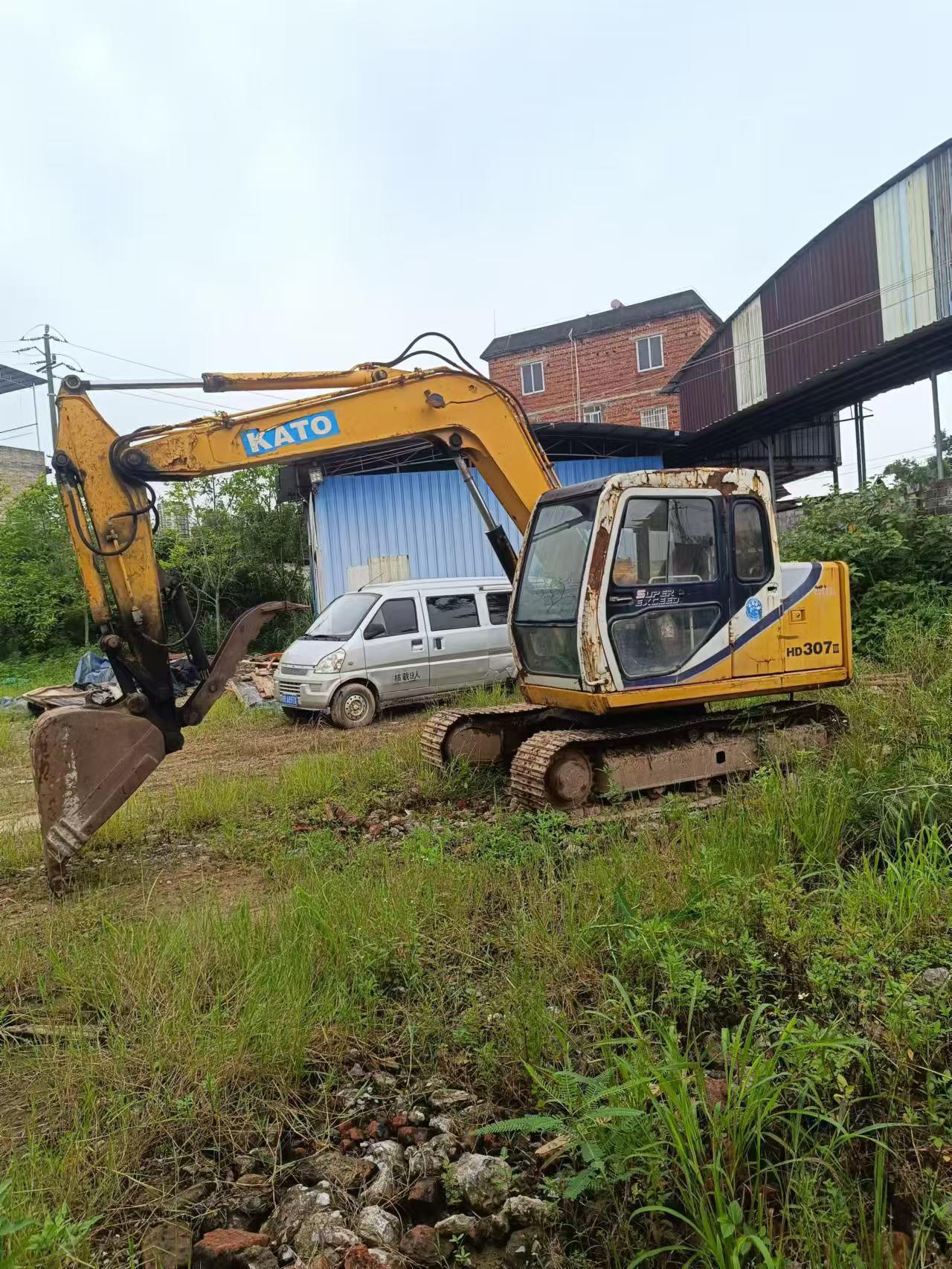

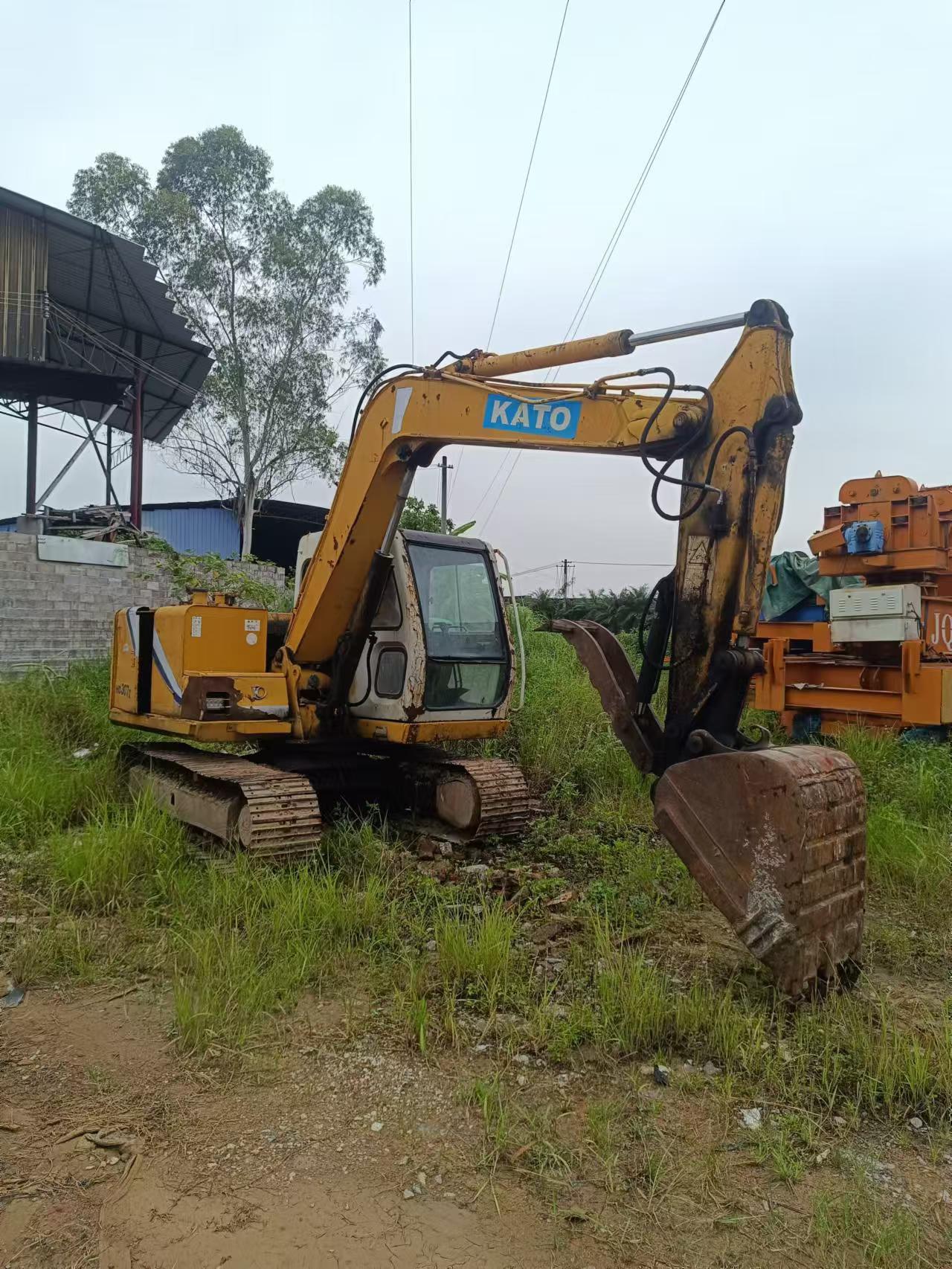

Discover the reliability and performance of the 2020 Kato HD307, available now in Guangxi, China. This used heavy machine is a robust choice for various industrial applications, offering a blend of durability and efficiency. With approximately 30,000 operational hours, this excavator has proven its capability in demanding environments. Ideal for construction, mining, and infrastructure projects, the Kato HD307 is designed to handle tough tasks with ease. Invest in a machine that combines power, precision, and a strong track record of performance.
- Year: 2020
- Brand: Kato
- Model: HD307
- Location: Guangxi, China
- Operational Hours: Approximately 30,000
| Specifications | Value |
|---|---|
| No. | 1115654 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6400 |
| Bucket capacity (m³) | 0.12-0.34 |
| Boom length (mm) | 3690 |
| Rod length (mm) | 1720 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU A-4JB1 |
| Rated power (kw/rpm) | 42/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 93 x 102 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.771 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57.9 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 3.7/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 82 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90 x 745 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-100 x 925 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-115 x 975 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 65 |
| Engine Oil changes (L) | 8 |
| Coolant (L) | 9.5 |
| Hydraulic System (L) | 105 |
| Total transport length (mm) | 6370 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2610 |
| Full cab height (mm) | 2560 |
| Counterweight ground clearance (mm) | 730 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1640 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2730 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2120 |
| Maximum digging radius (mm) | 6430 |
| Maximum digging depth (mm) | 4210 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 5280 |
| Maximum vertical digging depth (mm) | 3740 |
| Bulldozer lift or depth (mm) | 480/450 |
| Dodging plate width × height (mm) | 2300 x 420 |
| Maximum excavation radius of stop surface (mm) | 6280 |
| Maximum effective digging depth (mm) | 3880 |
