Product Description

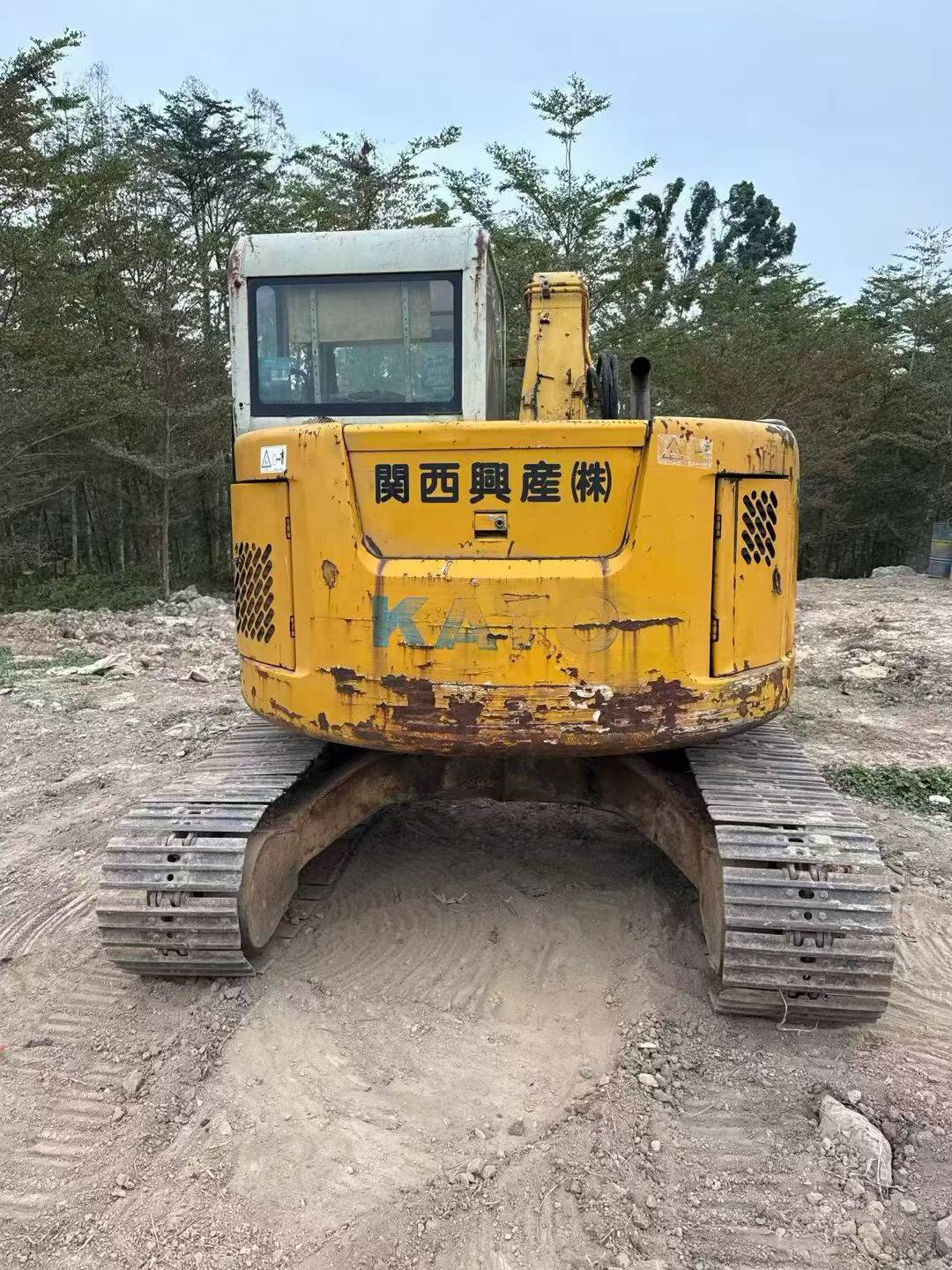

With a working weight of 7300 kg and a bucket capacity of 0.3 m³, this 2016 Kato HD308R excavator, located in 广东茂名, offers high performance at a fraction of the cost of new machinery. Equipped with an ISUZU 4JG1, 4-cycle engine, it delivers a rated power of 40.5 kW at 2100 rpm, ensuring reliable and efficient operation. The water-cooled engine, combined with a maximum torque of 191 N.m at 1800 rpm, provides the robustness needed for demanding tasks.
- Bucket digging force: 61.4 kN
- Maximum tractive force: 66.8 kN
- Travel speed: 5 km/h
- Fuel tank capacity: 140 L
- Total transport dimensions: 6410 mm (length) x 2330 mm (width) x 2590 mm (height)
Investing in this used Kato HD308R is a smart financial decision, offering significant savings without compromising on performance or reliability. Ideal for a variety of construction and excavation projects, this machine ensures a strong return on investment.
| Specifications | Value |
|---|---|
| No. | 1003005 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7300 |
| Bucket capacity (m³) | 0.3 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

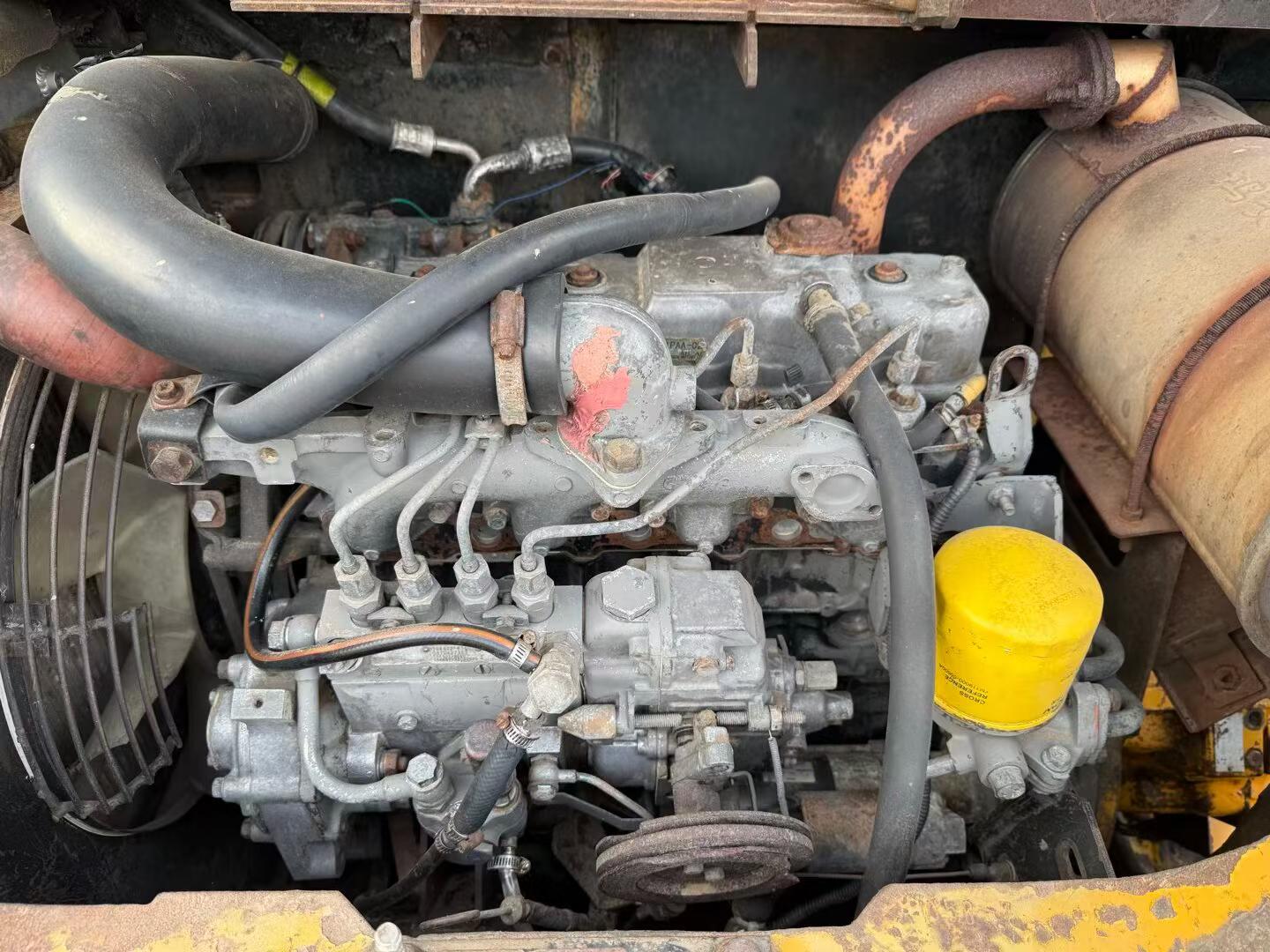

| Engine type | ISUZU 4JG1, 4-cycle engine |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95.4*107 |
| Maximum torque (N.m) | 191/1800 |
| Number of cylinders (PCS) | 4 |
| Ground specific pressure (Kpa) | 34 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 61.4 |
| Rod digging force (kN) | 42.2 |
| Maximum tractive force (kN) | 66.8 |
| Travel speed (km/h) | 5 |
| Main overflow set pressure (Mpa) | 29.4 |
| Maximum flow of main pump (l/min) | 2*77.7 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*85*745 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*920 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*105*960 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 66 |
| Engine Oil changes (L) | 9.6 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 105 |
| Total transport length (mm) | 6410 |
| Total transport width (mm) | 2330 |
| Total transport height (mm) | 2590 |
| Counterweight ground clearance (mm) | 740 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1630 |
| Back end turning radius (mm) | 1770 |
| Total track length (mm) | 2850 |
| Track ground length (mm) | 2260 |
| Maximum digging radius (mm) | 6470 |
| Maximum digging depth (mm) | 4120 |
| Maximum excavation height (mm) | 7440 |
| Maximum unloading height (mm) | 5320 |
| Maximum vertical digging depth (mm) | 3620 |
