2020 Kato HD308R

1/9

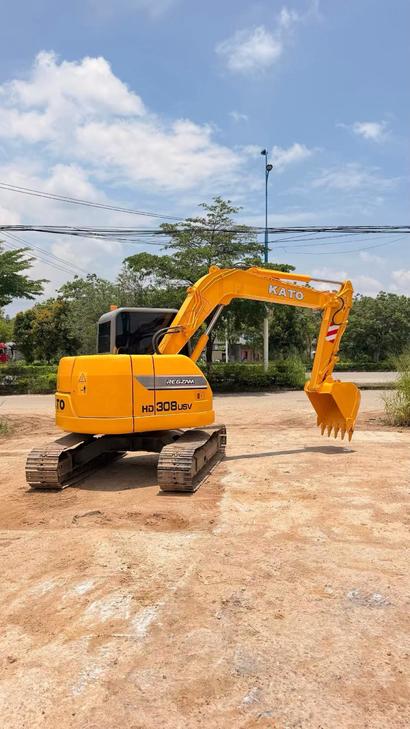

Buy Kato HD308R Used Excavator / 1
Buy Kato HD308R Used Excavator / 2
Buy Kato HD308R Used Excavator / 3
Buy Kato HD308R Used Excavator / 4
Buy Kato HD308R Used Excavator / 5
Buy Kato HD308R Used Excavator / 6
Buy Kato HD308R Used Excavator / 7
Buy Kato HD308R Used Excavator / 8
Buy Kato HD308R Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Kato HD308R, available now in Guangxi, China. This machine is known for its robust performance, making it an ideal choice for a variety of industrial applications. The HD308R has been well-maintained, ensuring that it delivers the high standards expected from the Kato brand. With a competitive price of 89,000 RMB, this excavator offers excellent value for businesses looking to enhance their fleet with a dependable and cost-effective solution.

  • Year: 2020
  • Brand: Kato
  • Model: HD308R
  • Location: Guangxi, China
  • Price: 89,000 RMB
SpecificationsValue
No.1134112
Tonnage (tons)8
Working weight (kg)7300
Bucket capacity (m³)0.3
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU 4JG1, 4-cycle engine
Rated power (kw/rpm)40.5/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95.4*107
Maximum torque (N.m)191/1800
Number of cylinders (PCS)4
Ground specific pressure (Kpa)34
Rotation speed (rpm)11
Climbing ability (%)70
Bucket digging force (kN)61.4
Rod digging force (kN)42.2
Maximum tractive force (kN)66.8
Travel speed (km/h)5
Main overflow set pressure (Mpa)29.4
Maximum flow of main pump (l/min)2*77.7
Bucket cylinders - Number × diameter × stroke (mm)1*85*745
Bucket rod cylinders - Number × diameter × stroke (mm)1*95*920
Boom cylinders - Number × diameter × stroke (mm)1*105*960
Fuel Tank (L)140
Hydraulic Tank (L)66
Engine Oil changes (L)9.6
Coolant (L)11
Hydraulic System (L)105
Total transport length (mm)6410
Total transport width (mm)2330
Total transport height (mm)2590
Counterweight ground clearance (mm)740
Minimum ground clearance (mm)360
Minimum turning radius of front working device (mm)1630
Back end turning radius (mm)1770
Total track length (mm)2850
Track ground length (mm)2260
Maximum digging radius (mm)6470
Maximum digging depth (mm)4120
Maximum excavation height (mm)7440
Maximum unloading height (mm)5320
Maximum vertical digging depth (mm)3620
see more

Overview

No.1134112

Brand Name:

Kato

Model Number:

HD308R

Year:

2020

Location:

Guangxi China

Pub Date
