HOME>>Kato>>Kato HD308R

2020 Kato HD308R

1/9

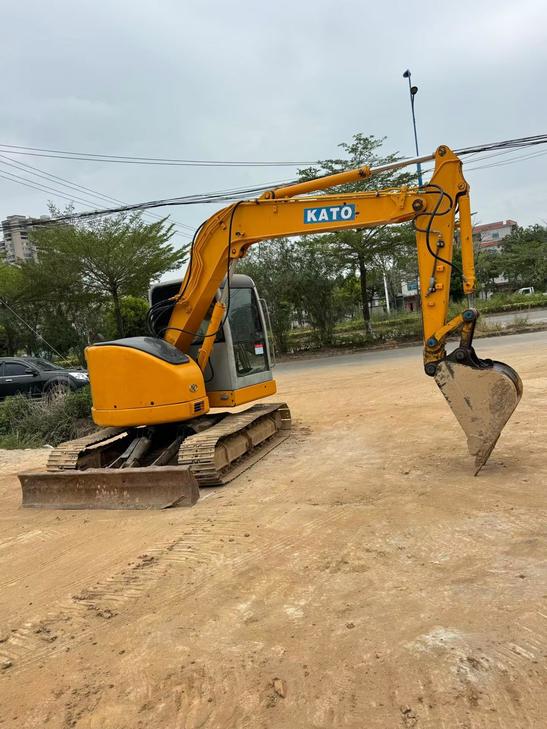

Buy Kato HD308R Used Excavator / 1
Buy Kato HD308R Used Excavator / 2
Buy Kato HD308R Used Excavator / 3
Buy Kato HD308R Used Excavator / 4
Buy Kato HD308R Used Excavator / 5
Buy Kato HD308R Used Excavator / 6
Buy Kato HD308R Used Excavator / 7
Buy Kato HD308R Used Excavator / 8
Buy Kato HD308R Used Excavator / 9

Product Description

Discover the robust 2020 Kato HD308R, a used heavy machine currently available in Guangxi, China. This versatile piece of equipment is equipped with a reliable shovel, making it an ideal choice for construction and excavation projects. Known for its durability and efficiency, the Kato HD308R offers a cost-effective solution at a competitive price of 58,000 RMB. Whether you are expanding your fleet or replacing older machinery, this model ensures high performance and reliability, backed by Kato's reputation for quality and engineering excellence.

  • Year: 2020
  • Brand: Kato
  • Model: HD308R
  • Location: Guangxi, China
  • Equipped with a shovel
  • Priced at 58,000 RMB
SpecificationsValue
No.1164957
Tonnage (tons)8
Working weight (kg)7300
Bucket capacity (m³)0.3
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU 4JG1, 4-cycle engine
Rated power (kw/rpm)40.5/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95.4*107
Maximum torque (N.m)191/1800
Number of cylinders (PCS)4
Ground specific pressure (Kpa)34
Rotation speed (rpm)11
Climbing ability (%)70
Bucket digging force (kN)61.4
Rod digging force (kN)42.2
Maximum tractive force (kN)66.8
Travel speed (km/h)5
Main overflow set pressure (Mpa)29.4
Maximum flow of main pump (l/min)2*77.7
Bucket cylinders - Number × diameter × stroke (mm)1*85*745
Bucket rod cylinders - Number × diameter × stroke (mm)1*95*920
Boom cylinders - Number × diameter × stroke (mm)1*105*960
Fuel Tank (L)140
Hydraulic Tank (L)66
Engine Oil changes (L)9.6
Coolant (L)11
Hydraulic System (L)105
Total transport length (mm)6410
Total transport width (mm)2330
Total transport height (mm)2590
Counterweight ground clearance (mm)740
Minimum ground clearance (mm)360
Minimum turning radius of front working device (mm)1630
Back end turning radius (mm)1770
Total track length (mm)2850
Track ground length (mm)2260
Maximum digging radius (mm)6470
Maximum digging depth (mm)4120
Maximum excavation height (mm)7440
Maximum unloading height (mm)5320
Maximum vertical digging depth (mm)3620
see more

Overview

No.1164957

Brand Name:

Kato

Model Number:

HD308R

Year:

2020

Location:

Guangxi China

Pub Date:

Are you interested in this machine?

Please contact us
