Product Description

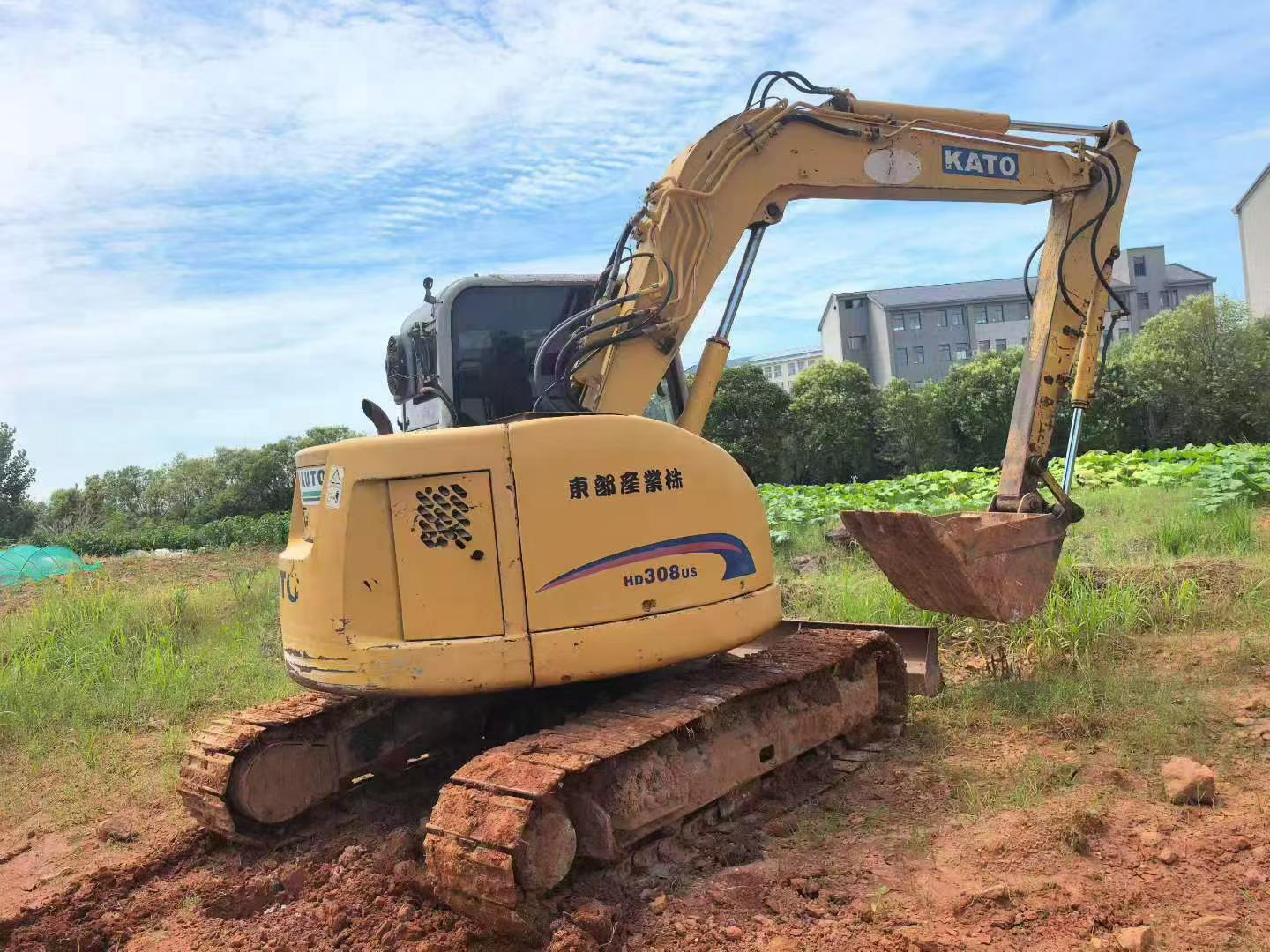

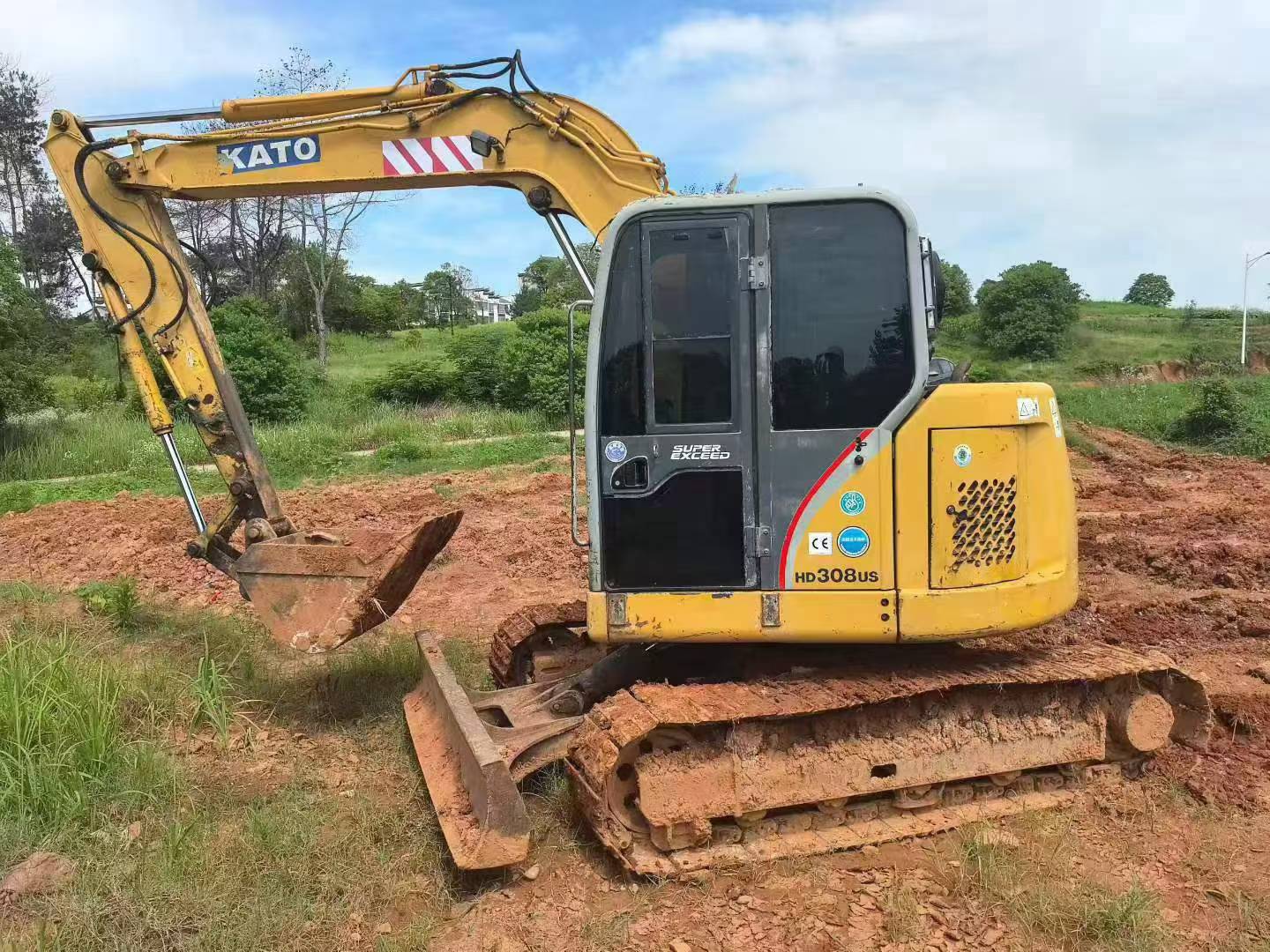

Discover the 2020 Kato HD308US, a robust and versatile machine now available in Jiangxi, China. This imported model is renowned for its excellent condition, both aesthetically and functionally. Equipped with original BP pipelines, it ensures reliable performance without compromise. Ideal for a variety of heavy-duty tasks, this excavator excels in land reclamation and forestry operations, making it a valuable asset for any project that demands precision and power.
- Year: 2020
- Brand: Kato
- Model: HD308US
- Location: Jiangxi, China
- Features: Original BP pipelines, excellent exterior and operational condition
- Applications: Land reclamation, forestry, and general construction
| Specifications | Value |
|---|---|
| No. | 1101768 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7600 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3830 |
| Rod length (mm) | 1620 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

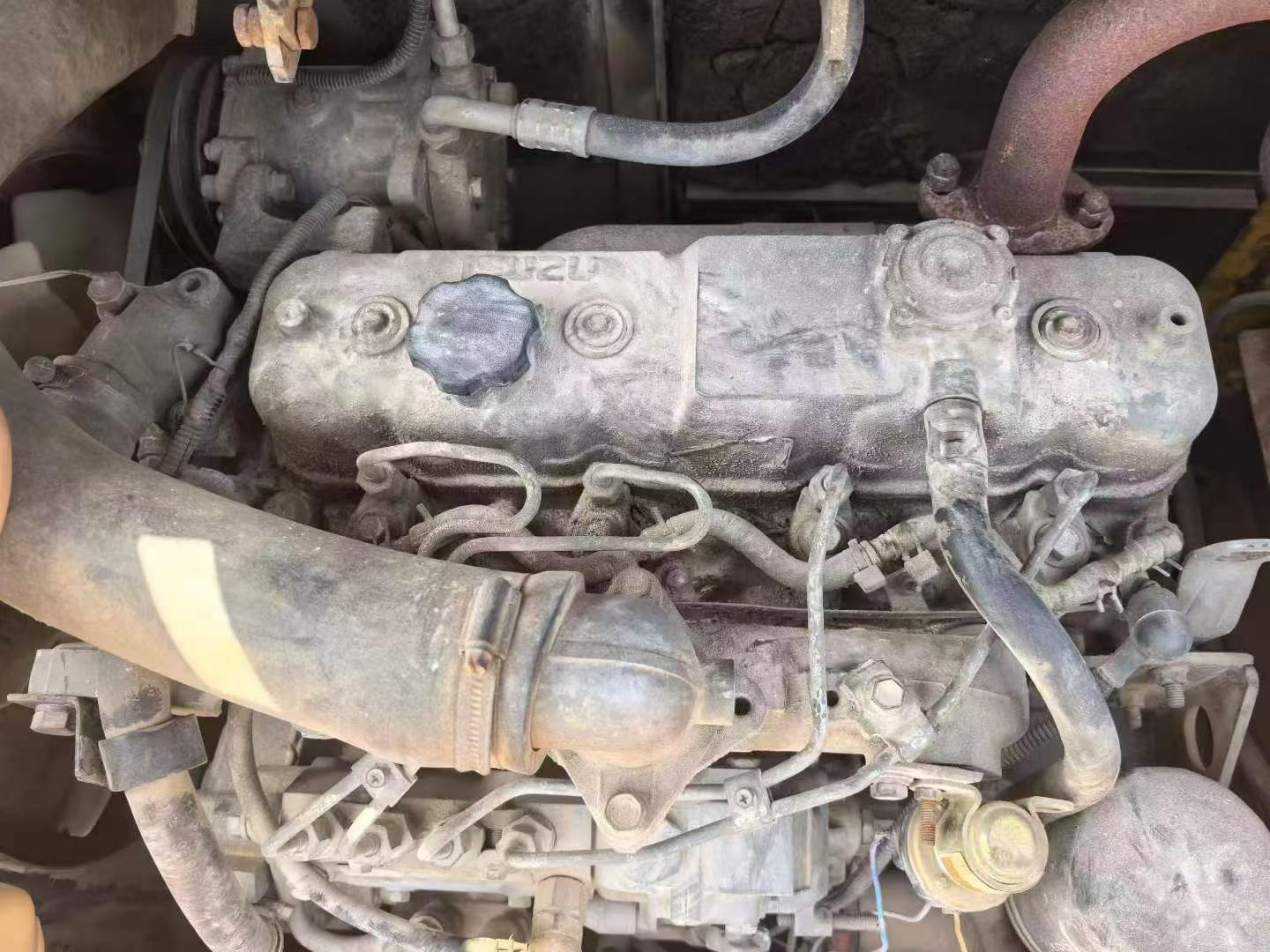

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95.4 x 107 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 31.4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 61.4 |
| Rod digging force (kN) | 42.2 |
| Travel speed (km/h) | 2.0/3.4/5.0 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 77.7 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |

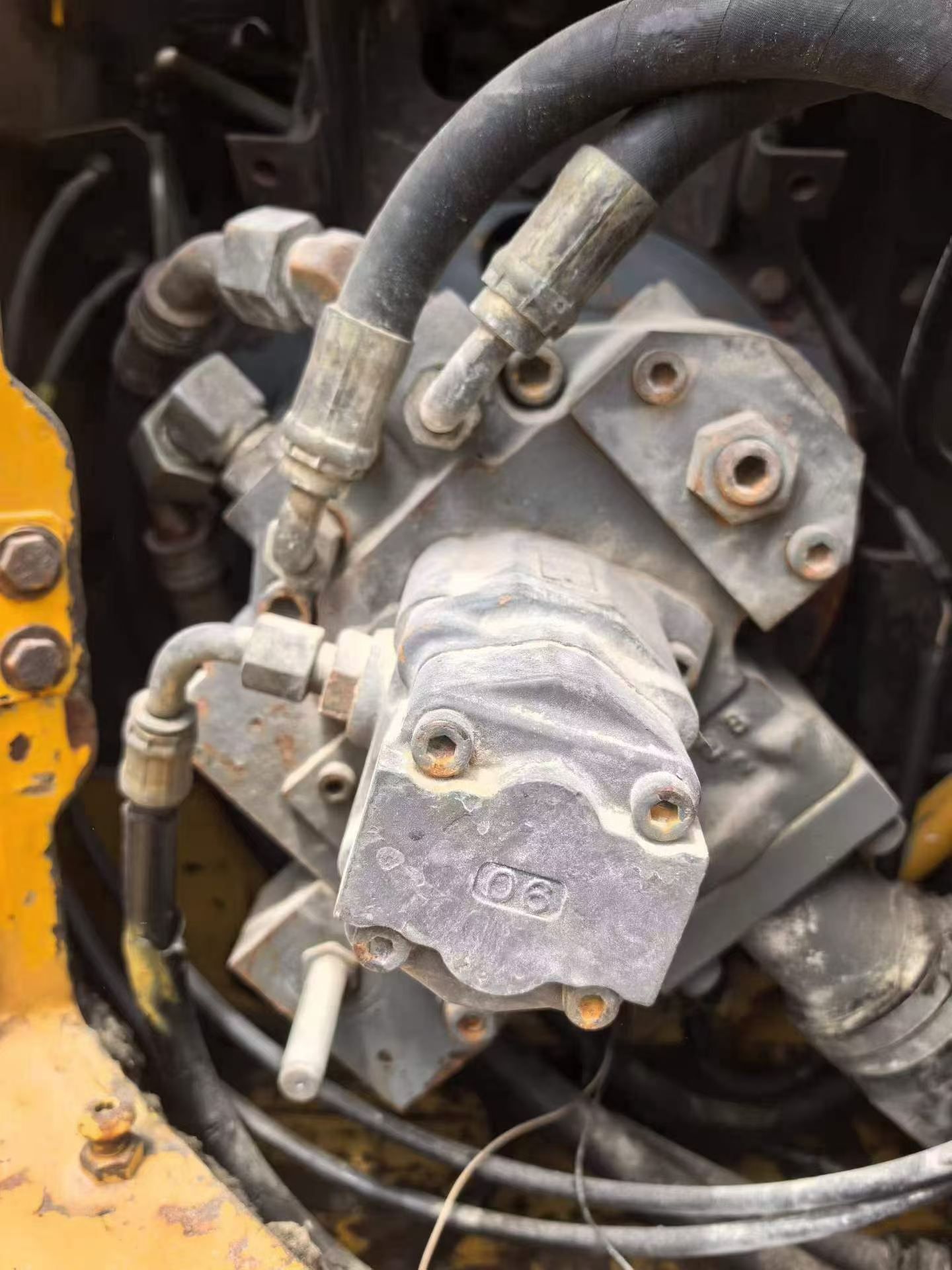

| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 745 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 920 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 x 960 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 48 |
| Engine Oil changes (L) | 9.6 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 95 |
| Total transport length (mm) | 6300 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 740 |
| Minimum turning radius of front working device (mm) | 1630 |
| Back end turning radius (mm) | 1190 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2260 |
| Maximum digging radius (mm) | 6470 |
| Maximum digging depth (mm) | 4120 |
| Maximum excavation height (mm) | 7430 |
| Maximum unloading height (mm) | 5320 |
| Maximum vertical digging depth (mm) | 3620 |
| Bulldozer lift or depth (mm) | 430/330 |
| Dodging plate width × height (mm) | 2300 x 360 |
