Product Description

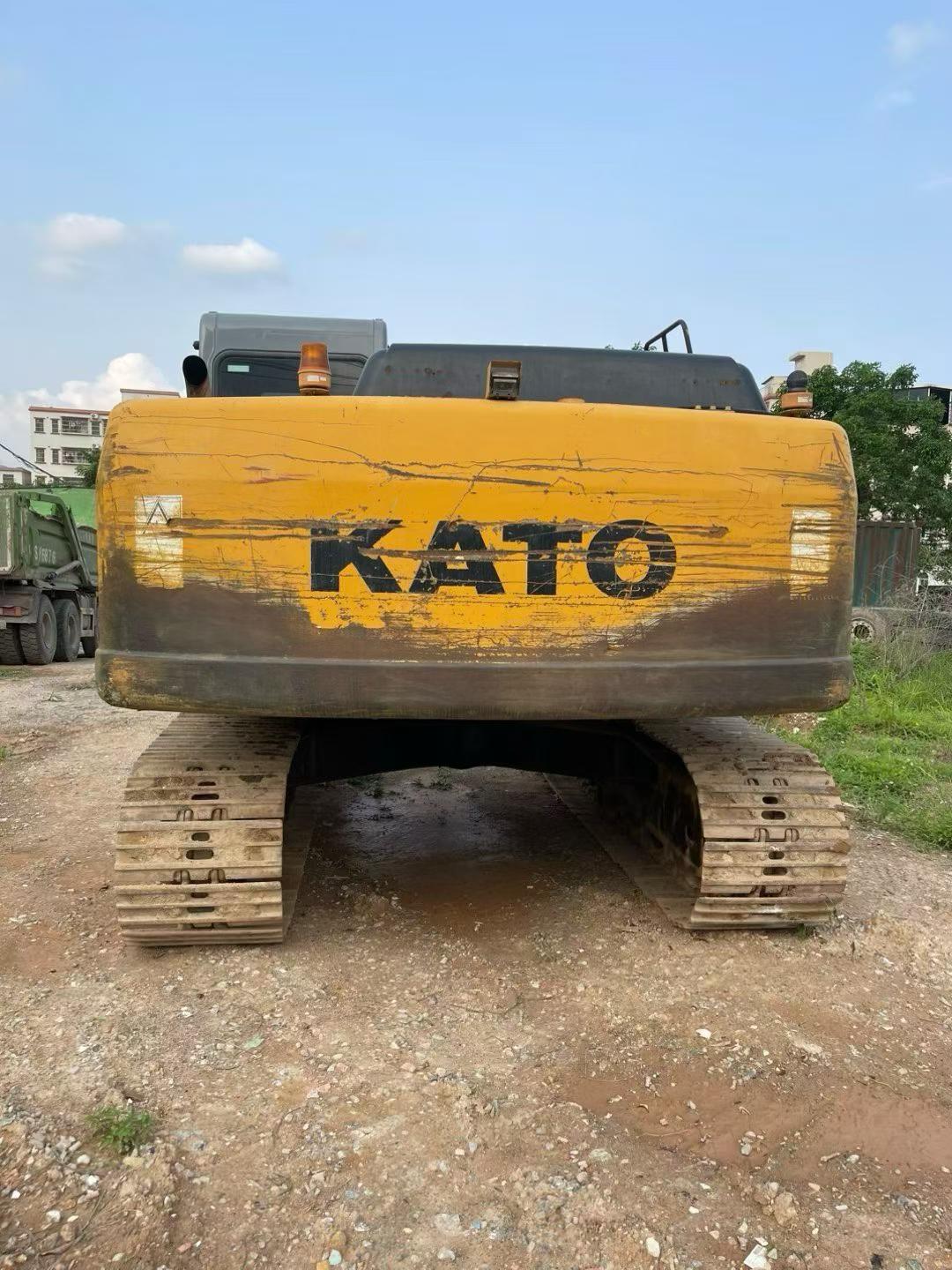

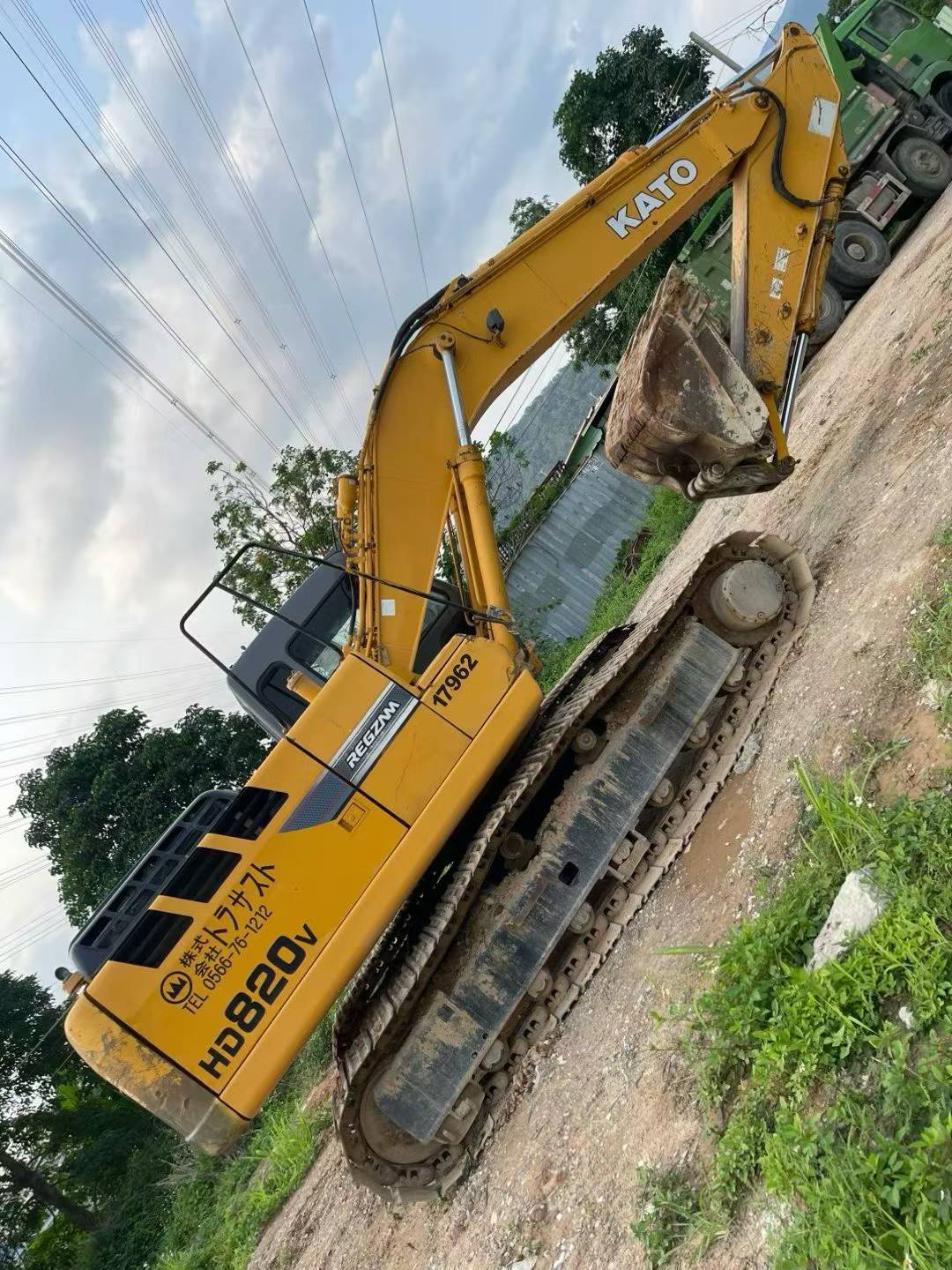

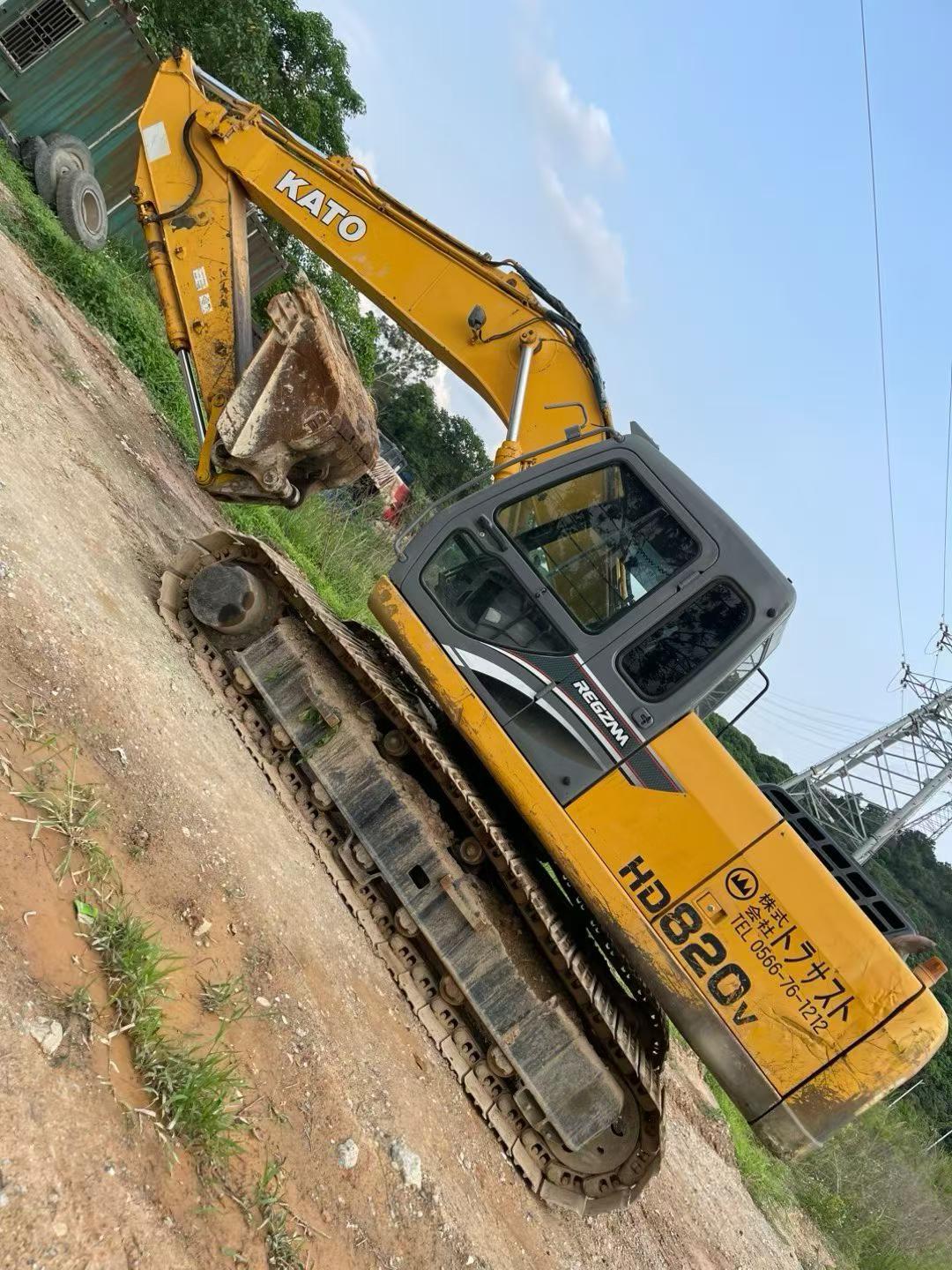

This 2020 Kato HD820V excavator offers reliable performance for medium to heavy-duty earthmoving applications. Manufactured by Kato Works, a respected Japanese construction equipment brand, this model combines operational efficiency with proven durability. Currently located in Guangdong, China, the machine is available in the competitive mid-range price segment with comprehensive documentation provided.
The HD820V is well-suited for contractors and fleet operators seeking dependable equipment for excavation, trenching, and material handling projects. Kato's engineering emphasizes fuel efficiency and ease of maintenance, making this unit a practical choice for operations requiring consistent uptime.
- Year of Manufacture: 2020
- Brand: Kato
- Model: HD820V
- Location: Guangdong, China
- Condition: Used
- Documentation: Detailed records available
Contact us for complete specifications, inspection reports, and pricing information on this Kato HD820V excavator.
| Specifications | Value |
|---|---|
| No. | 1174254 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.45-1.1 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

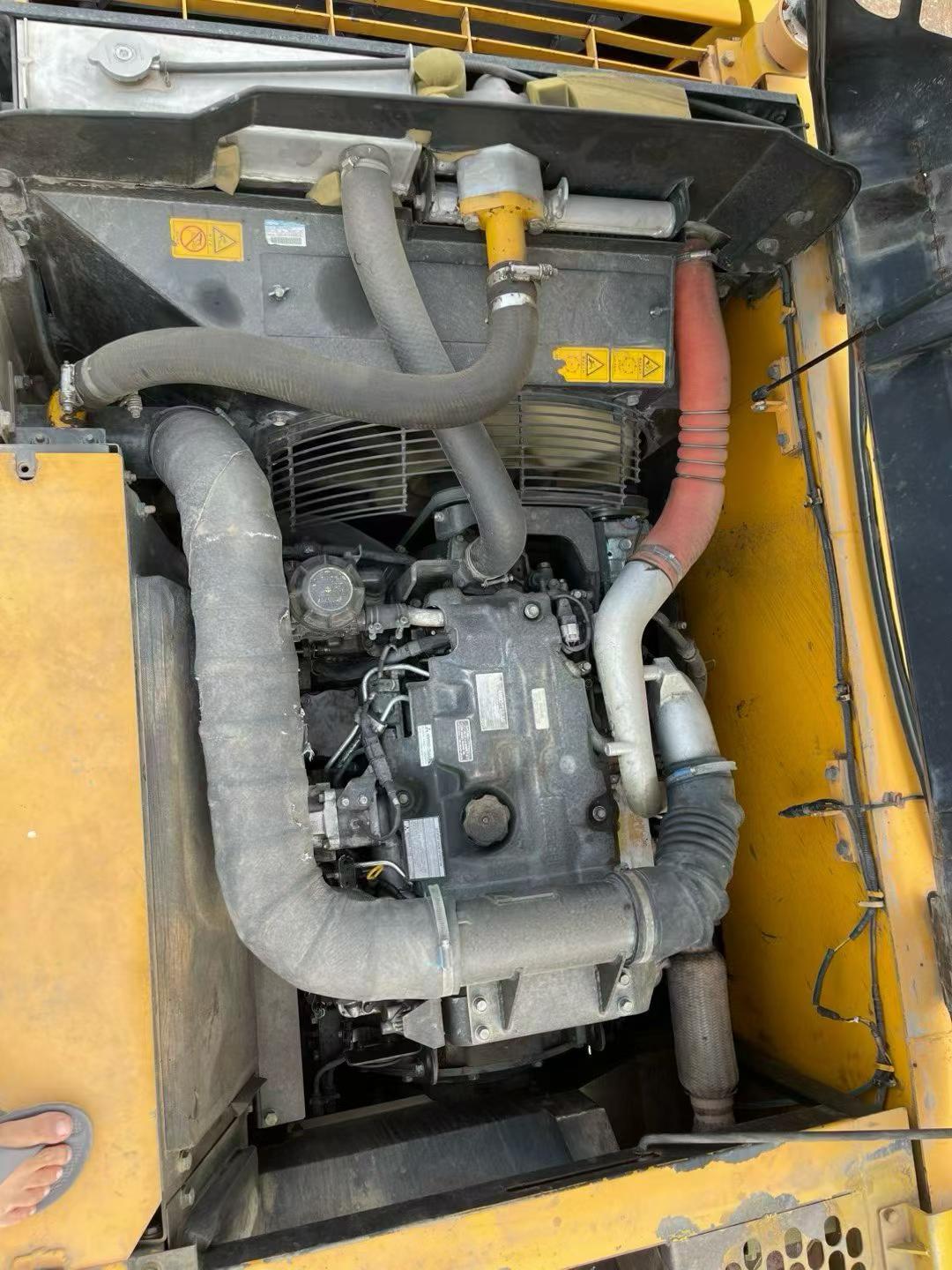

| Engine type | Mitsubishi 4M50-TLE3A |
| Rated power (kw/rpm) | 112.5/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 120 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 (Standard mode) /159 (Extra mode) |
| Rod digging force (kN) | 109 (Standard mode) /115 (Extra mode) |
| Travel speed (km/h) | 3.6/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 420 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9450 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2960 |
| Full cab height (mm) | 2910 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 465 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2820 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5870 |
