Product Description

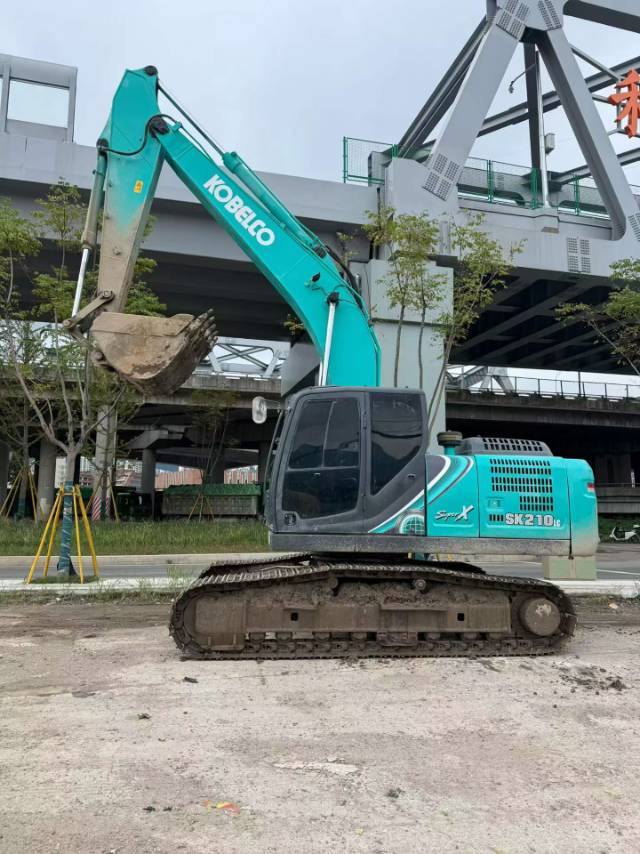

Discover the 2021 Kobelco 210LC-9, a robust and reliable excavator currently located in Zhejiang, China. This machine has been meticulously maintained, with its original chain still intact and major components untouched, ensuring durability and performance. Known for its fuel efficiency, the 210LC-9 is an excellent choice for cost-conscious operations without compromising on power or reliability. The model's smooth and coordinated movements make it ideal for a variety of construction and excavation tasks, offering seamless operation and minimal downtime. Performance is guaranteed, making this excavator a trusted addition to any fleet.
- Year: 2021
- Brand: Kobelco
- Model: 210LC-9
- Location: Zhejiang, China

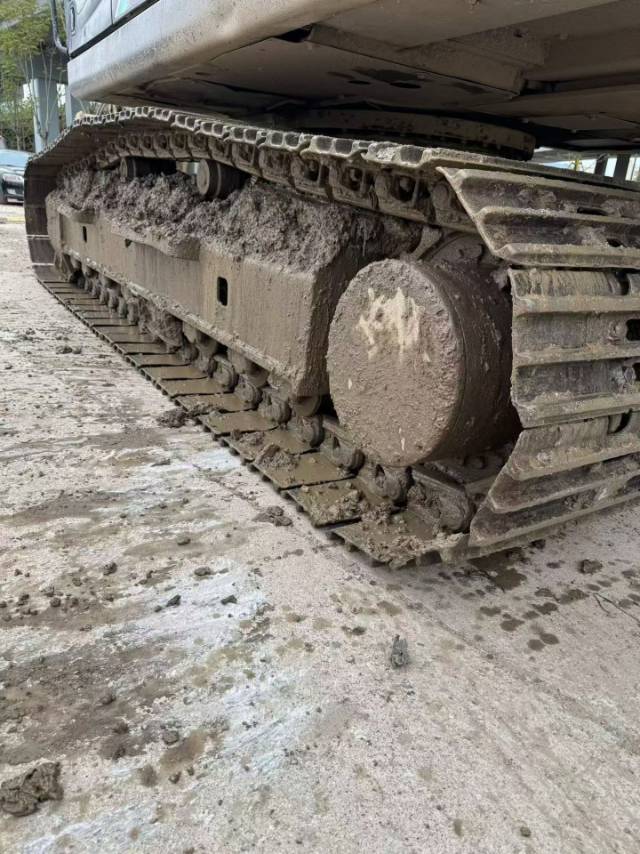

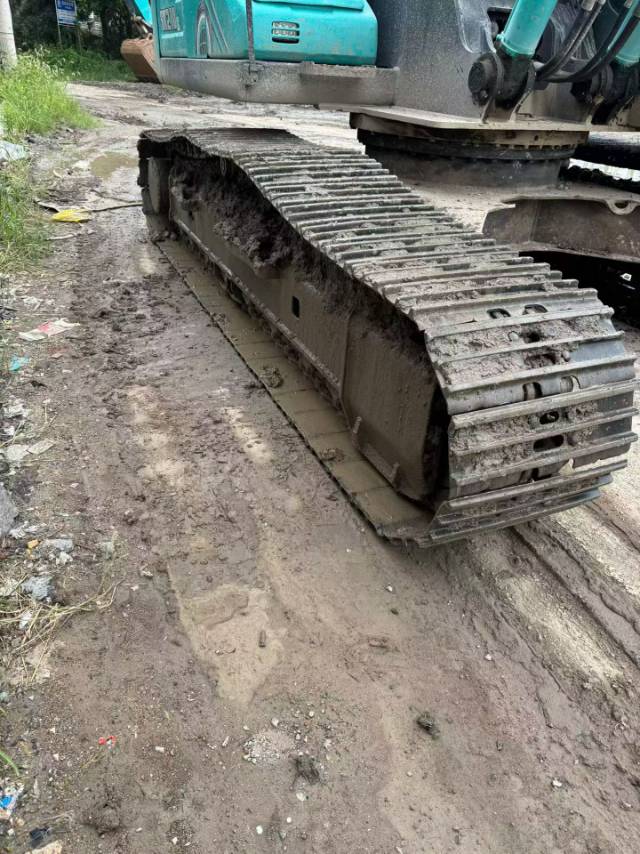

- Original chain, major components in pristine condition
- Highly fuel-efficient and reliable
- Smooth and coordinated operational capabilities
| Specifications | Value |
|---|---|
| No. | 1134990 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21600/21800/22000 |
| Bucket capacity (m³) | 0.7/0.8/0.93 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2940 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

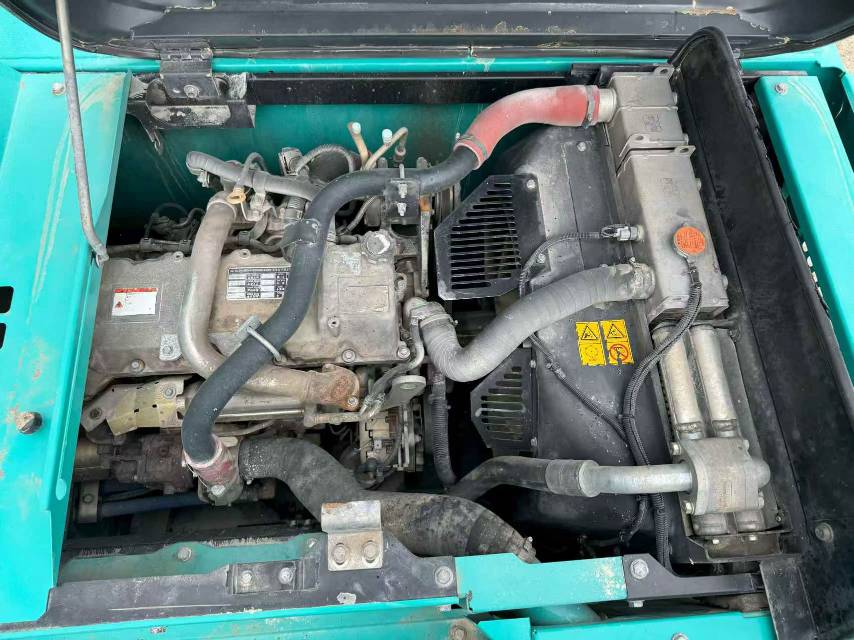

| Engine type | HINO Hino J05E-TA |
| Rated power (kw/rpm) | 124/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.7 |
| Working form | Direct injection; Turbocharged, intercooled, meets EPA Tier IV and EU Stage IIIB |
| Ground specific pressure (Kpa) | 33.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 222 |
| Maximum tractive force (kN) | 229 |
| Travel speed (km/h) | 6.0/3.6 |
| Type of walking hydraulic motor | Axial piston pump x 2 |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Main pump type | Double variable pump + single gear pump |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 2980 |
| Full cab height (mm) | 3080 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3540 |
| Back end turning radius (mm) | 6910 |
| Onboard width (mm) | 2710 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 800 |
| Track ground length (mm) | 3660 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum vertical digging depth (mm) | 6100 |
| Maximum excavation radius of stop surface (mm) | 9730 |
| Maximum effective digging depth (mm) | 6520 |
