Product Description

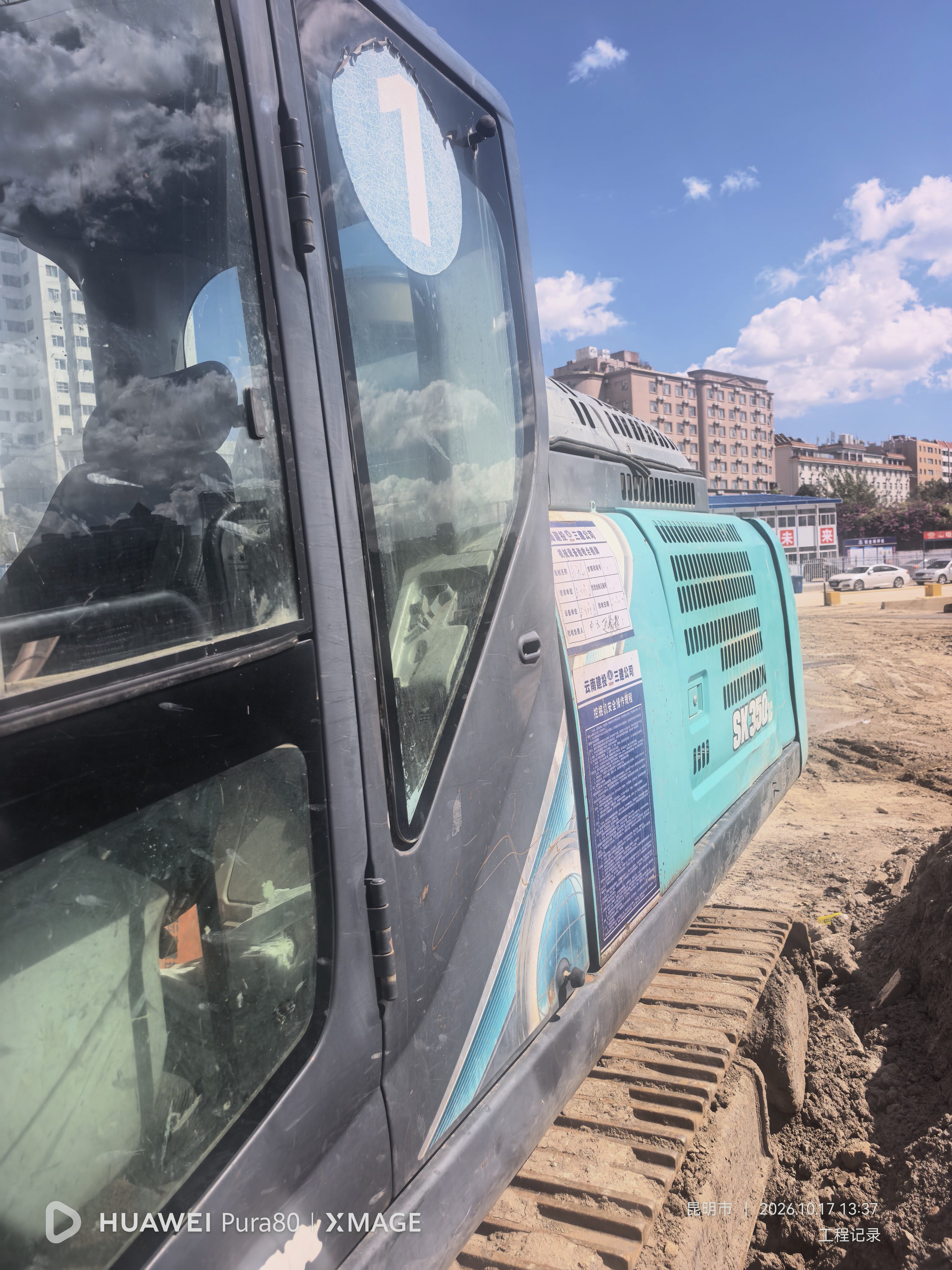

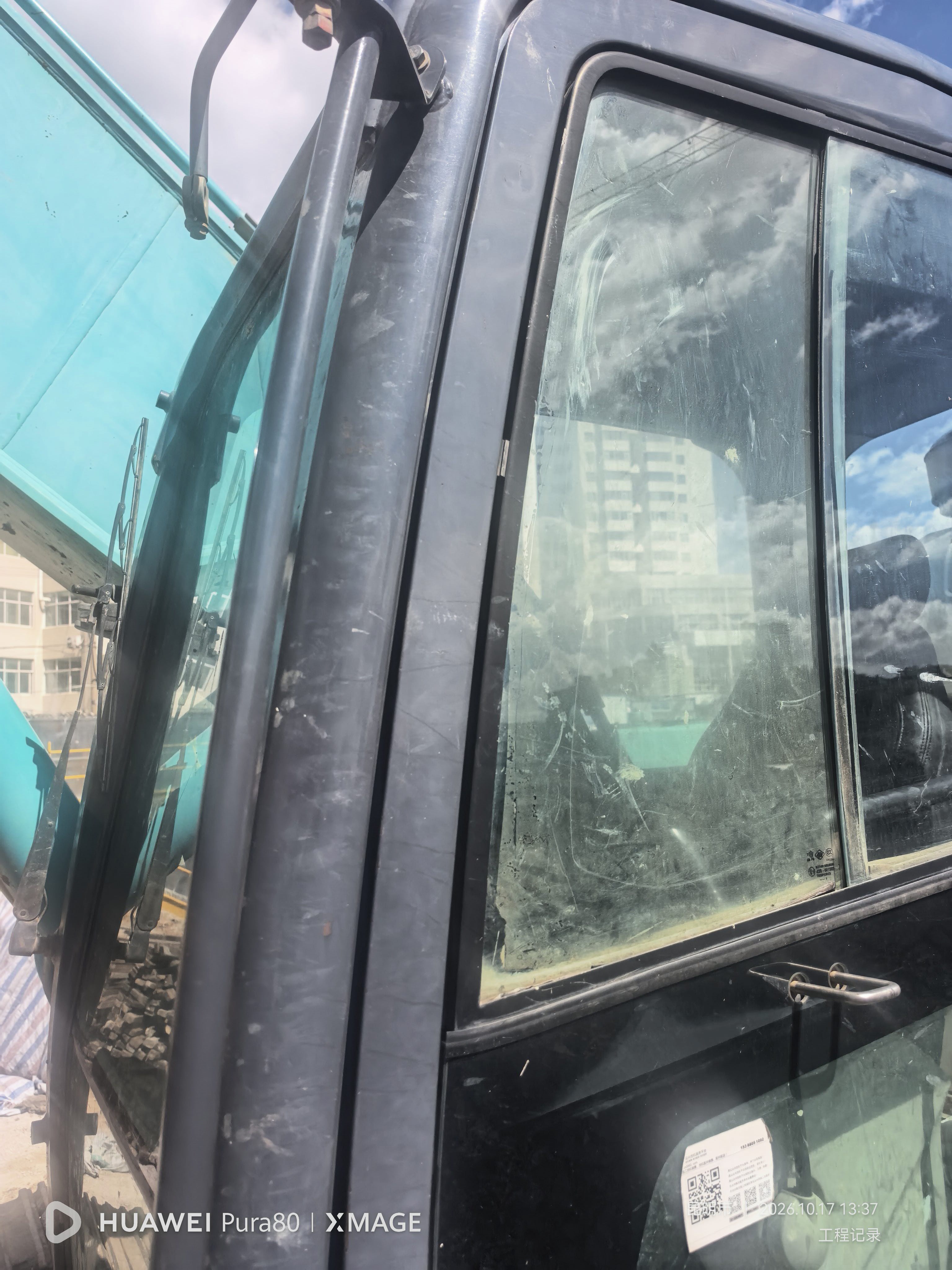

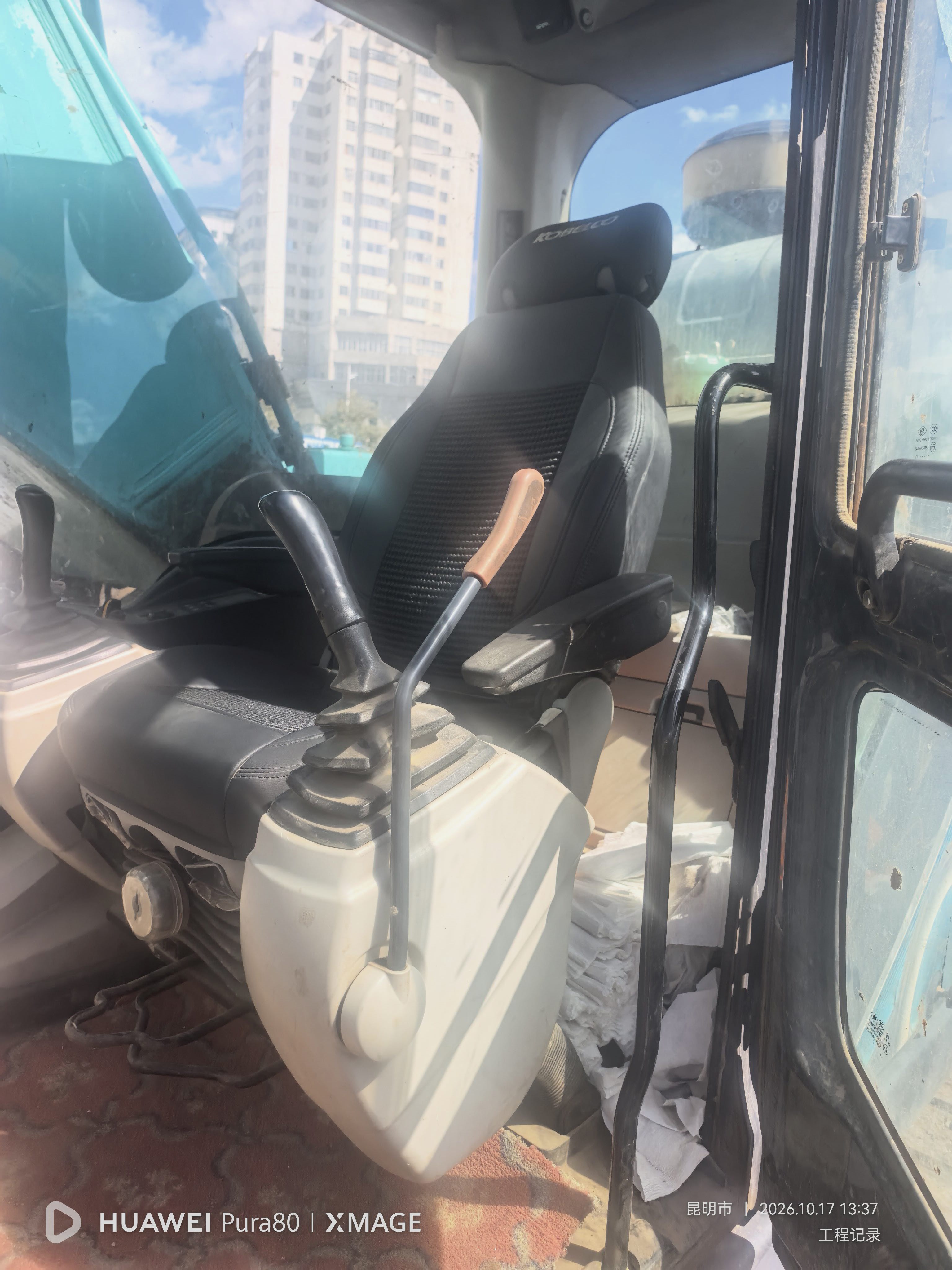

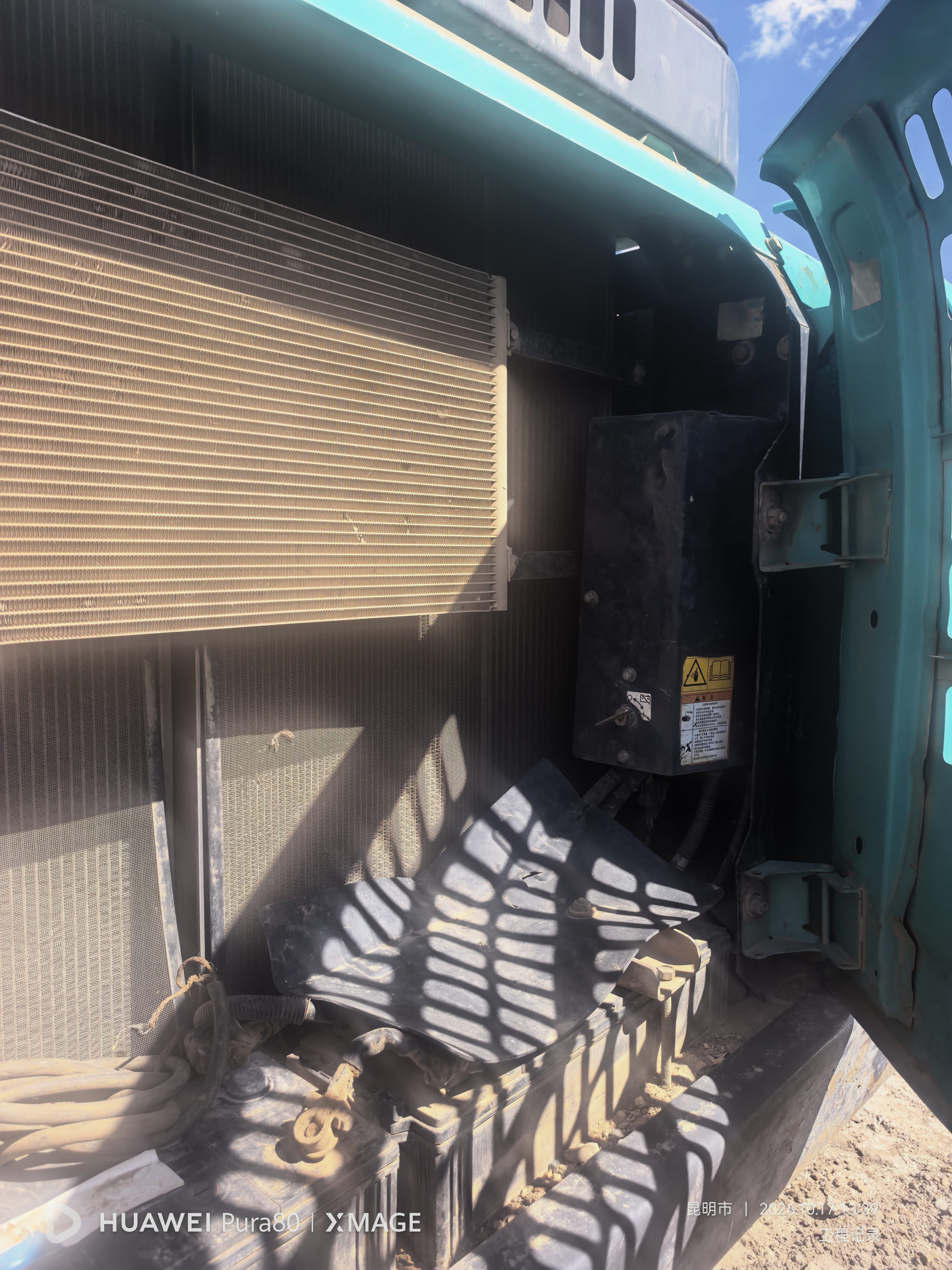

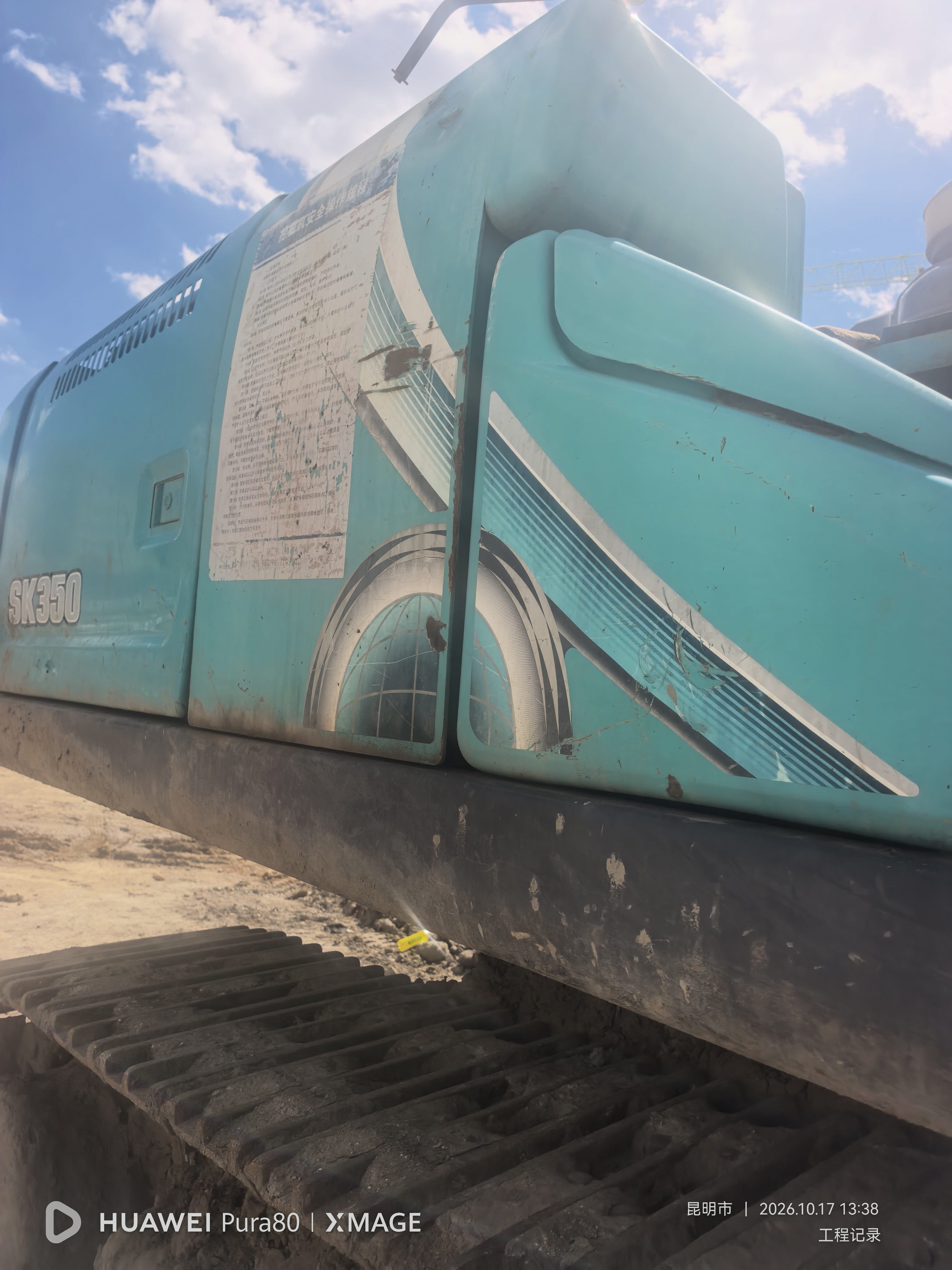

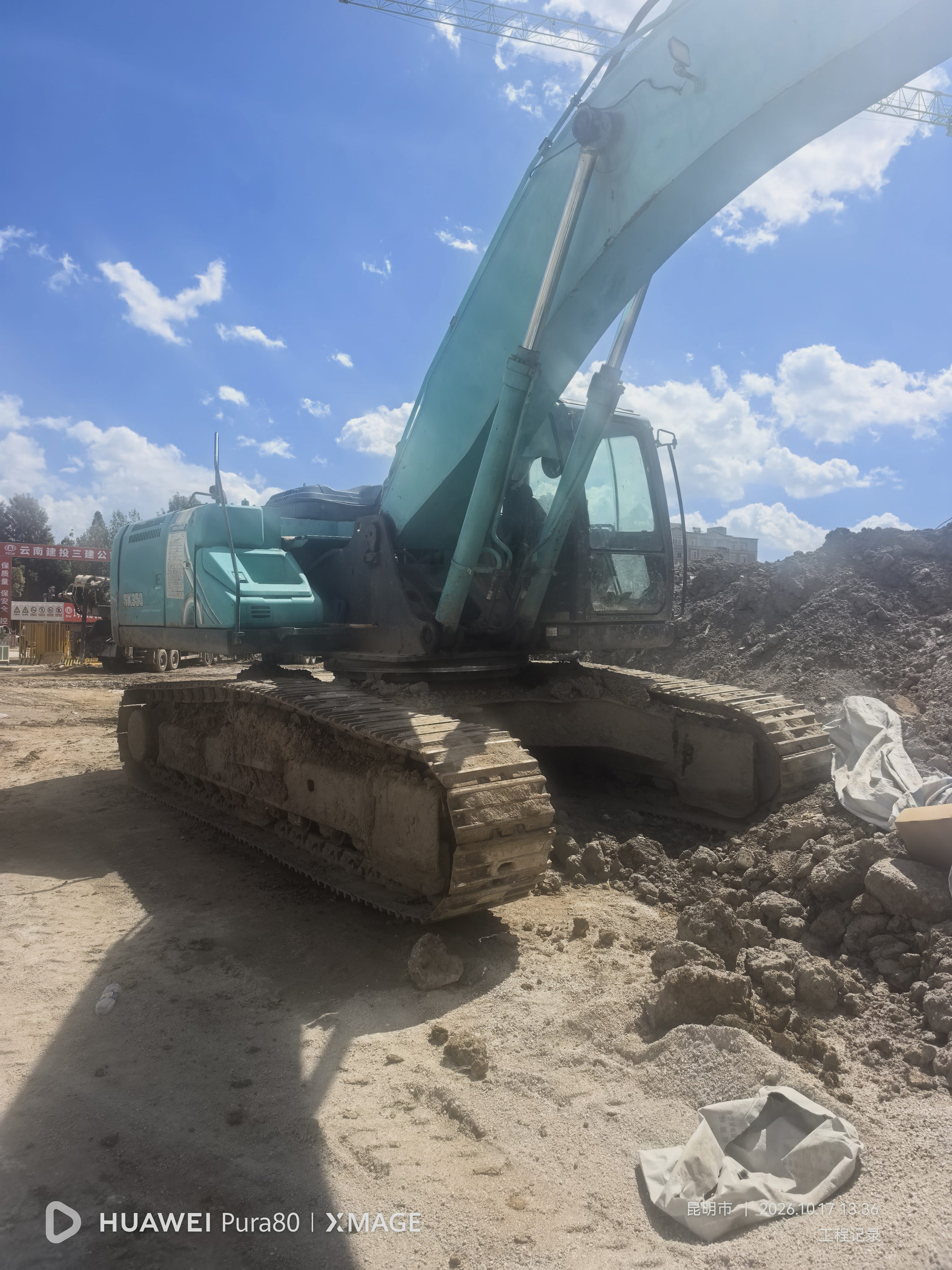

For sale is a robust 2017 Kobelco 350LC-8 excavator, currently located in Yunnan, China. This machine has been a reliable workhorse on construction sites, accumulating over 8,000 hours of operation. It comes with all necessary documentation and features an original chassis, ensuring durability and reliability. Ideal for demanding earthmoving tasks, this model is known for its efficiency and strength. Priced at 300,000 RMB, it represents a cost-effective solution for your heavy machinery needs.
- Year: 2017
- Brand: Kobelco
- Model: 350LC-8
- Location: Yunnan, China

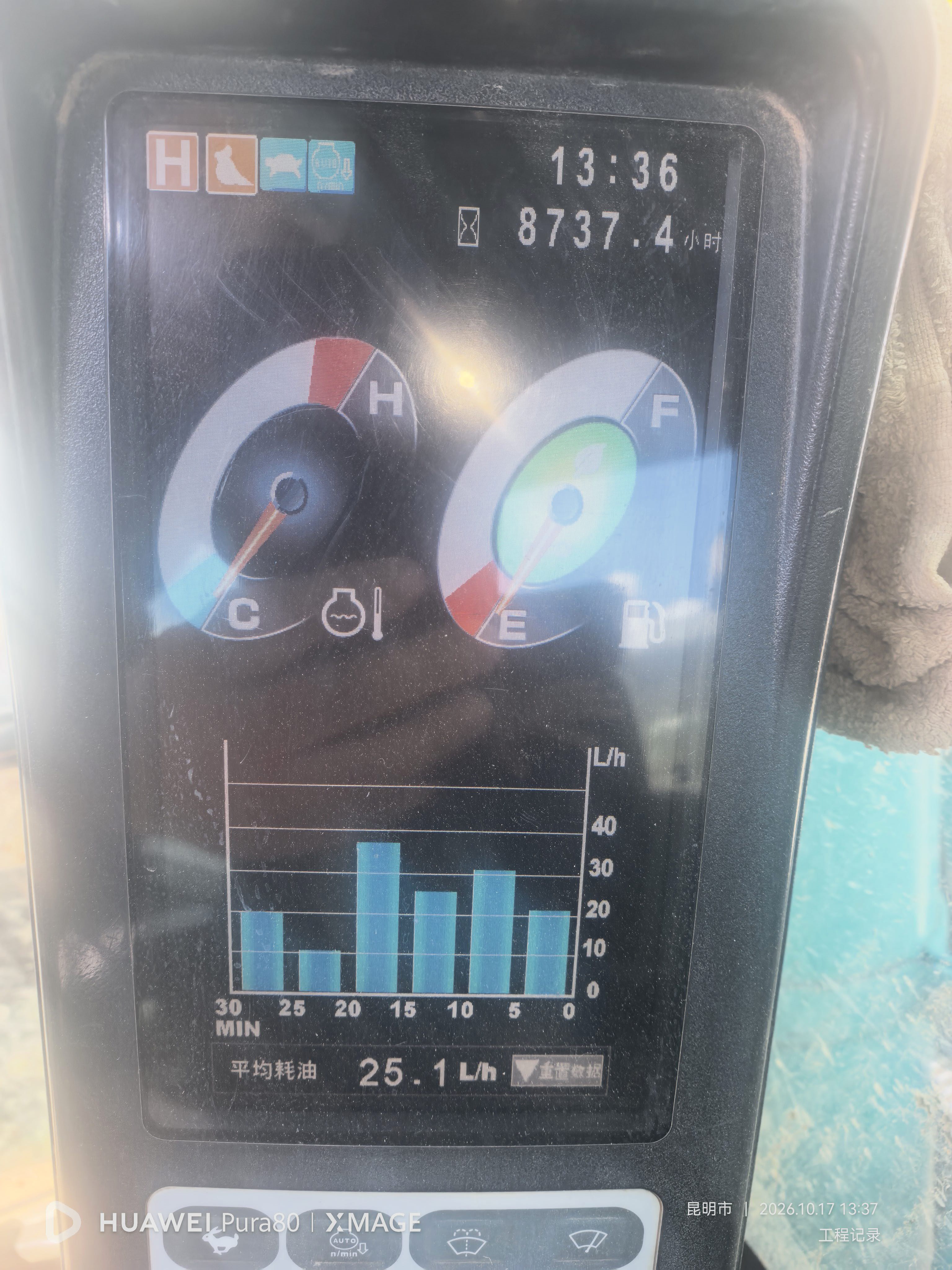

- Operating Hours: Over 8,000

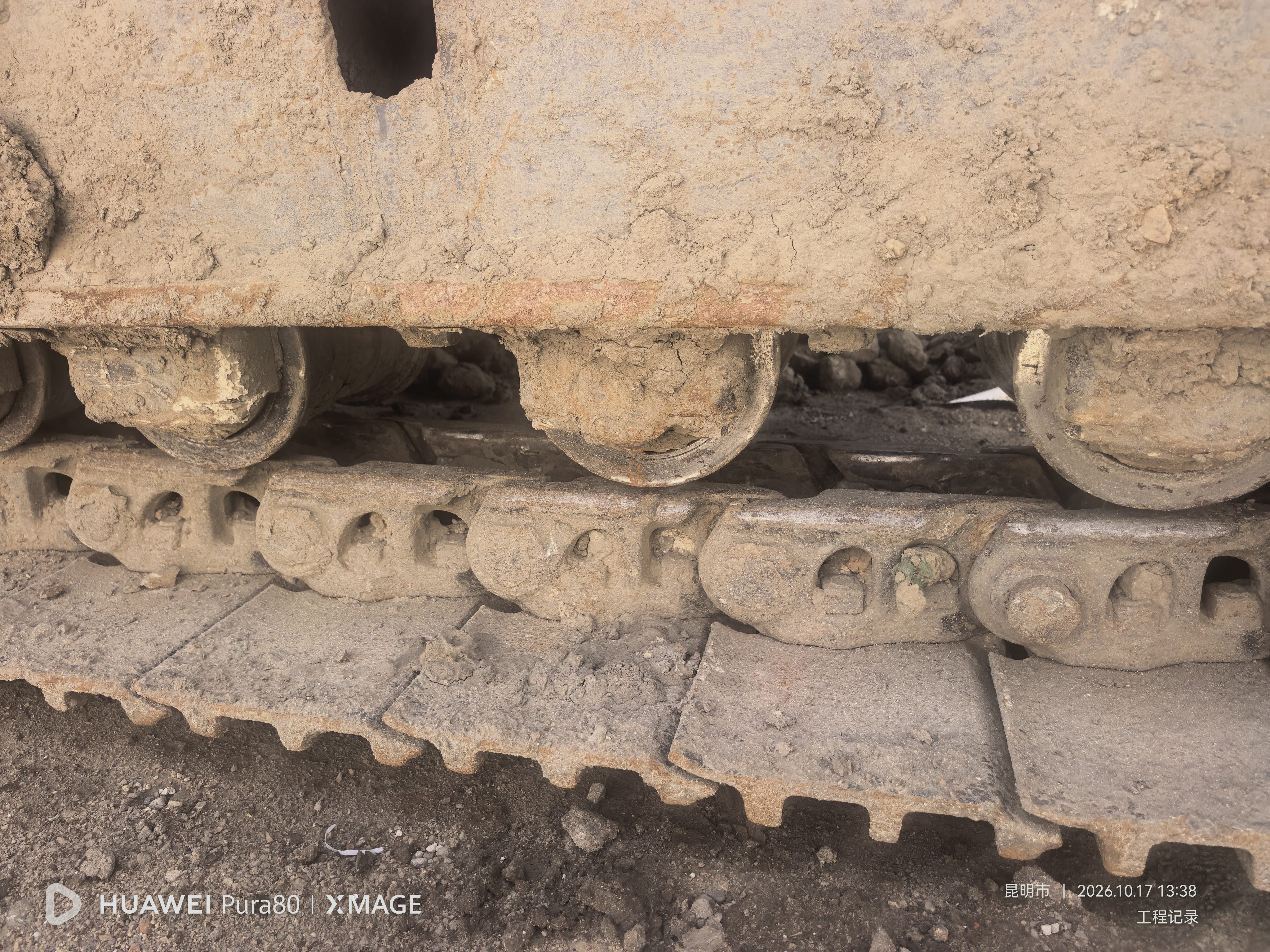

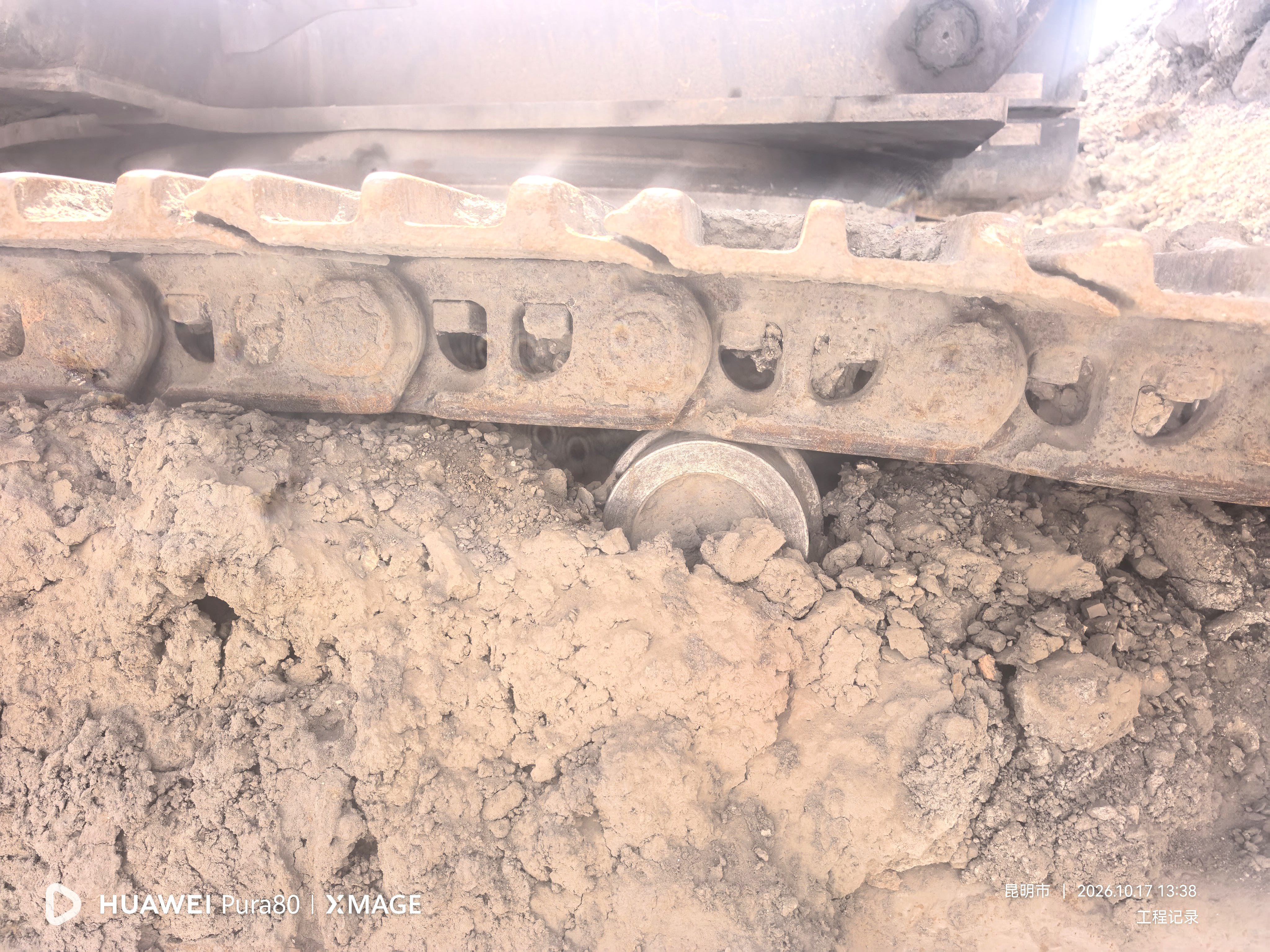

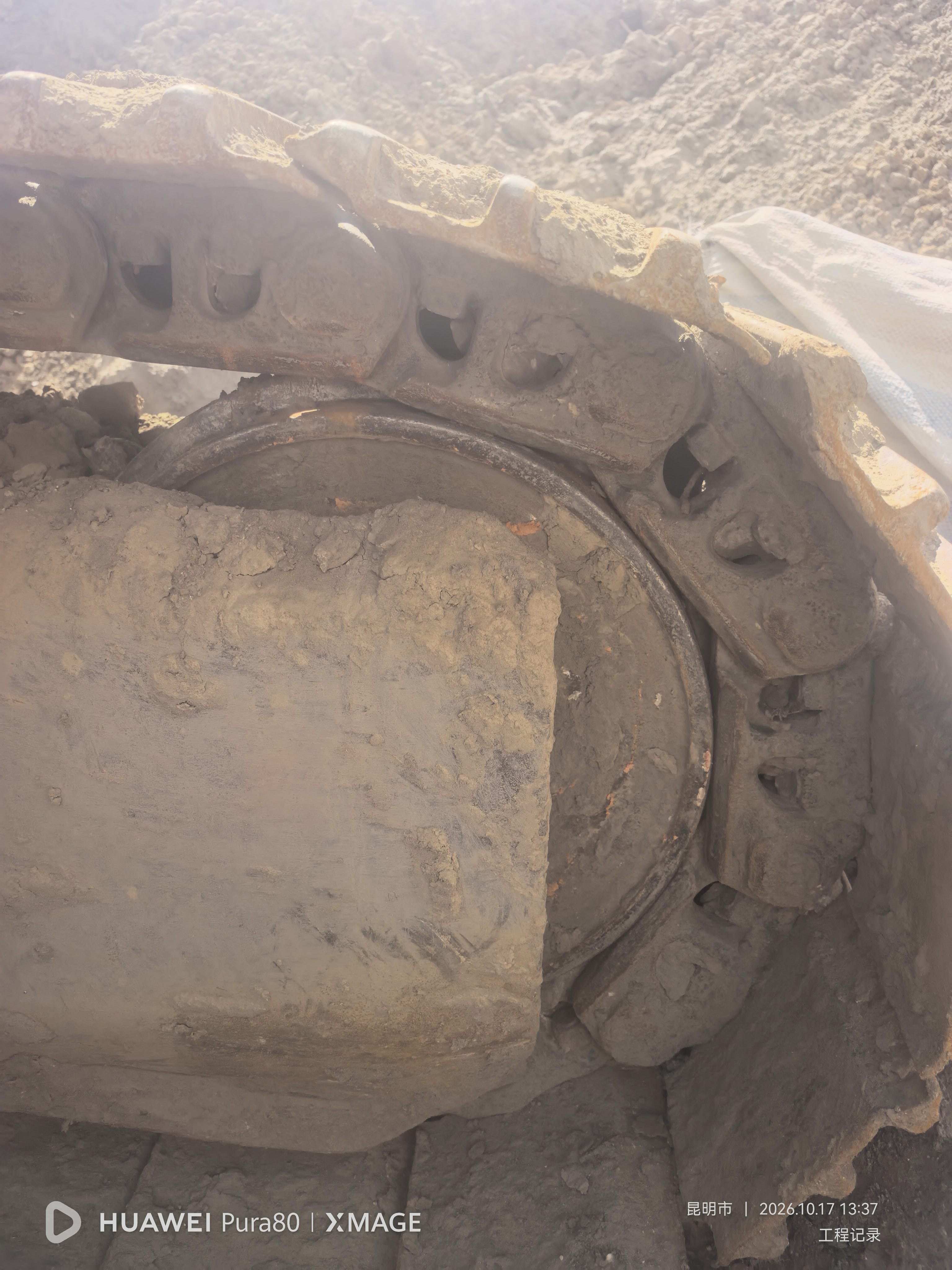

- Features: Original chassis, all documentation included
| Specifications | Value |
|---|---|
| No. | 1164956 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34700 |
| Bucket capacity (m³) | 1.6 |
| Rod length (mm) | 3300 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino JO8E |
| Rated power (kw/rpm) | 196.9/2100 |
| Cylinder diameter × stroke (mm) | 112*130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.7 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 50.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 165 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*294 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |

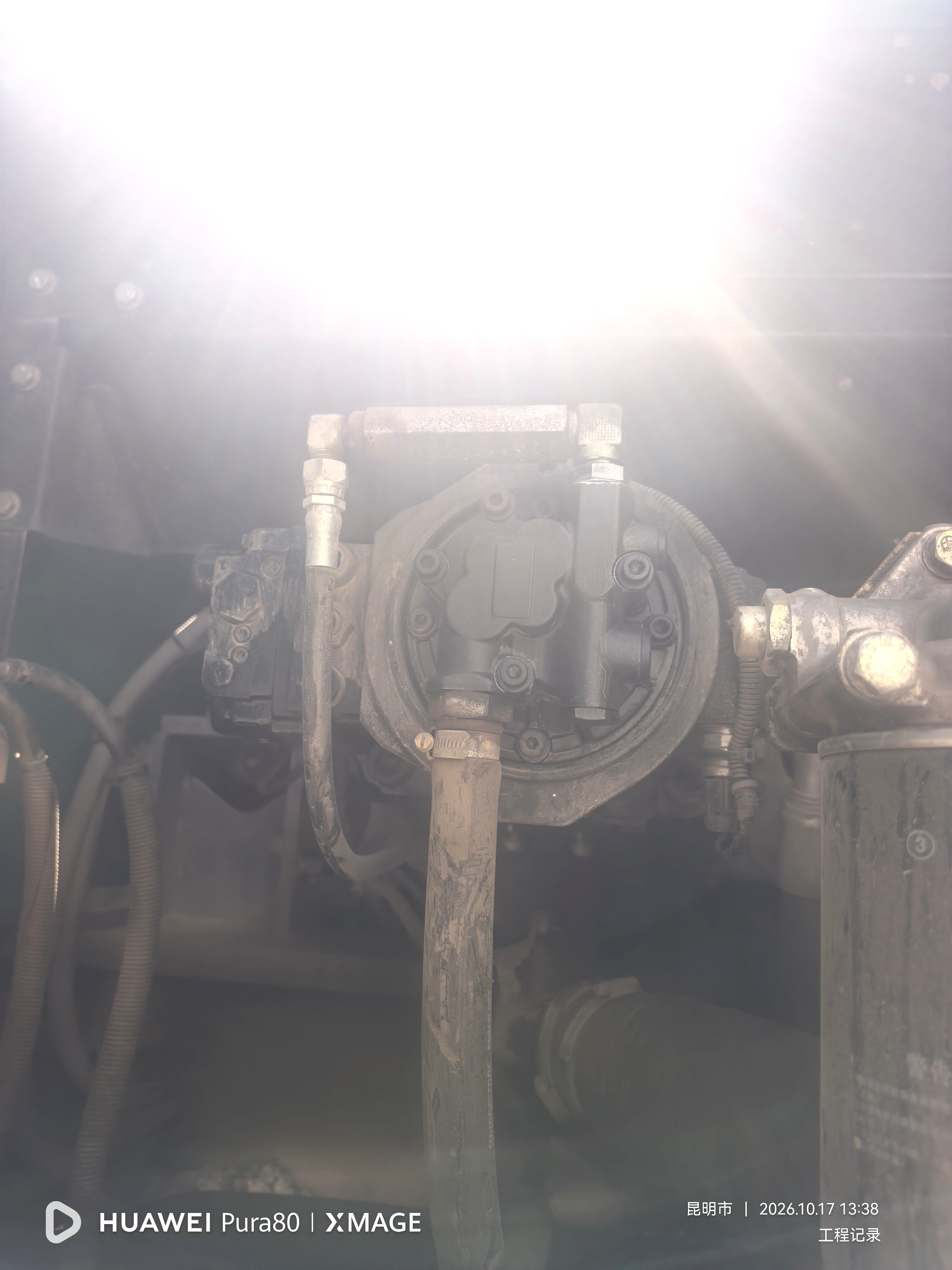

| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150*1193 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170*1788 |

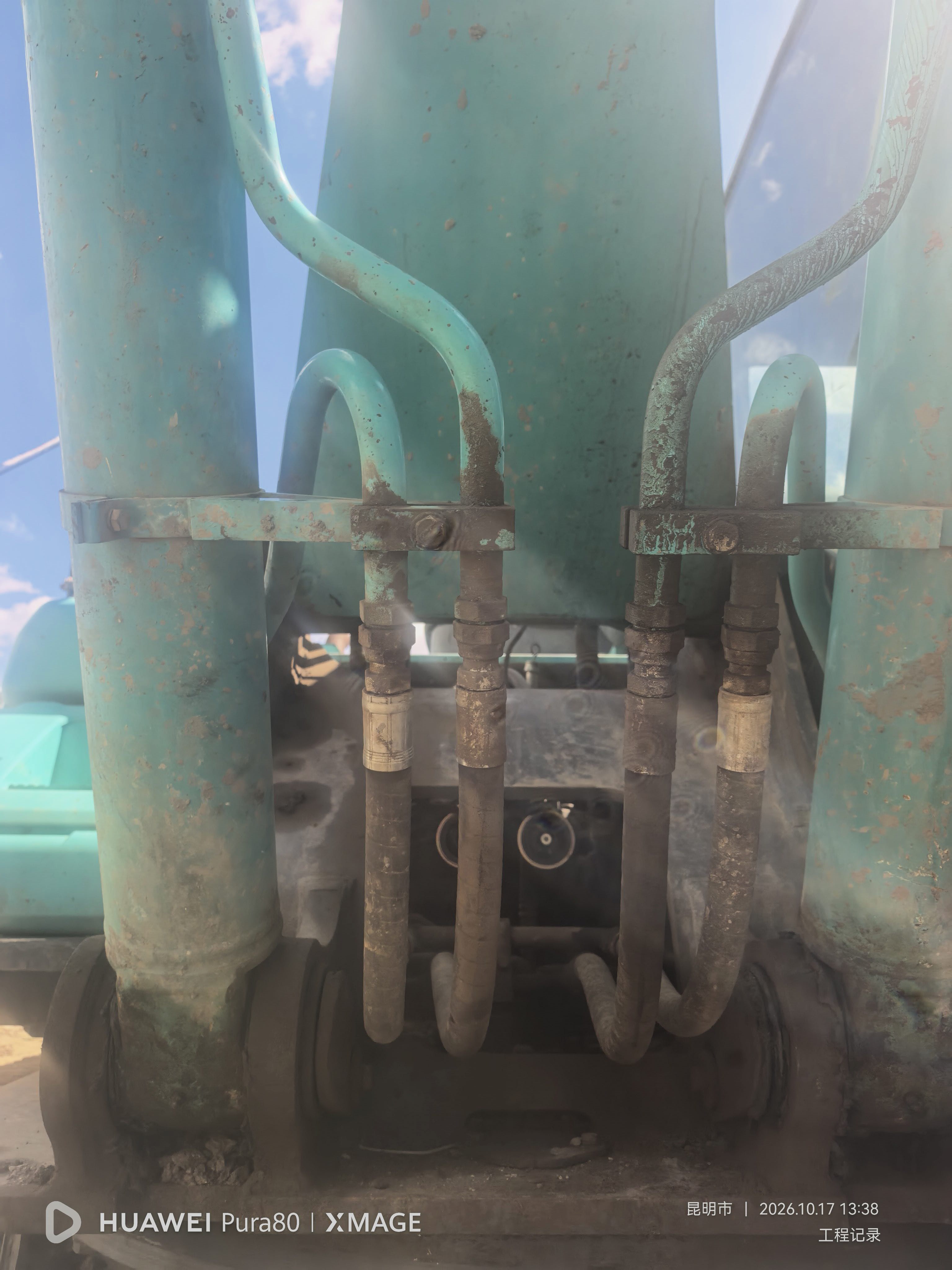

| Boom cylinders - Number × diameter × stroke (mm) | 2*140*1550 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800/900 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
| Maximum effective digging depth (mm) | 7400 |
