Product Description

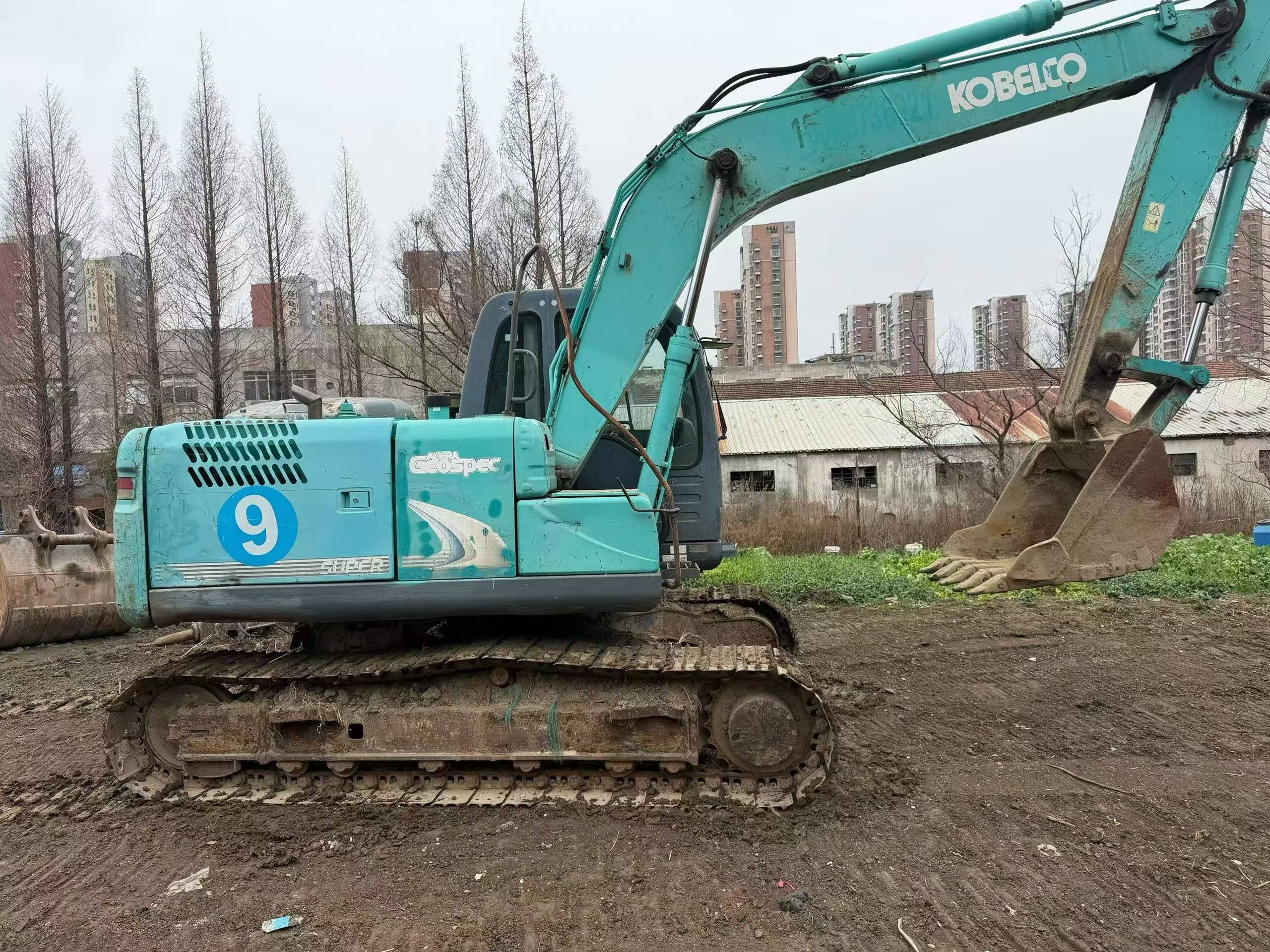

Engineered with precision by Kobelco's Japanese design team, this 2012 SK130 hydraulic excavator delivers 13-ton performance through proven Mitsubishi D04FR power. Rated at 74kW/2000rpm with 90.1kN bucket digging force, the machine demonstrates exceptional productivity across medium-duty applications. Hydraulic rotation speed reaches 11.5rpm while maintaining superior fuel efficiency through its 275L tank capacity.
- 12,800kg working weight with 0.52m³ bucket capacity for versatile material handling
- 8,340mm maximum digging radius and 5,520mm digging depth enable extensive operational reach
- 70% gradeability (35°) ensures reliable performance on challenging terrain
- Compact 2,190mm rear turning radius optimizes maneuverability in confined spaces
- Dual travel speeds (3.4/5.6 km/h) balance precision positioning with site mobility
- 440mm ground clearance protects undercarriage components during transport and operation
Currently located in Huzhou, Zhejiang, this joint-venture manufactured unit represents Kobelco's commitment to hydraulic excellence. Transport dimensions of 7,790mm × 2,490mm × 2,710mm facilitate efficient logistics across international markets. Complete w
| Specifications | Value |
|---|---|
| No. | 1017558 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
