Product Description
Engineered with precision by Kobelco's joint venture manufacturing, this 2013 SK130 excavator delivers 74kW of reliable Mitsubishi D04FR power at 2000 rpm, driving a hydraulic system designed for consistent performance in demanding applications. Operating at 13 tons with a 12,800 kg working weight, this machine combines Japanese engineering standards with practical jobsite capability.
Technical specifications demonstrate superior operational range: 8,340mm maximum digging radius, 5,520mm digging depth, and 8,500mm excavation height provide comprehensive work envelope coverage. The hydraulic system generates 90.1kN bucket digging force through a 0.52m³ backhoe attachment, while an 11.5 rpm rotation speed ensures efficient cycle times. Dual travel speeds of 3.4/5.6 km/h and 70% (35°) climbing ability enable versatile terrain navigation.
Key advantages include:

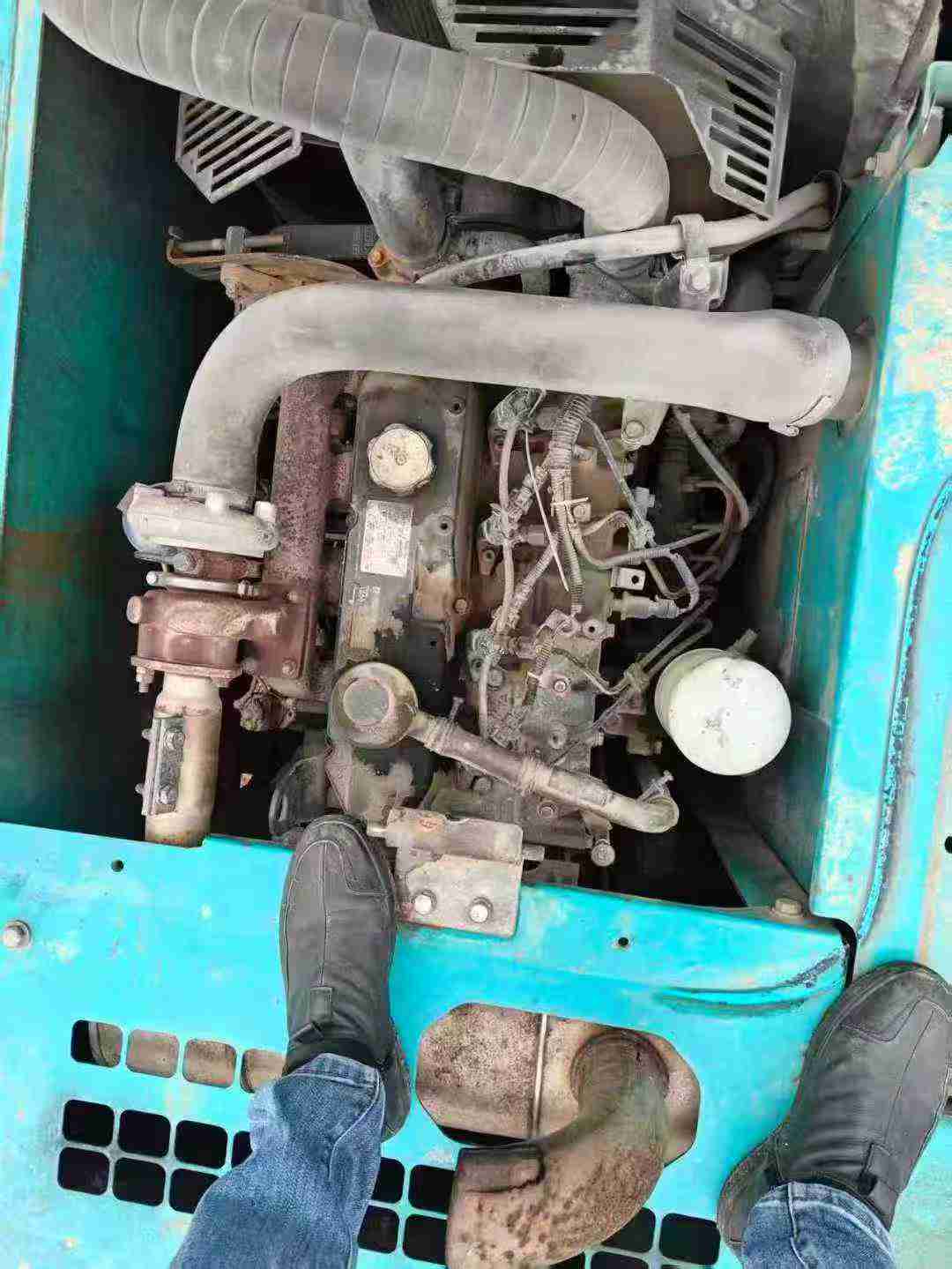

- Mitsubishi D04FR engine with proven durability and fuel efficiency (275L tank capacity)
- Compact 2,190mm rear turning radius for confined space operation
- Robust undercarriage: 3,580mm track length with 500/600/700mm plate width options
- Transport-friendly dimensions: 7,790mm length × 2,490mm width × 2,710mm height
| Specifications | Value |
|---|---|
| No. | 1008740 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
