Product Description

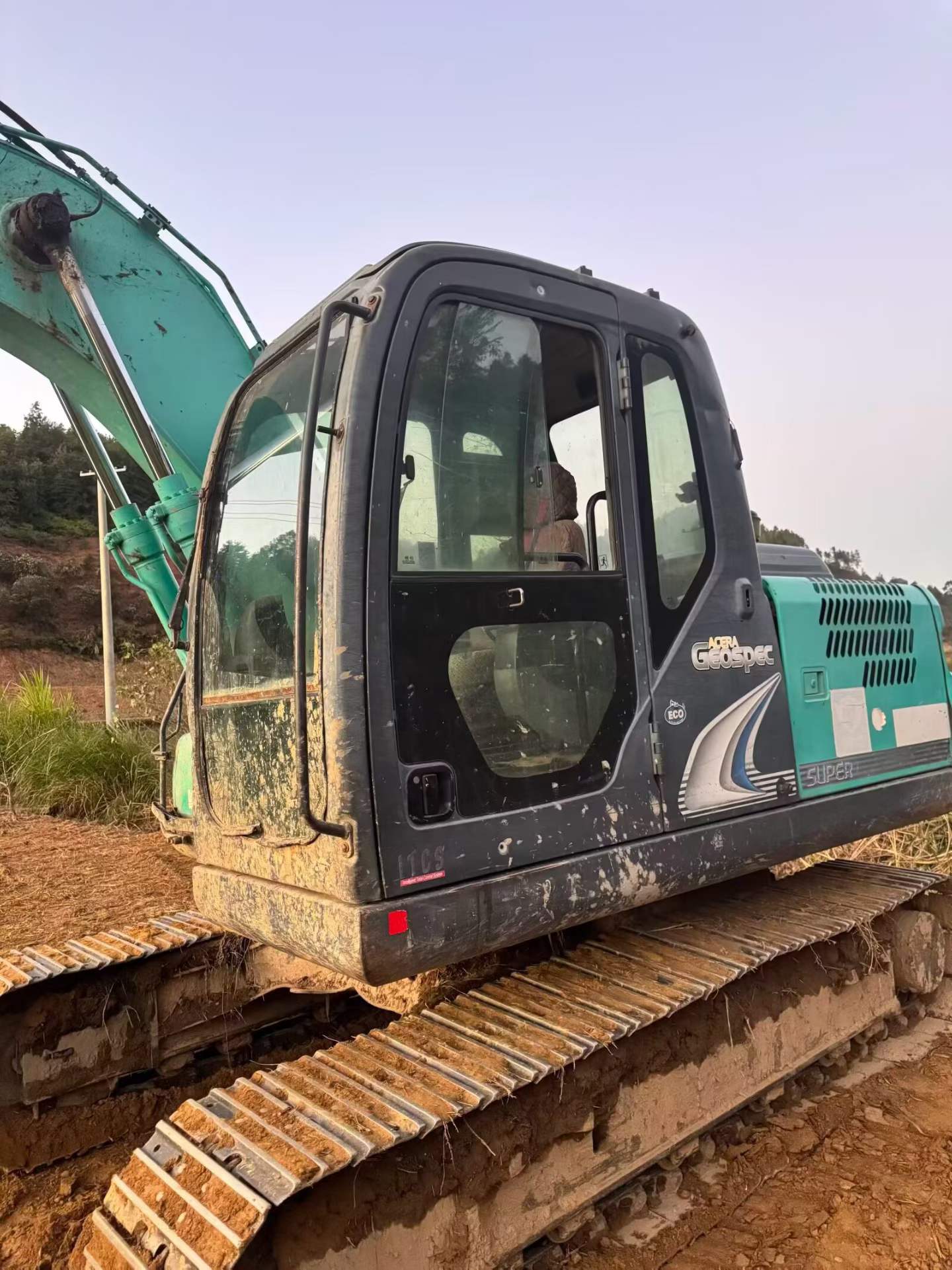

Engineered with Japanese precision, this 2013 Kobelco SK130 excavator delivers 13-ton performance through a robust Mitsubishi D04FR engine generating 74kW at 2000rpm. The advanced hydraulic system produces exceptional bucket digging force of 90.1kN, while the 0.52m³ backhoe bucket offers versatile material handling across demanding jobsites. Weighing 12,800kg with a compact 2,490mm transport width, this machine balances power with maneuverability.
- Maximum Reach: 8,340mm digging radius with 5,520mm depth capability
- Performance: 70% gradeability, dual-speed travel (3.4/5.6 km/h), 11.5rpm rotation
- Capacity: 275L fuel tank, 101L hydraulic reservoir for extended operations

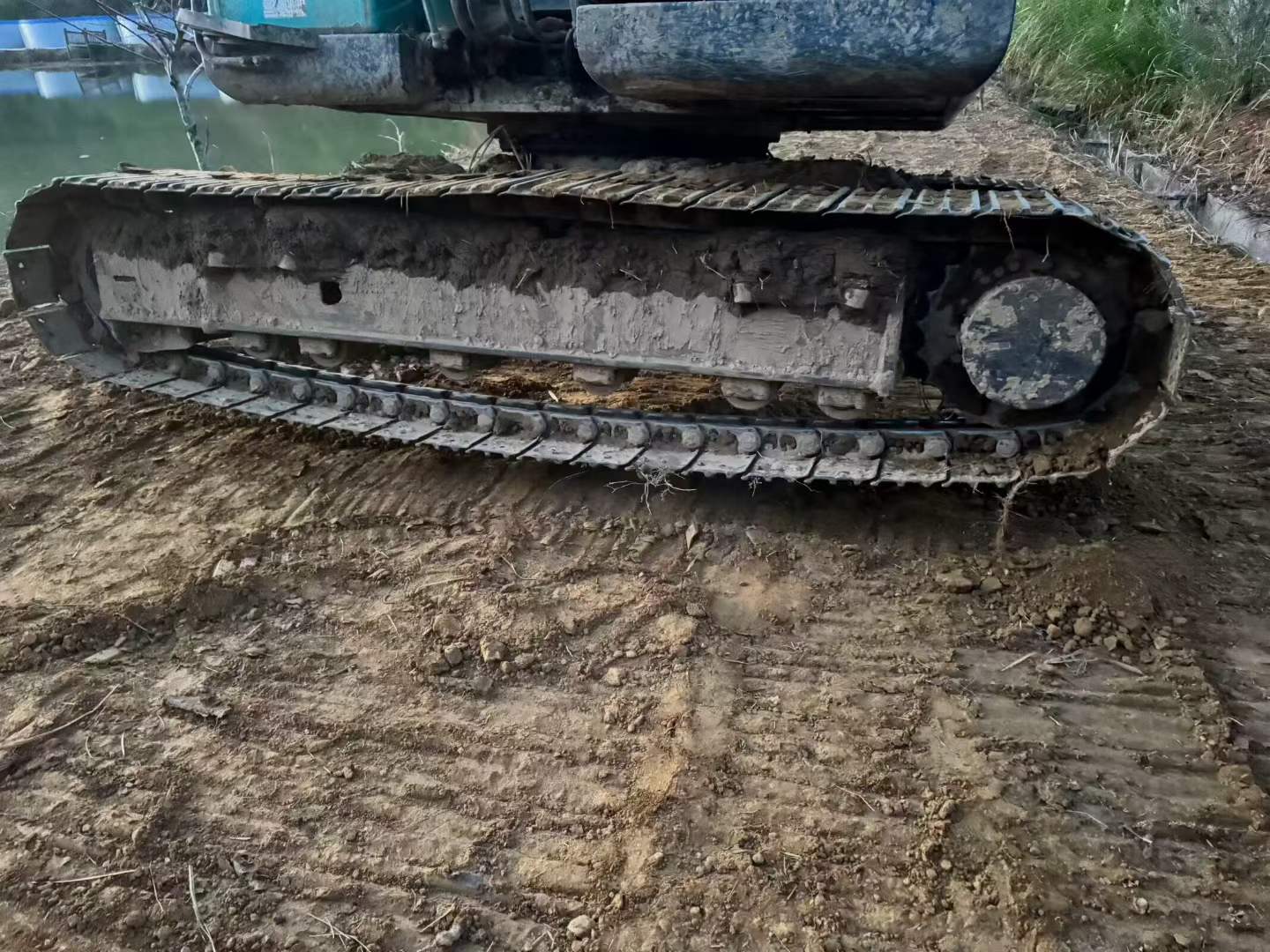

- Versatility: Adjustable track widths (500/600/700mm) for varied terrain conditions

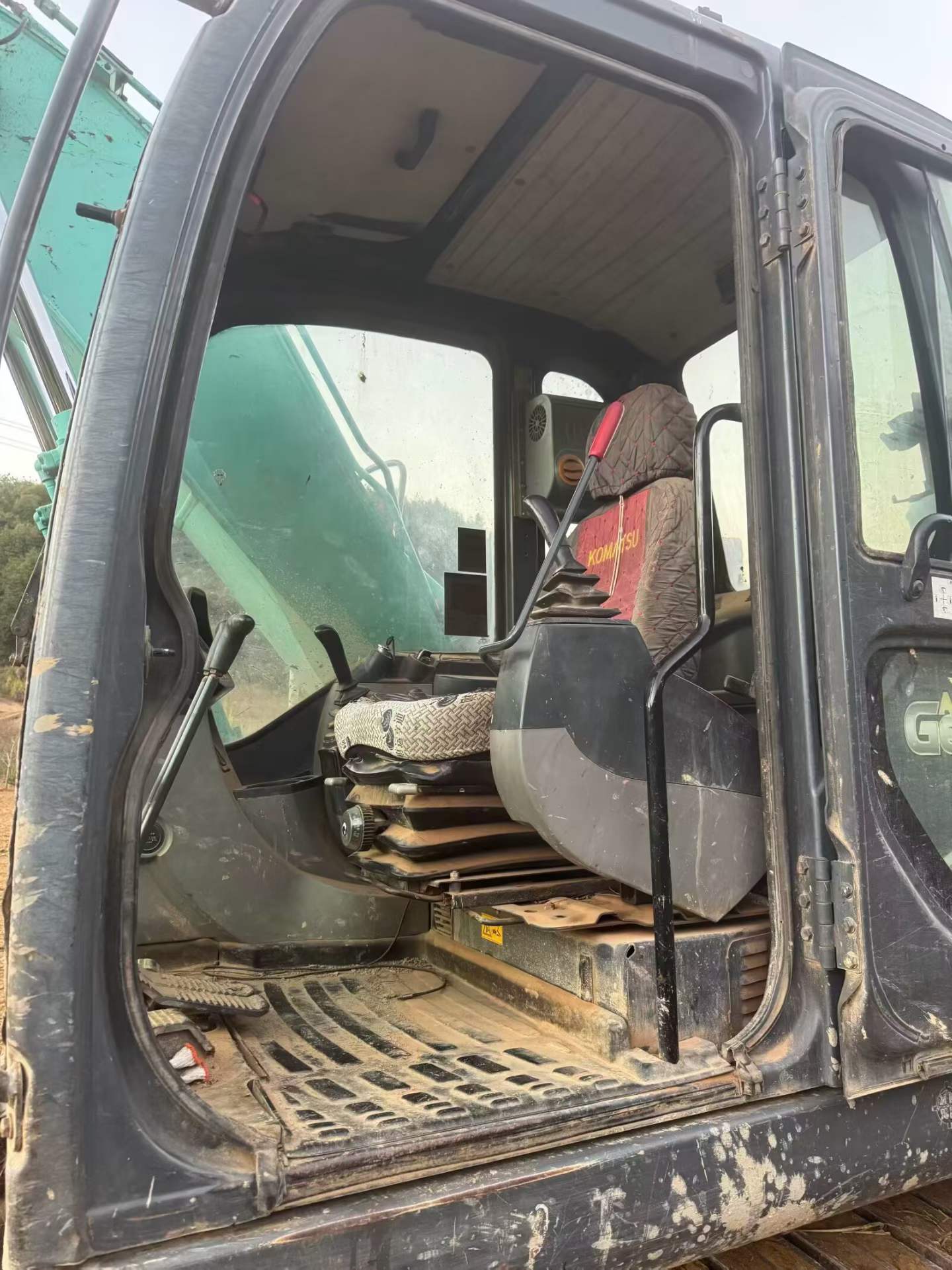

- Operator Comfort: Full-height cab (2,870mm) with 440mm ground clearance
Currently located in Kunming, Yunnan, this joint-venture manufactured excavator combines Kobelco's renowned hydraulic technology with Mitsubishi's reliable powertrain. Proven engineering excellence for contractors requiring dependable mid-size excavation equipment.
| Specifications | Value |
|---|---|
| No. | 1015791 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
