Product Description

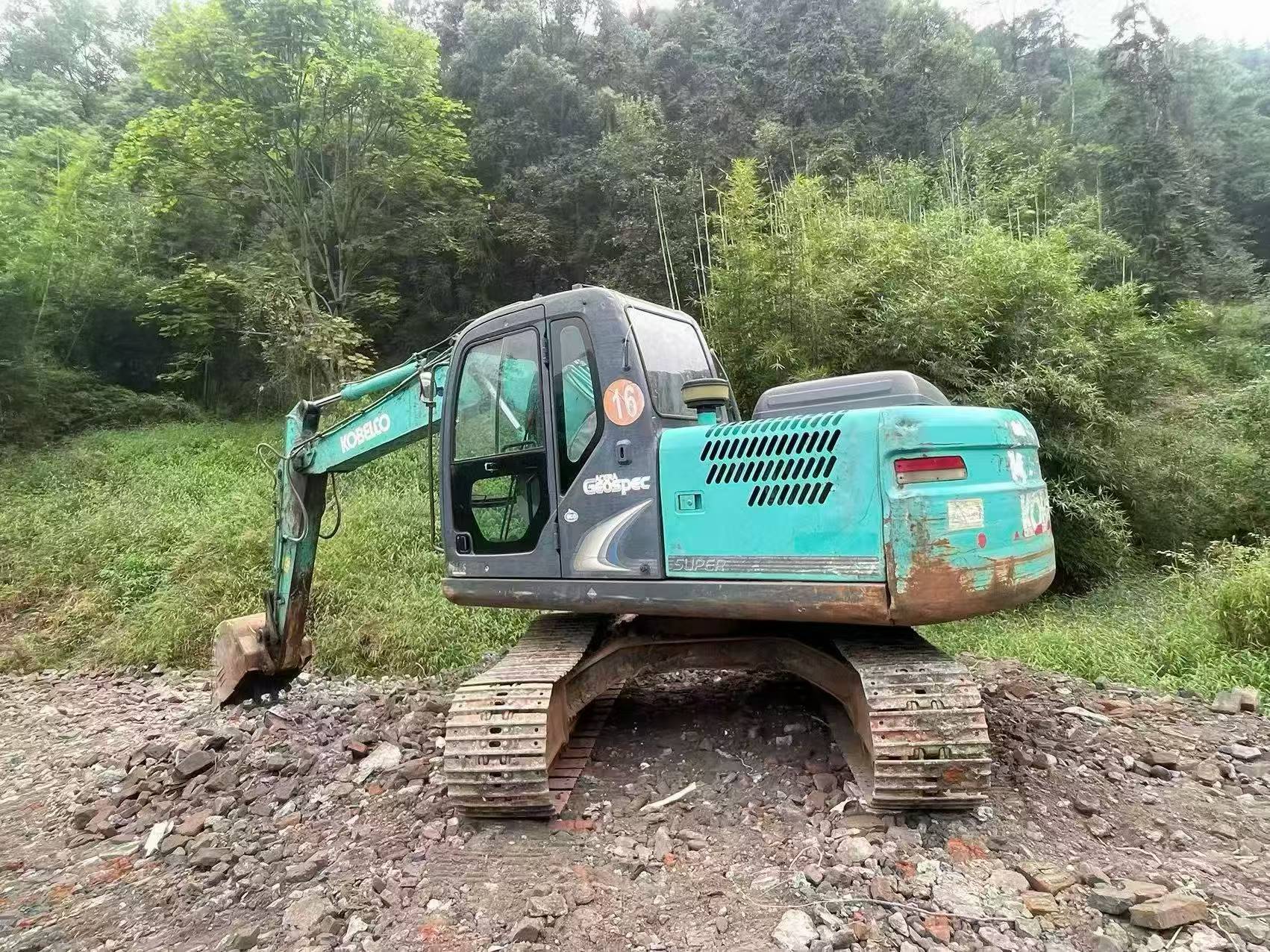

This 2014 Kobelco SK130 hydraulic excavator is currently available in Yunnan, China. The SK130 is a reliable 13-ton class machine known for its fuel efficiency and productivity in construction, earthmoving, and utility applications. Kobelco's reputation for durable undercarriage components and hydraulic systems makes this model a solid choice for contractors seeking dependable performance.
Key features of the SK130 include:
- Operating weight approximately 13 tons
- Fuel-efficient engine design
- Proven hydraulic system for smooth operation
- Suitable for excavation, trenching, and material handling
- Compact radius design for confined work sites
This unit represents an opportunity to acquire a mid-size excavator from a respected Japanese manufacturer at a competitive price point. Ideal for general contractors, rental fleets, or utility companies requiring versatile earthmoving equipment.
| Specifications | Value |
|---|---|
| No. | 1170687 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
