Product Description

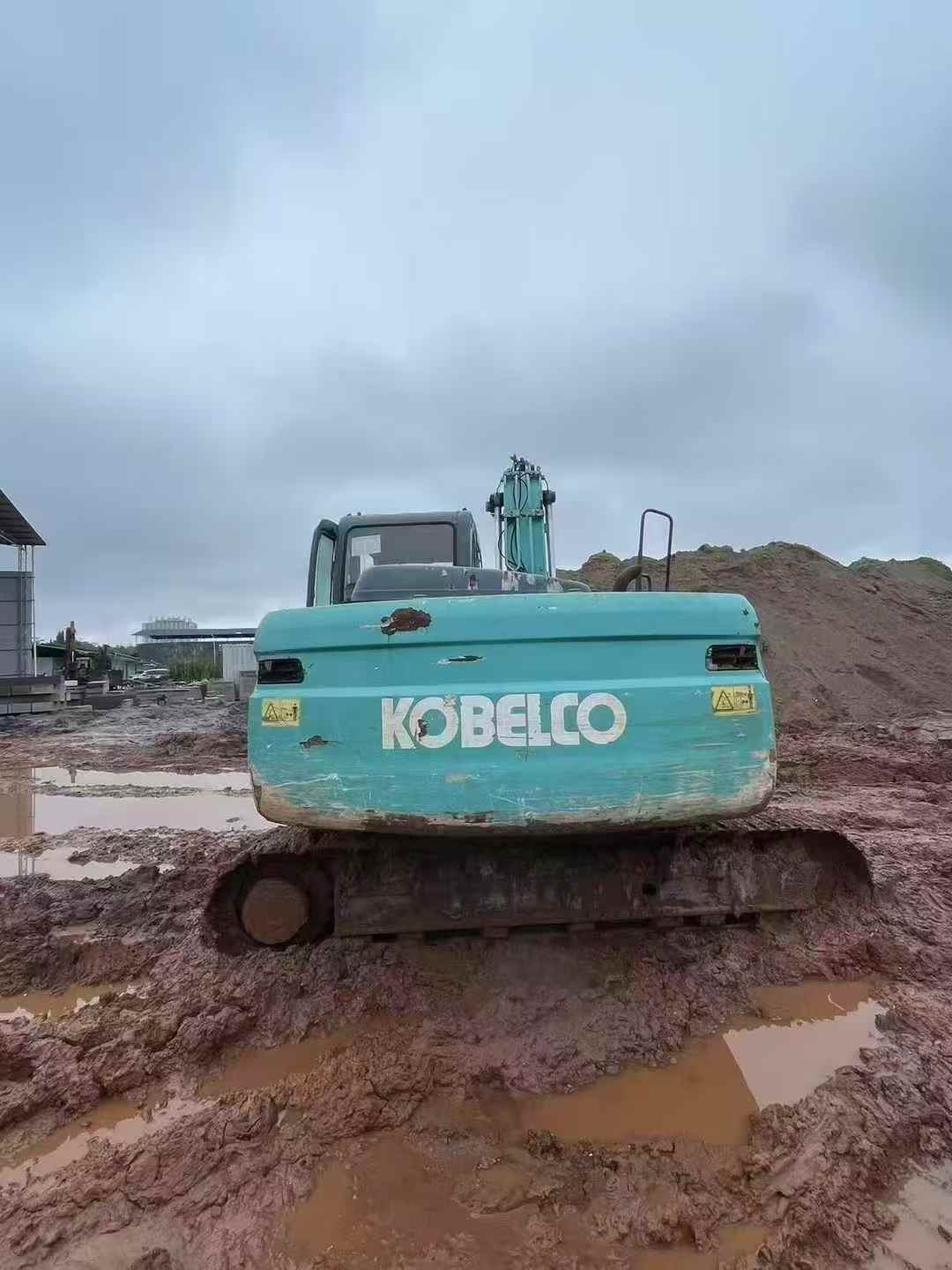

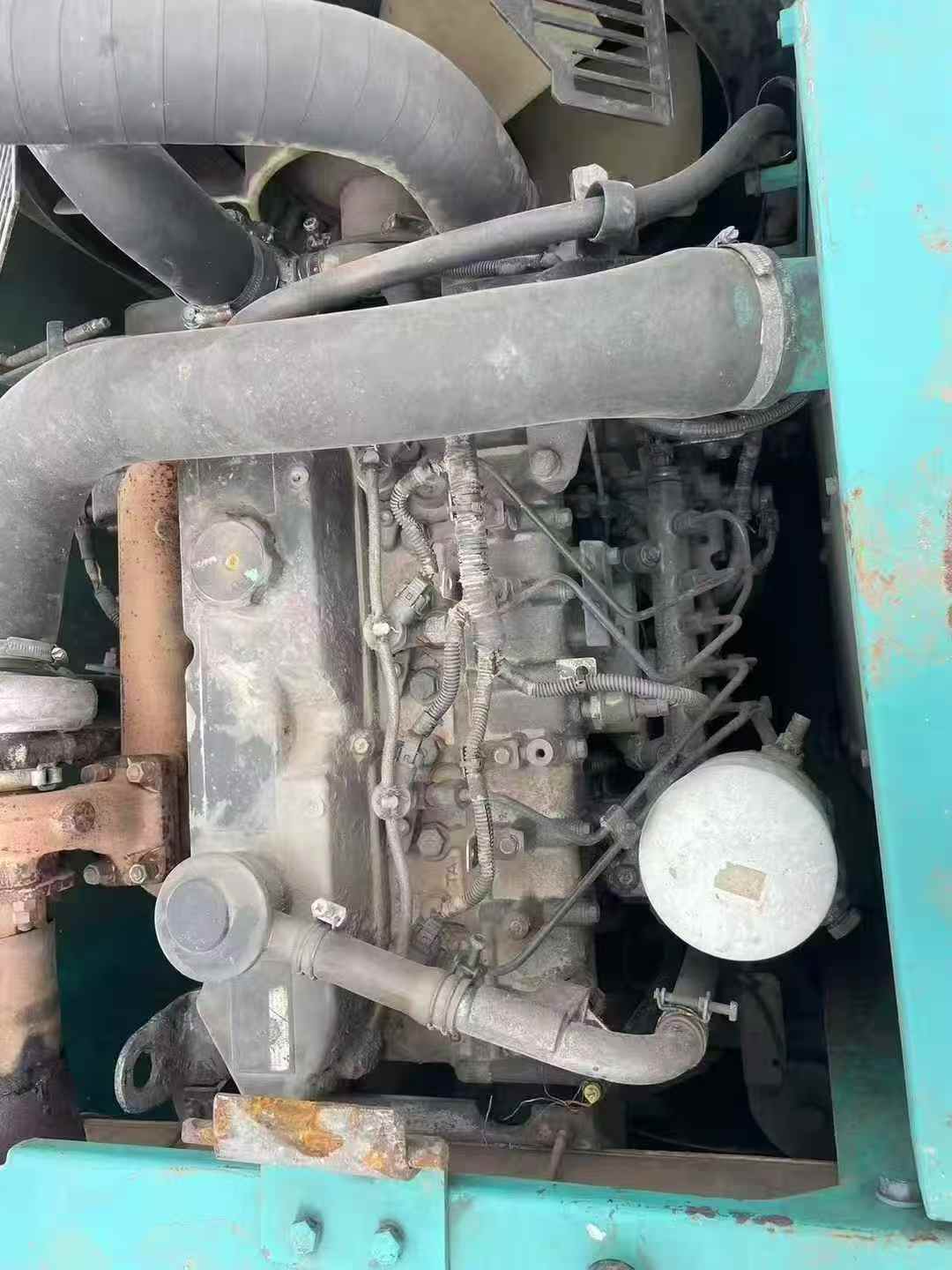

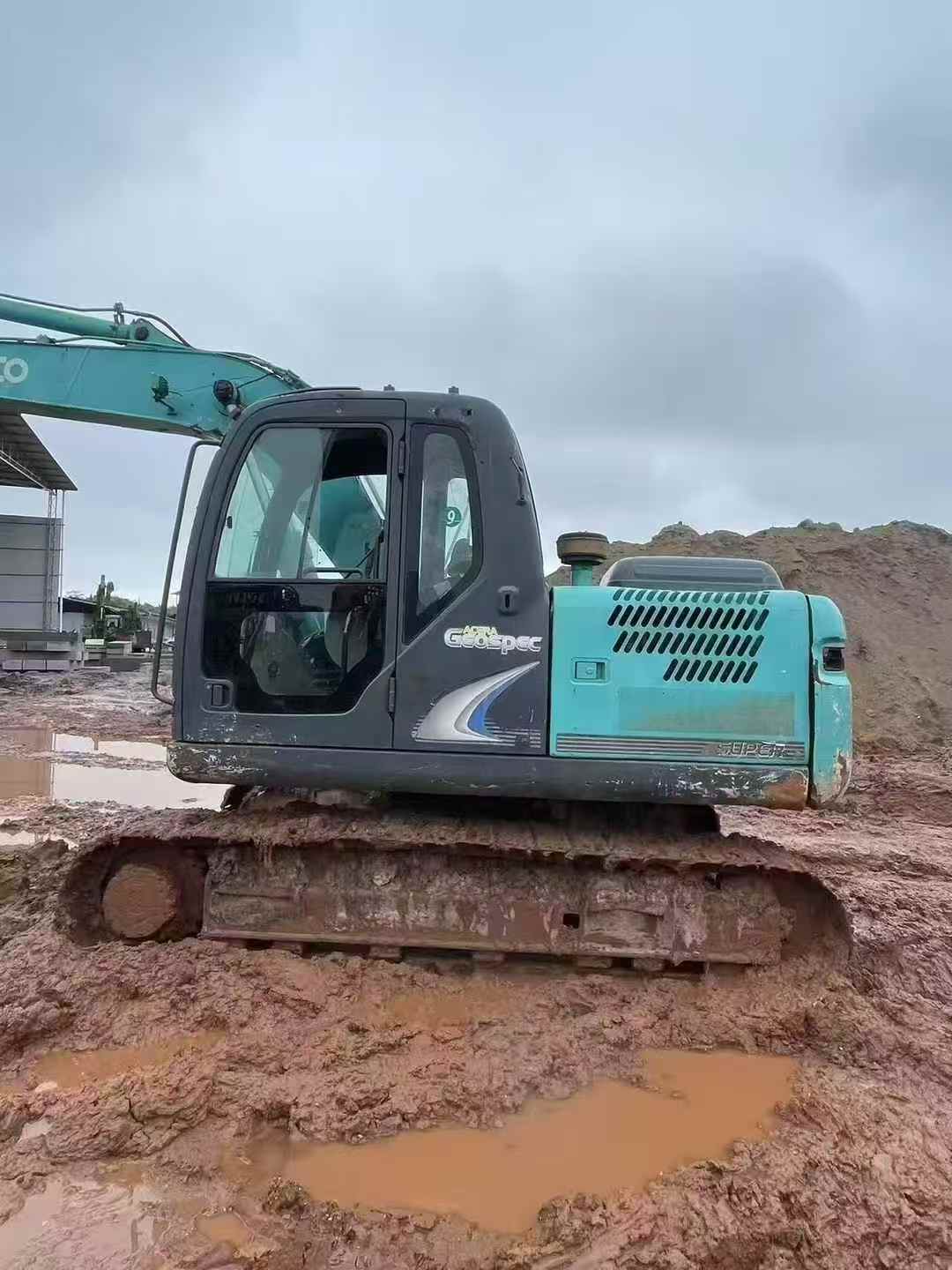

Proven performance meets Japanese engineering in this 2015 Kobelco SK130 excavator, currently located in Guizhou. With eight years of operational history, this 13-ton workhorse demonstrates the exceptional build quality that defines Kobelco's reputation. Powered by a reliable Mitsubishi D04FR engine delivering 74kW at 2000rpm, this machine continues to deliver consistent productivity across demanding job sites.
Built to withstand rigorous conditions, this SK130 offers impressive capabilities that remain relevant today:
- Maximum digging depth of 5,520mm with a bucket capacity of 0.52m³
- Exceptional reach extending to 8,340mm maximum digging radius
- Robust 90.1kN bucket digging force for challenging materials
- Impressive 70% (35°) climbing ability for varied terrain
- Compact 2,190mm rear turning radius for confined spaces
Operating weight of 12,800kg provides stability without sacrificing maneuverability. Dual travel speeds (3.4/5.6 km/h) optimize both precision work and site mobility. Generous fuel capacity (275L) and hydraulic tank (101L) minimize downtime. This joint venture/import machine represents enduring value—a testament to construction equipment engineered f
| Specifications | Value |
|---|---|
| No. | 1008155 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
