Product Description

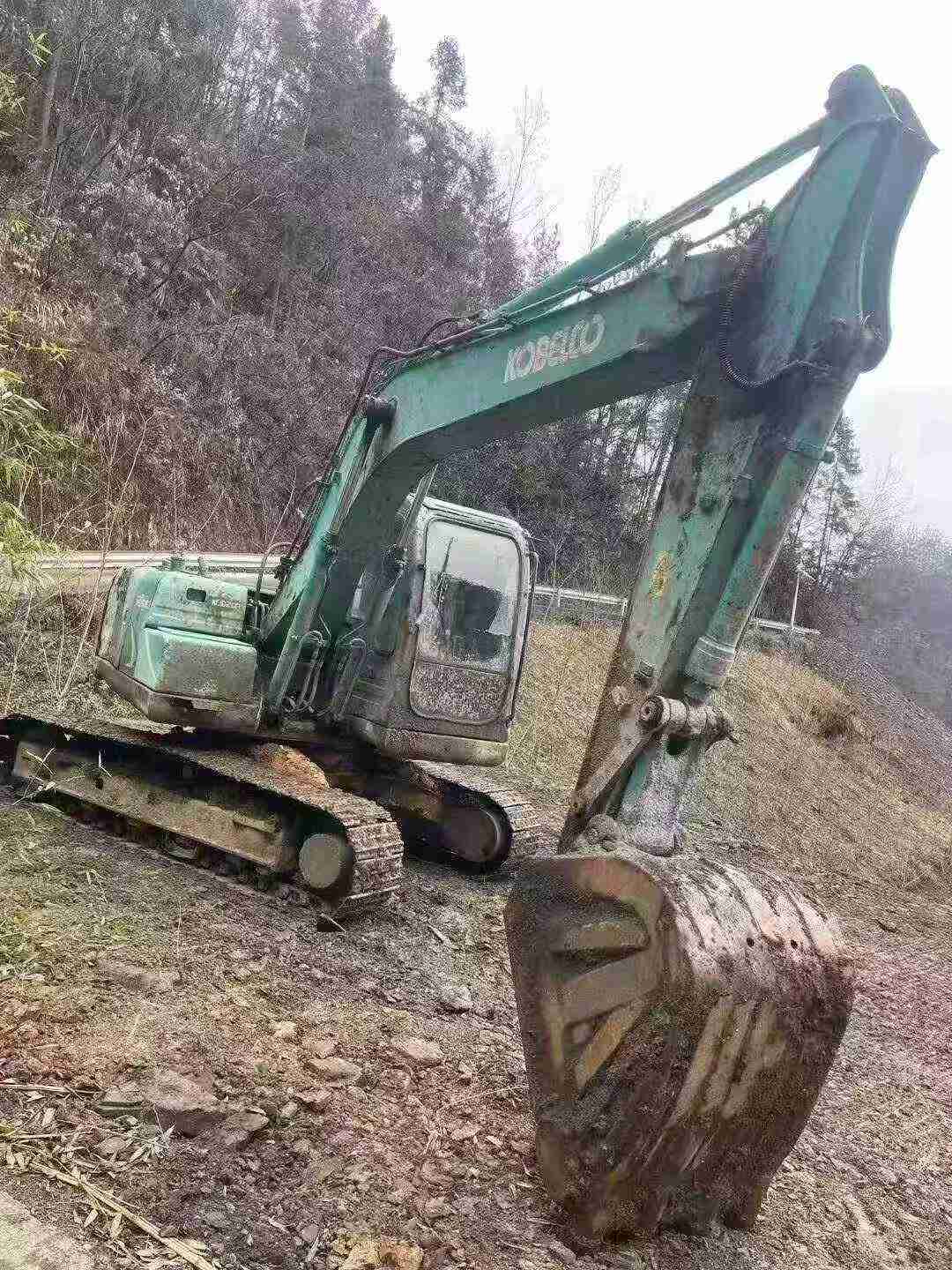

Engineered for precision and operator confidence, this 2016 Kobelco SK130 delivers reliable performance in demanding excavation environments. Operating at 13 tons with a 12,800 kg working weight, this machine combines Japanese engineering excellence with practical jobsite capability. The Mitsubishi D04FR engine generates 74 kW at 2000 rpm, providing consistent power for extended work cycles while maintaining fuel efficiency through its 275-liter tank capacity.
Operator-focused design defines this model's competitive advantage. The spacious cabin offers exceptional 360-degree visibility, critical for safe operation in congested work areas. Responsive hydraulic controls and an 11.5 rpm rotation speed enable smooth, precise movements that reduce operator fatigue during long shifts. Stability remains uncompromised with a 2,190 mm rear turning radius and 440 mm ground clearance, allowing confident operation on uneven terrain.
- Maximum digging reach: 8,340 mm with 5,520 mm depth capability
- Bucket digging force: 90.1 kN for challenging soil conditions
- Travel speeds: 3.4/5.6 km/h for efficient site mobility
- Impressive 70% (35°) climbing ability
- Currently located in Luzhou, Sichuan
| Specifications | Value |
|---|---|
| No. | 998339 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

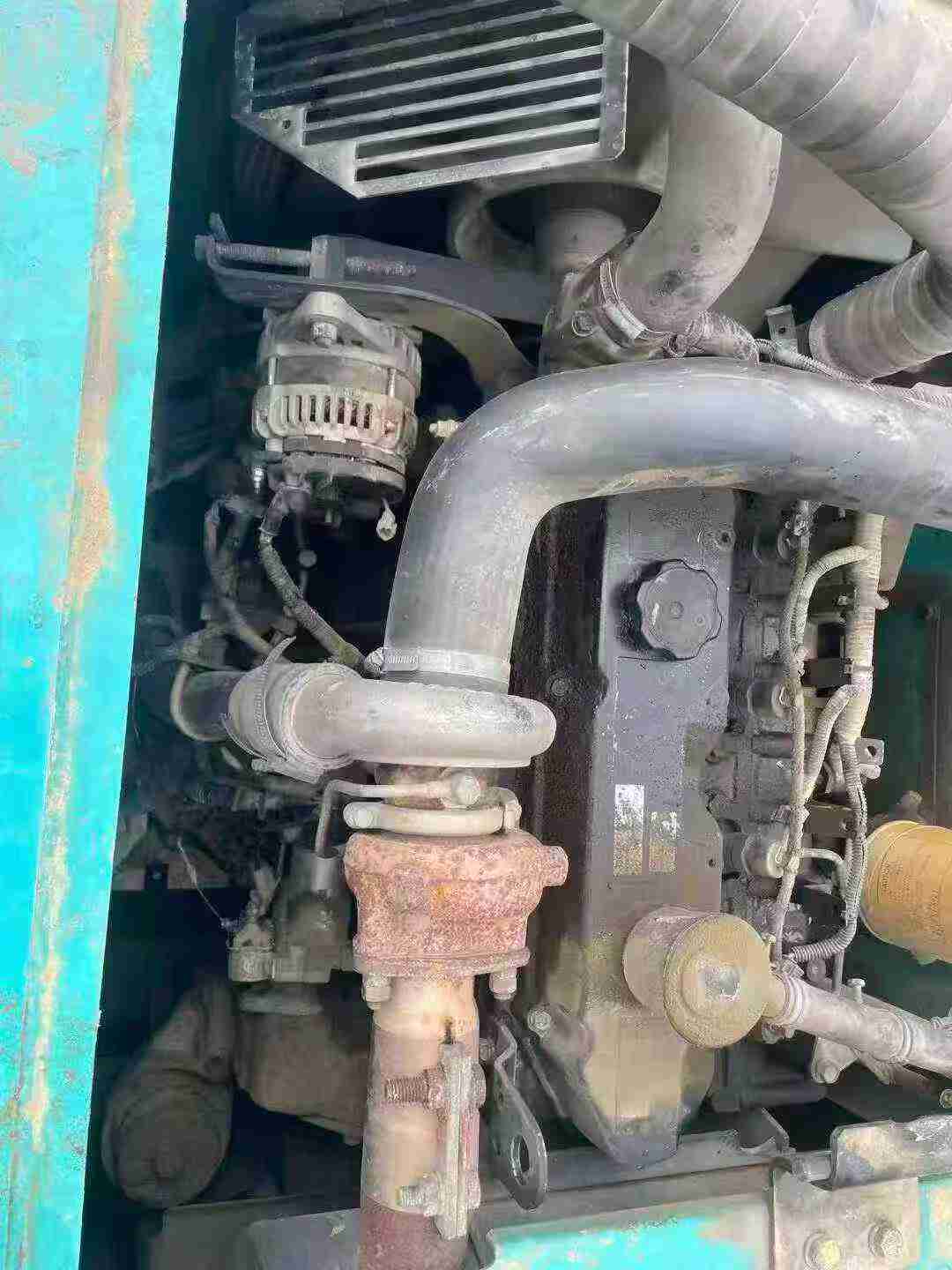

| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
