Product Description

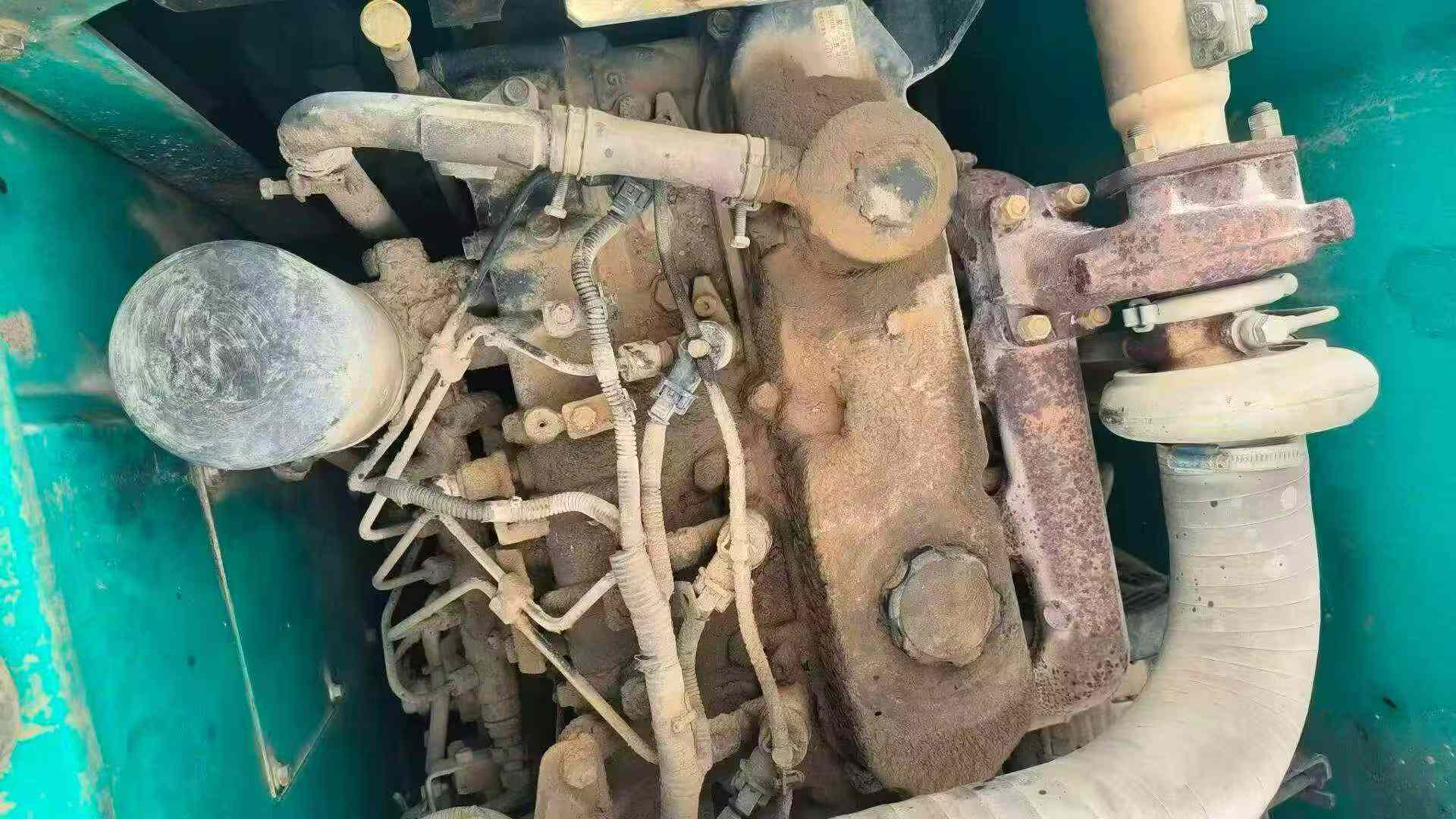

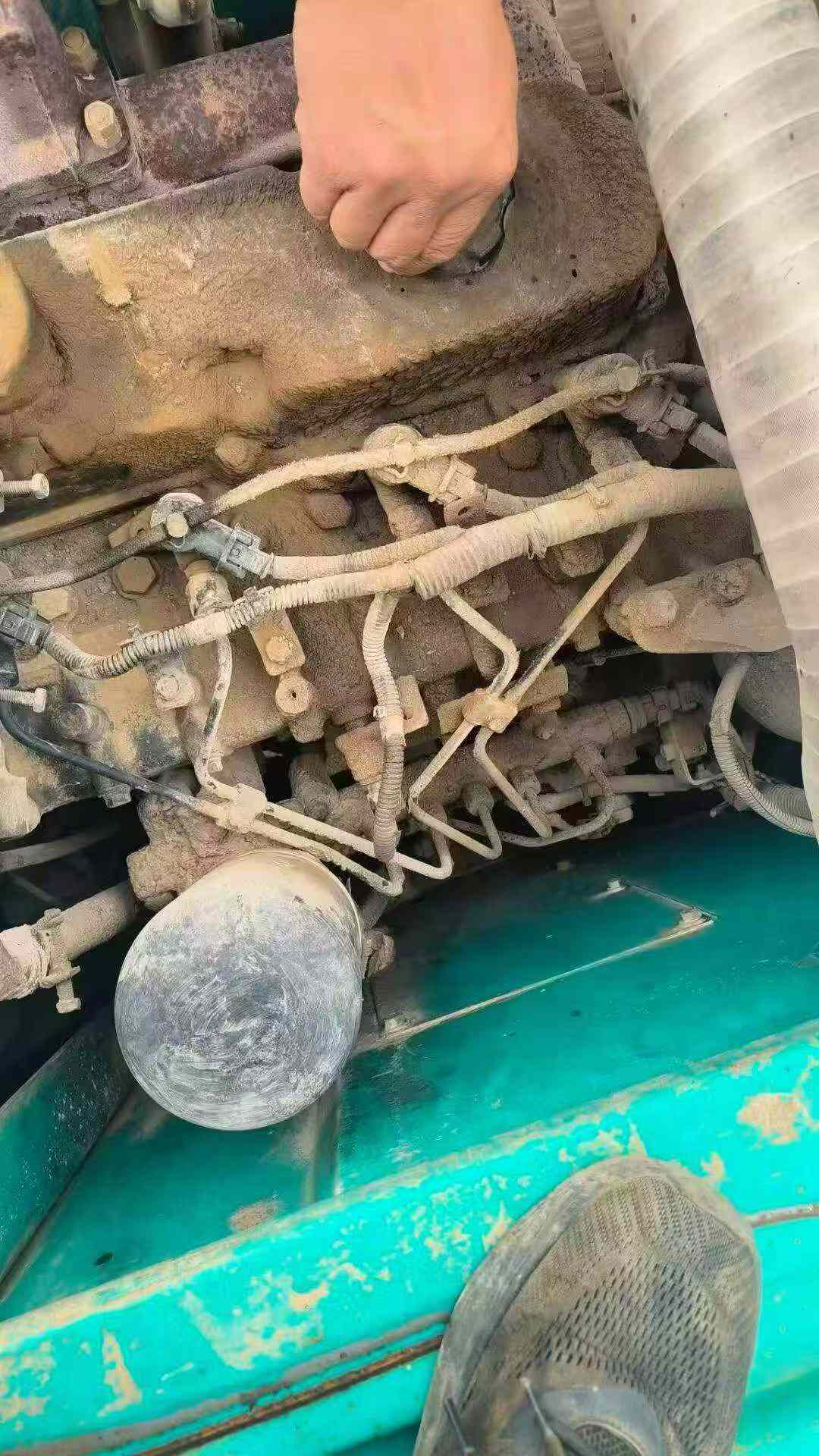

Built for precision and all-day productivity, this 2017 Kobelco SK130 delivers 13-ton performance with operator-first engineering. Powered by a reliable Mitsubishi D04FR engine producing 74 kW at 2000 rpm, this excavator combines proven Japanese design with joint-venture build quality. The spacious cab offers commanding visibility across the 8,340 mm maximum digging radius, while intuitive controls respond smoothly through demanding cycles.
- Working weight: 12,800 kg with 0.52 m³ bucket capacity
- Exceptional reach: 5,520 mm maximum digging depth, 8,500 mm digging height
- Stable platform: 2,490 mm track gauge with 440 mm ground clearance
- Smooth rotation: 11.5 rpm swing speed for efficient positioning
- Dual travel speeds: 3.4/5.6 km/h for versatile site mobility
- Proven digging force: 90.1 kN bucket breakout power
- Currently located in Luzhou, Sichuan, ready for inspection
Balanced handling and responsive hydraulics make this SK130 ideal for operators managing medium-duty excavation, trenching, and loading applications across varied terrain.
| Specifications | Value |
|---|---|
| No. | 1025693 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
