Product Description
Built for performance in 2018, this Kobelco SK130 excavator delivers 74kW of proven Mitsubishi D04FR power to handle demanding excavation, grading, and demolition work. Operating at 13 tons with a 0.52m³ backhoe bucket, this machine tackles foundation digging, trenching, and material handling with 90.1kN of bucket digging force. Maximum digging depth reaches 5,520mm, while the 8,340mm working radius covers substantial ground per cycle.

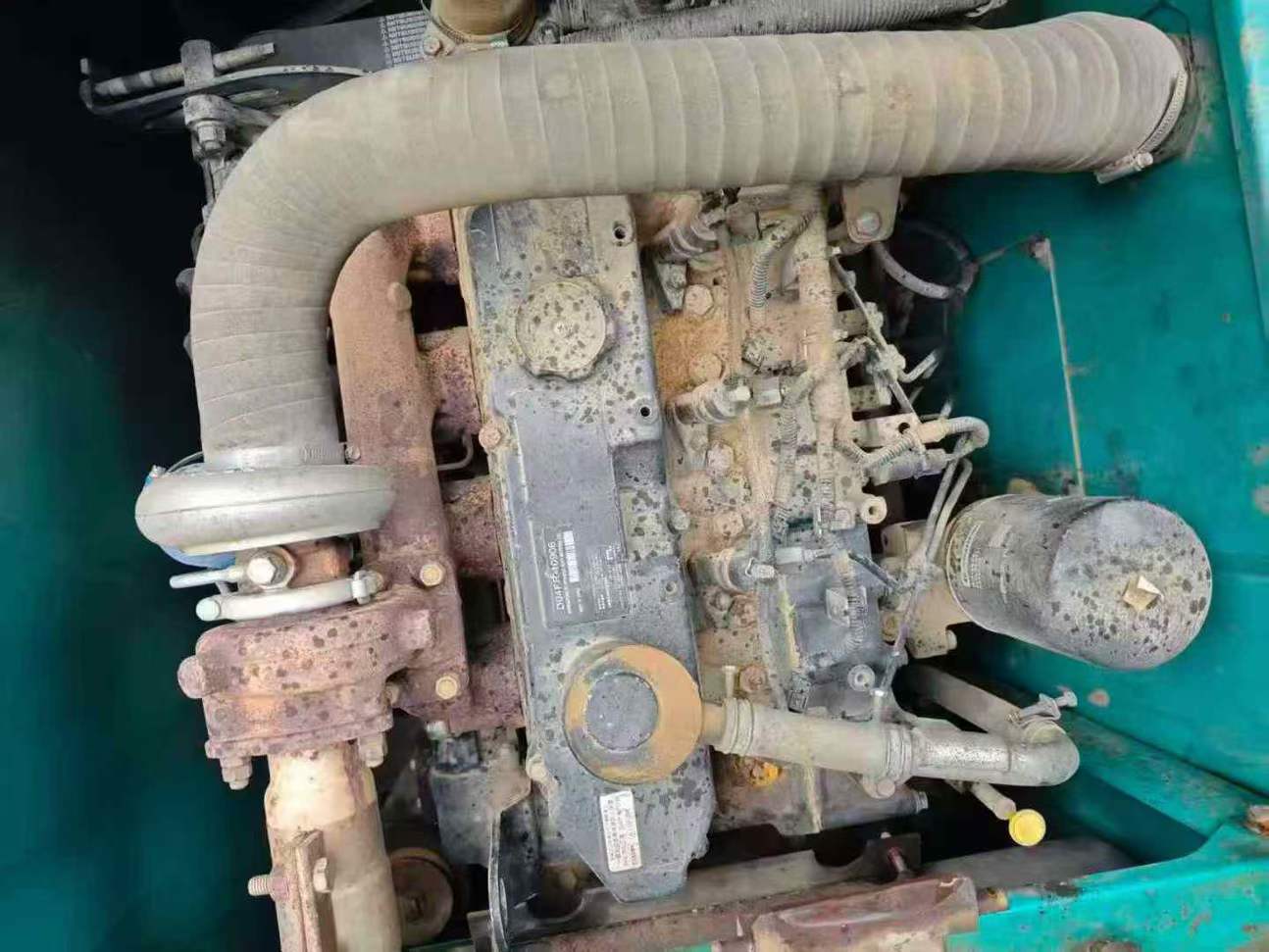

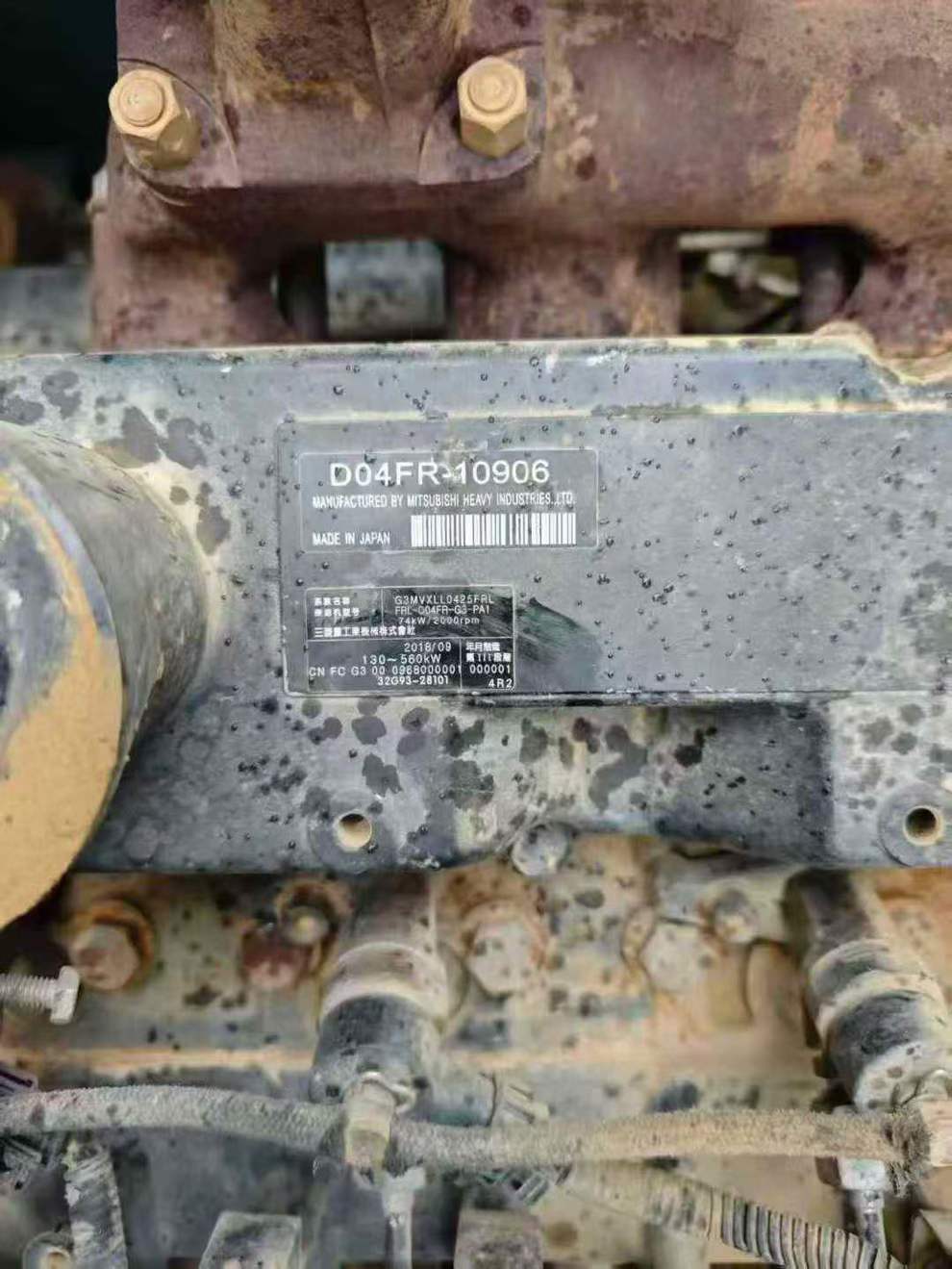

- Mitsubishi D04FR engine: 74kW at 2,000rpm for reliable jobsite output
- Digging reach: 8,340mm radius, 5,520mm depth, 8,500mm height
- Compact footprint: 2,490mm transport width, 2,190mm tail swing radius
- Fuel capacity: 275L tank supports extended operating shifts
- Travel speed: 5.6km/h high range for efficient site repositioning
- Climbing ability: 70% grade capability on challenging terrain
- Currently located in Hunan, ready for immediate deployment
Joint venture construction quality meets Japanese engineering standards. This SK130 arrives ready to work—no downtime, no delays, just productive hours from day one.
| Specifications | Value |
|---|---|
| No. | 1027228 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
