Product Description

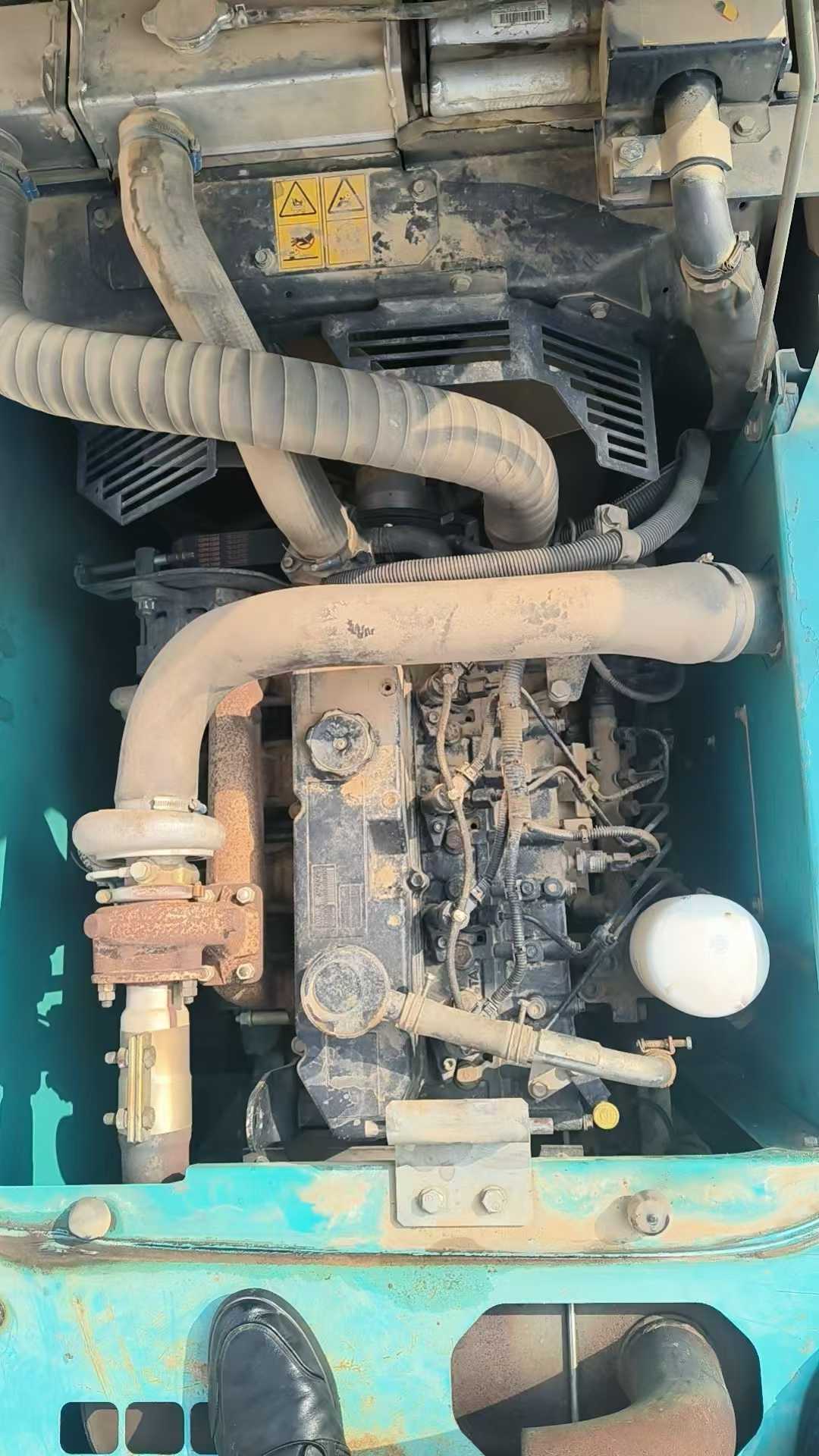

Built for performance in 2020, this Kobelco SK130 excavator delivers 13 tons of proven capability on every jobsite. Powered by a Mitsubishi D04FR engine producing 74 kW at 2000 rpm, this machine tackles digging, grading, and demolition tasks with industrial-grade reliability. The 0.52 m³ backhoe bucket generates 90.1 kN of digging force, reaching a maximum excavation depth of 5520 mm and a digging radius of 8340 mm—specifications that translate directly to productivity in trenching, foundation work, and site preparation.
- Working weight: 12,800 kg with compact 2490 mm transport width
- Maximum digging height: 8500 mm for material handling and loading
- Travel speed: 3.4/5.6 km/h with 70% gradeability for rough terrain
- Fuel capacity: 275L tank for extended operation cycles
- Tight-access friendly: 2190 mm rear turning radius
Currently located in Changsha, Hunan, this Japan-engineered excavator is inspection-ready and available for immediate deployment. Contact Fair Trade Machinery today for detailed specifications, shipping quotes, and export documentation.
| Specifications | Value |
|---|---|
| No. | 1014404 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
