2021 Kobelco SK130

1/9

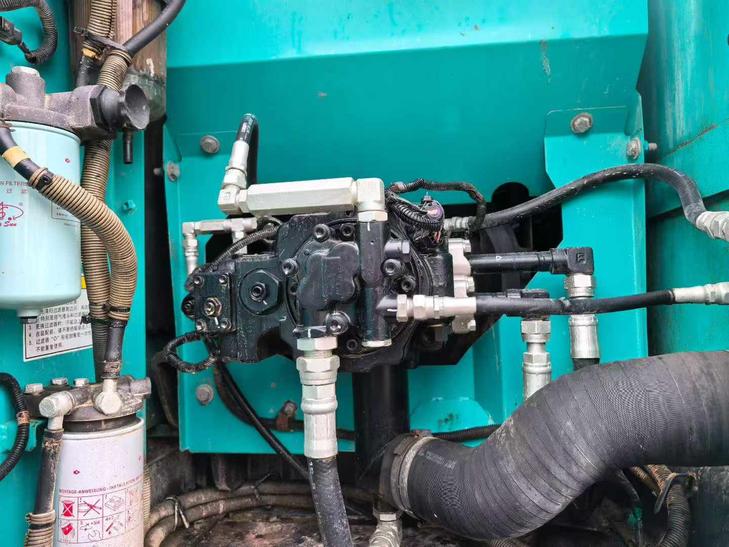

Buy Kobelco SK130 Used Excavator / 1
Buy Kobelco SK130 Used Excavator / 2
Buy Kobelco SK130 Used Excavator / 3
Buy Kobelco SK130 Used Excavator / 4
Buy Kobelco SK130 Used Excavator / 5
Buy Kobelco SK130 Used Excavator / 6
Buy Kobelco SK130 Used Excavator / 7
Buy Kobelco SK130 Used Excavator / 8
Buy Kobelco SK130 Used Excavator / 9

Product Description

Built for serious ground work, this 2021 Kobelco SK130 arrives from Zhejiang, China, ready to move straight onto your job site. Powered by a Mitsubishi D04FR engine producing 74 kW at 2000 rpm, it delivers 90.1 kN of bucket digging force — enough muscle for demanding excavation, precise grading, and light demolition work. With a 0.52 m³ backhoe bucket and a maximum digging depth of 5,520 mm, this 13-ton machine handles trenching and foundation work with consistent, reliable output.

  • Engine: Mitsubishi D04FR — 74 kW / 2000 rpm
  • Operating weight: 12,800 kg
  • Bucket capacity: 0.52 m³ (backhoe)
  • Bucket digging force: 90.1 kN
  • Maximum digging depth: 5,520 mm
  • Maximum digging radius: 8,340 mm
  • Maximum excavation height: 8,500 mm
  • Travel speed: 3.4 / 5.6 km/h
  • Climbing ability: 70% / 35°
  • Fuel tank: 275 L | Hydraulic tank: 101 L
  • Track plate width options: 500 / 600 / 700 mm
  • Location: Zhejiang, China — available for immediate export
SpecificationsValue
No.1041527
Tonnage (tons)13
Working weight (kg)12800
Bucket capacity (m³)0.52
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi D04FR
Rated power (kw/rpm)74/2000
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)90.1
Travel speed (km/h)3.4/5.6
Fuel Tank (L)275
Hydraulic Tank (L)101
Total transport length (mm)7790
Total transport width (mm)2490
Total transport height (mm)2710
Full cab height (mm)2870
Minimum ground clearance (mm)440
Back end turning radius (mm)2190
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)2870
Track plate width (mm)500/600/700
Maximum digging radius (mm)8340
Maximum digging depth (mm)5520
Maximum excavation height (mm)8500
Maximum unloading height (mm)6090
Maximum vertical digging depth (mm)4880
Dodging plate width × height (mm)500
Maximum excavation radius of stop surface (mm)8190
Maximum effective digging depth (mm)5290
see more

Overview

No.1041527

Brand Name:

Kobelco

Model Number:

SK130

Year:

2021

Location:

Zhejiang China
