Product Description

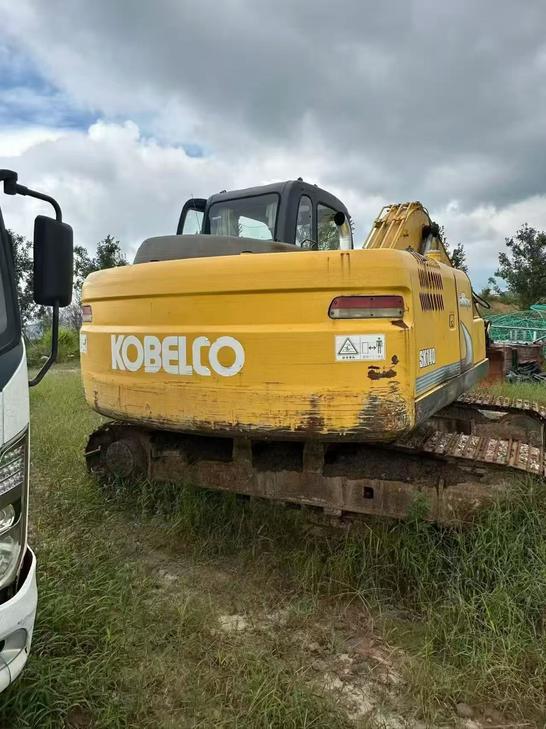

Discover the reliability and efficiency of the 2020 Kobelco SK140LC-8 excavator, available in Zhejiang, China. With over 70,000 hours of operational experience, this machine has proven its durability and performance in various demanding environments. The SK140LC-8 is known for its robust design and advanced features, making it a preferred choice for construction and excavation projects. Detailed documentation is available, ensuring transparency and ease of maintenance. Trust in the quality and longevity of Kobelco to enhance your project's productivity and reduce downtime.
- Year: 2020
- Brand: Kobelco
- Model: SK140LC-8
- Location: Zhejiang, China
- Operational Hours: Over 70,000
- Comprehensive documentation provided
| Specifications | Value |
|---|---|
| No. | 1144396 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.57(Standard) |
| Boom length (mm) | 4680 |
| Rod length (mm) | 2380(Standard) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR-KDP2TAAC |
| Rated power (kw/rpm) | 74/2000 |
| Cylinder diameter × stroke (mm) | 102*130 |
| Maximum torque (N.m) | 375/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.1 |
| Rod digging force (kN) | 64.4 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 3.4/5.6 |
| Turning torque (Nm) | 39.9 |
| Rotary hydraulic motor type | Axial plunger type |
| Type of walking hydraulic motor | Two sets of two-speed plungers |
| Maximum flow of main pump (l/min) | 2*130 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 1*20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*95*903 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*1120 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*100*1092 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Engine Oil changes (L) | 18.5 |
| Coolant (L) | 14 |
| Hydraulic System (L) | 171 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2870 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 910 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2620 |
| Back end turning radius (mm) | 2190 |
| Total track length (mm) | 3750 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
