Product Description

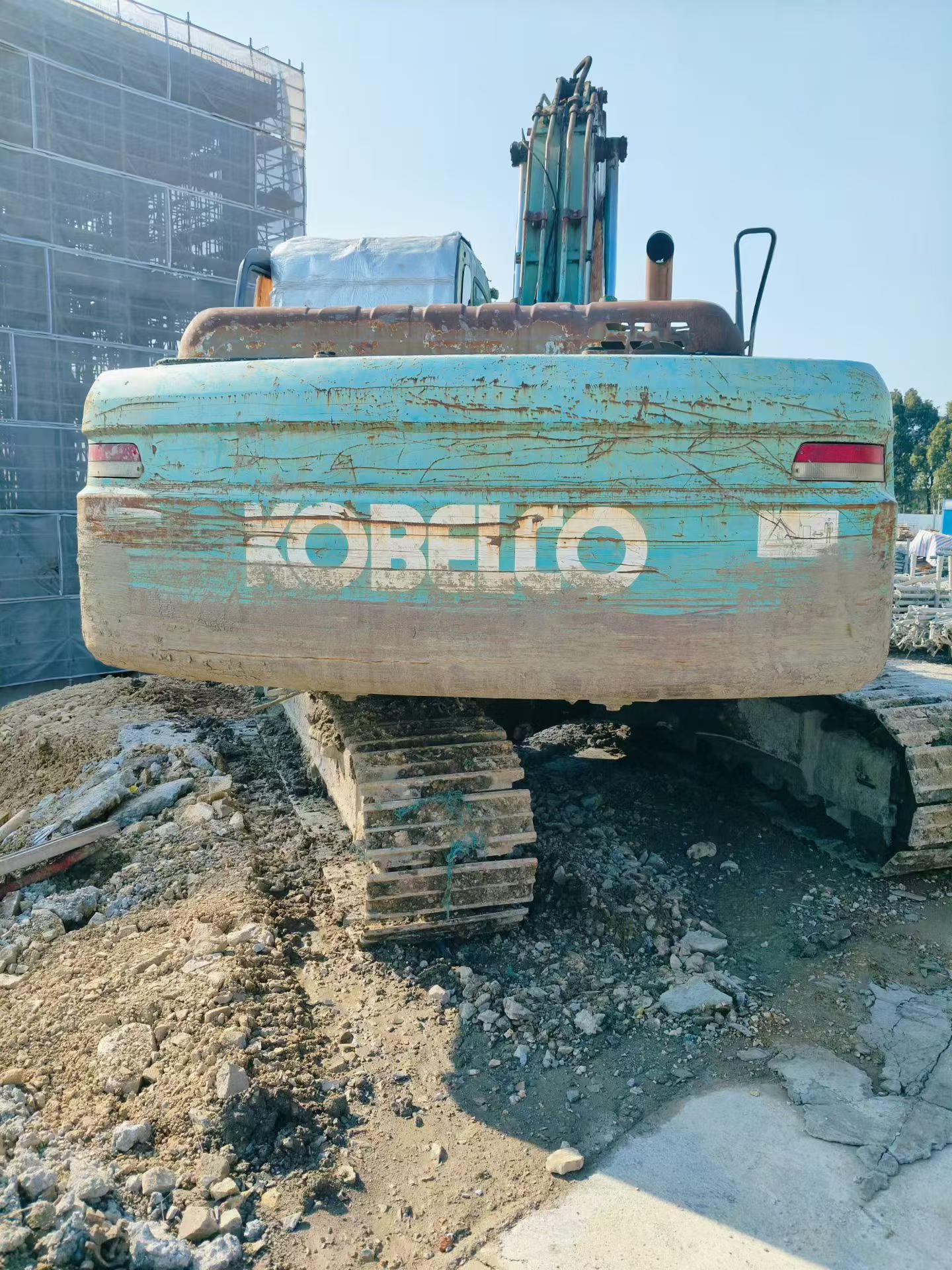

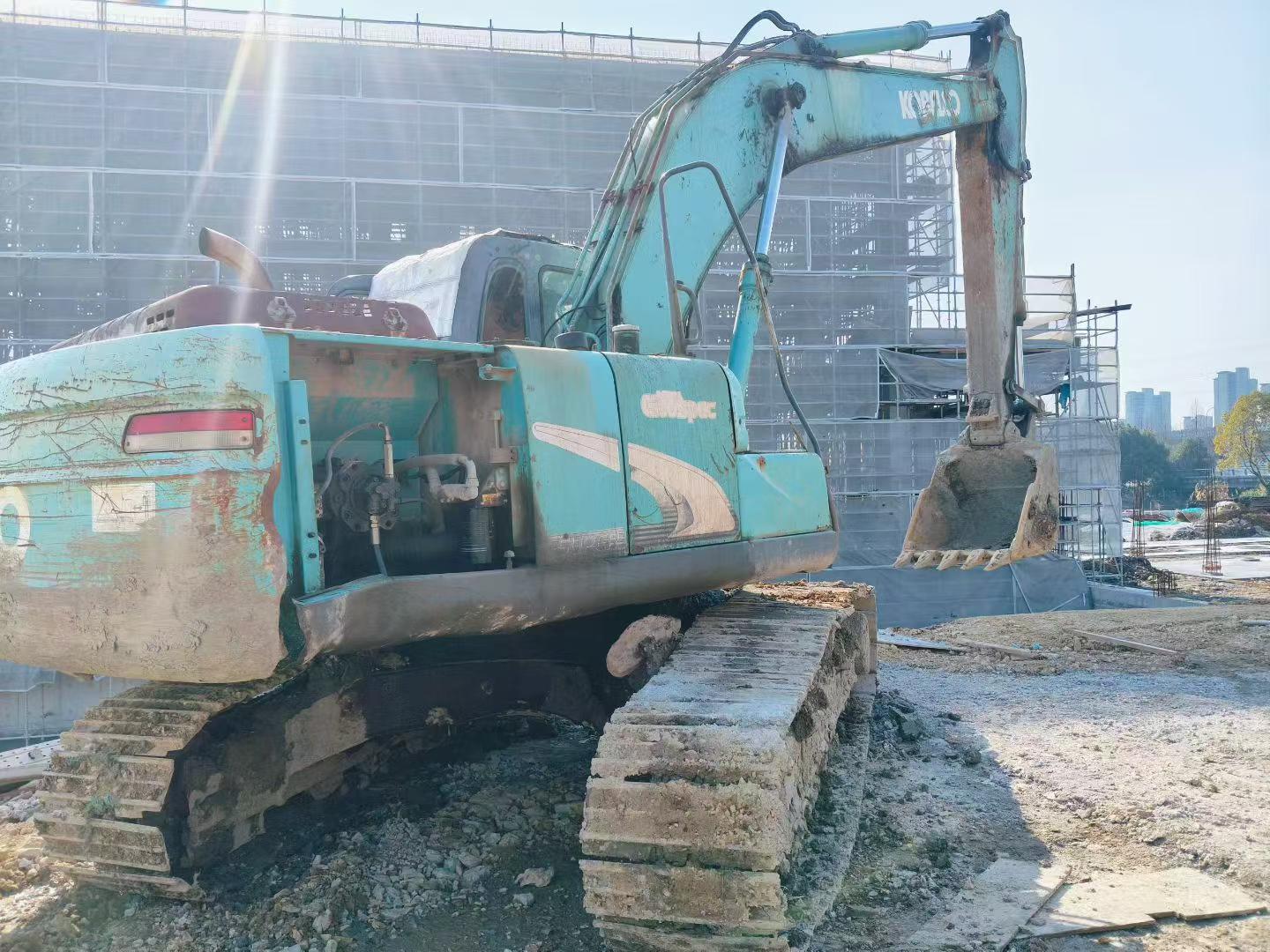

Built for high-output excavation work, this 2012 Kobelco SK200 delivers 20-ton performance with proven Mitsubishi 6D34-TLU2D power. Rated at 110kW and equipped with turbocharged intercooling, this machine handles demanding digging, grading, and demolition tasks without hesitation. Supercharged digging force reaches 157kN on the bucket and 107kN on the arm—ample power for breaking hard ground and loading heavy material.
- 0.8m³ bucket capacity moves substantial volumes per cycle
- Double variable displacement axial piston pumps provide responsive hydraulic control
- Two-speed travel system: 4.0 km/h for precision work, 6.0 km/h for repositioning
- 600mm or 800mm track options adapt to site conditions
- 340L fuel tank supports extended shifts
- 70% climbing ability tackles steep grades
- Water-cooled six-cylinder engine ensures reliable operation
Currently located in Wenzhou, Zhejiang, this SK200 is site-ready for excavation contractors, demolition crews, and civil works teams requiring dependable 20-ton class performance. Joint venture quality meets field-tested durability in a proven mid-size platform.
| Specifications | Value |
|---|---|
| No. | 1015165 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

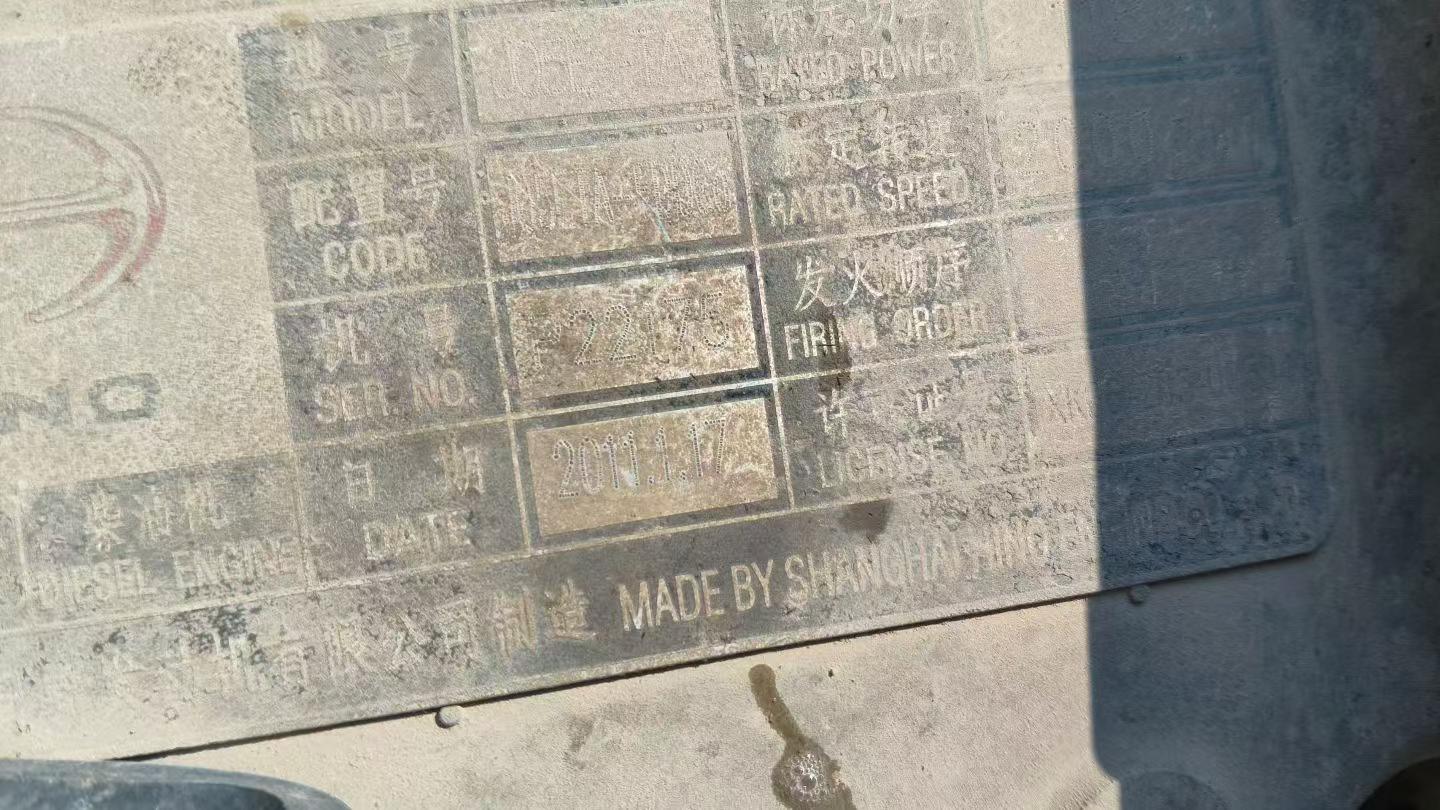

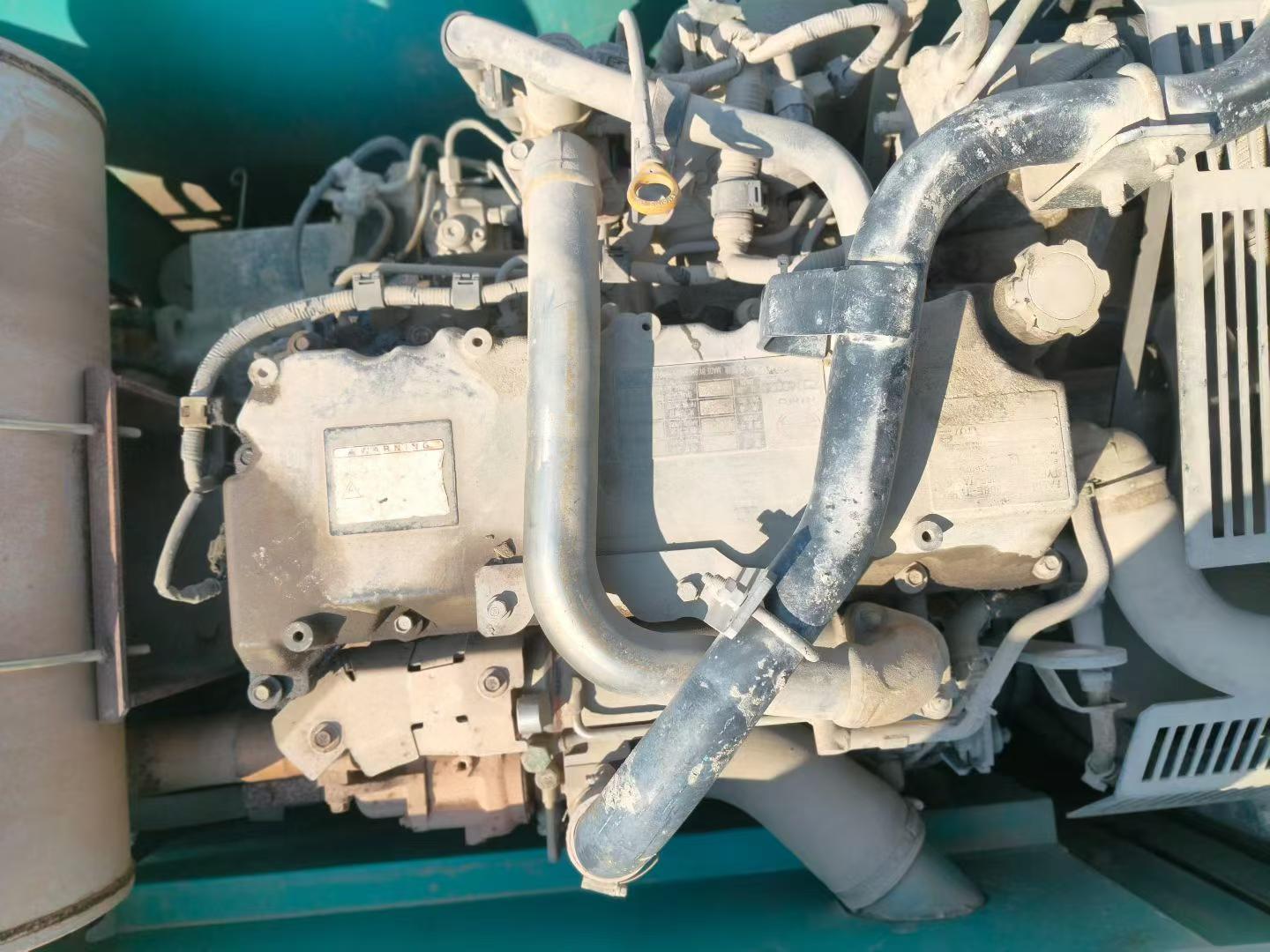

| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

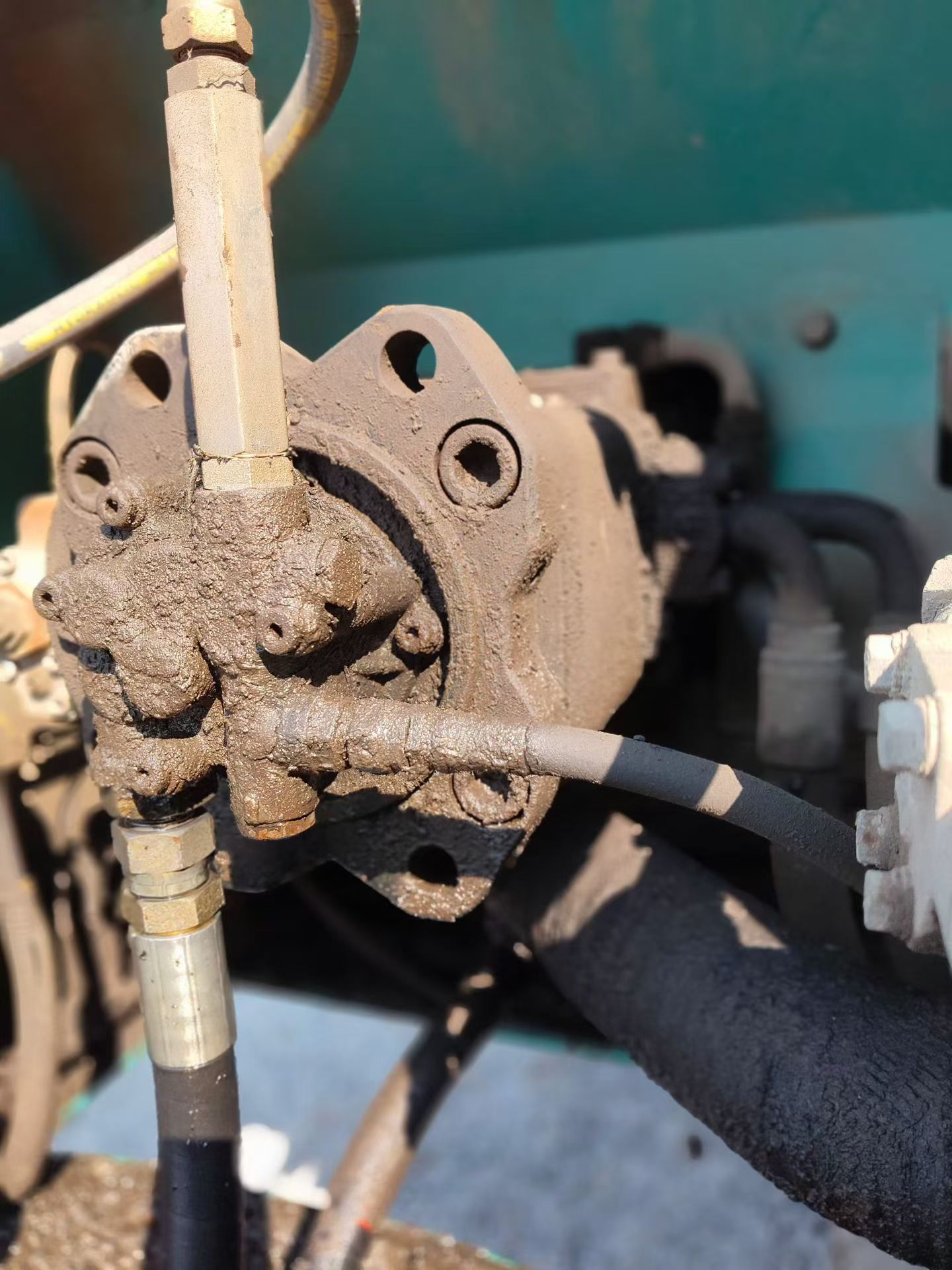

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
