Product Description

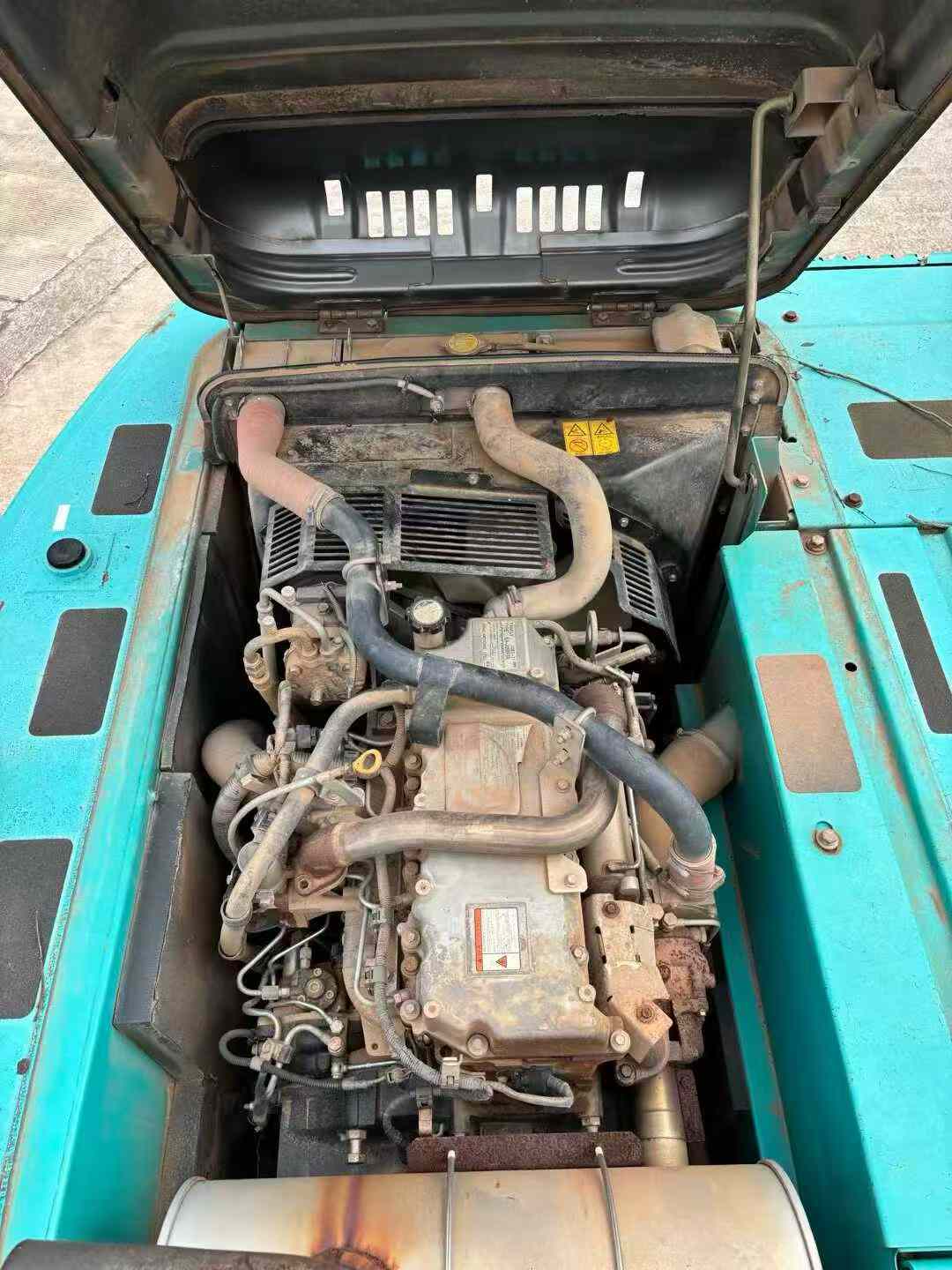

Featuring a Mitsubishi 6D34-TLU2D engine, the 2016 Kobelco SK200 delivers robust performance with 110 kW of power at 2000 rpm. Equipped with a water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, and intercooled system, this excavator ensures reliable operation under various conditions. The hydraulic system, powered by a double variable displacement axial piston pump and pilot gear pump, operates at a main overflow set pressure of 34.3 Mpa, enhancing efficiency and control.
- Working weight: 20,000 kg
- Bucket capacity: 0.8 m³
- Ground specific pressure: 45 Kpa / 35 Kpa
- Rotation speed: 11 rpm
- Climbing ability: 70%
- Travel speed: 1st speed: 4.0 km/h, 2nd speed: 6.0 km/h
- Fuel tank: 340 L
- Track plate width: 600 mm / 800 mm
Engineered for durability and precision, the SK200 series stands out with its advanced hydraulics and robust engine, making it a preferred choice for demanding construction and excavation tasks in 浙江金华 and beyond.
| Specifications | Value |
|---|---|
| No. | 1004634 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
