Product Description
Built for operators who demand precision and control, this 2020 Kobelco SK200 excavator delivers reliable performance across demanding job sites. Operating at 20 tons with a Mitsubishi 6D34-TLU2D engine generating 110 kW at 2000 rpm, this machine combines power with exceptional fuel efficiency from its 340-liter tank. Water-cooled turbocharged technology with built-in intercooling ensures consistent output during extended shifts.
Operators benefit from superior visibility and intuitive handling, supported by a responsive double variable displacement axial piston pump system. With 0.8 m³ bucket capacity and impressive digging forces—143 kN standard, boosting to 157 kN in supercharged mode—productivity remains high throughout the workday. Ground-specific pressure options (45/35 Kpa) and available 600 mm or 800 mm track plates provide excellent stability on varied terrain.
- Rotation speed: 11 rpm for smooth, controlled movement
- Travel speeds: 4.0 km/h (1st gear), 6.0 km/h (2nd gear)
- Climbing ability: 70% gradient capability
- Currently located in Changzhou, Jiangsu
| Specifications | Value |
|---|---|
| No. | 1046795 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

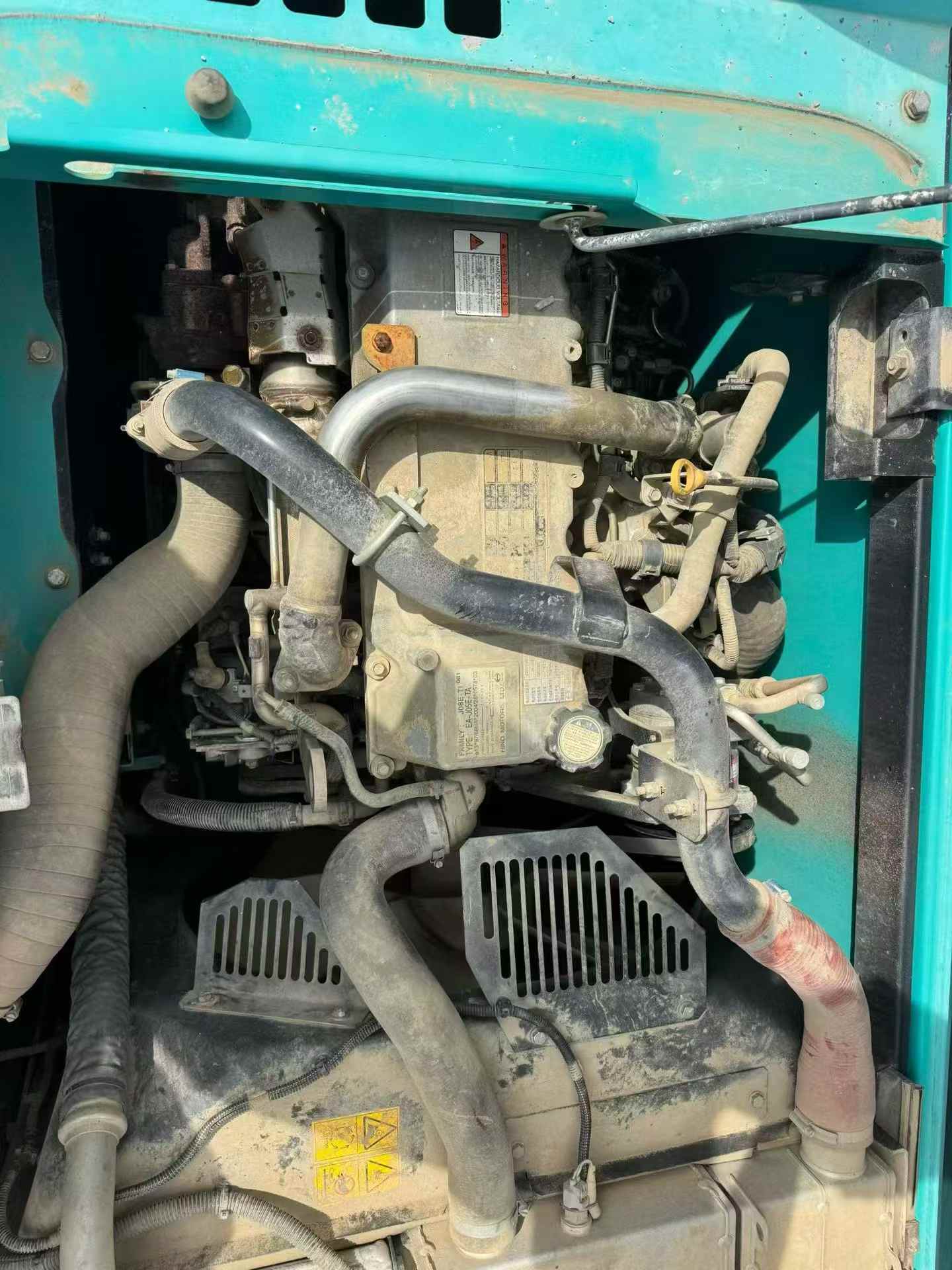

| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

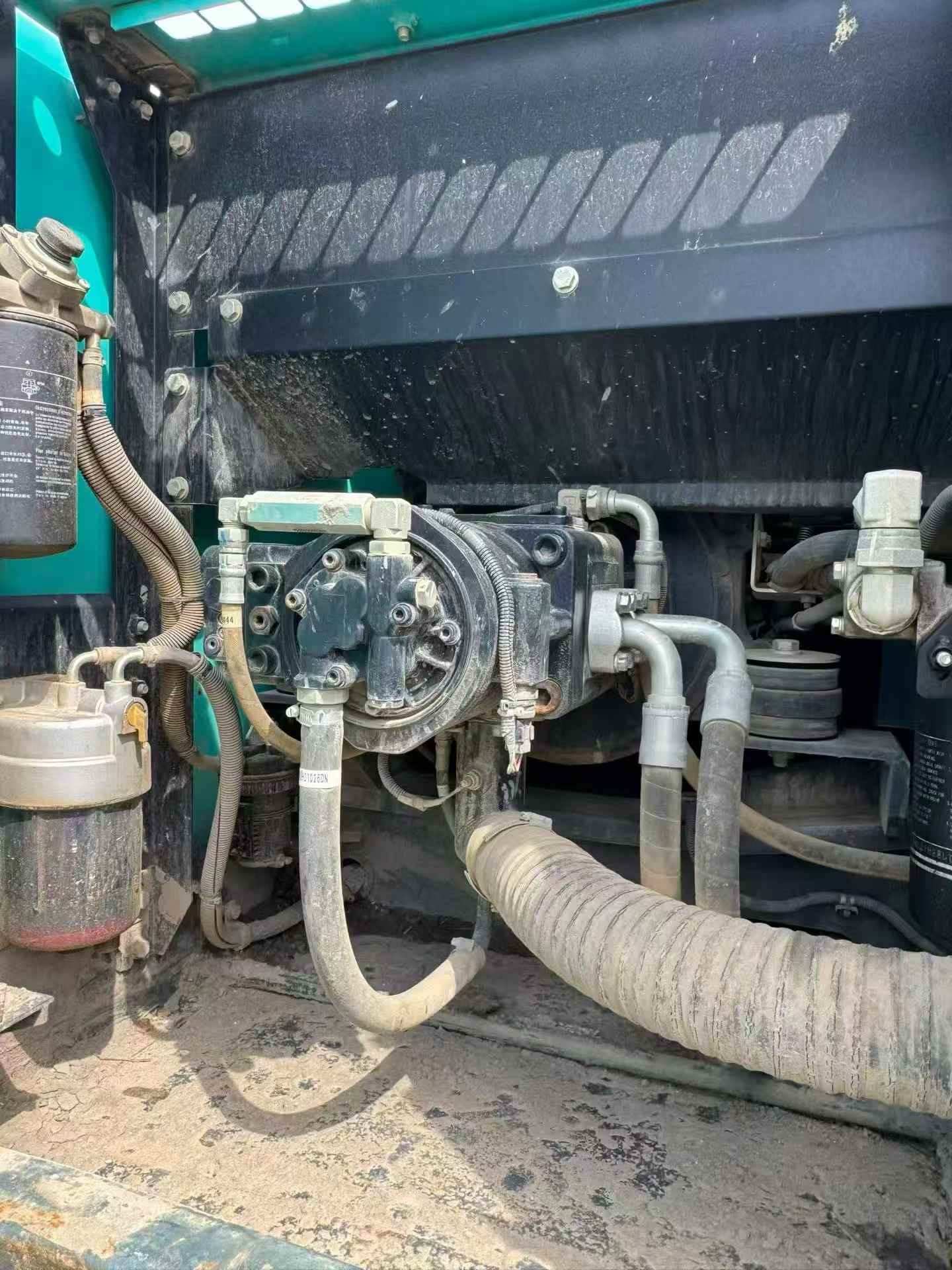

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
