Product Description

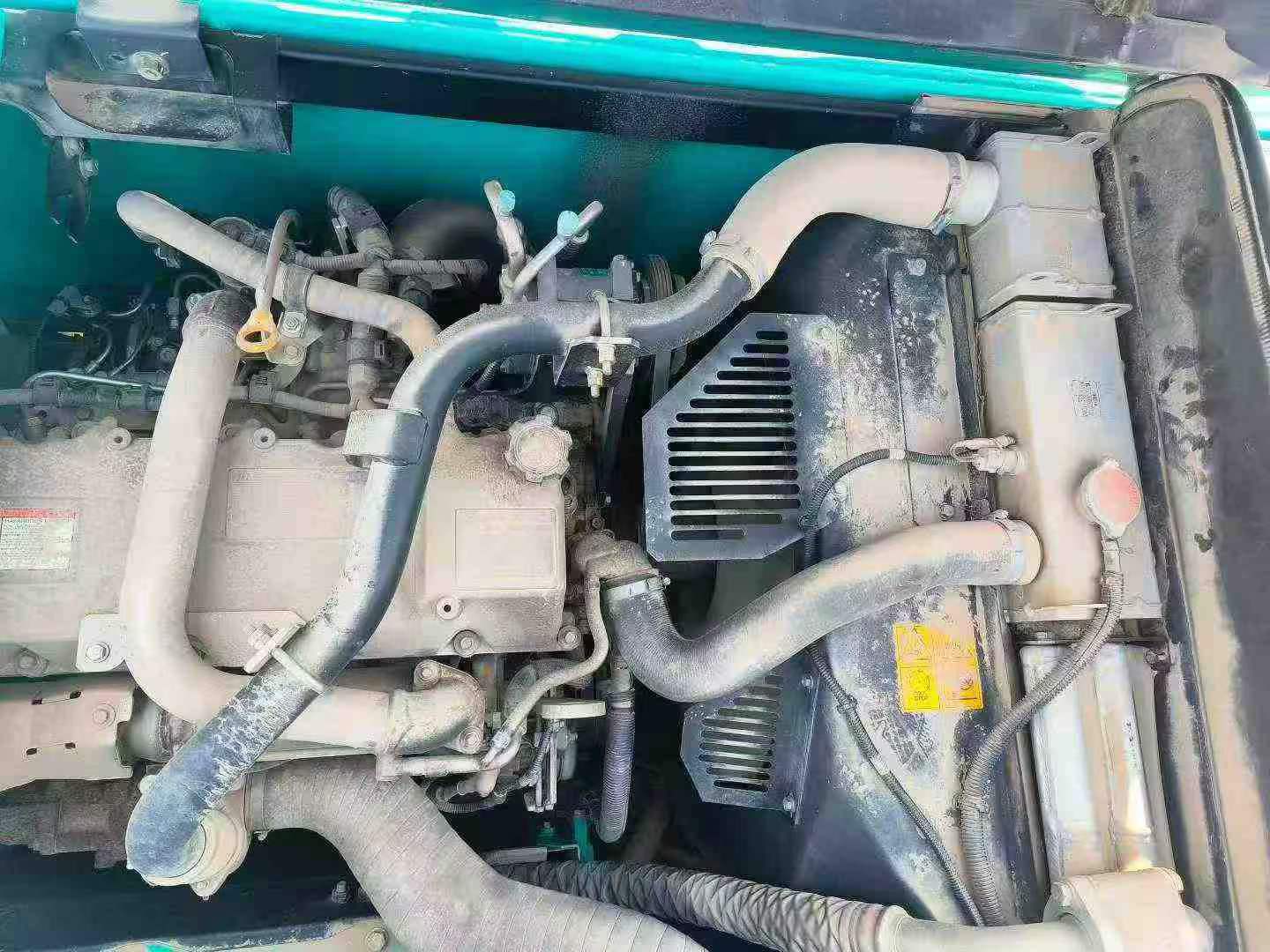

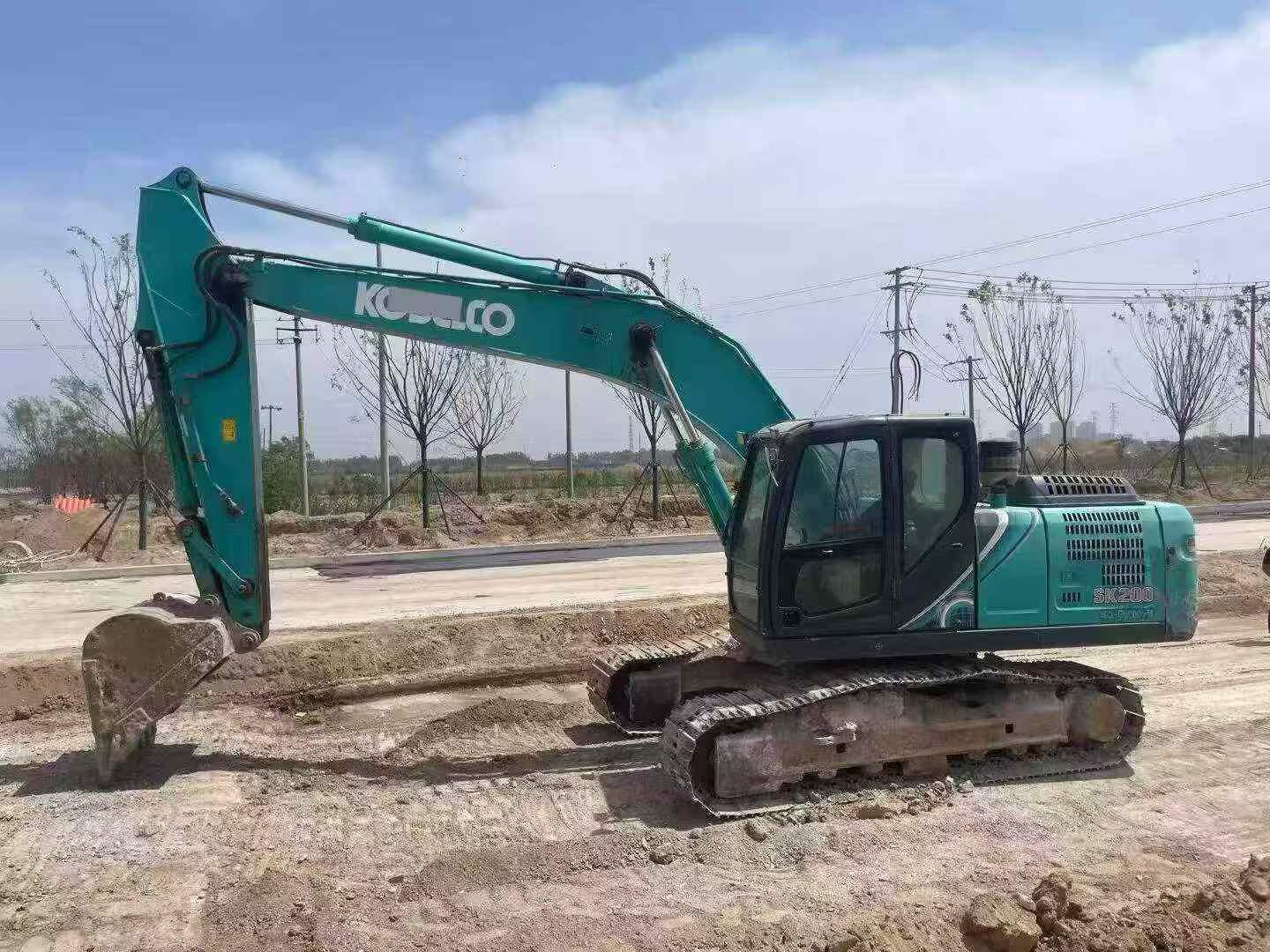

Built for serious excavation work, this 2020 Kobelco SK200 arrives from Shandong, China, ready to move to your next job site. Powered by a Mitsubishi 6D34-TLU2D water-cooled, six-cylinder turbocharged engine producing 110 kW at 2,000 RPM, it delivers consistent force across digging, grading, and demolition applications without hesitation.

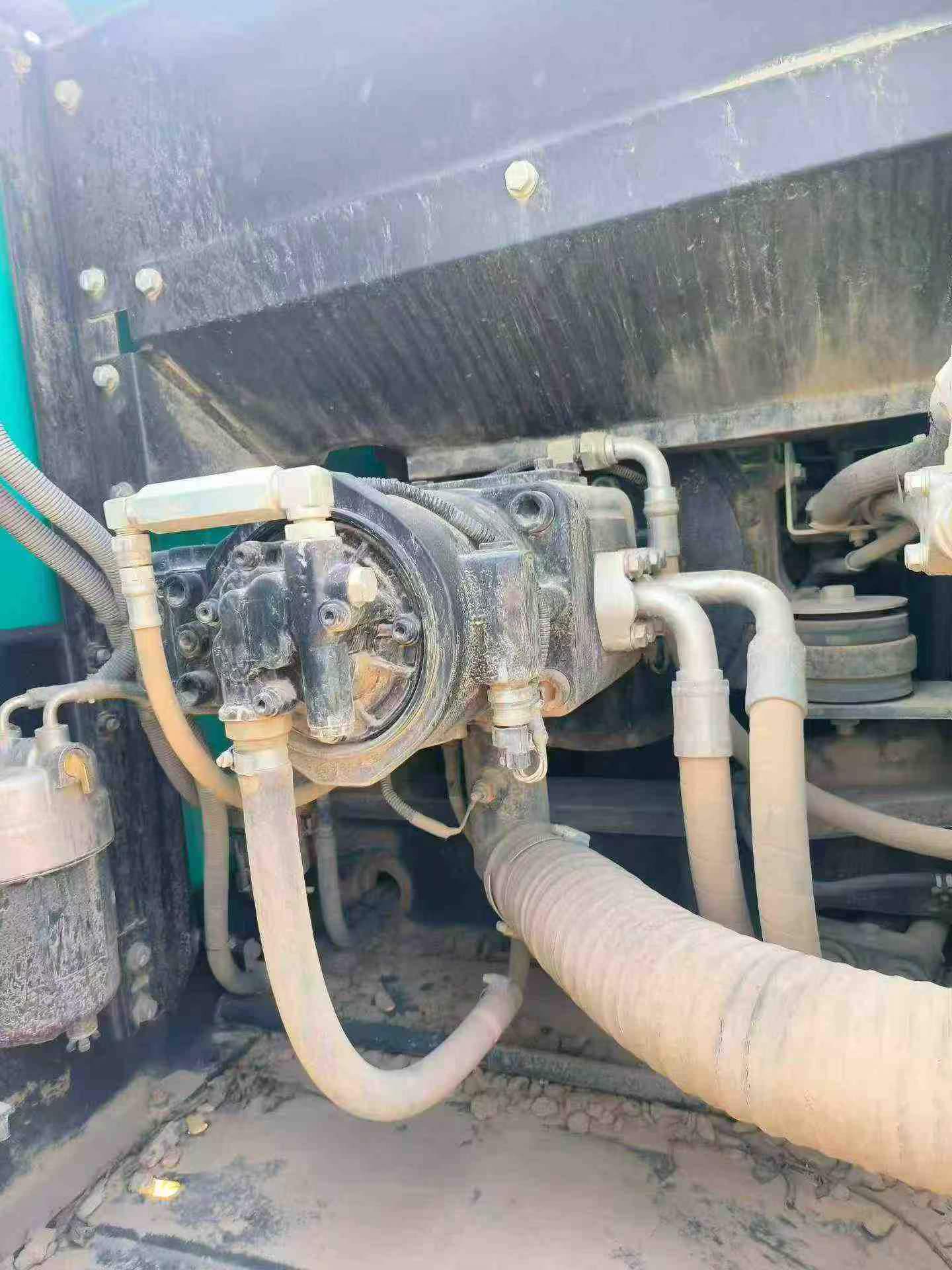

At 20 tonnes operating weight, this backhoe excavator generates a bucket digging force of 143 kN — rising to 157 kN in supercharged mode — giving operators the muscle needed to cut through compacted soil, break foundations, or clear heavy debris. The double variable displacement axial piston pump maintains hydraulic precision under sustained load.
- Bucket capacity: 0.8 m³
- Arm digging force: 97.1 kN (107 kN supercharged)
- Travel speed: 4.0 km/h (1st) / 6.0 km/h (2nd)
- Climbing ability: 70%

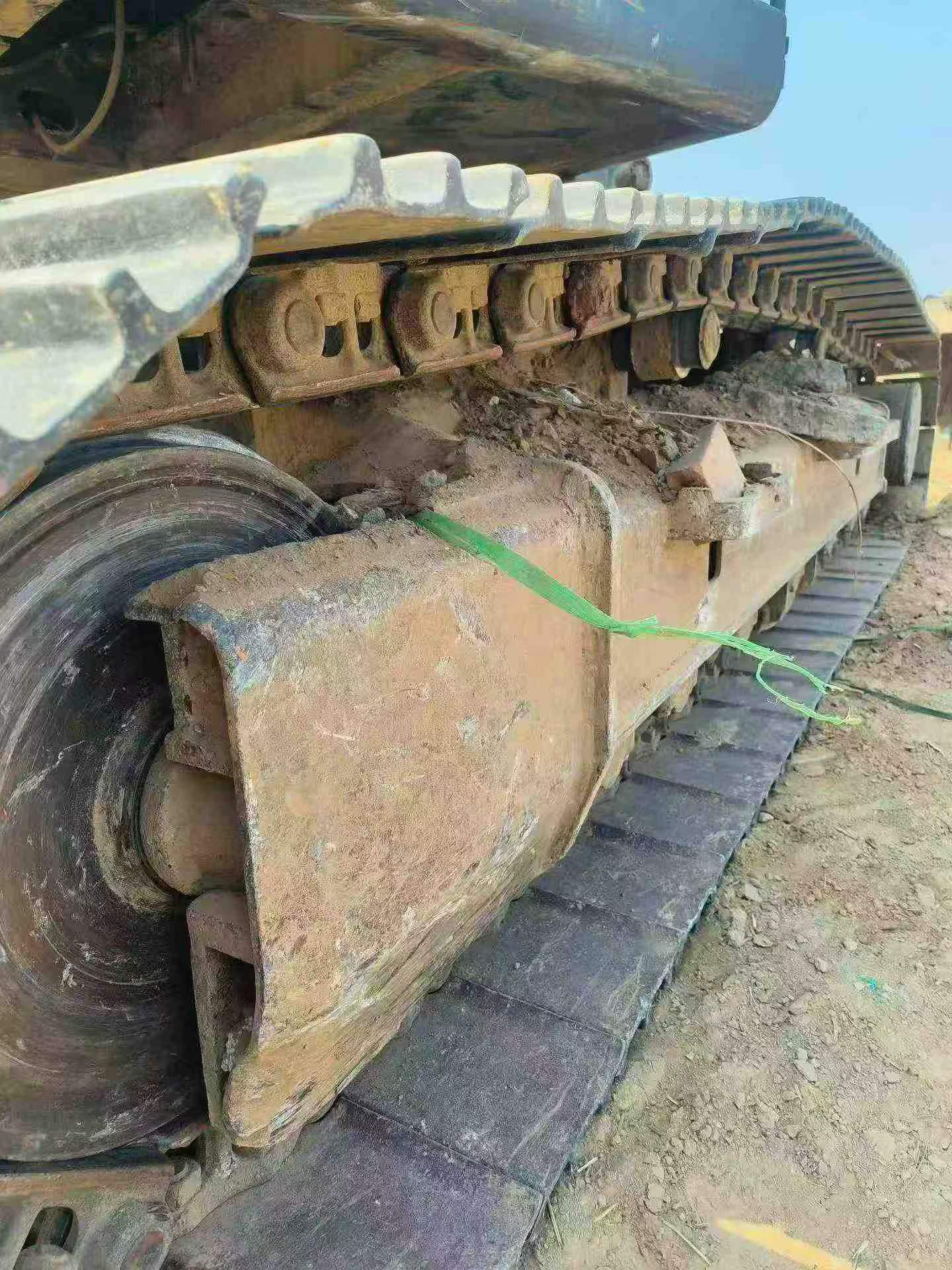

- Track plate width: 600 mm / 800 mm options
- Fuel tank: 340 L for extended shift operation
- Main system pressure: 34.3 MPa (37.8 MPa supercharged)
Rotation at 11 RPM and a ground pressure of 35–45 kPa keep cycle times tight across varied terrain. This machine is priced to work, not sit.
| Specifications | Value |
|---|---|
| No. | 1060037 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
