Product Description

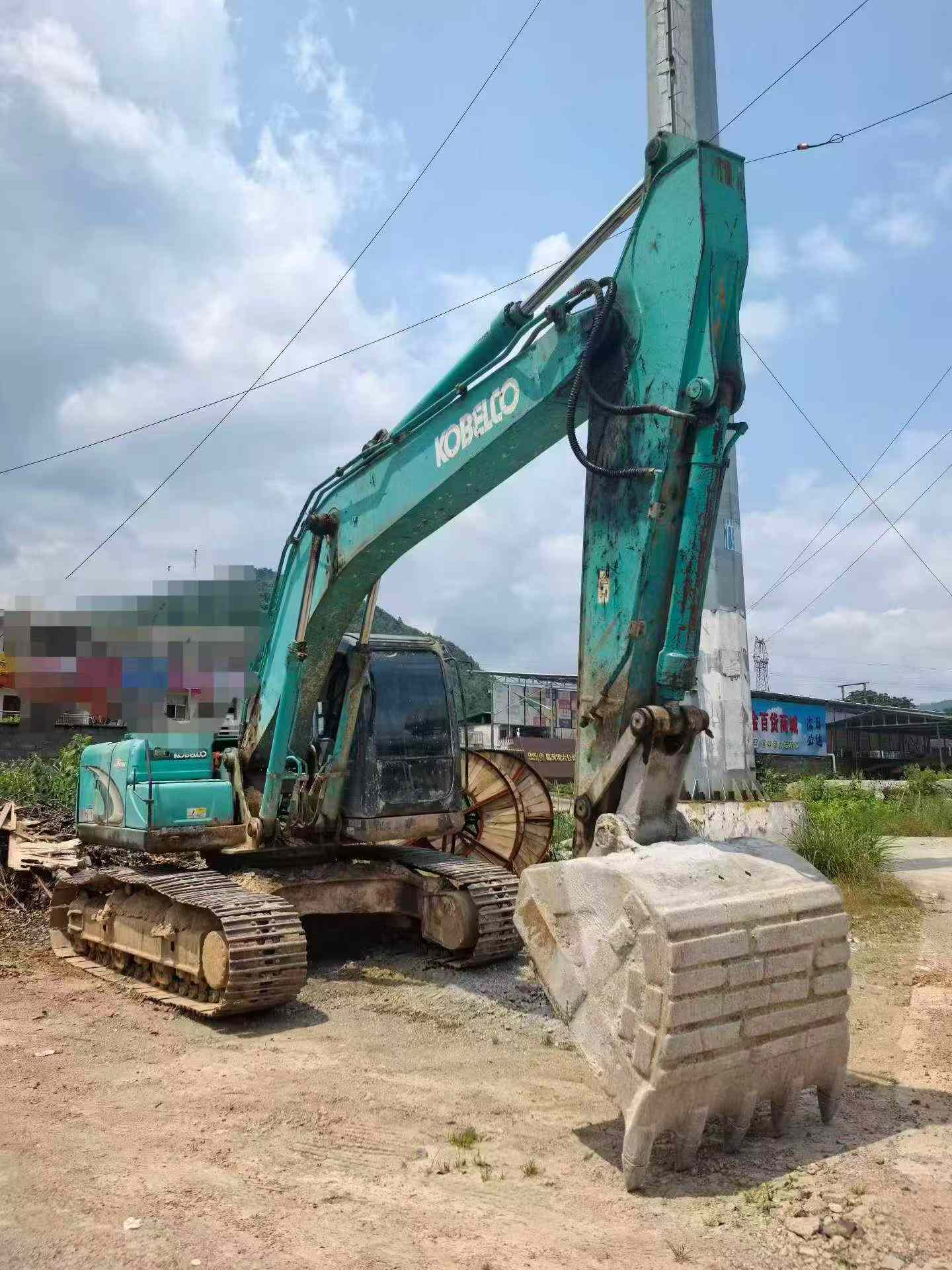

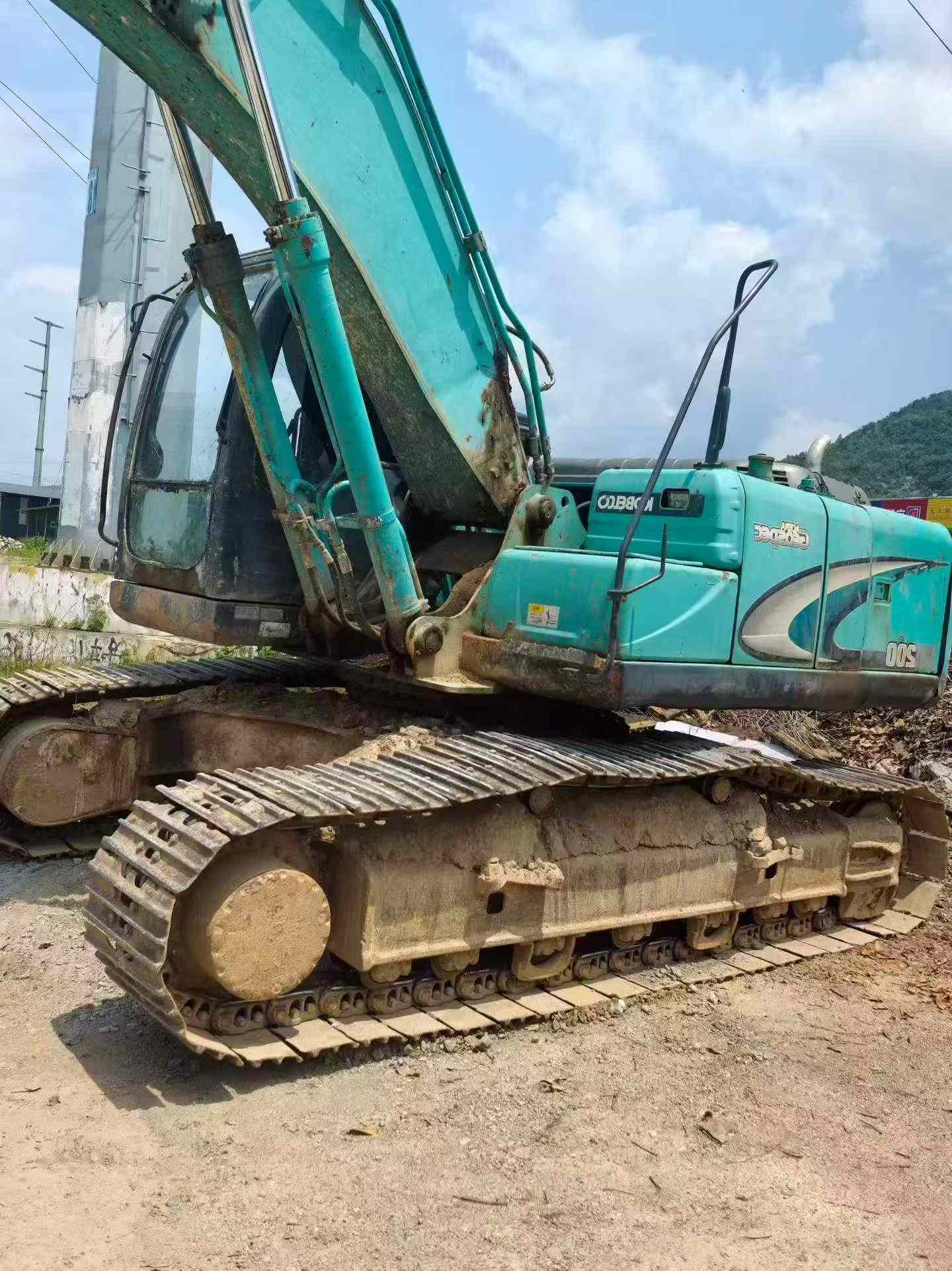

This 2020 Kobelco SK200 excavator is available for sale with complete documentation. Currently located in Fujian, China, this mid-size hydraulic excavator from Kobelco's proven SK series offers reliable performance for construction, earthmoving, and general excavation applications.
The SK200 is known for its balanced combination of digging force, reach, and fuel efficiency. With an operating weight in the 20-ton class, this machine is suitable for a wide range of jobsite conditions. Kobelco's reputation for durable undercarriage components and responsive hydraulic systems makes this model a practical choice for contractors seeking dependable used equipment.
Key features include:
- 2020 model year with documentation available
- Kobelco SK200 mid-size excavator platform
- Located in Fujian Province, China
- Suitable for construction and earthmoving operations
Contact us for detailed specifications, current condition assessment, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1072822 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

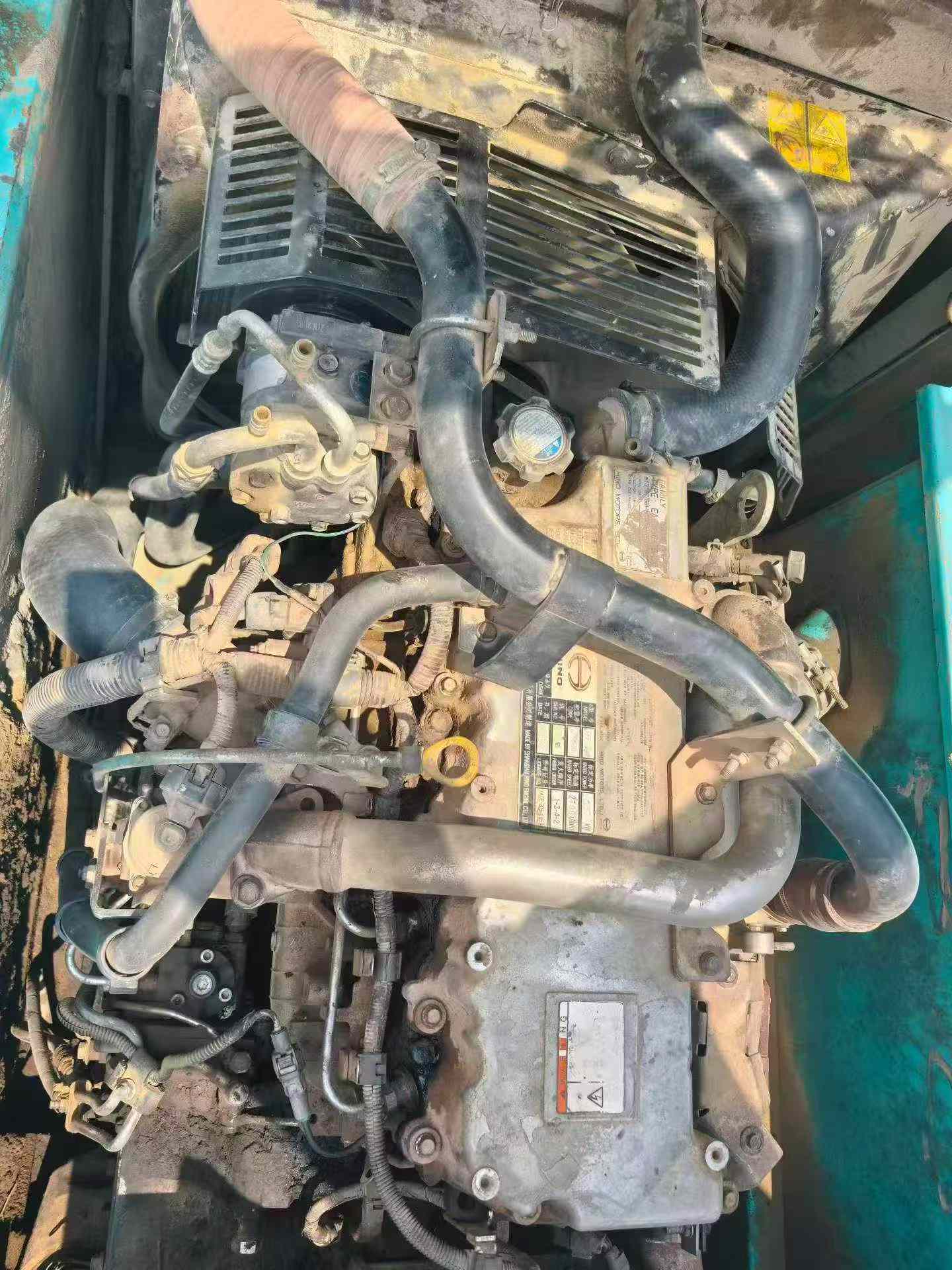

| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

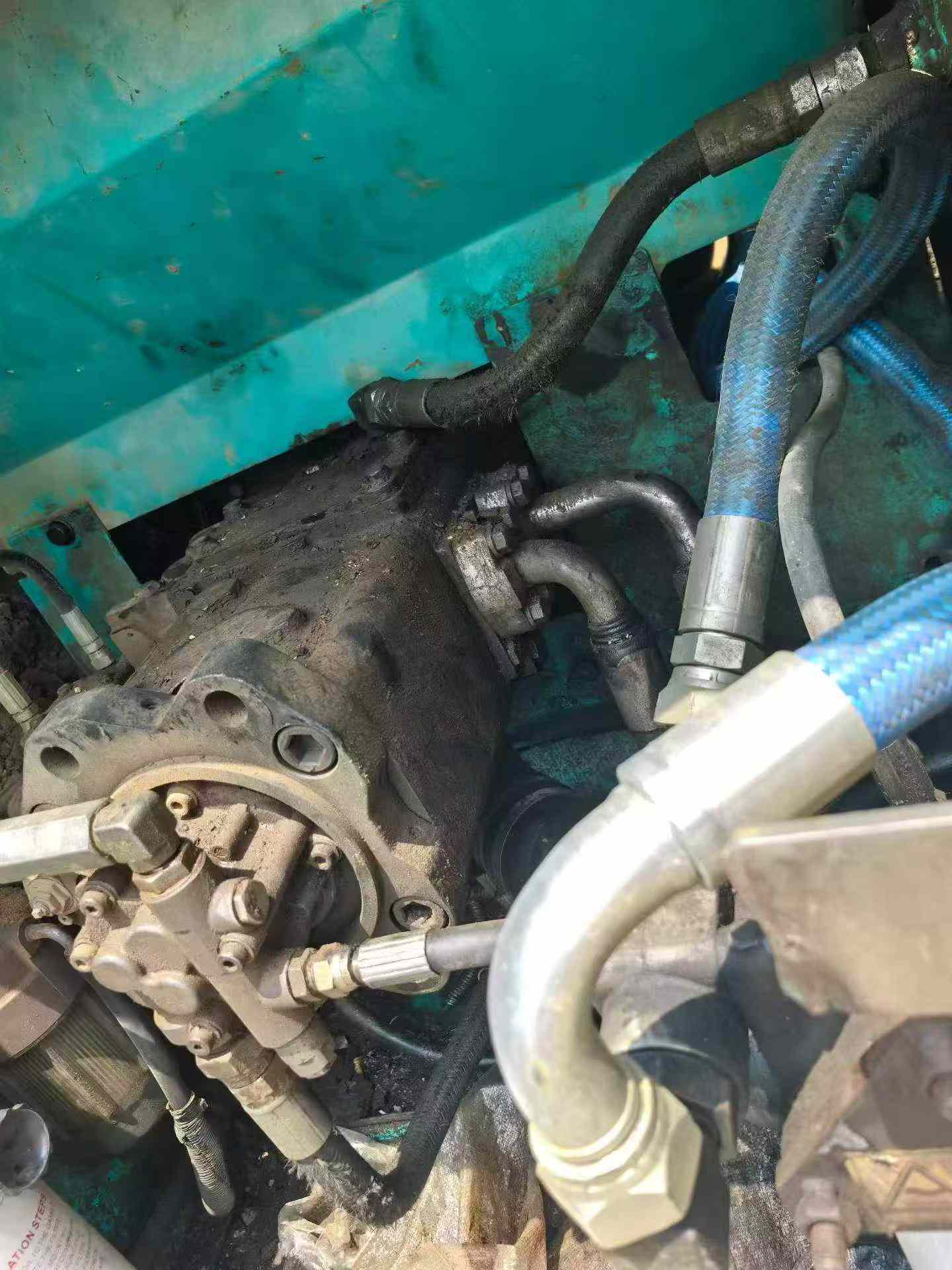

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
