Product Description

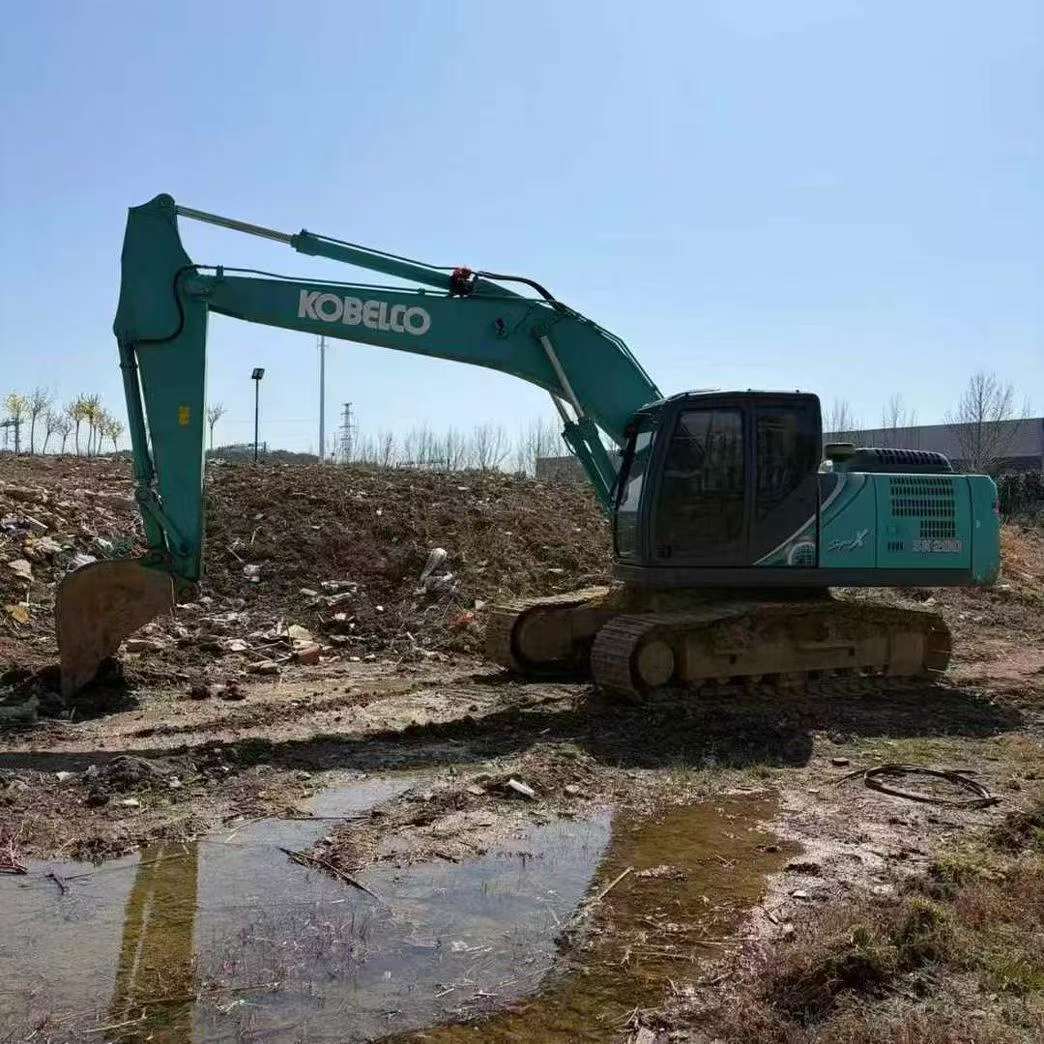

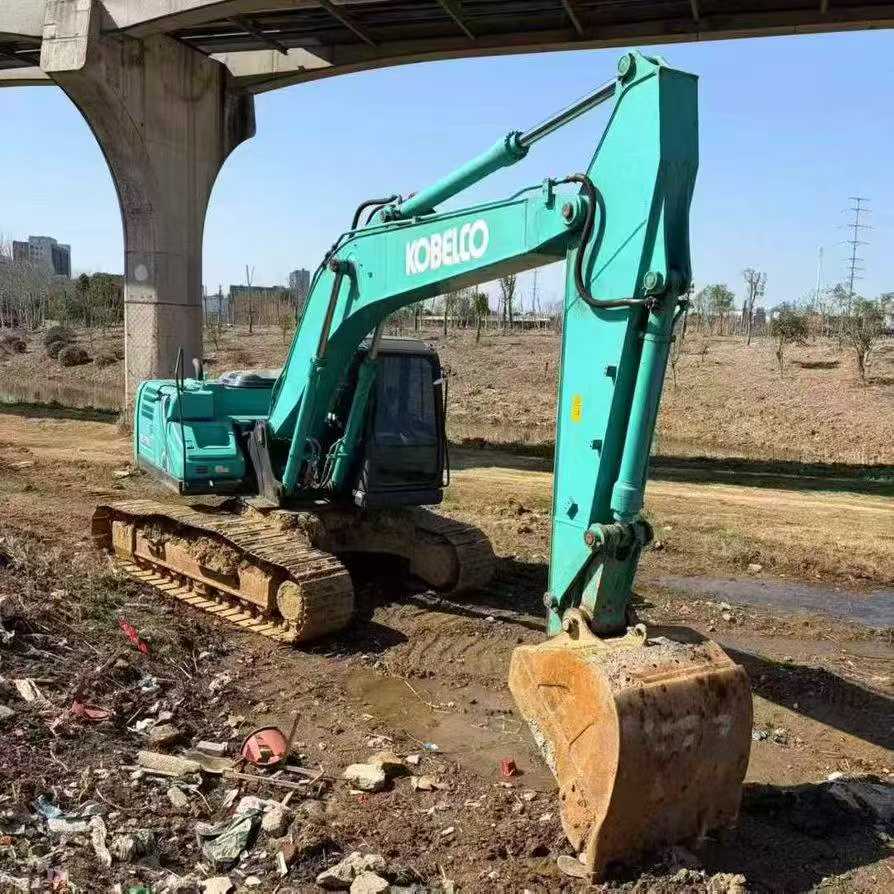

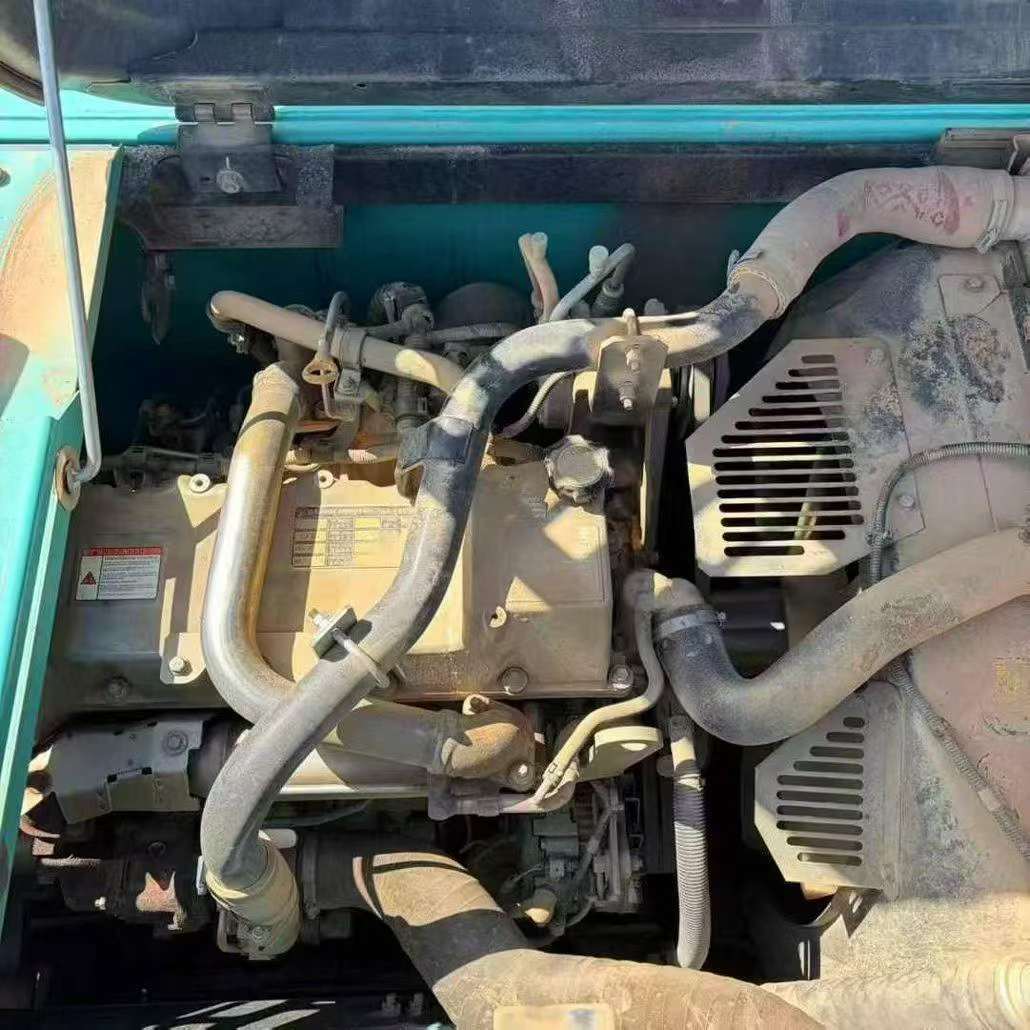

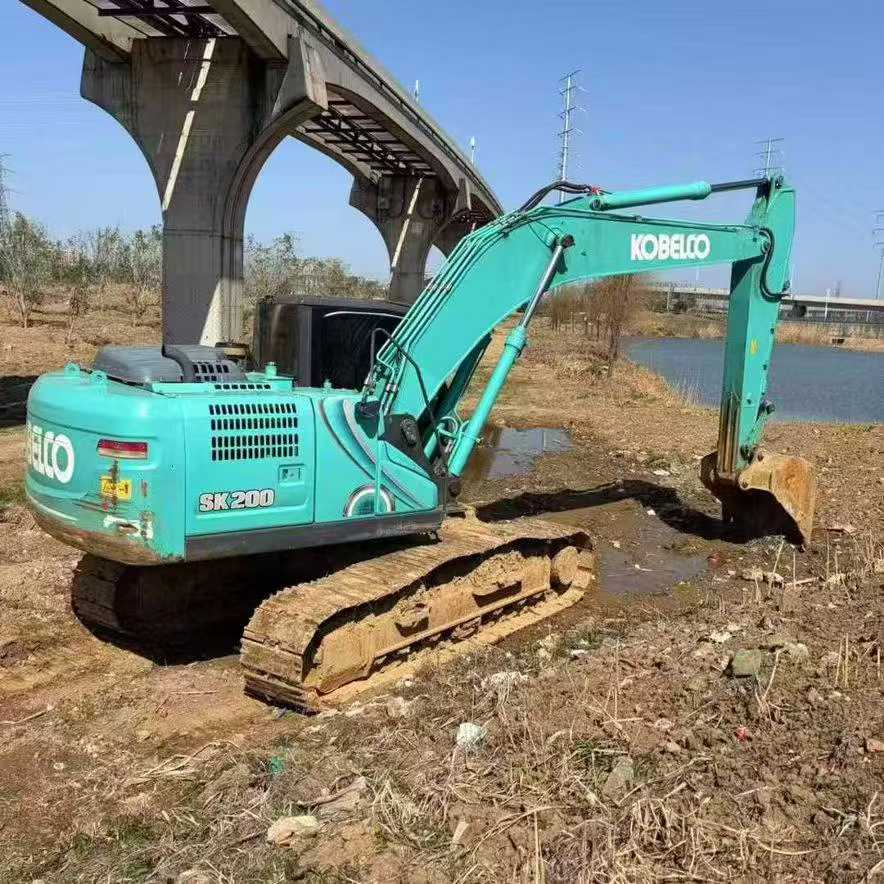

With a working weight of 20,000 kg and a bucket capacity of 0.8 m³, this 20-ton Kobelco SK200 excavator from 2021 is a reliable choice for demanding construction projects. Powered by a Mitsubishi 6D34-TLU2D engine, it delivers 110 kW at 2000 rpm, ensuring robust performance. The water-cooled, four-stroke, six-cylinder, direct injection, turbocharged engine with built-in intercooling provides efficient and consistent operation.
- Equipped with a backhoe bucket and a double variable displacement axial piston pump pilot gear pump, this excavator offers powerful digging forces: 143 kN (157 kN supercharged) for the bucket and 97.1 kN (107 kN supercharged) for the rod.
- Featuring a fuel tank capacity of 340 L and track plate widths of 600 mm or 800 mm, it ensures long operational hours and versatility on various terrains.
- Kobelco's strong brand reputation, backed by widespread parts availability and high resale value, makes this model a secure investment in the used heavy equipment market.
| Specifications | Value |
|---|---|
| No. | 1023276 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

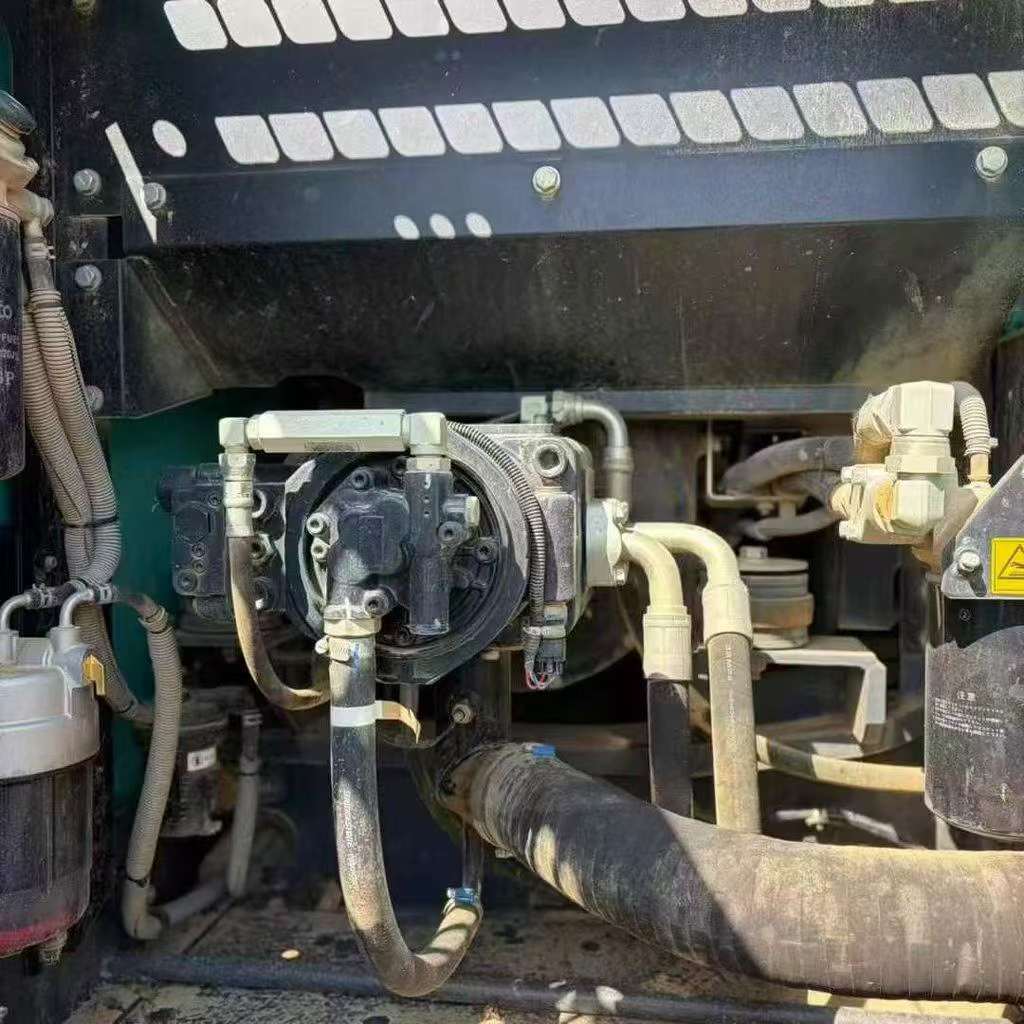

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
