Product Description

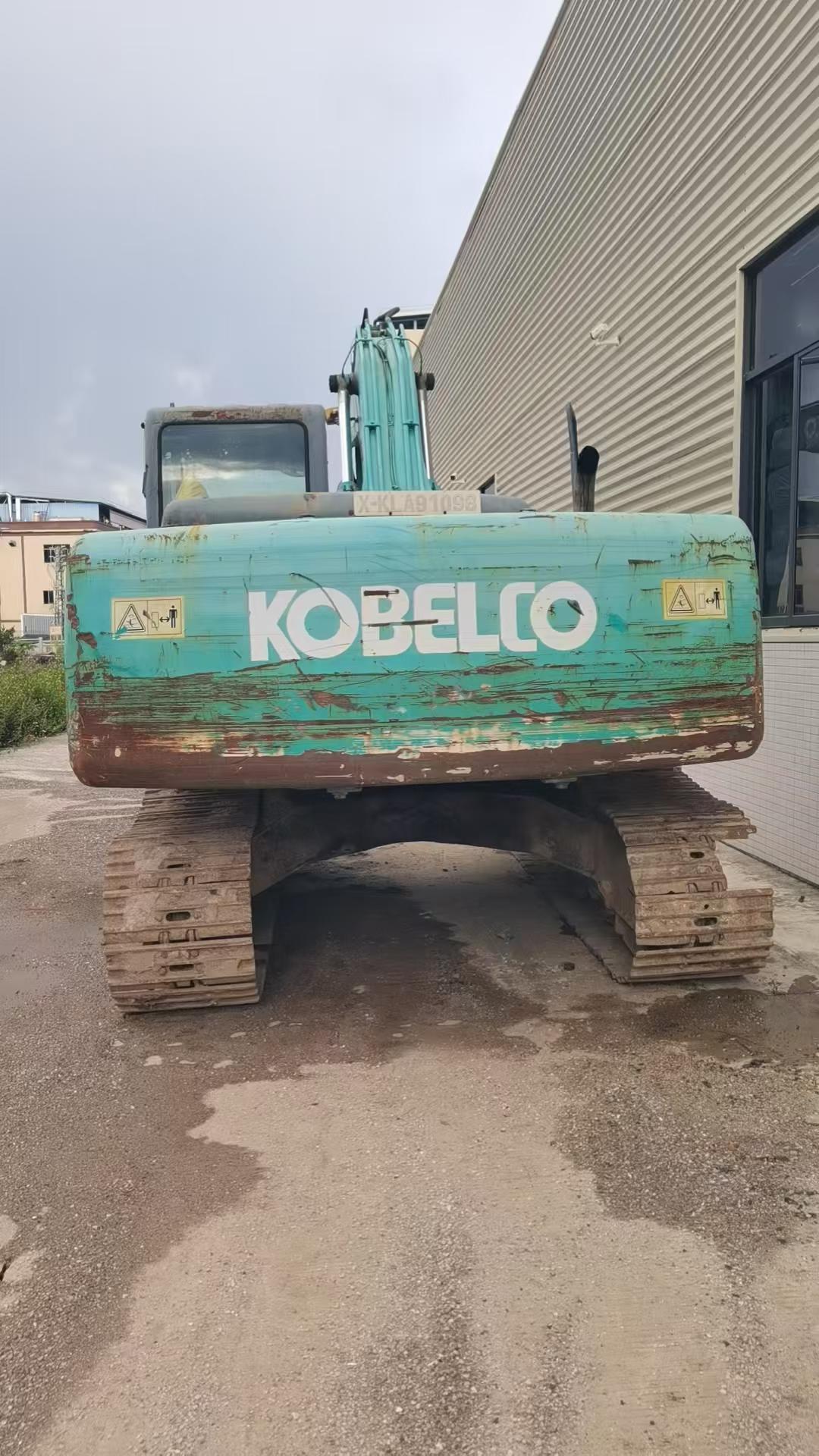

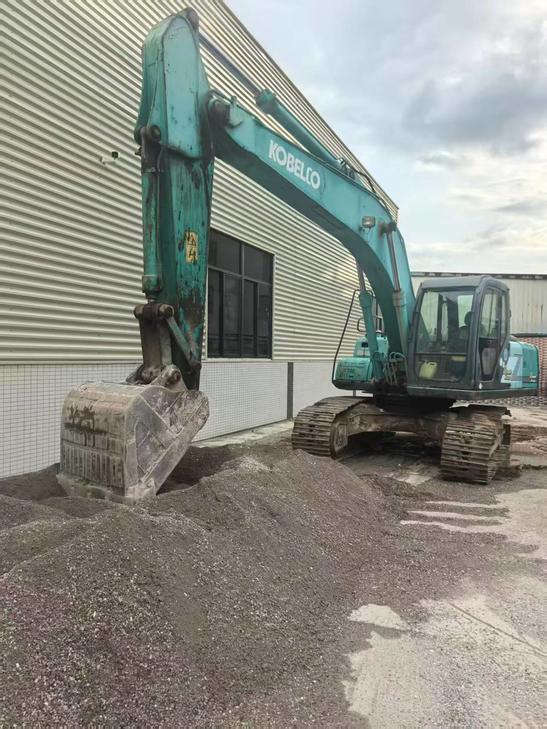

The Kobelco SK200-9 is a 20-tonne-class hydraulic excavator used widely in general earthmoving, trenching, roadwork and utility projects. This 2020 unit is stationed in Guangdong, China, and comes with documentation on file, so service and ownership records can be reviewed before you commit.
- Make and model: Kobelco SK200-9
- Year: 2020
- Class: 20-tonne hydraulic excavator
- Location: Guangdong, China
- Documentation: on file per seller
- Seller-cited figure: 60,000-plus — confirm basis at enquiry
Guangdong offers buyers a dense network of Kobelco parts suppliers and independent mechanics, plus container ports at Guangzhou and Shenzhen for straightforward export loading. Parts commonality across the SK series keeps downtime and consumable costs predictable.
Buyers are advised to inspect in person: engine blow-by, hydraulic pressure, undercarriage wear and structural checks on the boom and arm. Bucket condition and any attachment package should be confirmed at the same time, as these affect resale value and immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1157213 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.80 / 0.59 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E-TJ |
| Rated power (kw/rpm) | 117 / 2000 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143 |
| Rod digging force (kN) | 102 |
| Travel speed (km/h) | 6.0/3.6 (High/Low) |
| Fuel Tank (L) | 370 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3070 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum vertical digging depth (mm) | 6100 |
