HOME>>Kobelco>>Kobelco SK2008

2020 Kobelco SK2008

1/6

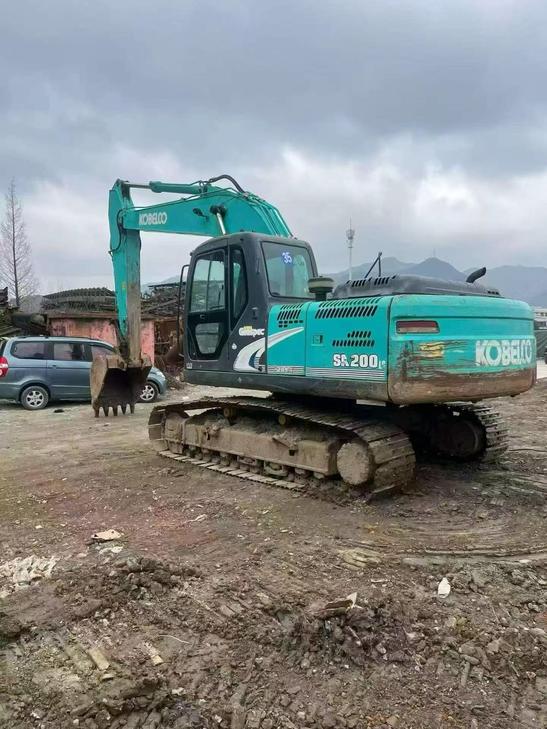

Buy Kobelco SK2008 Used Excavator / 1
Buy Kobelco SK2008 Used Excavator / 2
Buy Kobelco SK2008 Used Excavator / 3
Buy Kobelco SK2008 Used Excavator / 4
Buy Kobelco SK2008 Used Excavator / 5
Buy Kobelco SK2008 Used Excavator / 6

Product Description

This 2020 Kobelco SK200-8 excavator offers reliable performance and efficient operation for demanding jobsites. Located in Zhejiang, China, this well-maintained machine combines Kobelco's proven hydraulic technology with strong digging force and responsive controls.

  • Year: 2020
  • Model: SK200-8
  • Condition: Used, good working order
  • Fast cycle times for increased productivity
  • Fuel-efficient operation
  • Comprehensive documentation and video available

The SK200-8 is known for its durability in construction, earthmoving, and infrastructure projects. This unit has been inspected and is ready for immediate deployment. Detailed photos and operational videos are available upon request to verify machine condition.

SpecificationsValue
No.1171049
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94(Standard)
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.1171049

Brand Name:

Kobelco

Model Number:

SK2008

Year:

2020

Location:

Zhejiang China

Pub Date:
