Product Description

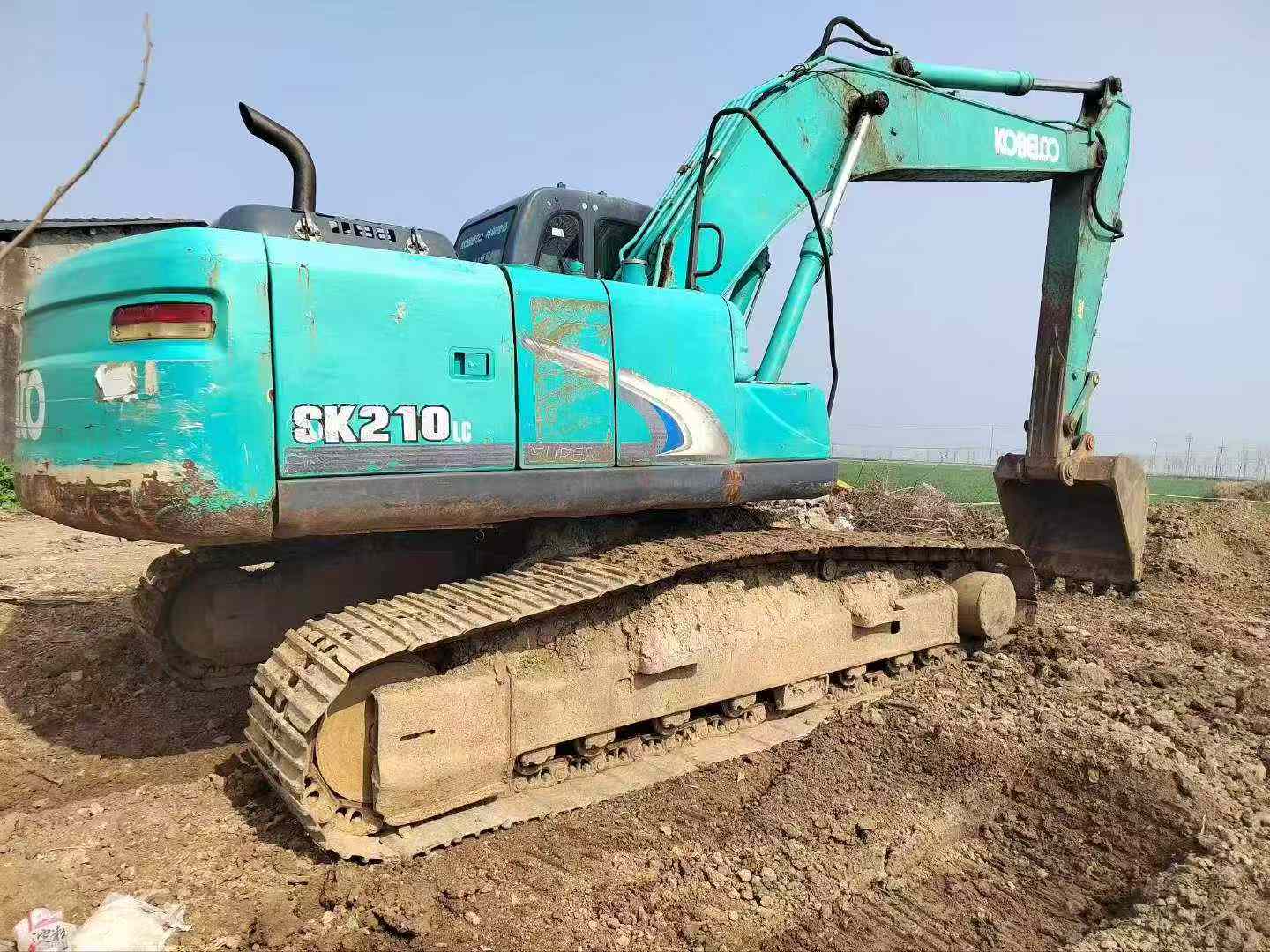

Built for contractors who demand reliable fleet depth, this 2014 Kobelco SK210LC-8 delivers consistent 20-ton class performance without compromise. Powered by a Hino J05E water-cooled turbocharged engine producing 114 kW at 2,000 RPM, this unit keeps pace with demanding production schedules — making it an ideal addition when your primary machines are fully committed on site.
Sourced from 浙江丽水 and ready for global deployment, this excavator brings proven backhoe capability with a 1 m³ bucket, 6,700 mm maximum dig depth, and a 9,000 mm maximum digging radius — covering the full range of foundation, utility, and earthmoving tasks your crews handle daily.

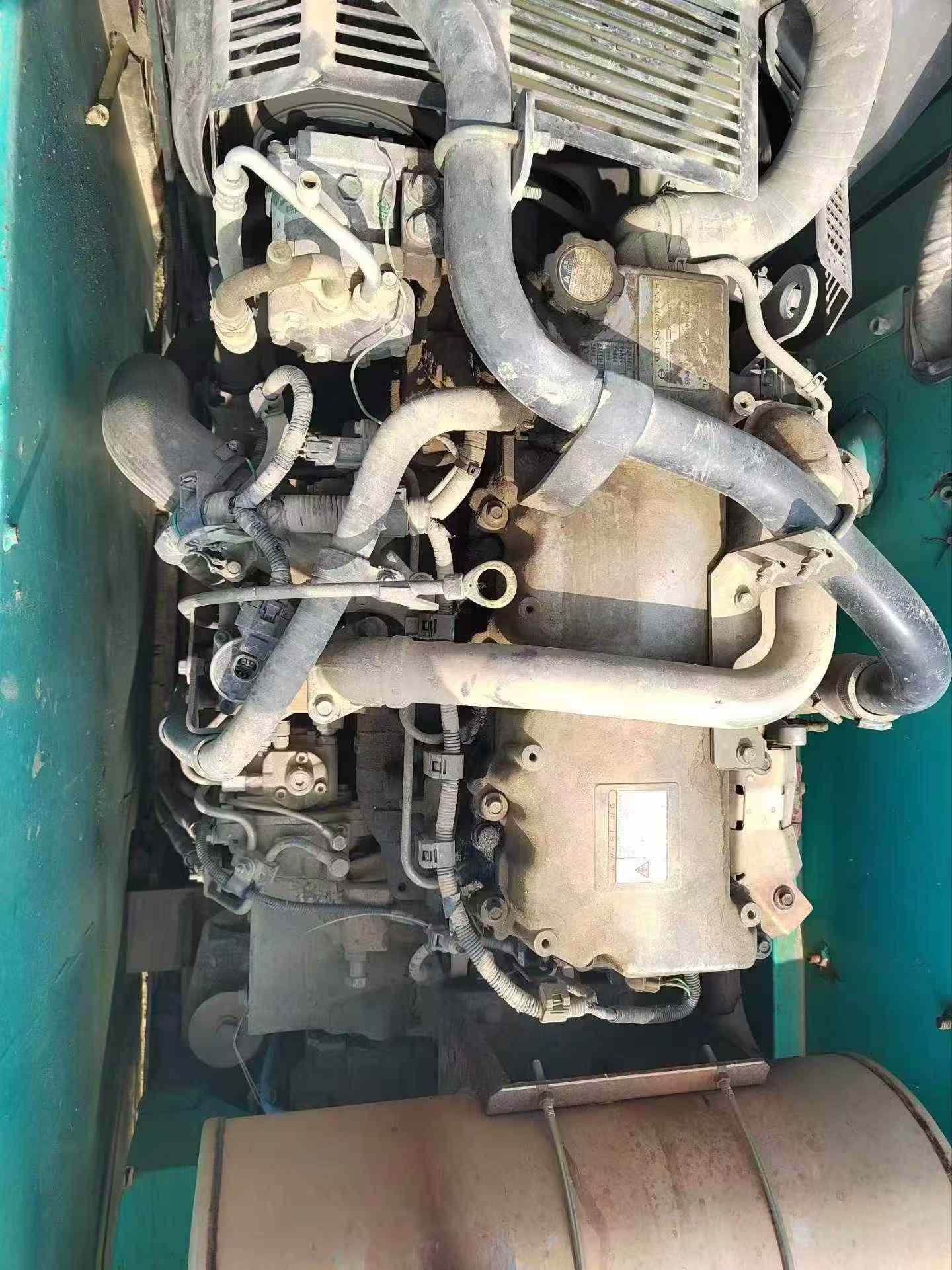

- Engine: Hino J05E | 114 kW / 2,000 RPM | 5.123L displacement | Water-cooled, turbocharged, direct injection
- Operating Weight: 21,200–21,900 kg | Ground Pressure: 34–44 kPa
- Max Digging Depth: 6,700 mm | Max Digging Radius: 9,000 mm | Max Excavation Height: 9,720 mm
- Travel Speed: 6.0 / 3.6 km/h | Max Tractive Force: 229 kN | Climbing Ability: 70% (35°)
- Fuel Tank: 370 L | Hydraulic Tank: 146 L | Track Plate Width: 600 / 700 / 800 mm
- Transport Dimensions: 9,450 mm (L) × 2,990 mm (W) × 2,980 mm (H)
| Specifications | Value |
|---|---|
| No. | 1035588 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200-21900 |
| Bucket capacity (m³) | 1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 114/2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.123 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 34-44 {0.35-0.45} |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 (35 °) |
| Maximum tractive force (kN) | 229{23,300} |
| Travel speed (km/h) | 6.0/3.6 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 146 |
| Total transport length (mm) | 9450 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4450 |
| Track plate width (mm) | 600/700/800 |
| Maximum digging radius (mm) | 9000 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum vertical digging depth (mm) | 6100 |
| Maximum excavation radius of stop surface (mm) | 5270 |
| Maximum effective digging depth (mm) | 6520 |
