Product Description

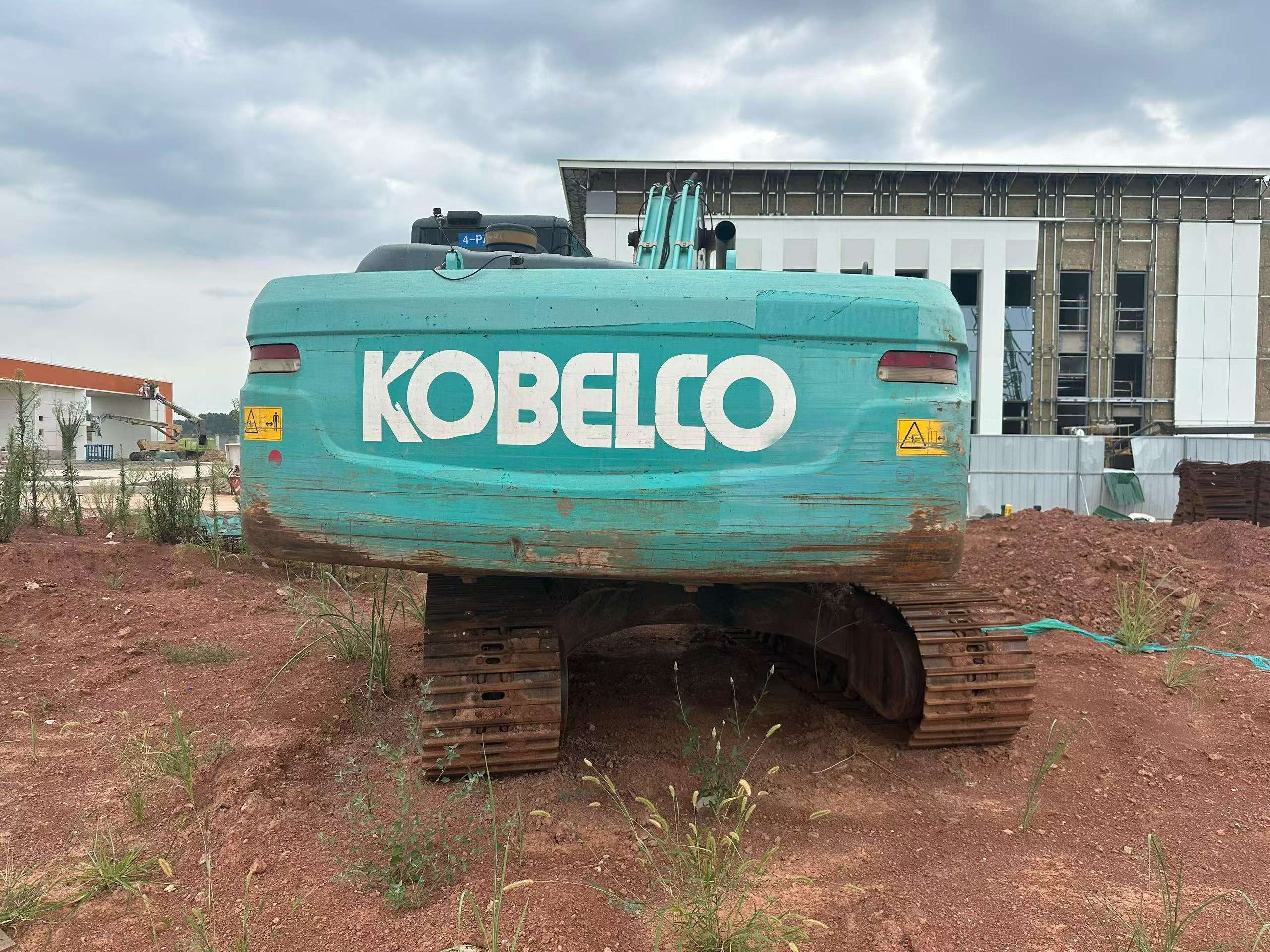

Discover the reliability and efficiency of the 2020 Kobelco SK250-10, now available in Sichuan, China. This robust excavator has accumulated over 6,000 operational hours, showcasing its durability and performance in demanding environments. The machine remains in its original condition, reflecting the high standards of Kobelco's manufacturing. Ideal for construction and excavation projects, this unit is a solid choice for businesses looking to enhance their fleet with a dependable and well-maintained piece of equipment. Don't miss out on this opportunity to own a versatile and powerful excavator that can handle a variety of tasks with ease.
- Year: 2020
- Brand: Kobelco
- Model: SK250-10
- Operational Hours: Over 6,000
- Location: Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1132624 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25600 |
| Bucket capacity (m³) | 1.1 |
| Bucket width (mm) | 1250 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05ETB |
| Rated power (kw/rpm) | 137/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 654/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 170 |
| Maximum tractive force (kN) | 245 |
| Travel speed (km/h) | 6.1/3.8 |
| Rotary hydraulic motor type | Axial piston pump motor |
| Type of walking hydraulic motor | Variable capacity axial piston motor |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.8 |
| Fuel Tank (L) | 403 |
| Hydraulic Tank (L) | 165 |
| Hydraulic System (L) | 273 |
| Total transport length (mm) | 10210 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 3120 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9740 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6520 |
