Product Description

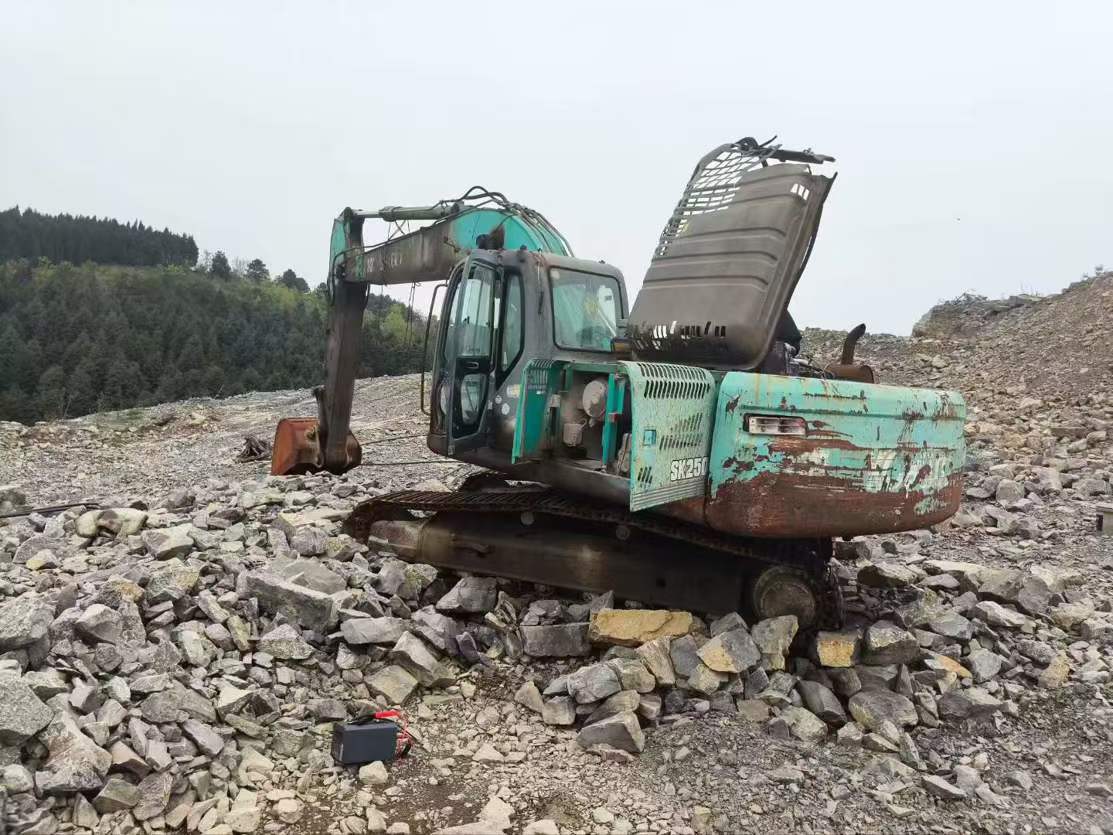

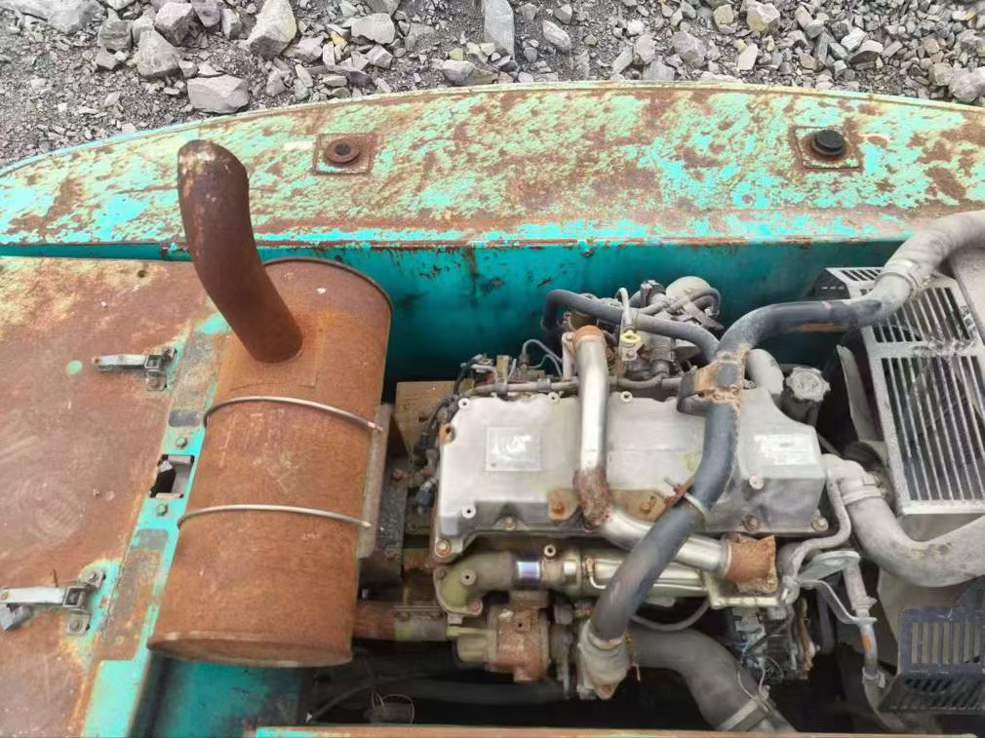

Powered by a Hino J05E engine delivering 131 kW at 2100 rpm, this 2016 Kobelco SK250-8 combines proven hydraulic engineering with field-tested reliability. The dual variable displacement axial piston pump system generates 2 × 246 l/min flow at 34.3 MPa, providing 170 kN bucket digging force and 119 kN arm digging force for demanding excavation tasks. With a 25-ton operating weight and 1.1 m³ bucket capacity, this machine handles large-scale earthmoving with precision.
Built with a 2980 mm arm length and 10,310 mm maximum digging reach, the SK250-8 offers exceptional working range while maintaining 54 kPa ground pressure for stable operation on varied terrain. The water-cooled, turbocharged 5.123 L engine with built-in intercooling ensures consistent performance in extended duty cycles. Standard hydraulic breaker lines and 11 rpm rotation speed enhance versatility across demolition and excavation applications.
Currently located in Hunan, this excavator features 600 mm track plates, 460 L fuel capacity, and 170 L hydraulic reservoir—engineered for productivity in heavy construction environments.
| Specifications | Value |
|---|---|
| No. | 1044782 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25000 |
| Bucket capacity (m³) | 1.1 |
| Rod length (mm) | 2980 |
| Country of origin | Chengdu/Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 131/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 54 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 170 |
| Rod digging force (kN) | 119 |
| Travel speed (km/h) | 3.6/5.8 |
| Maximum flow of main pump (l/min) | 2 x 246 + 20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Total transport length (mm) | 10120 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3020 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6880 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6820 |
