2021 Kobelco SK330-10

1/9
Buy Kobelco SK330-10 Used Excavator / 1
Buy Kobelco SK330-10 Used Excavator / 2
Buy Kobelco SK330-10 Used Excavator / 3
Buy Kobelco SK330-10 Used Excavator / 4
Buy Kobelco SK330-10 Used Excavator / 5
Buy Kobelco SK330-10 Used Excavator / 6
Buy Kobelco SK330-10 Used Excavator / 7
Buy Kobelco SK330-10 Used Excavator / 8
Buy Kobelco SK330-10 Used Excavator / 9

Product Description

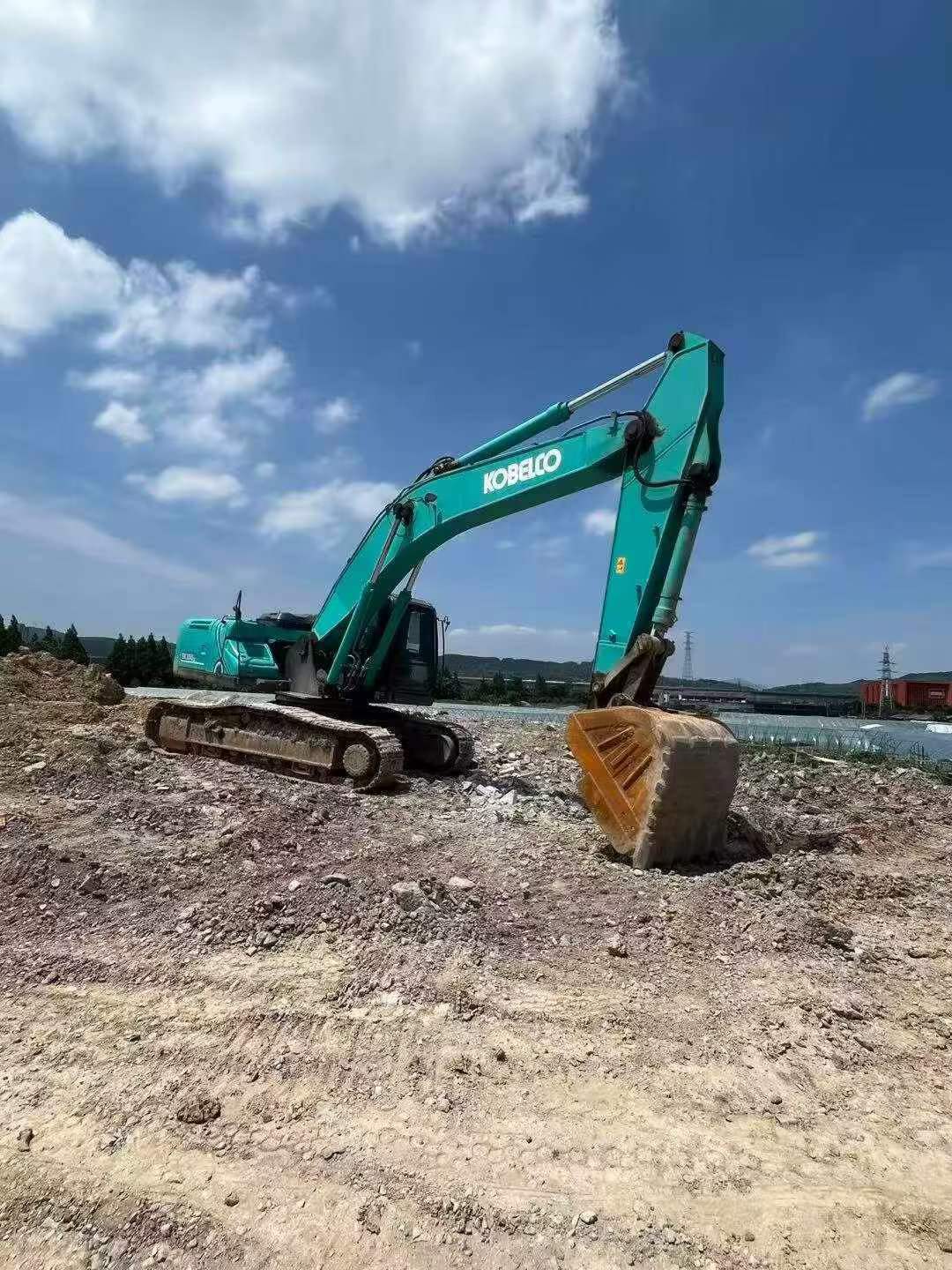

This 2021 Kobelco SK330-10 hydraulic excavator represents a well-maintained machine from one of Japan's most respected manufacturers. With minimal operating hours for its age, this 33-ton class excavator delivers reliable performance for medium to heavy-duty applications including earthmoving, site preparation, and utility work.

The SK330-10 generation features Kobelco's proven hydraulic system, offering efficient fuel consumption and smooth operation. Currently located in Zhejiang, China, this unit is available for inspection and ready for deployment.

  • Operating weight approximately 33 tons
  • Kobelco diesel engine with strong power output
  • Standard digging equipment configuration
  • Comfortable operator cabin with good visibility
  • Well-suited for construction, excavation, and material handling

This machine offers an opportunity to acquire late-model Japanese engineering at competitive pricing for the Asian market.

SpecificationsValue
No.1151318
Tonnage (tons)33
Working weight (kg)34500
Bucket capacity (m³)1.5
Rod length (mm)3300
Bucket width (mm)1390
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08ETM-KSDL
Rated power (kw/rpm)209/2100
Cooling modewater-cooling
Maximum torque (N.m)998/1600
Working formDirect injection, water-cooled, four-stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)70
Rotation speed (rpm)10.0
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)165
Maximum tractive force (kN)333
Travel speed (km/h)5.6/3.3
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeAxial piston pump motor ×1
Type of walking hydraulic motorVariable capacity axial piston motor x 2
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Fuel Tank (L)503
Hydraulic Tank (L)245
Hydraulic System (L)410
Total transport length (mm)11300
Total transport width (mm)3190
Total transport height (mm)3430
Full cab height (mm)3150
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Onboard width (mm)2980
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3720
Maximum digging radius (mm)11260
Maximum digging depth (mm)7560
Maximum excavation height (mm)10540
Maximum unloading height (mm)7370
Maximum vertical digging depth (mm)6480
Maximum excavation radius of stop surface (mm)11060
see more

Overview

No.1151318

Brand Name:

Kobelco

Model Number:

SK330-10

Year:

2021

Location:

Zhejiang China

Pub Date:
