Product Description

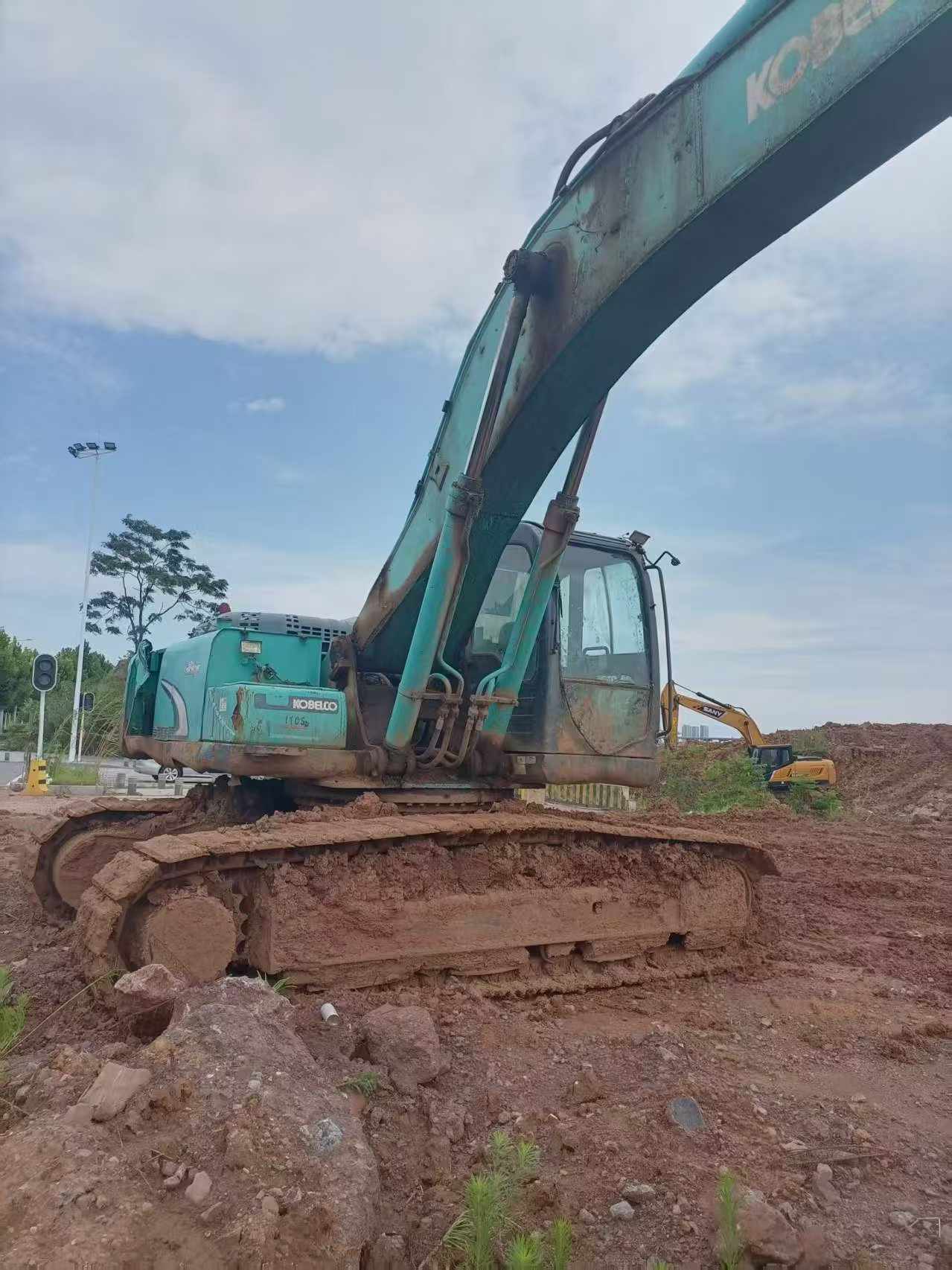

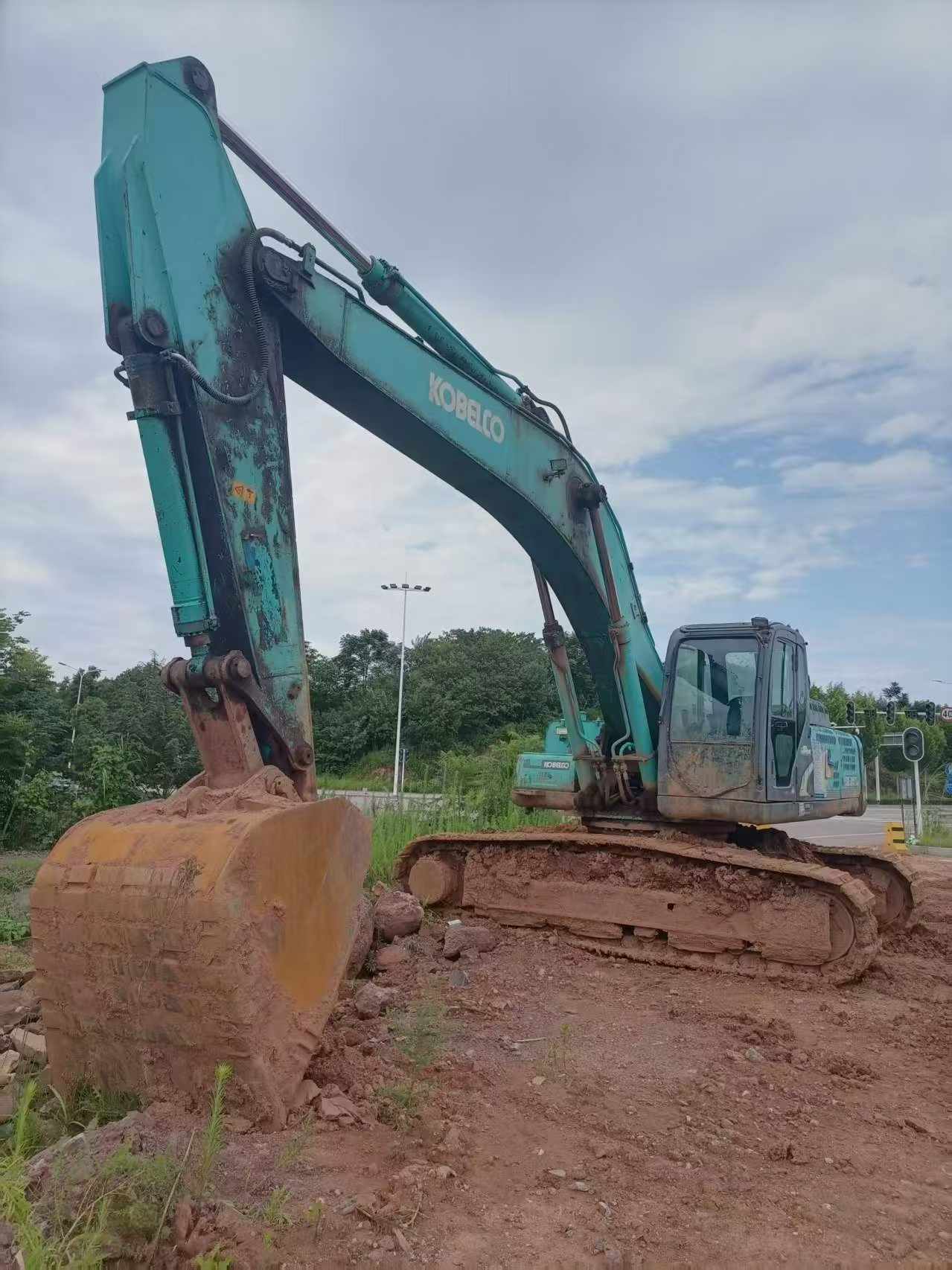

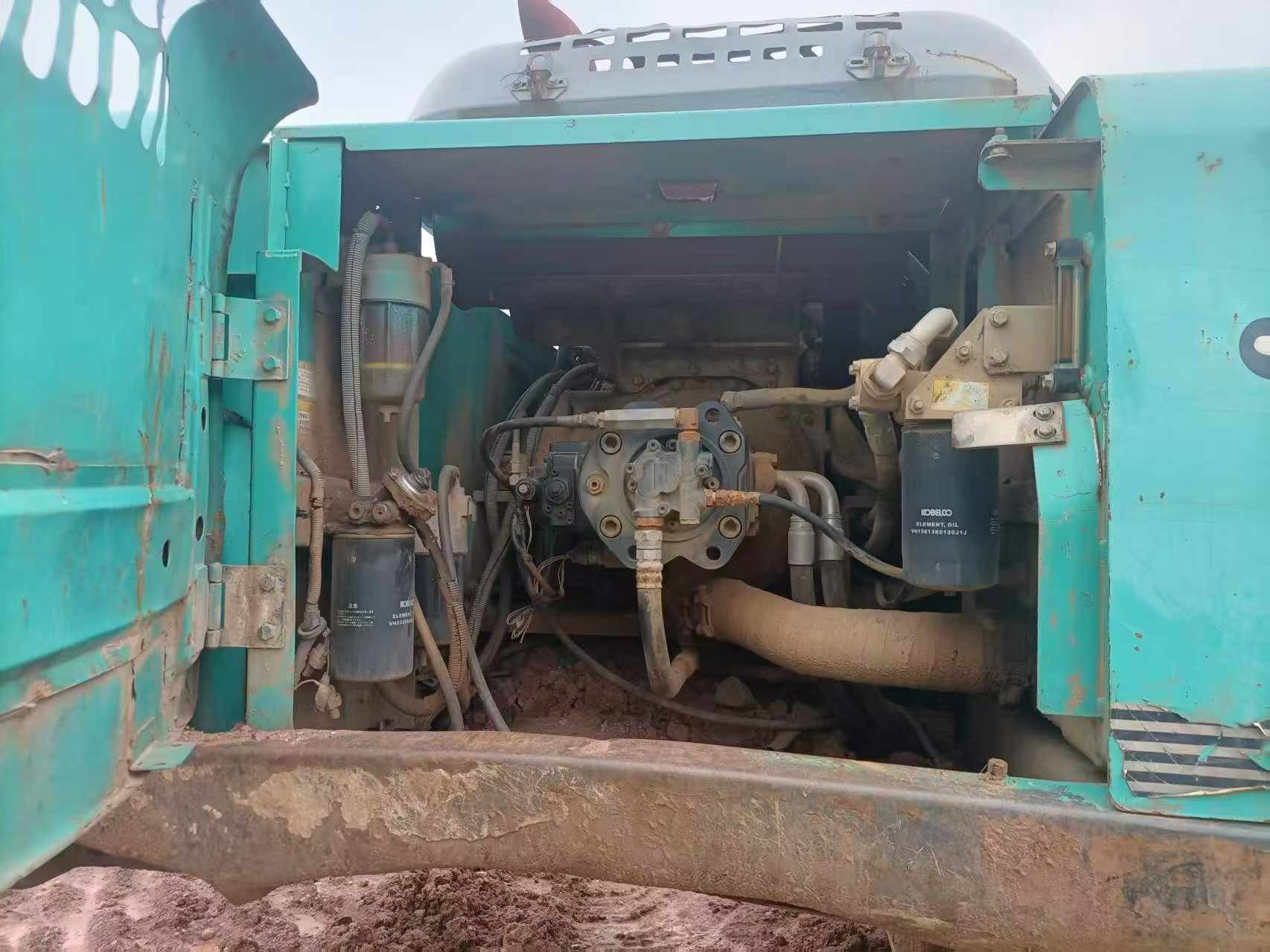

This 2011 Kobelco SK330-8 hydraulic excavator represents a solid investment for contractors seeking reliable performance in medium to heavy-duty applications. Located in Fujian, China, this machine offers proven Japanese engineering at an attractive price point.
The SK330-8 series is recognized for its efficient fuel consumption and robust hydraulic systems, making it suitable for earthmoving, foundation work, and general construction projects. With over a decade of field-proven operation, this model demonstrates Kobelco's commitment to durability and operator comfort.
- Year of Manufacture: 2011
- Model: SK330-8
- Current Location: Fujian Province, China
- Competitive pricing for budget-conscious operations
Ideal for regional contractors, rental fleets, or companies expanding their equipment inventory. Inspection welcome prior to purchase. Contact us for detailed specifications, current condition assessment, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1122036 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 34100 |
| Bucket capacity (m³) | 1.5 |
| Country of origin | Chengdu/Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J08E |
| Rated power (kw/rpm) | 197/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112*130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.684 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 165 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*294 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150*1193 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170*1788 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*140*1550 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
| Maximum effective digging depth (mm) | 7400 |
