Product Description

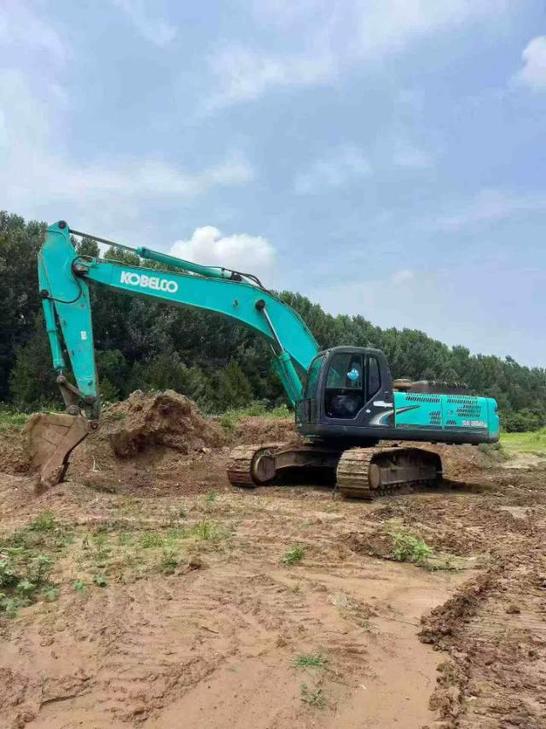

Discover the 2020 Kobelco SK350LC-8, a robust and reliable excavator currently available in Peking, China. This machine is ideal for heavy-duty earthmoving tasks, offering powerful and coordinated performance. The SK350LC-8 boasts an exceptionally well-maintained undercarriage, which is in near-new condition, ensuring stability and longevity on any job site. Known for its durability and efficiency, this model is also free from major leaks, enhancing its operational reliability. Priced to sell, this high-quality excavator represents an excellent investment opportunity for any construction or excavation project. Contact us now to secure this premium piece of equipment.
- Year: 2020
- Brand: Kobelco
- Model: SK350LC-8
- Location: Peking, China
| Specifications | Value |
|---|---|
| No. | 1122214 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34700 |
| Bucket capacity (m³) | 1.6 |
| Rod length (mm) | 3300 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino JO8E |
| Rated power (kw/rpm) | 196.9/2100 |
| Cylinder diameter × stroke (mm) | 112*130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.7 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 50.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 165 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*294 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150*1193 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170*1788 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*140*1550 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800/900 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
| Maximum effective digging depth (mm) | 7400 |
