Product Description

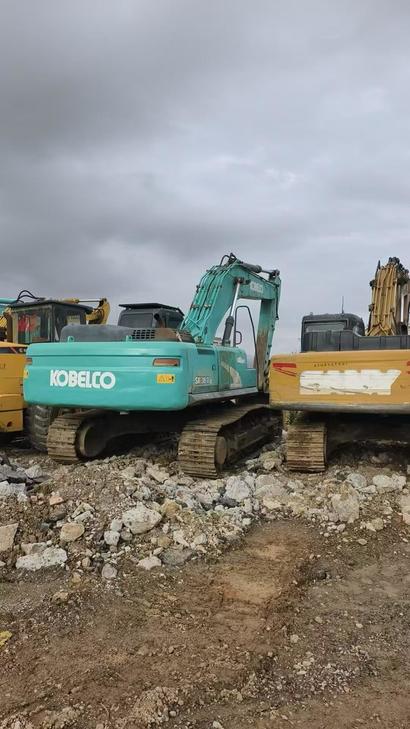

This 2013 Kobelco SK380D excavator represents a solid addition to any heavy construction or earthmoving fleet. Manufactured by Kobelco, a respected name in hydraulic excavator technology, this machine delivers reliable performance for demanding applications including excavation, demolition, and material handling.
The SK380D is engineered for durability and operational efficiency, making it suitable for contractors seeking dependable used equipment. Currently located in Sichuan, China, this unit is available for inspection and export arrangements.
- Year of Manufacture: 2013
- Make: Kobelco
- Model: SK380D
- Location: Sichuan, China
- Category: Hydraulic Excavator
For detailed specifications, current condition reports, pricing, and shipping logistics to your location, please contact our sales team directly.
| Specifications | Value |
|---|---|
| No. | 1137984 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.9 |
| Rod length (mm) | Short forearm 2600/ Ultra short 2250 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J08E |
| Rated power (kw/rpm) | 209/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 998/1600 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.684 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 221/ Supercharged 244 |
| Rod digging force (kN) | 205/ Supercharged 225 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2 x 294-20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3270 |
| Total transport height (mm) | 3640 (to top of boom) |
| Full cab height (mm) | 3233 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3270 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7005 |
| Maximum vertical digging depth (mm) | 5840 |
| Maximum excavation radius of stop surface (mm) | 10400 |
| Maximum effective digging depth (mm) | 6670 |
