Product Description

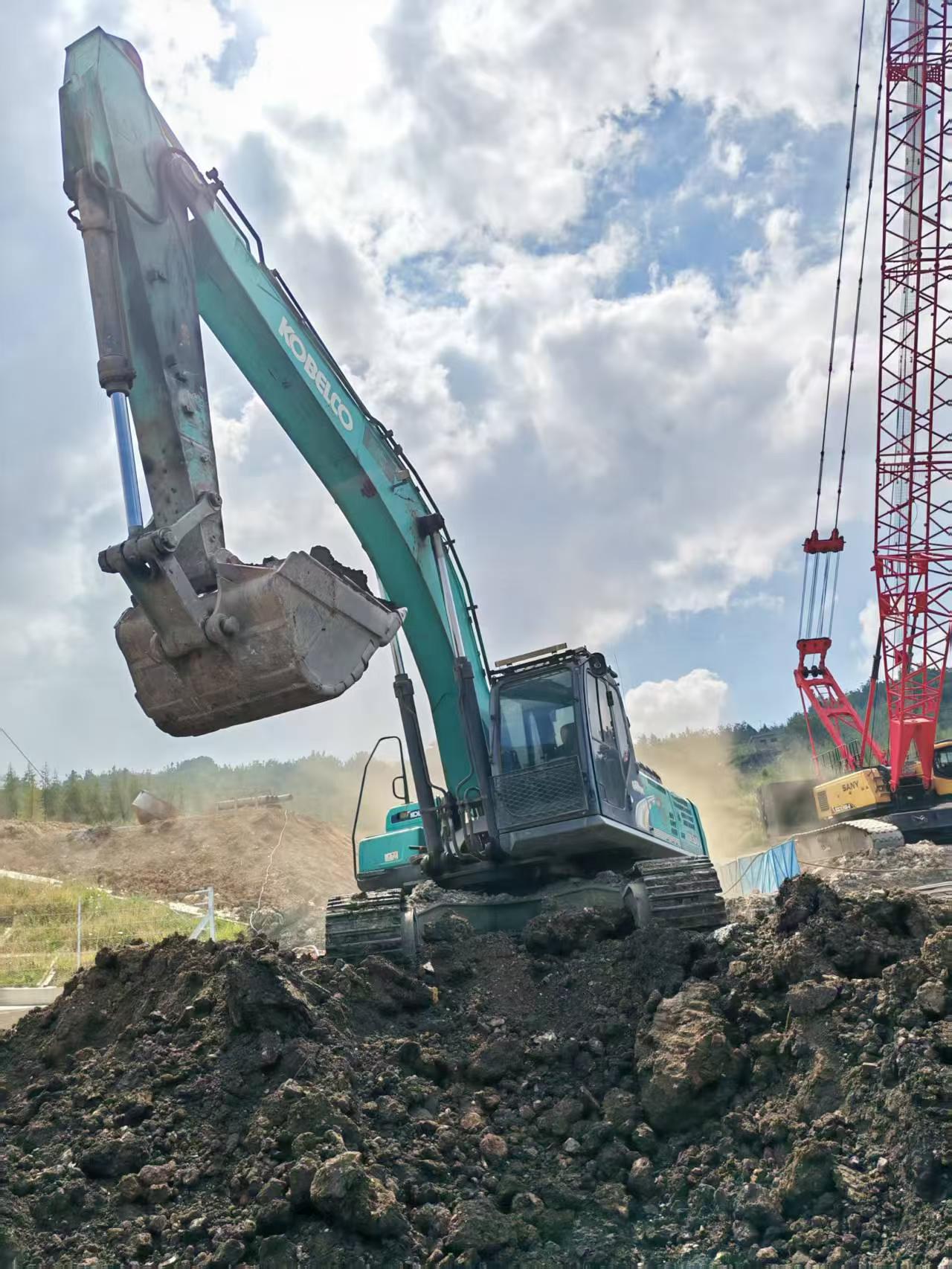

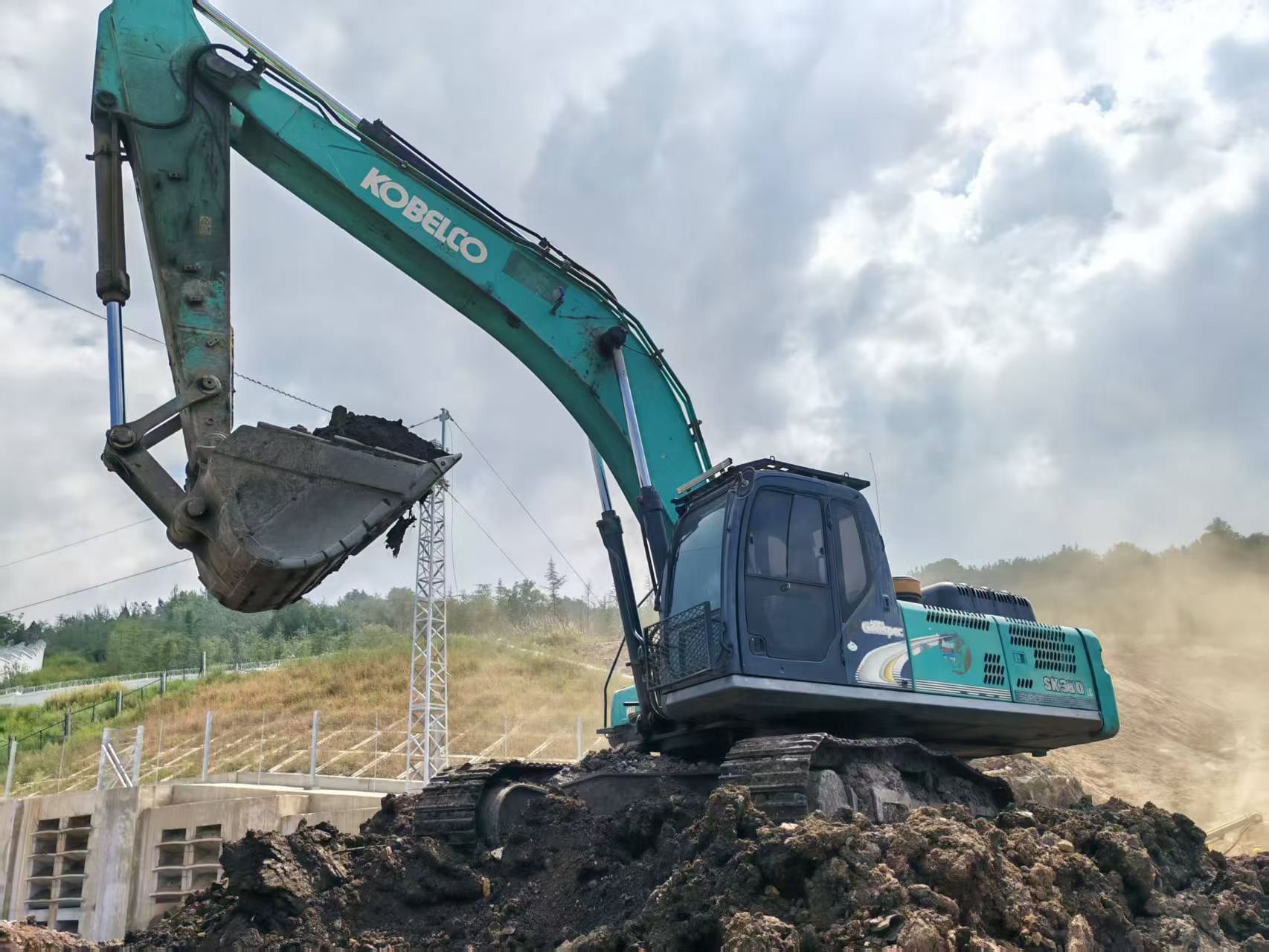

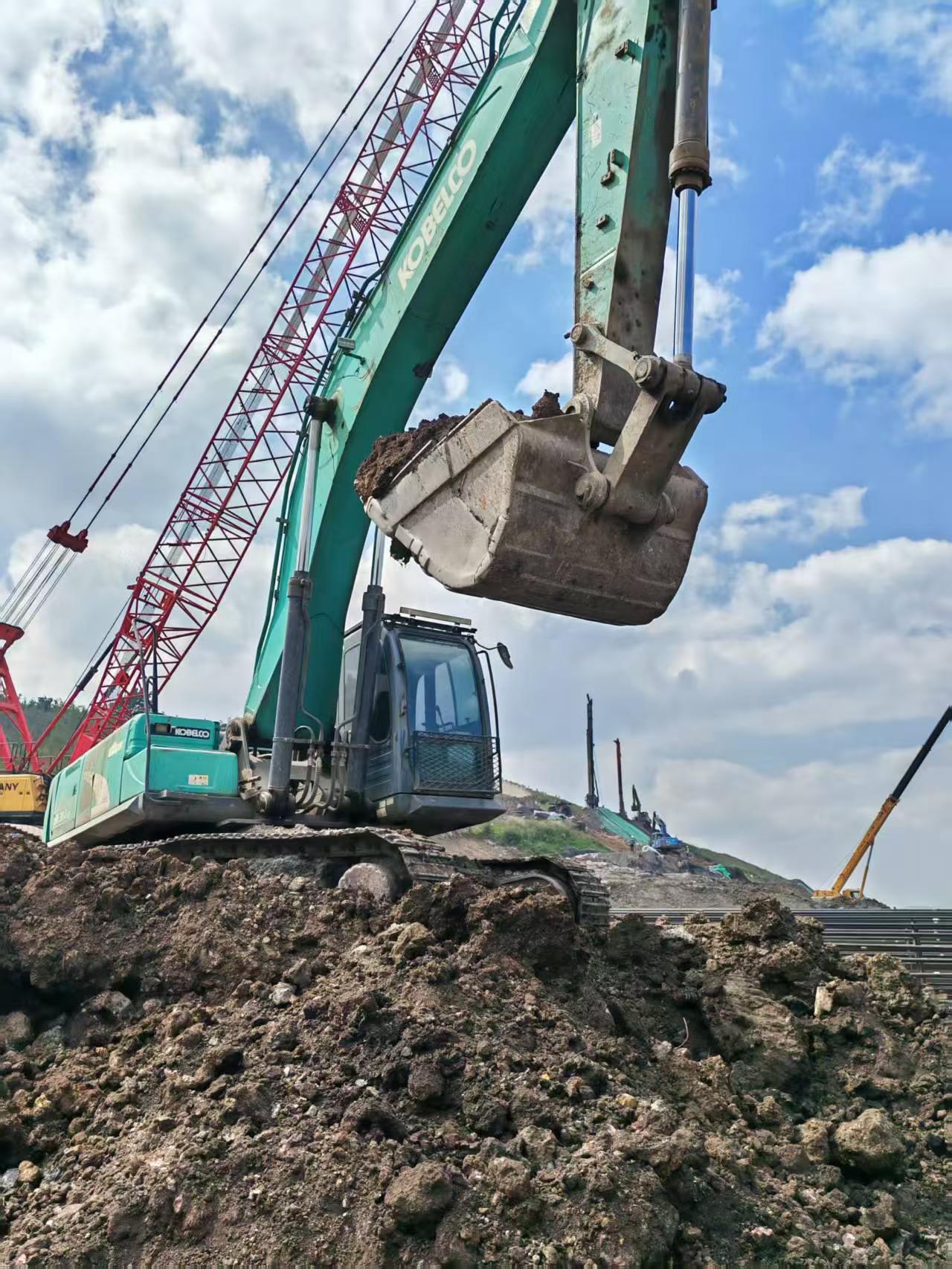

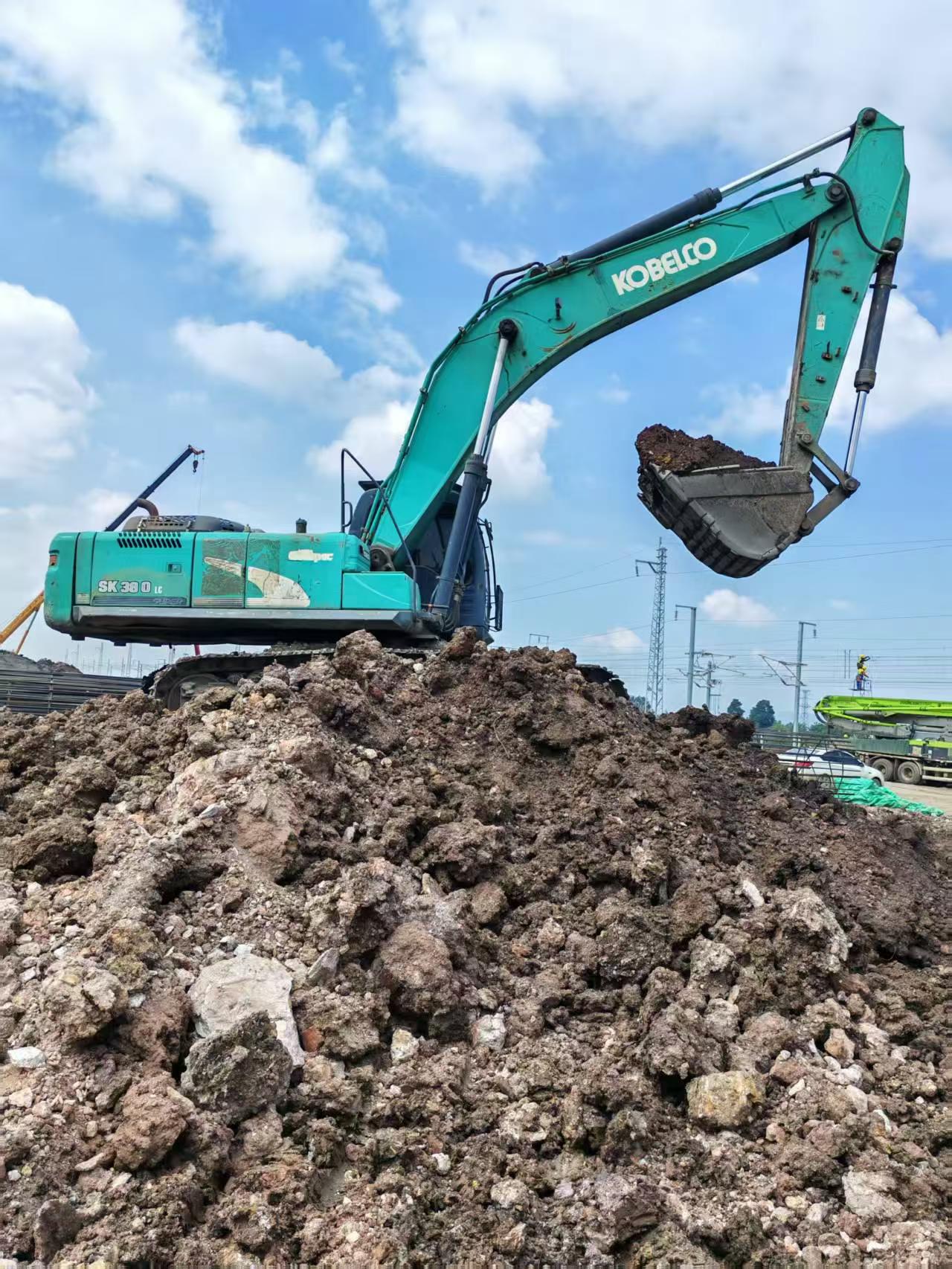

This 2013 Kobelco SK380D hydraulic excavator offers reliable performance for demanding excavation and earthmoving applications. Equipped with a standard boom configuration, this machine delivers the power and reach expected from Kobelco's proven SK380 series. Currently located in Sichuan, China, the unit presents in excellent condition with minimal wear, ready for immediate deployment on your next project.
- Year: 2013
- Model: Kobelco SK380D
- Configuration: Standard boom
- Location: Sichuan, China
- Condition: Excellent, inspection-ready
The SK380D is well-regarded for its fuel efficiency, operator comfort, and serviceability. This unit represents an opportunity to acquire a mid-size excavator from a trusted manufacturer at a competitive price point. Suitable for construction, mining, and infrastructure projects requiring a robust 38-ton class machine.
| Specifications | Value |
|---|---|
| No. | 1138782 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.9 |
| Rod length (mm) | Short forearm 2600/ Ultra short 2250 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

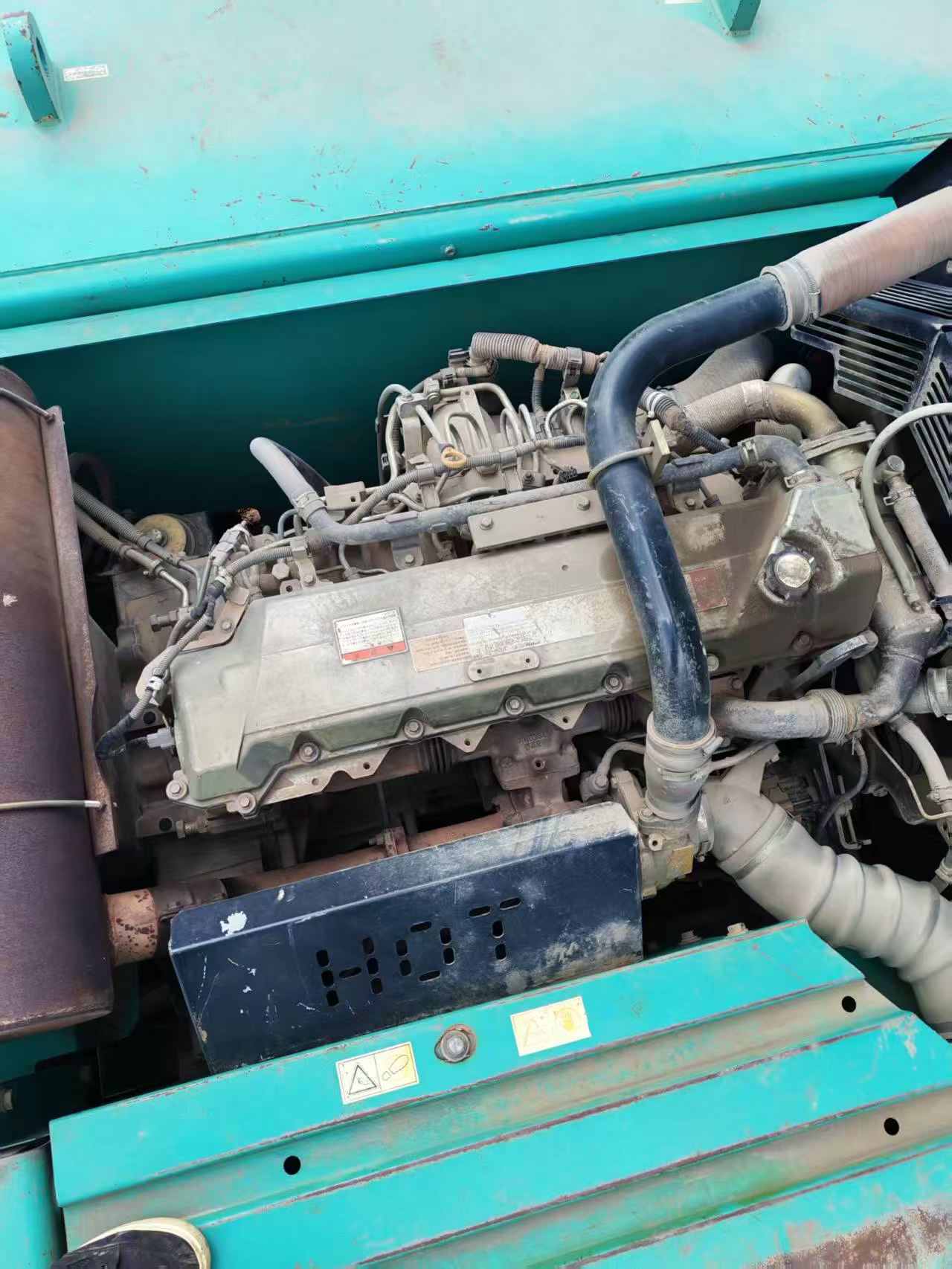

| Engine type | Hino J08E |
| Rated power (kw/rpm) | 209/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 998/1600 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.684 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 221/ Supercharged 244 |
| Rod digging force (kN) | 205/ Supercharged 225 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2 x 294-20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |

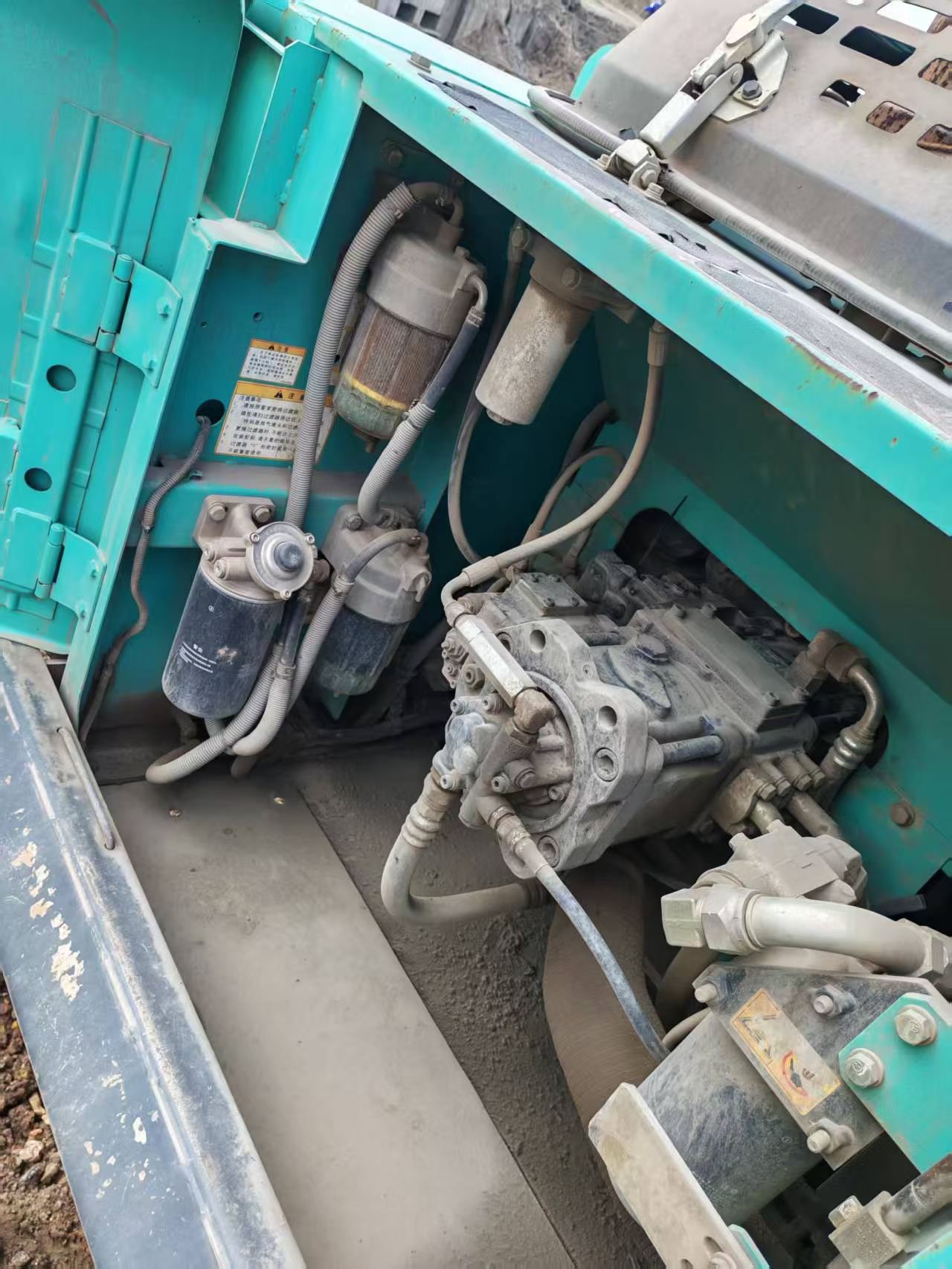

| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3270 |
| Total transport height (mm) | 3640 (to top of boom) |
| Full cab height (mm) | 3233 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3270 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7005 |
| Maximum vertical digging depth (mm) | 5840 |
| Maximum excavation radius of stop surface (mm) | 10400 |
| Maximum effective digging depth (mm) | 6670 |
