Product Description

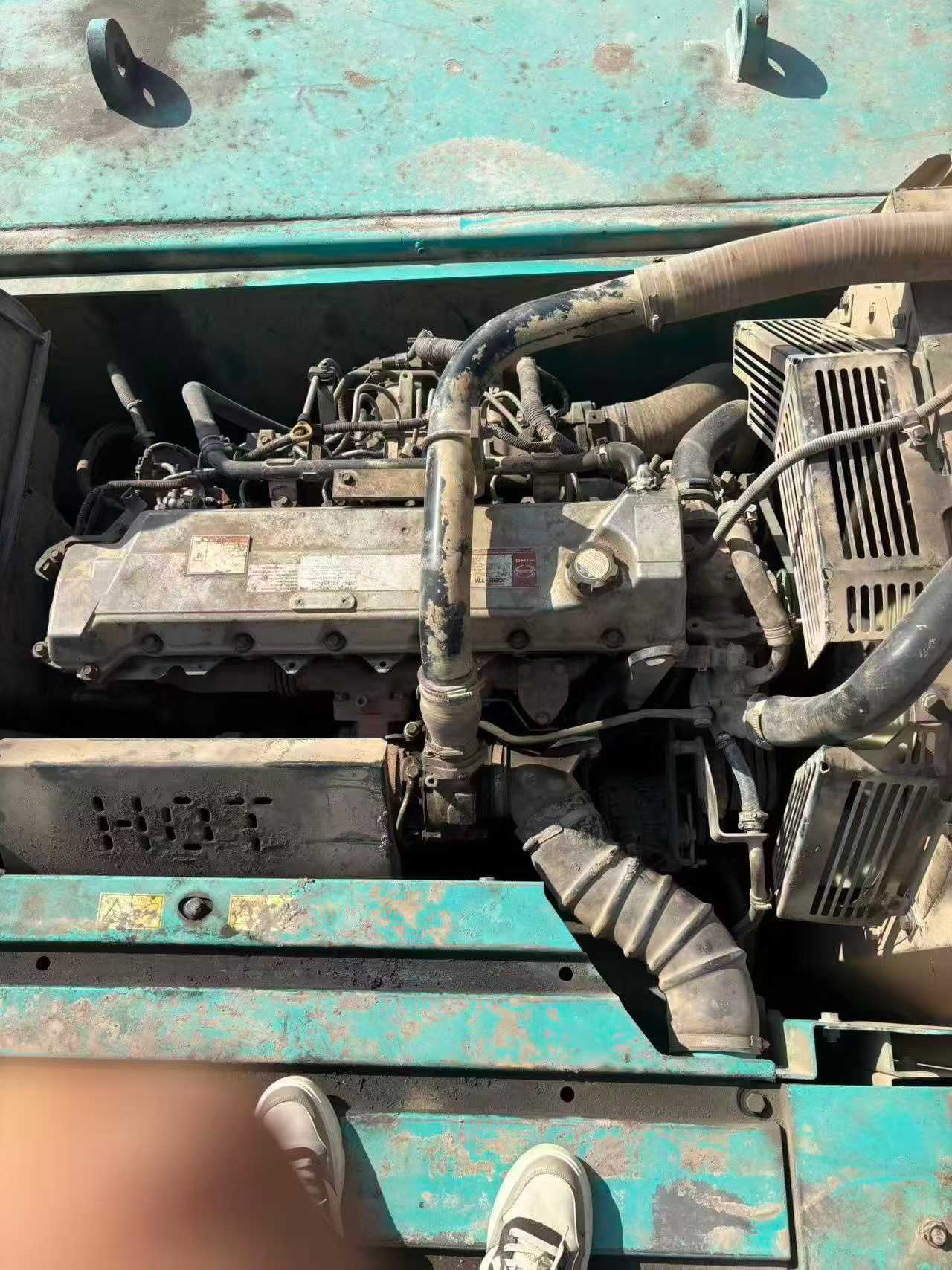

Commanding a 38-ton workhorse from Jiangxi, operators benefit from Kobelco's proven SK380D platform engineered for precision and control. Built with a Hino J08E engine delivering 209 kW at 2100 rpm, this excavator combines reliable power with responsive hydraulics through its dual variable axial piston pump system. The cab provides comprehensive visibility across a 10,610 mm maximum digging radius, while the machine's 3,500 mm rear turning radius enables confident maneuvering in confined spaces.
- Stable 36,900 kg working weight with 1,190 mm counterweight clearance for balanced operation
- Dual-speed travel system (5.6/3.3 km/h) with two-speed plunger motors for precise positioning
- Enhanced bucket digging force: 221 kN standard, 244 kN supercharged mode
- 70% climbing ability (35 degrees) tackles challenging terrain with authority
- 10 rpm rotation speed ensures smooth, controlled swing operations
- Spacious cab design typical of 2014 standards with ergonomic controls and clear sightlines
Equipped with short forearm (2600 mm) or ultra-short (2250 mm) rod configurations, this Chengdu-manufactured unit adapts to varied jobsite demands while maintaining operator comfort t
| Specifications | Value |
|---|---|
| No. | 998926 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.9 |
| Rod length (mm) | Short forearm 2600/ Ultra short 2250 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J08E |
| Rated power (kw/rpm) | 209/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 998/1600 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.684 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 221/ Supercharged 244 |
| Rod digging force (kN) | 205/ Supercharged 225 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2 x 294-20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |

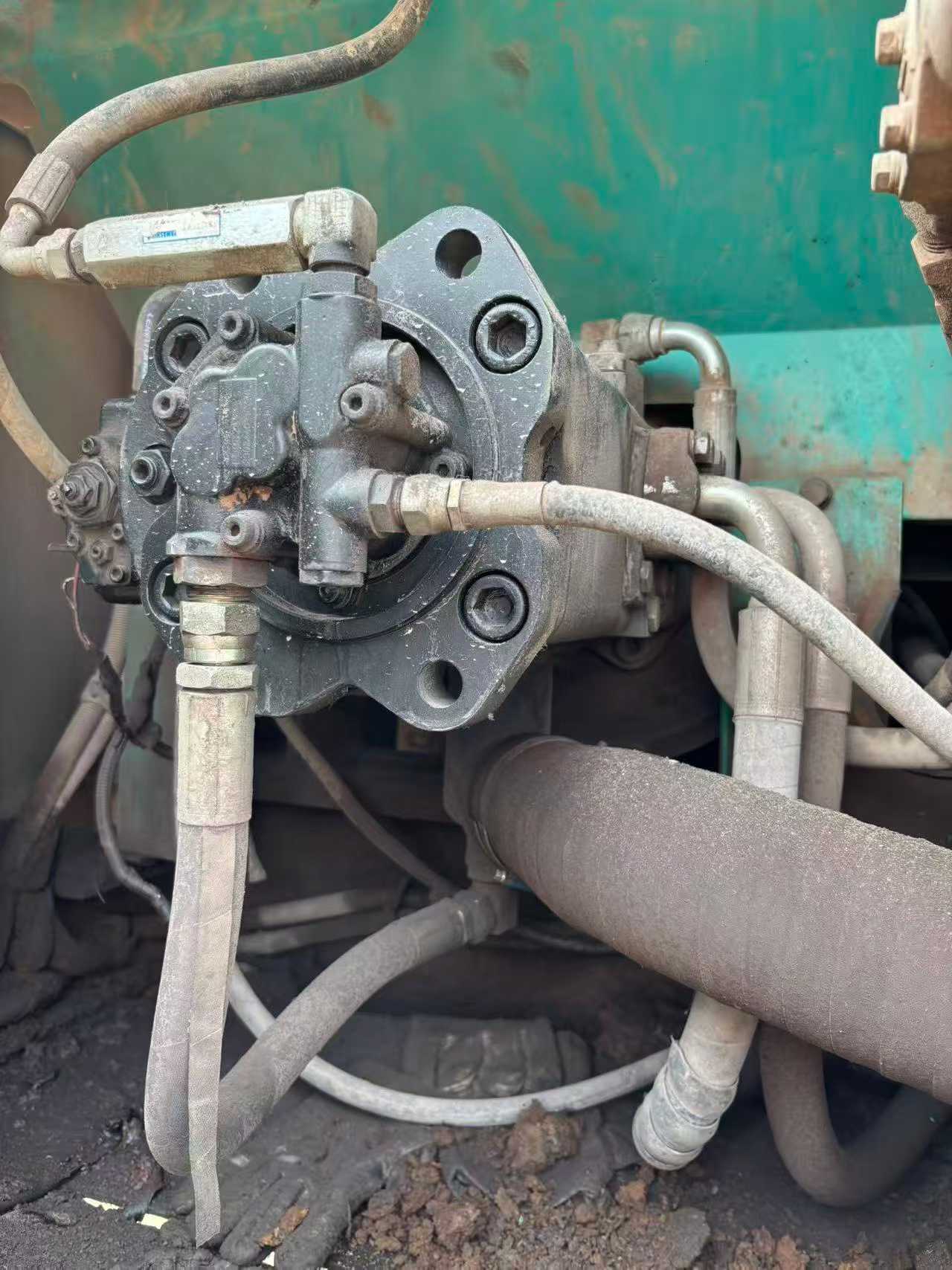

| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3270 |
| Total transport height (mm) | 3640 (to top of boom) |
| Full cab height (mm) | 3233 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3270 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7005 |
| Maximum vertical digging depth (mm) | 5840 |
| Maximum excavation radius of stop surface (mm) | 10400 |
| Maximum effective digging depth (mm) | 6670 |
