Product Description

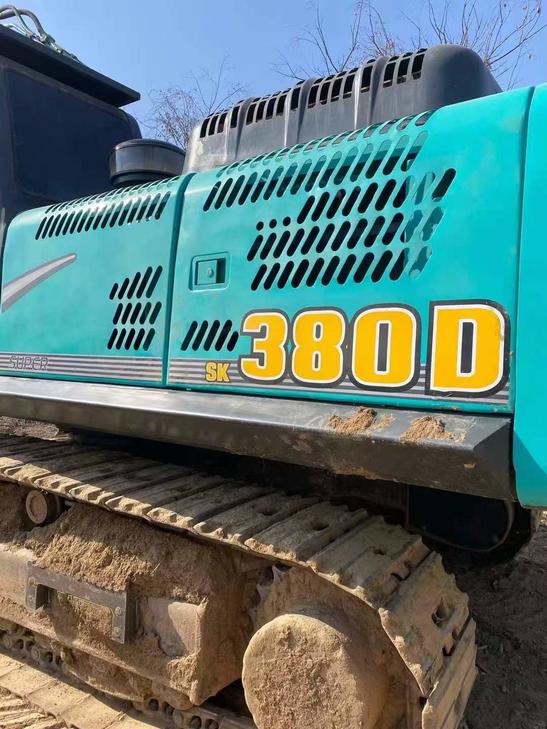

Available for immediate sale: 2020 Kobelco SK380D hydraulic excavator, currently located in Beijing, China. This well-maintained unit demonstrates excellent operating condition with verified performance parameters and comprehensive maintenance records.
Key features include:
- Single-owner machine with complete service history
- All hydraulic systems leak-free and fully operational
- Electrical components tested and functioning properly
- Undercarriage and structural components in solid condition
- Detailed photographic and video documentation available upon request
This SK380D is ready for transport and deployment. Nationwide shipping can be arranged to facilitate delivery to your operation. Suitable for heavy construction, excavation, and earthmoving applications requiring a reliable 38-ton class machine.
Contact us for additional technical specifications, inspection scheduling, or shipping quotes.
| Specifications | Value |
|---|---|
| No. | 1107641 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.9 |
| Rod length (mm) | Short forearm 2600/ Ultra short 2250 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J08E |
| Rated power (kw/rpm) | 209/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 998/1600 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.684 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 221/ Supercharged 244 |
| Rod digging force (kN) | 205/ Supercharged 225 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2 x 294-20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3270 |
| Total transport height (mm) | 3640 (to top of boom) |
| Full cab height (mm) | 3233 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3270 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7005 |
| Maximum vertical digging depth (mm) | 5840 |
| Maximum excavation radius of stop surface (mm) | 10400 |
| Maximum effective digging depth (mm) | 6670 |
