Product Description

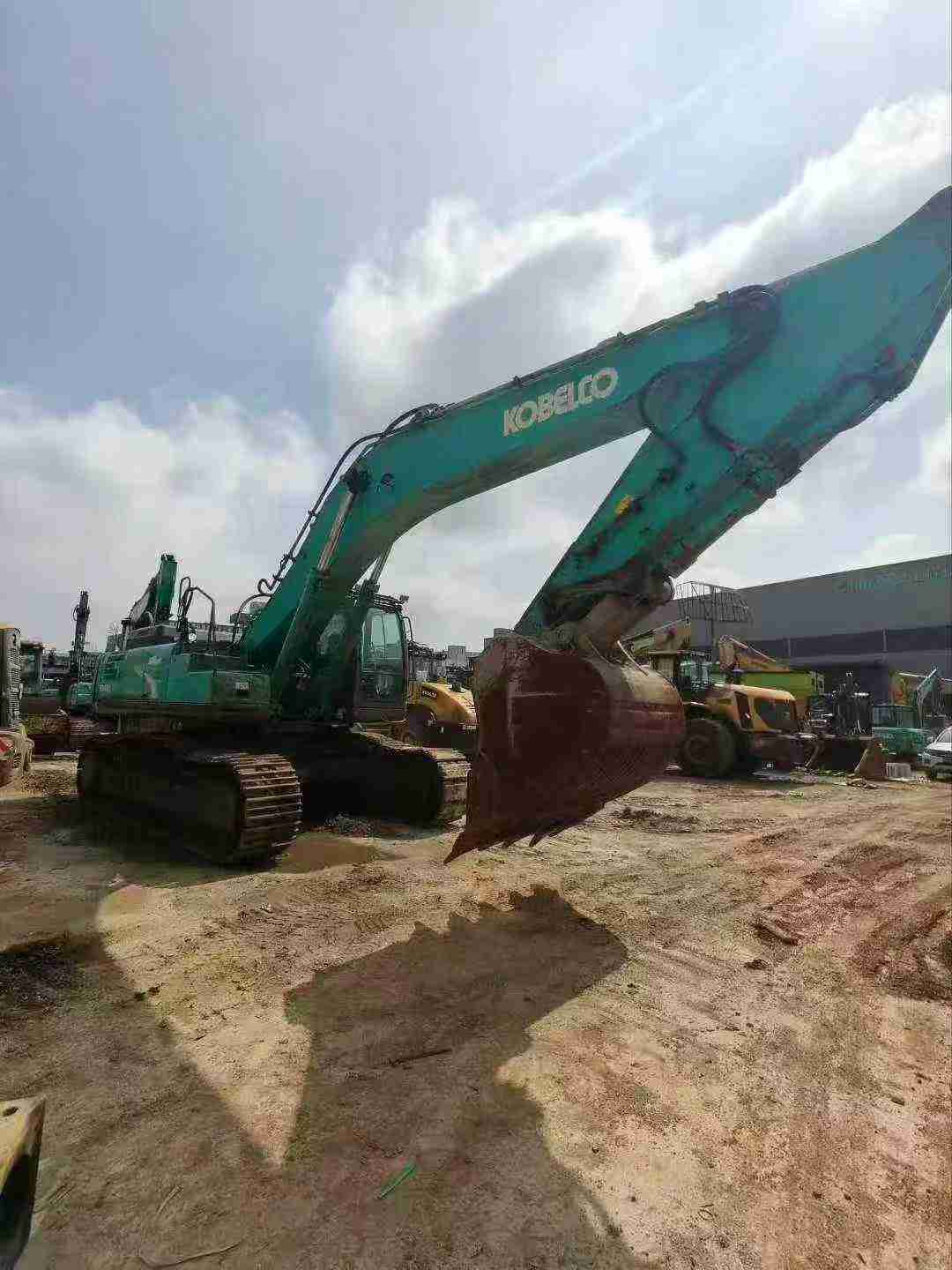

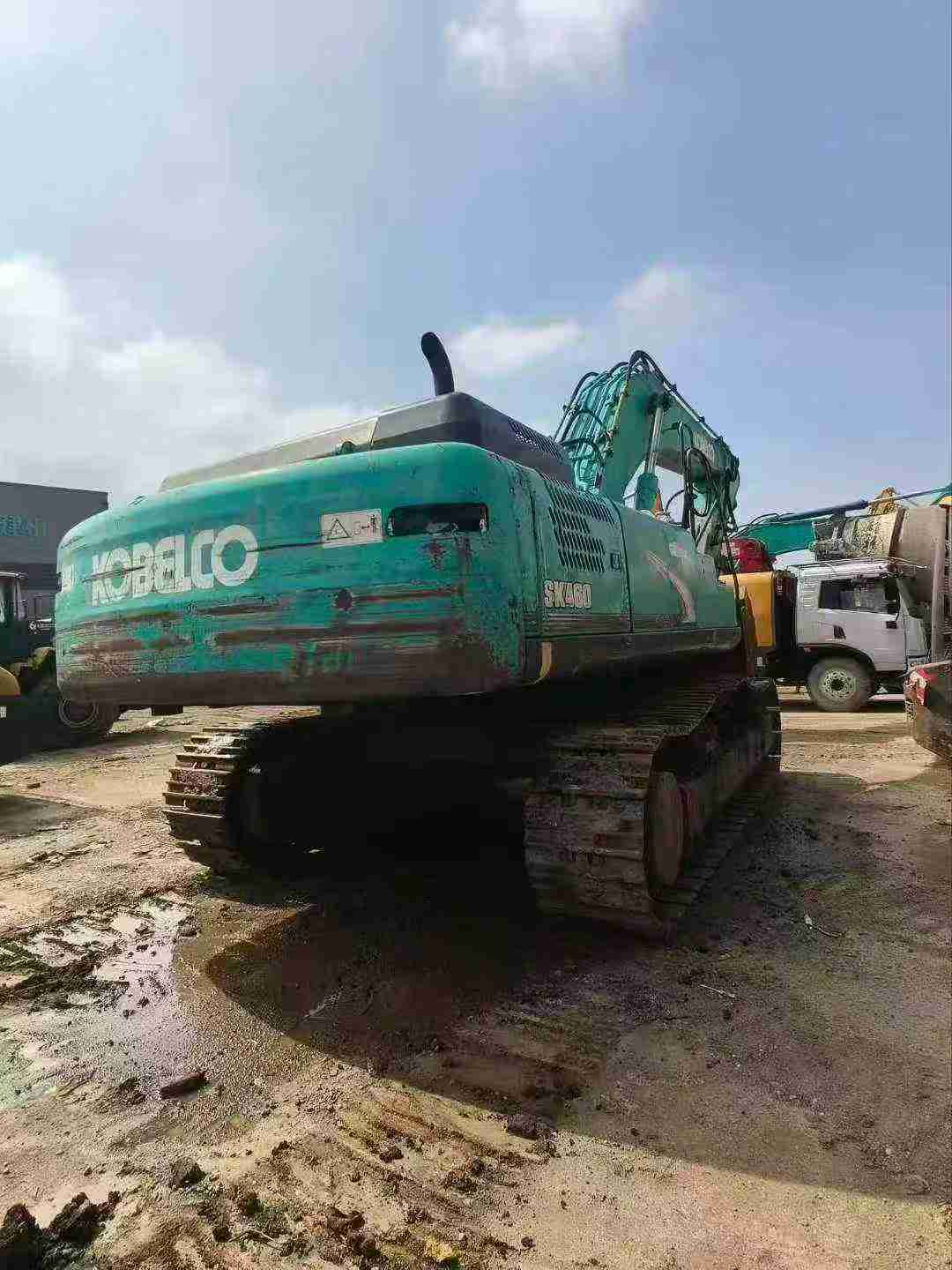

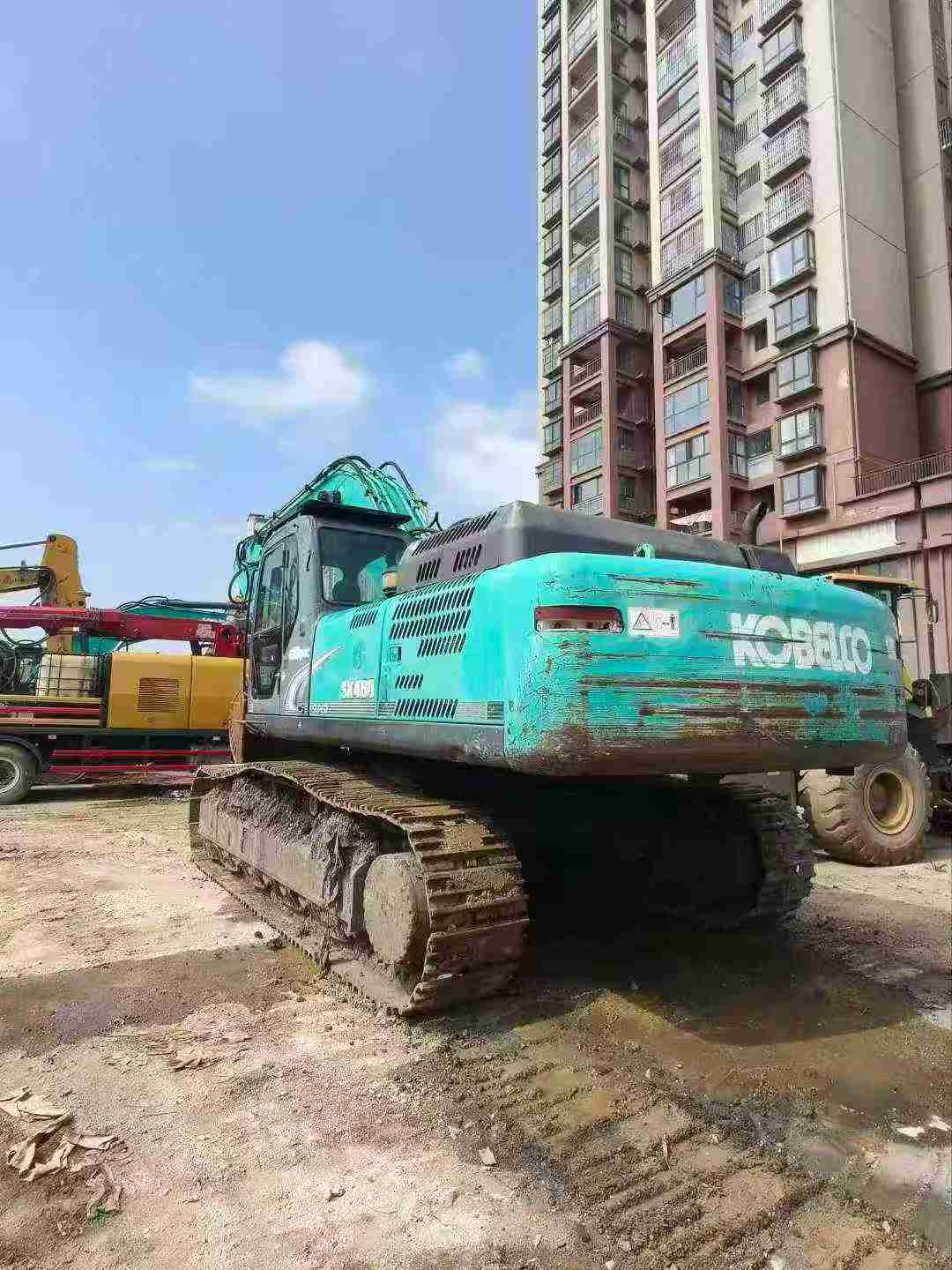

Built for high-output excavation across demanding jobsites, this 2011 Kobelco SK460-8 delivers 46 tons of working power backed by a proven HINO P11C engine. Rated at 257 kW and generating 1400 N·m of torque, this Japan-engineered crawler excavator handles deep trenching, mass excavation, and heavy demolition with precision. Maximum digging depth reaches 7810 mm while bucket digging force peaks at 267 kN—ideal for cutting through compacted soil, rock, and challenging terrain.
- 1.9 m³ bucket capacity moves material efficiently on every cycle
- 12070 mm maximum digging radius covers extensive work areas
- Dual variable displacement axial piston pumps supply 740 L/min combined flow
- Water-cooled turbocharged engine with intercooling ensures consistent performance
- 70% gradeability and 417 kN maximum tractive force conquer steep slopes
- Currently located in Luzhou, Sichuan—ready for immediate deployment
Site-ready condition with complete hydraulic systems, robust undercarriage, and factory-spec boom and arm configuration. This machine transitions seamlessly from foundation work to loading operations without downtime.
| Specifications | Value |
|---|---|
| No. | 1029963 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 46400-48300 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3450 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HINO P11C |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 122 x 150 |
| Maximum torque (N.m) | 1400/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.52 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 58-83 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 203 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Main overflow set pressure (Mpa) | 34.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*370 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*160*1410 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1970 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*170*1590 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 50 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3580 |
| Total transport height (mm) | 3800 |
| Full cab height (mm) | 3390 |
| Counterweight ground clearance (mm) | 1340 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 5270 |
| Back end turning radius (mm) | 3670 |
| Onboard width (mm) | 3000 |
| Total track length (mm) | 5110 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3350 |
| Track ground length (mm) | 4060 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 12070 |
| Maximum digging depth (mm) | 7810 |
| Maximum excavation height (mm) | 10930 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7120 |
| Maximum excavation radius of stop surface (mm) | 11840 |
