Product Description

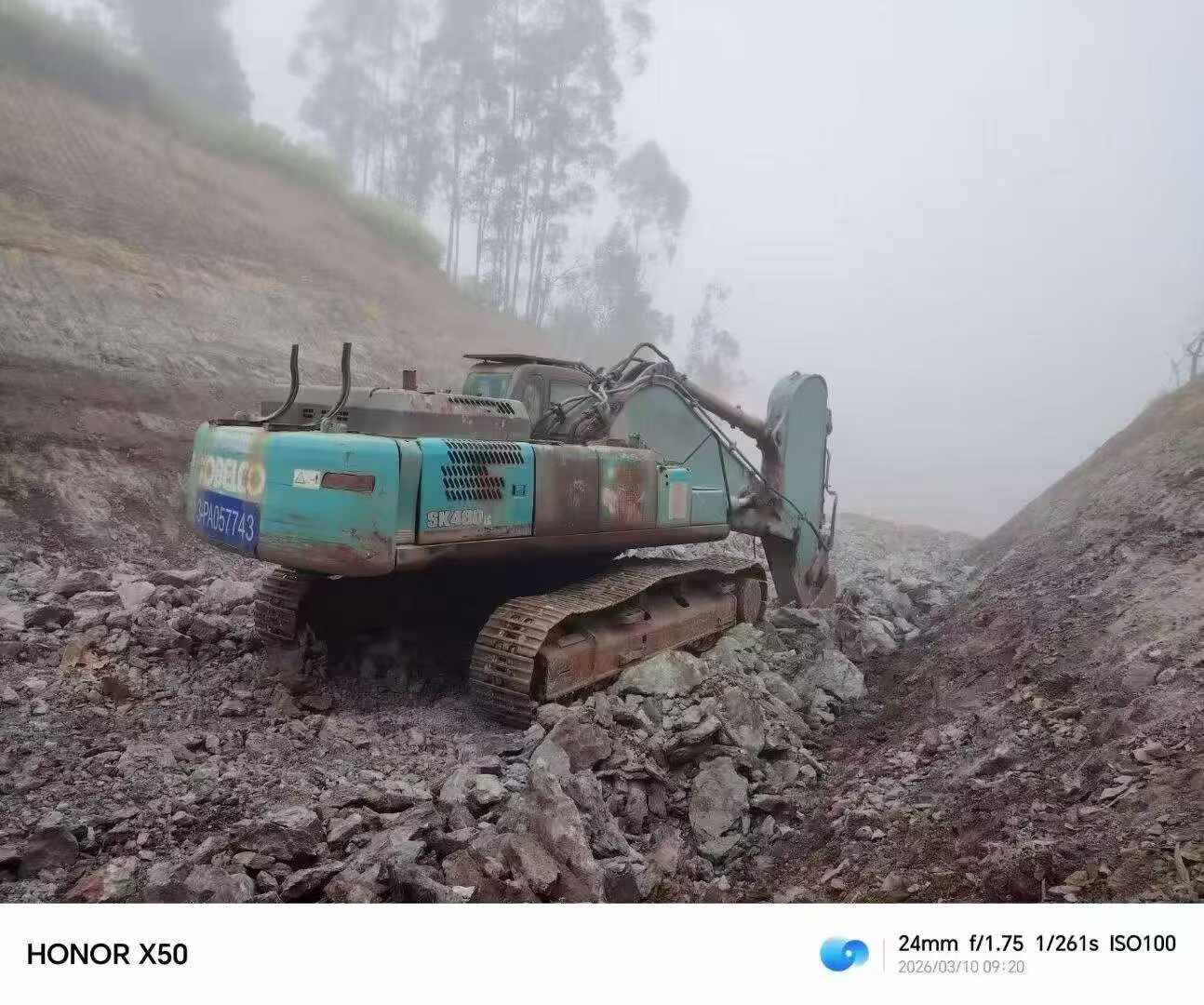

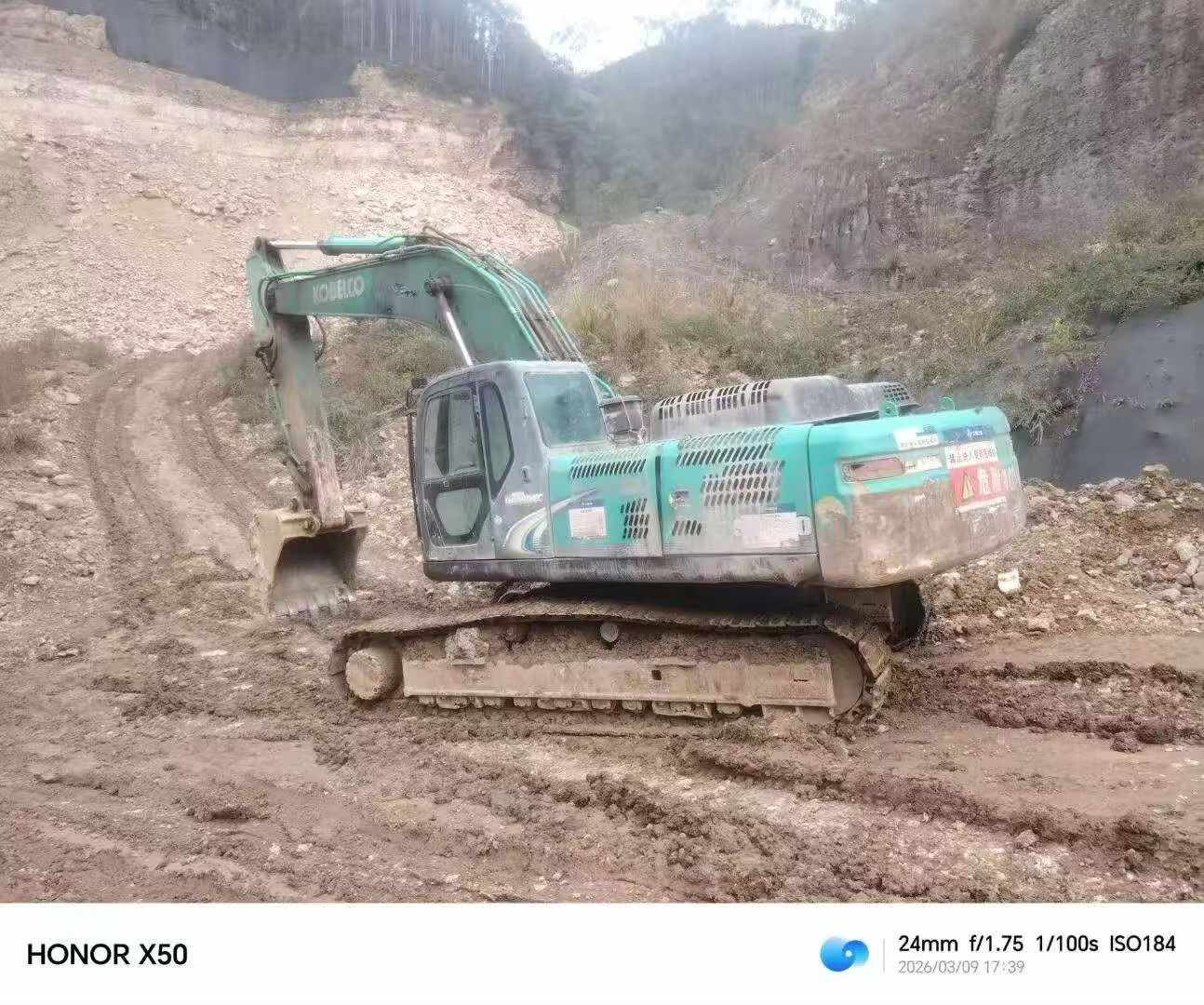

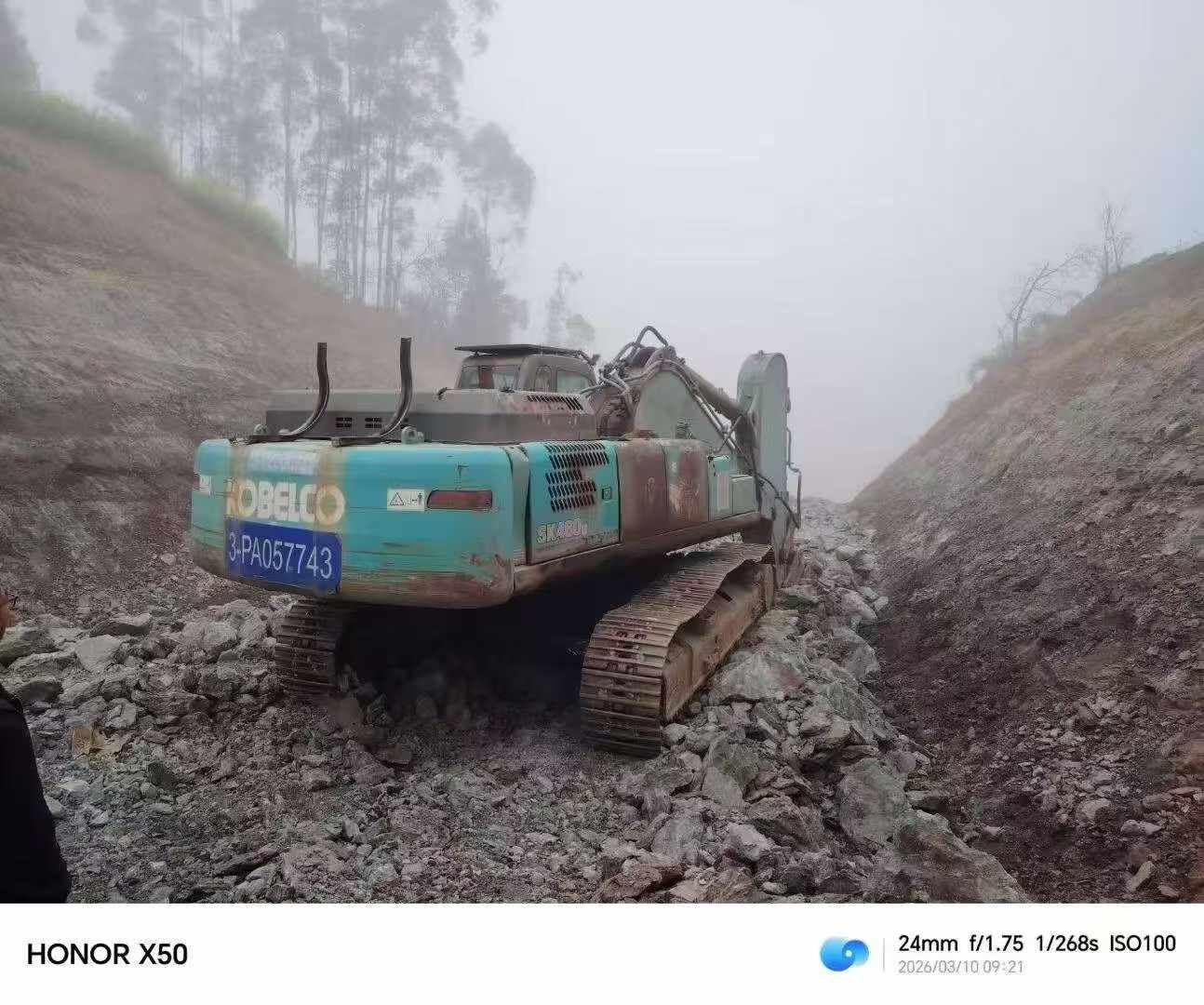

This 2020 Kobelco SK460-8 hydraulic excavator is available as part of a bundled package in Sichuan, China. The SK460-8 represents Kobelco's advanced 8-series technology, delivering reliable performance for heavy earthmoving and excavation projects. This unit comes from the original owner, ensuring transparent service history and documented maintenance records.
- Year: 2020
- Model: Kobelco SK460-8
- Location: Sichuan, China
- Ownership: First owner, direct sale
- Package deal: Includes Kobelco SK350 excavator
The SK460-8 features Kobelco's fuel-efficient engine technology and robust undercarriage designed for demanding construction and mining applications. Both machines in this package offer excellent value for contractors looking to expand their fleet with quality Japanese-manufactured equipment. Contact us for inspection arrangements and detailed specifications.
| Specifications | Value |
|---|---|
| No. | 1168715 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 46400-48300 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3450 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

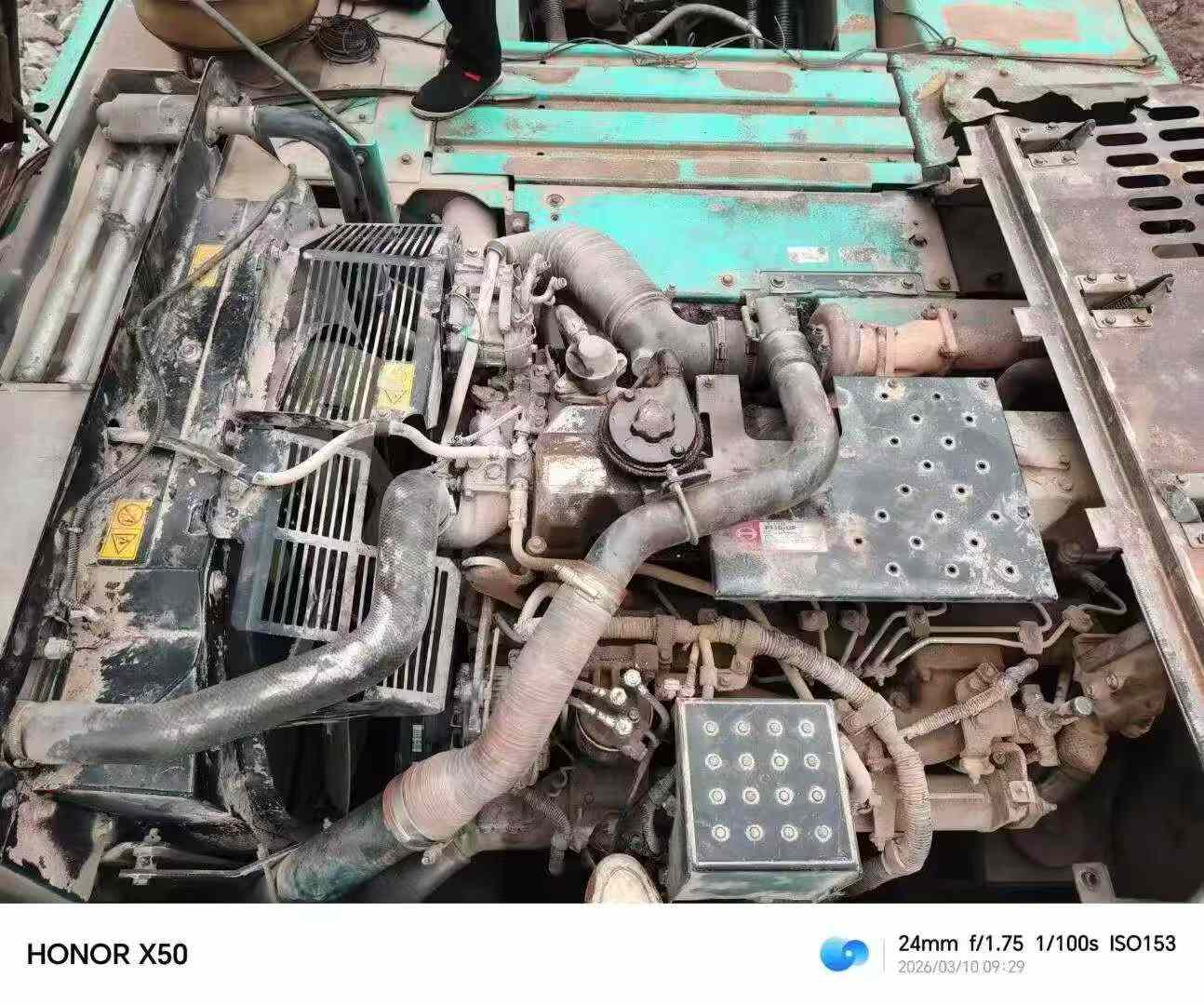

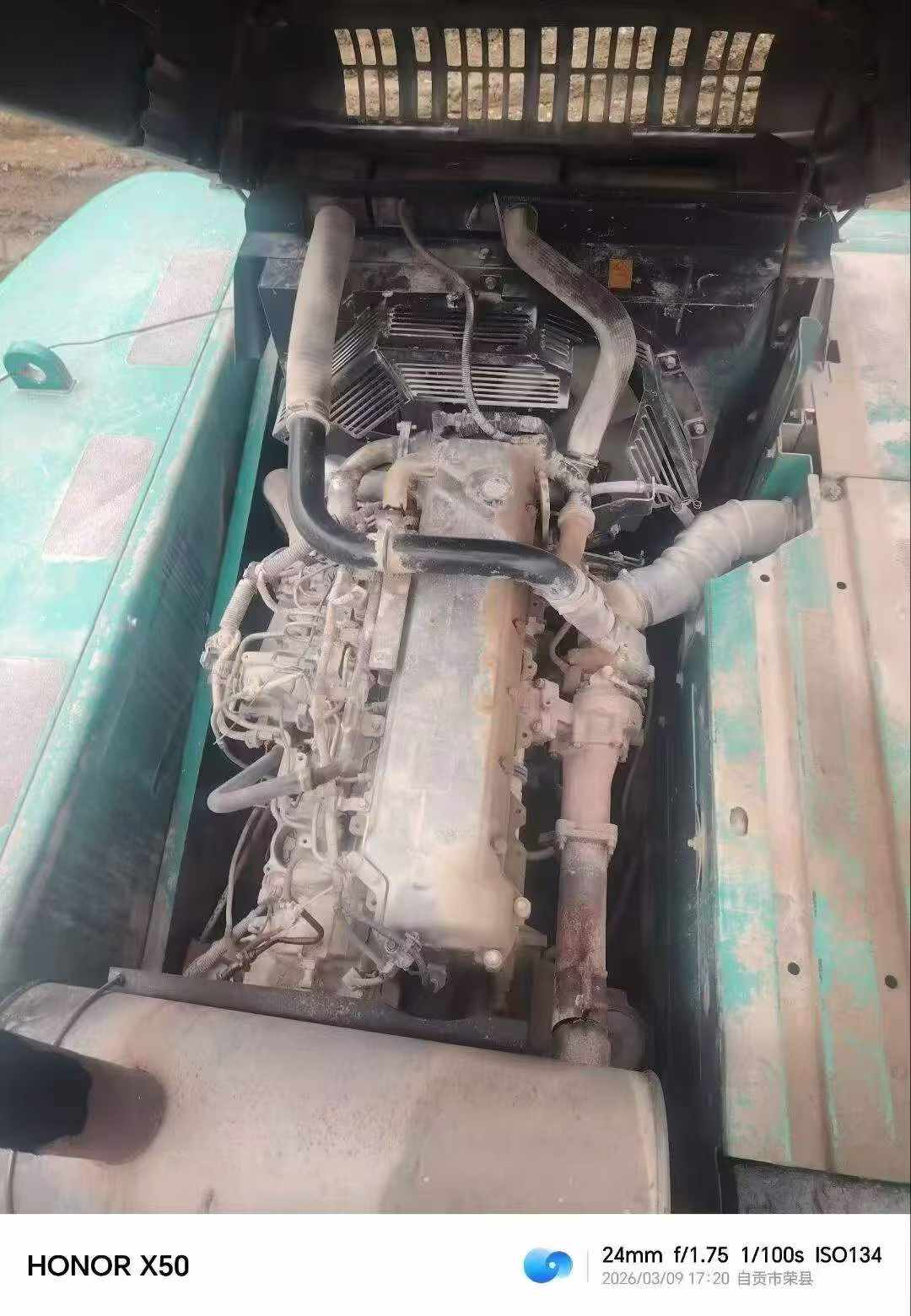

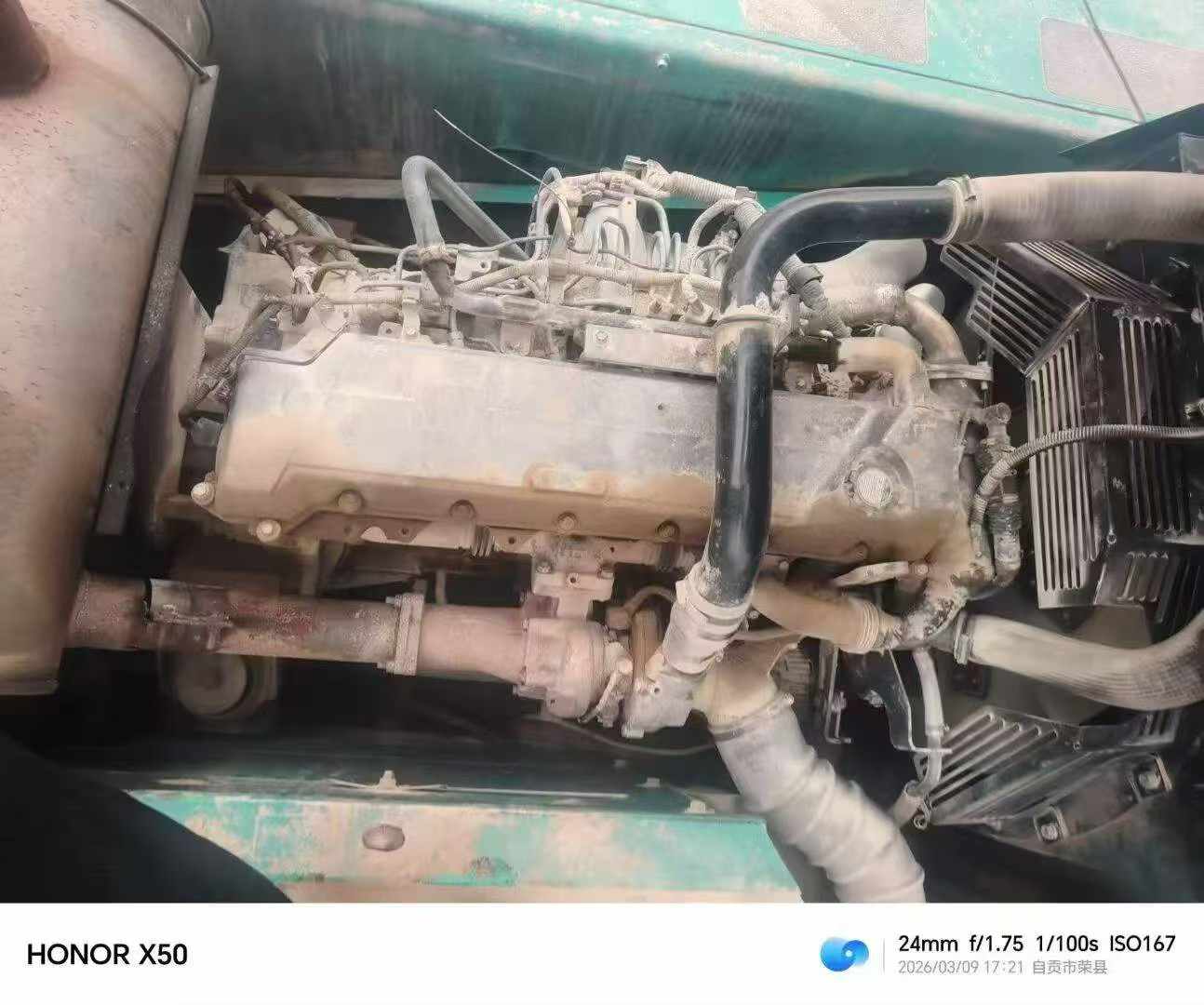

| Engine type | HINO P11C |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 122 x 150 |
| Maximum torque (N.m) | 1400/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.52 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 58-83 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 203 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Main overflow set pressure (Mpa) | 34.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*370 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |

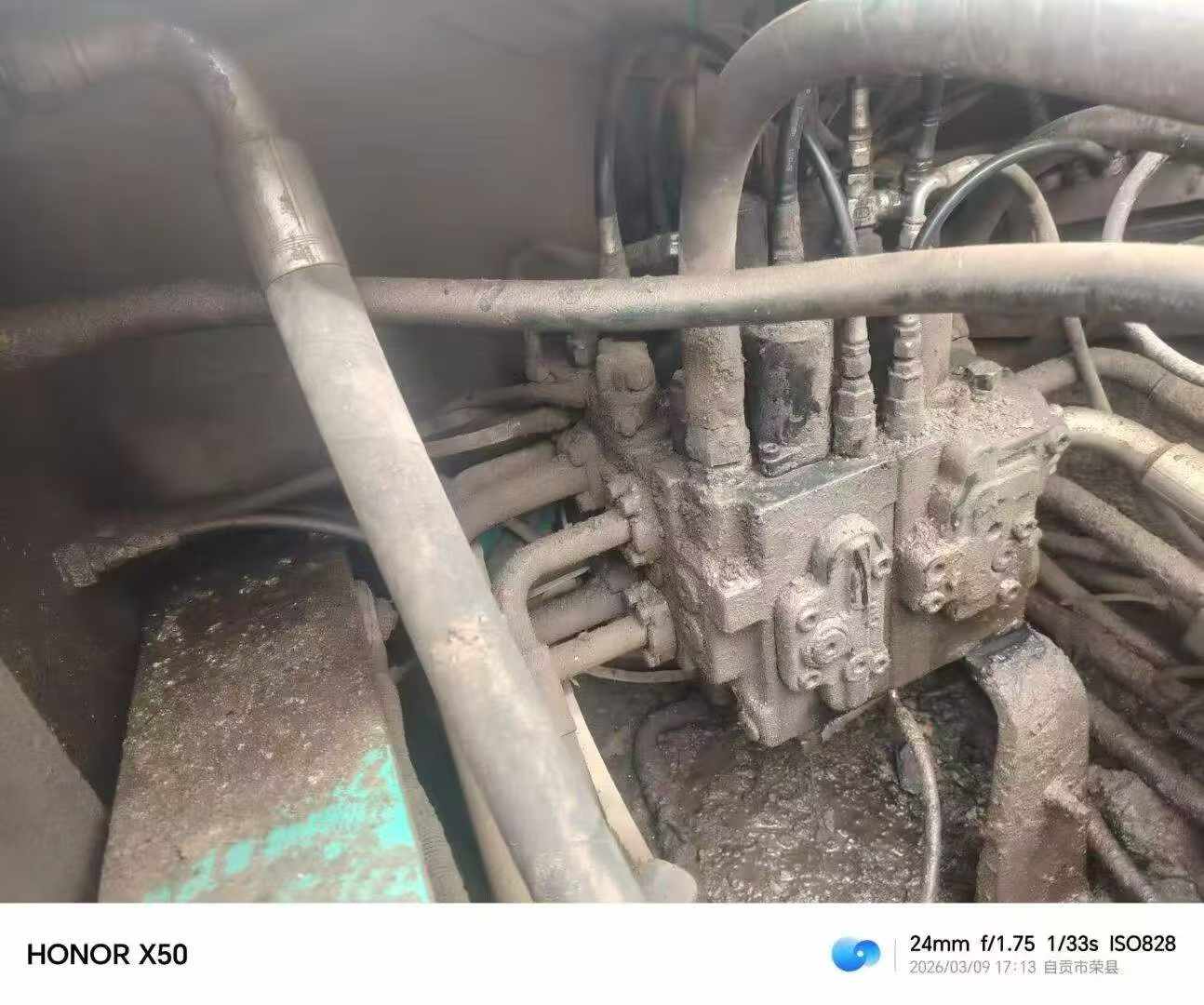

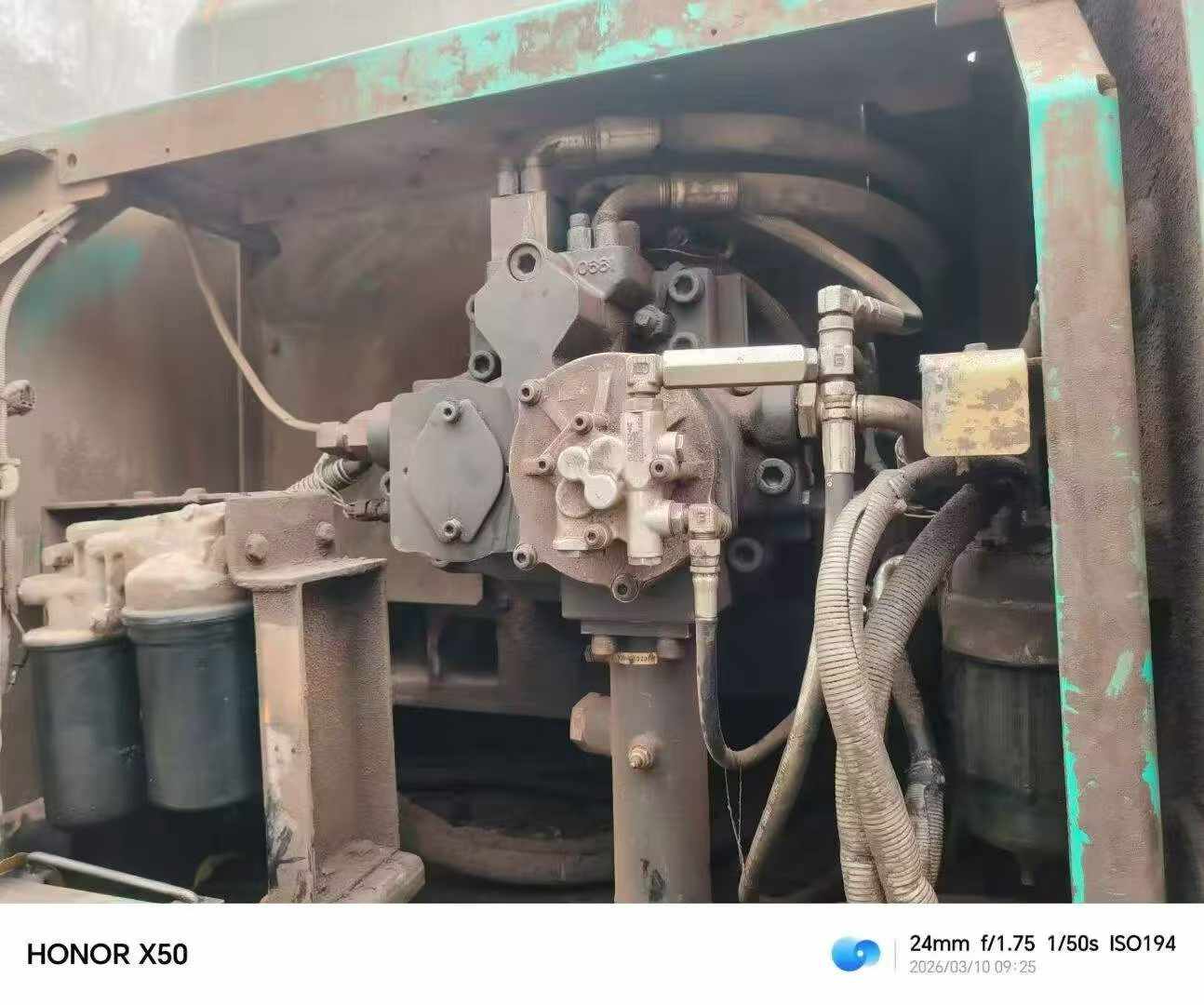

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*160*1410 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1970 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*170*1590 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 50 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3580 |
| Total transport height (mm) | 3800 |
| Full cab height (mm) | 3390 |
| Counterweight ground clearance (mm) | 1340 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 5270 |
| Back end turning radius (mm) | 3670 |
| Onboard width (mm) | 3000 |
| Total track length (mm) | 5110 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3350 |
| Track ground length (mm) | 4060 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 12070 |
| Maximum digging depth (mm) | 7810 |
| Maximum excavation height (mm) | 10930 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7120 |
| Maximum excavation radius of stop surface (mm) | 11840 |
