Product Description

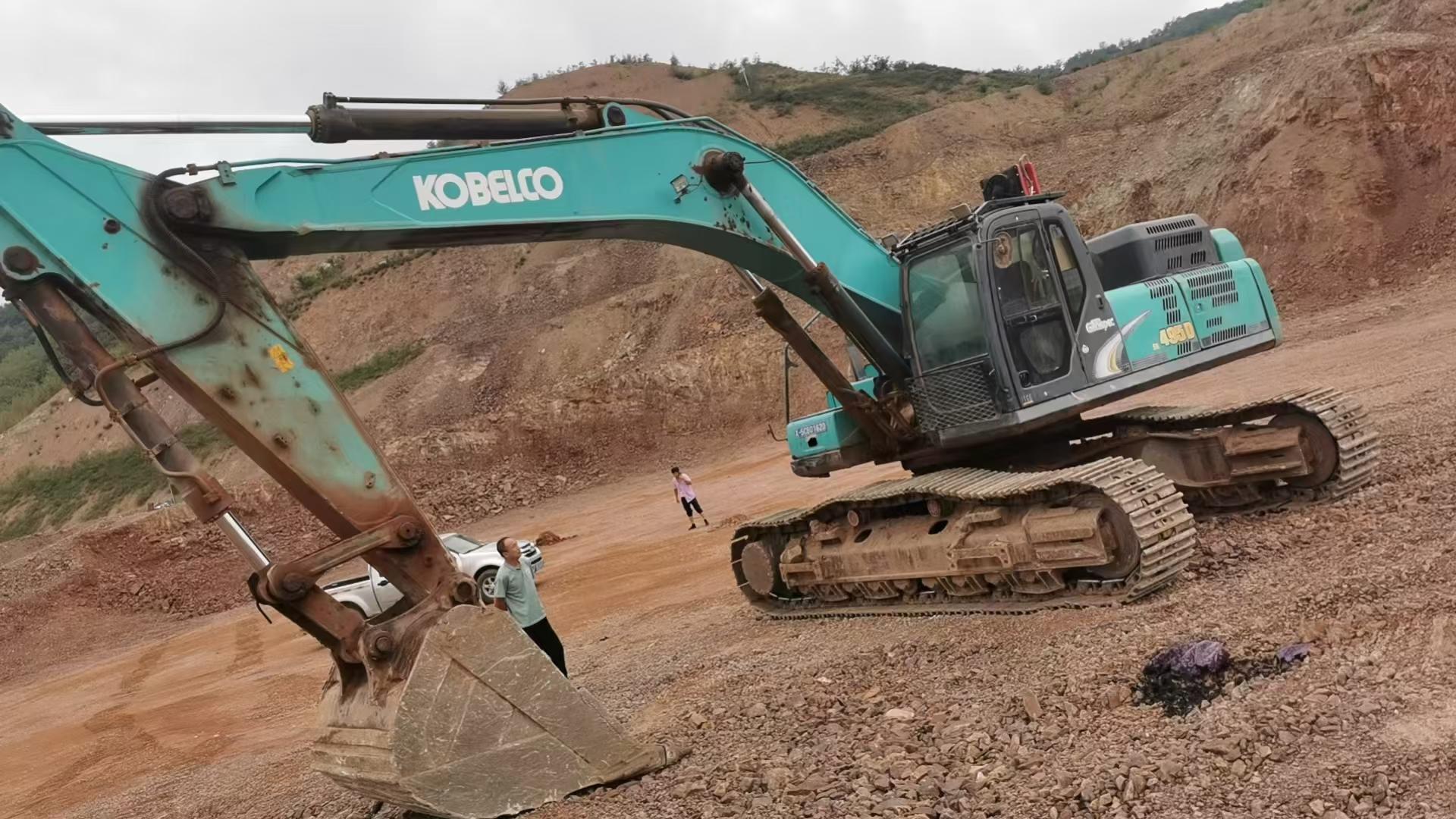

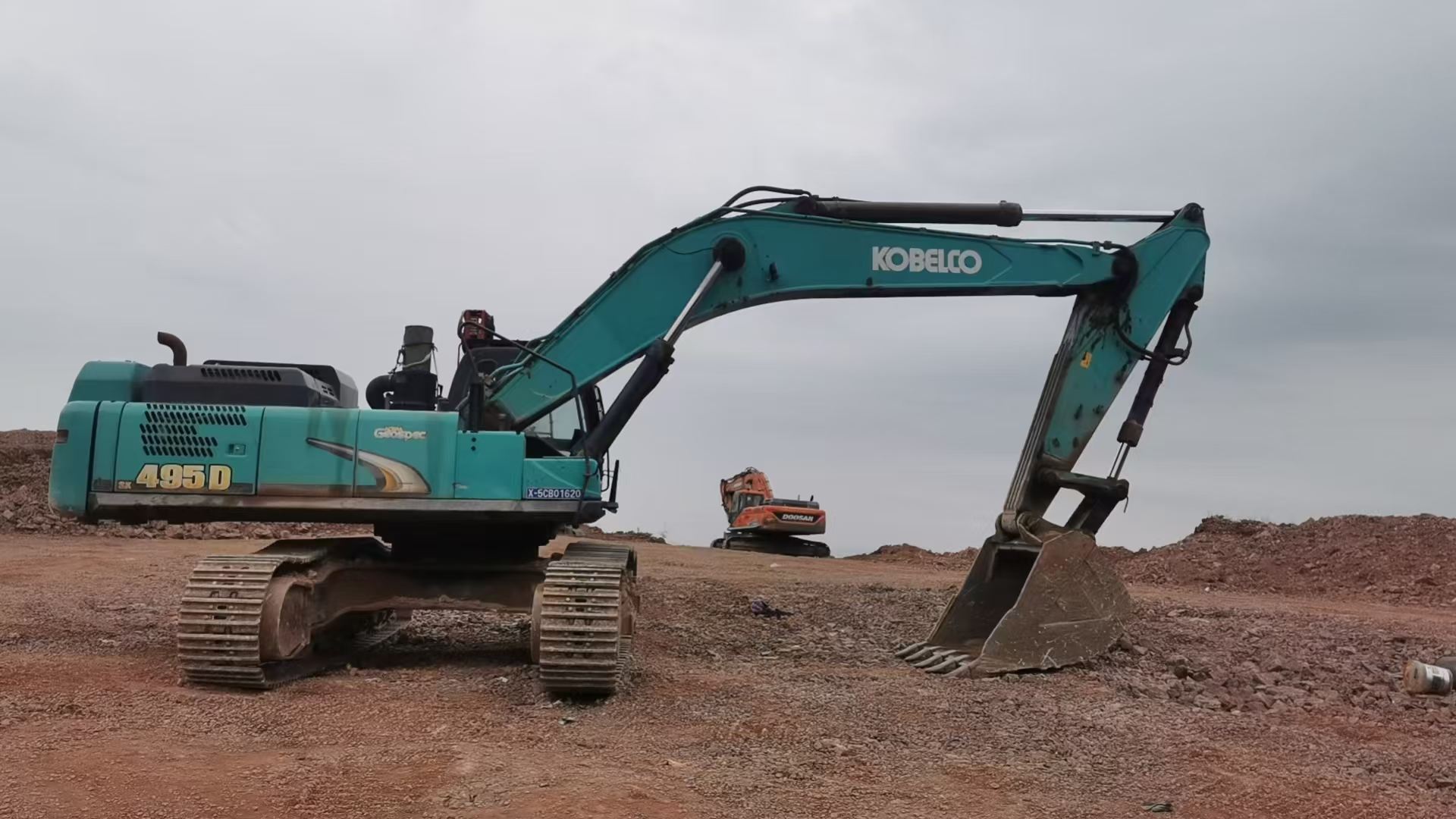

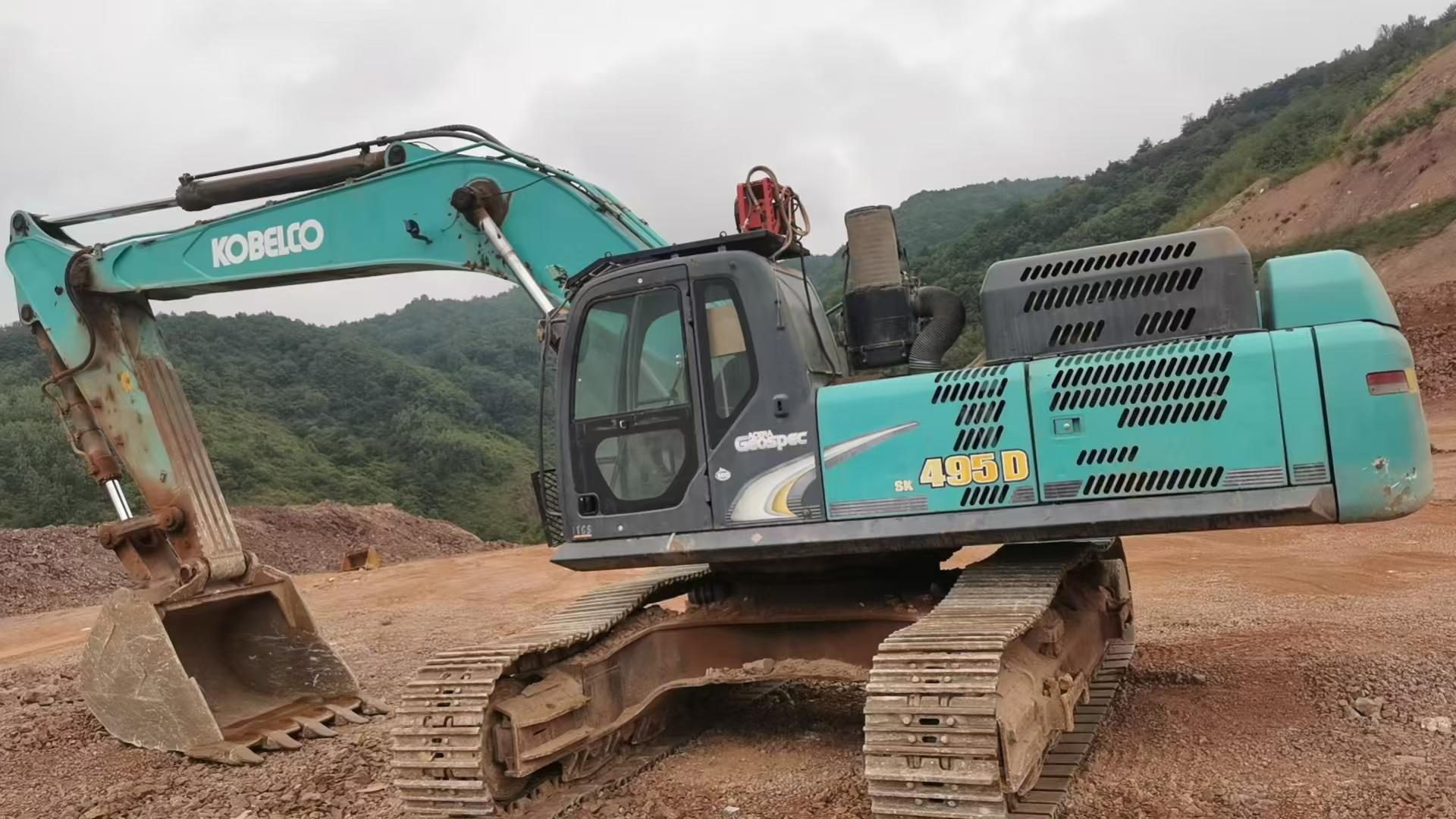

Discover the reliability and efficiency of the 2018 Kobelco SK495D, a robust excavator designed for demanding earthmoving tasks. Located in Shandong, China, this used heavy machine is ready to tackle your next project with its proven performance and durability. Ideal for construction, mining, and large-scale excavation, the SK495D offers a powerful solution for businesses looking to enhance their operational capacity without compromising on quality.
- Year: 2018
- Brand: Kobelco
- Model: SK495D
- Location: Shandong, China
| Specifications | Value |
|---|---|
| No. | 1130028 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 52700 |
| Bucket capacity (m³) | 2.3 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino P11C |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 122 x 150 |
| Maximum torque (N.m) | 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.52 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 266 |
| Rod digging force (kN) | 223 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum flow of main pump (l/min) | 2 x 370 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Dual variable displacement axial piston pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 50 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3800 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 5270 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5460 |
| Total track width (mm) | 3130 |
| Maximum height at minimum turning radius (mm) | 9003 |
| Maximum digging radius (mm) | 11770 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 11160 |
| Maximum unloading height (mm) | 7720 |
| Maximum vertical digging depth (mm) | 6680 |
| Maximum excavation radius of stop surface (mm) | 11540 |
