Product Description

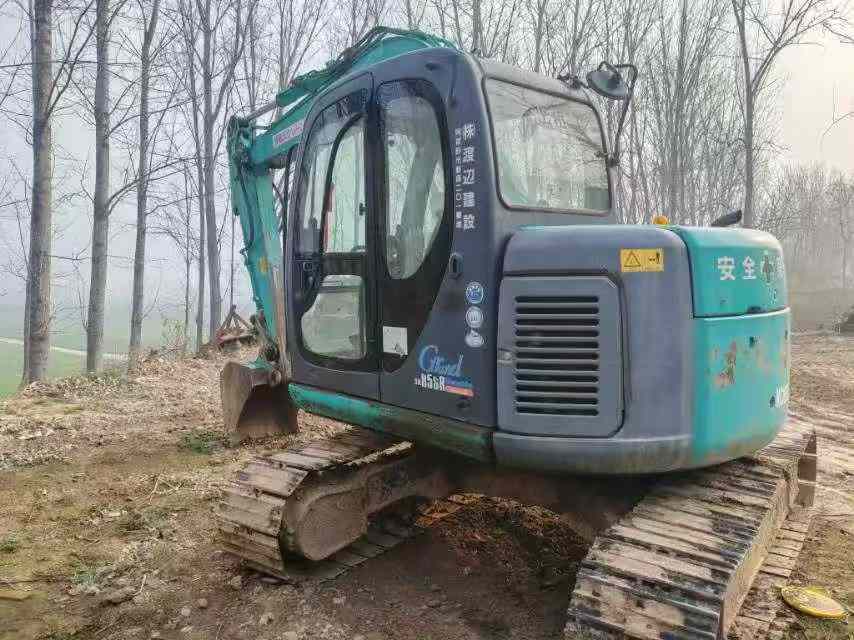

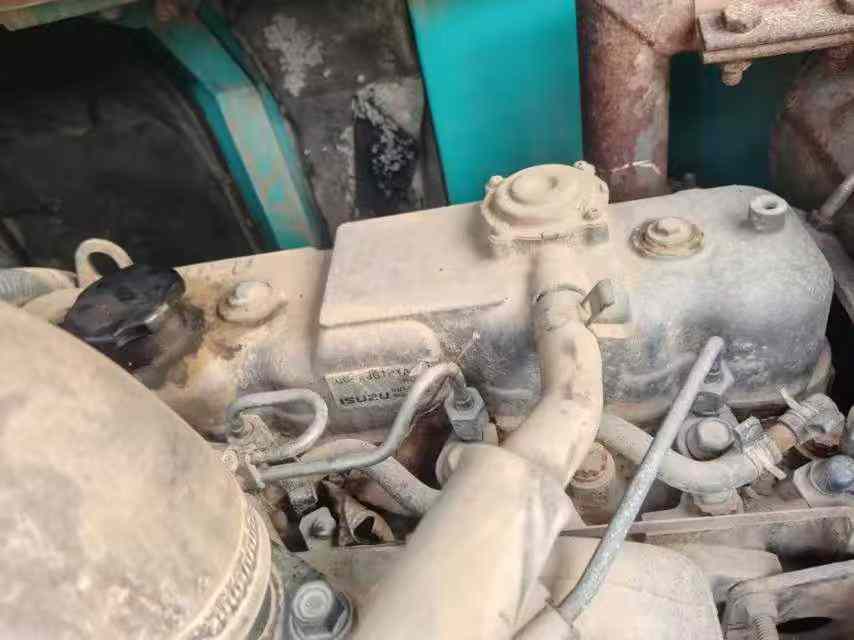

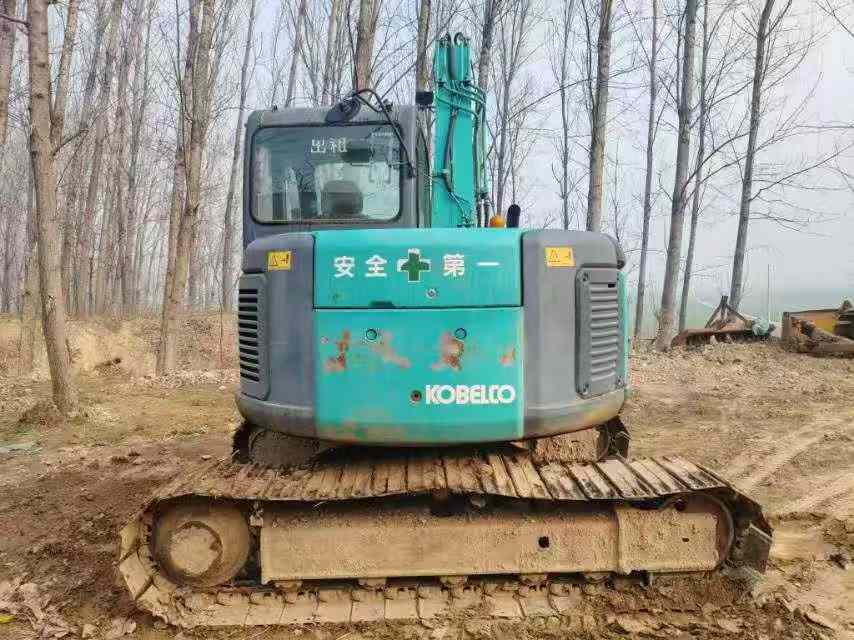

Engineered with precision hydraulics and proven ISUZU power, this 2016 Kobelco SK70 delivers reliable performance across demanding excavation projects. The 7-ton machine features a double variable displacement axial piston pump system operating at 29.4 Mpa working pressure, ensuring precise control and responsive digging力. At its core sits an ISUZU AU4LE2X engine generating 41kW at 2200 rpm, paired with a water-cooled 2.179L displacement system for optimal thermal management during extended operation cycles.
Operational capabilities include:
- Maximum digging reach of 6460mm with 4160mm depth capacity
- 5830mm boom configuration for versatile working envelope
- Compact footprint: 1760mm minimum front turning radius, 1290mm rear swing
- Dual travel speeds (2.8/5.3 km/h) for site flexibility
- 120L fuel capacity supporting full-shift productivity
- Axial piston rotary motor delivering 11.5 rpm swing speed
Currently located in Heze, Shandong, this joint-venture manufactured excavator combines Japanese engineering standards with practical operational economics for contractors requiring dependable 7-ton class performance.
| Specifications | Value |
|---|---|
| No. | 1029662 |
| Tonnage (tons) | 7 |
| Boom length (mm) | 5830 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 11.5 |
| Travel speed (km/h) | 2.8/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
