Product Description

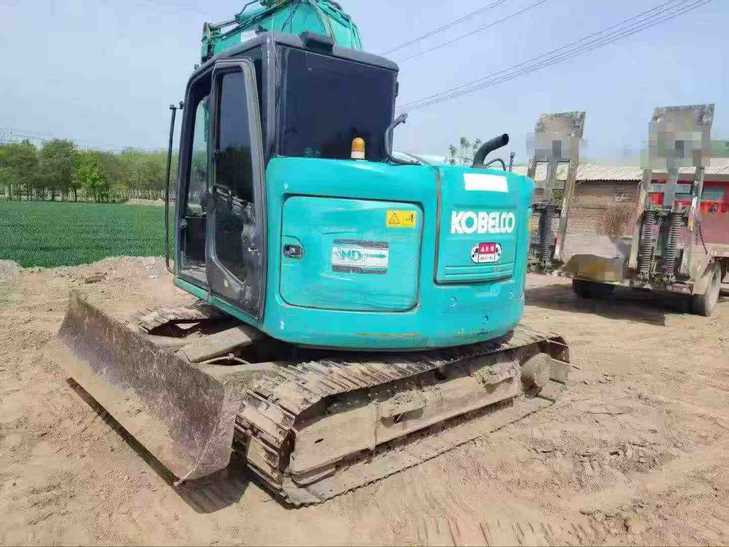

Well-maintained 2020 Kobelco SK70 hydraulic excavator available from Zhejiang, China. This compact 7-ton class machine delivers reliable performance for construction, utility work, and landscaping applications. The SK70 features Kobelco's proven hydraulic system, offering smooth operation and fuel efficiency in a versatile platform suitable for confined job sites.
- Year: 2020
- Model: Kobelco SK70
- Location: Zhejiang Province, China
- Condition: Used, operational with documented service history
- Operating hours available upon request
- Video inspection available
This excavator is ready for immediate deployment. Ideal for contractors seeking dependable equipment with Kobelco's reputation for durability and low operating costs. Suitable for export or domestic use. Contact for pricing, additional specifications, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1137147 |
| Tonnage (tons) | 7 |
| Boom length (mm) | 5830 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 11.5 |
| Travel speed (km/h) | 2.8/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
