2020 Kobelco SK70

1/5
Buy Kobelco SK70 Used Excavator / 1
Buy Kobelco SK70 Used Excavator / 2
Buy Kobelco SK70 Used Excavator / 3
Buy Kobelco SK70 Used Excavator / 4
Buy Kobelco SK70 Used Excavator / 5

Product Description

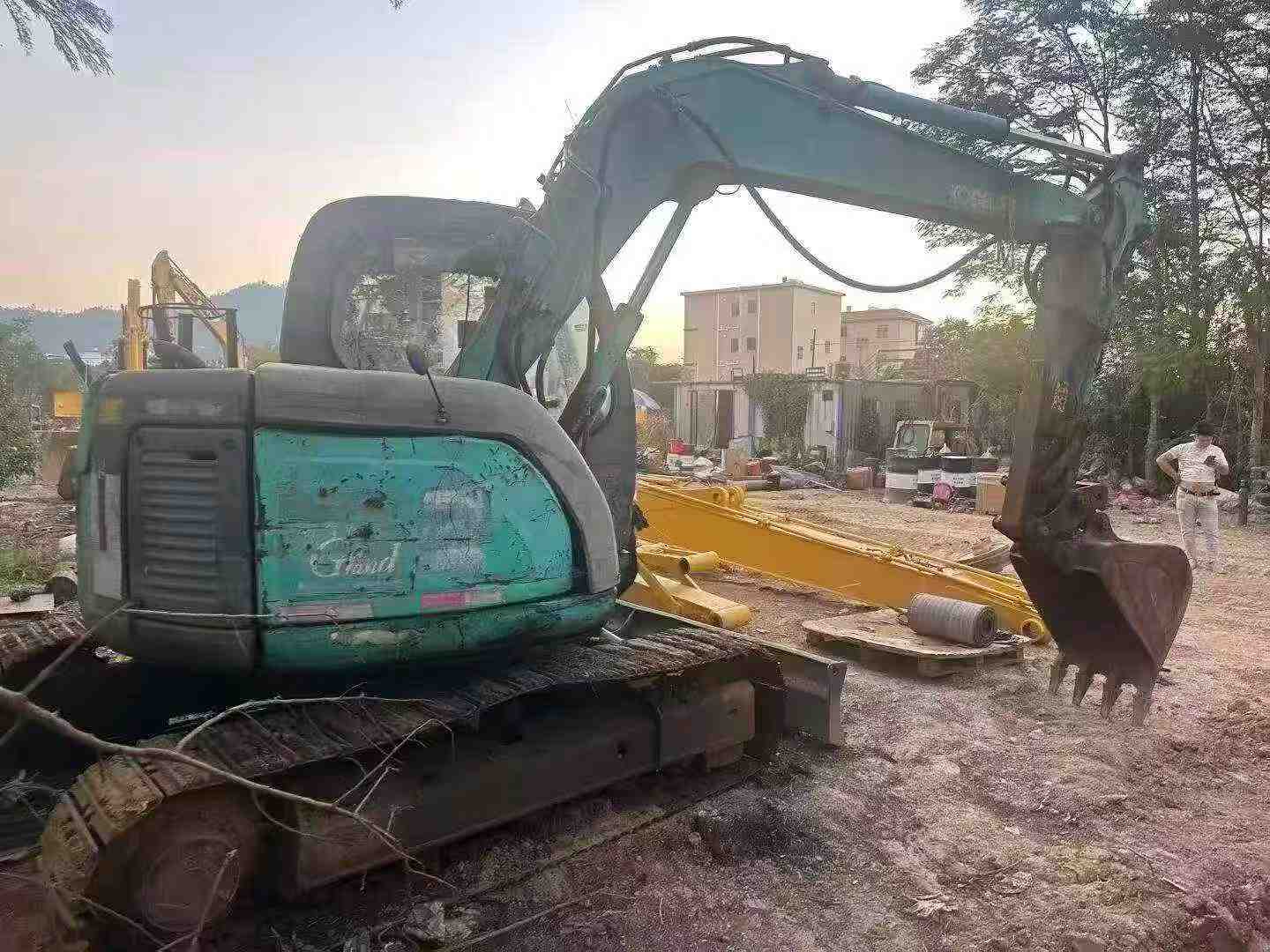

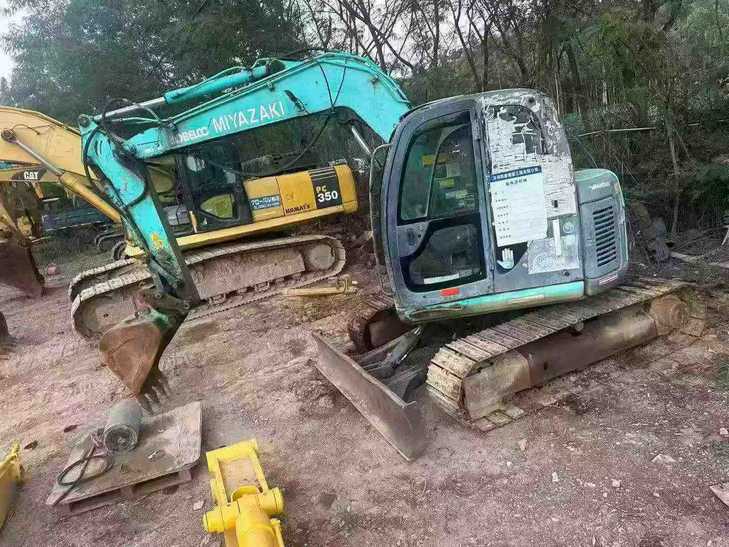

This 2020 Kobelco SK70 mini excavator is now available from Sichuan, China. The SK70 is a proven 7-ton class machine known for reliable performance in urban construction, landscaping, and utility work. This unit comes equipped with a hydraulic breaker attachment, expanding its versatility for demolition and rock-breaking applications.

Key features include:

  • Compact footprint ideal for confined jobsites
  • Kobelco's fuel-efficient engine technology
  • Hydraulic hammer included with purchase
  • Low operating hours for a 2020 model year
  • Well-maintained condition from Chinese market

The SK70 delivers excellent digging force and stability in its size class. This machine represents a cost-effective solution for contractors seeking quality Japanese engineering with breaker capability. Suitable for export or regional deployment.

SpecificationsValue
No.1166986
Tonnage (tons)7
Boom length (mm)5830
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotation speed (rpm)11.5
Travel speed (km/h)2.8/5.3
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5

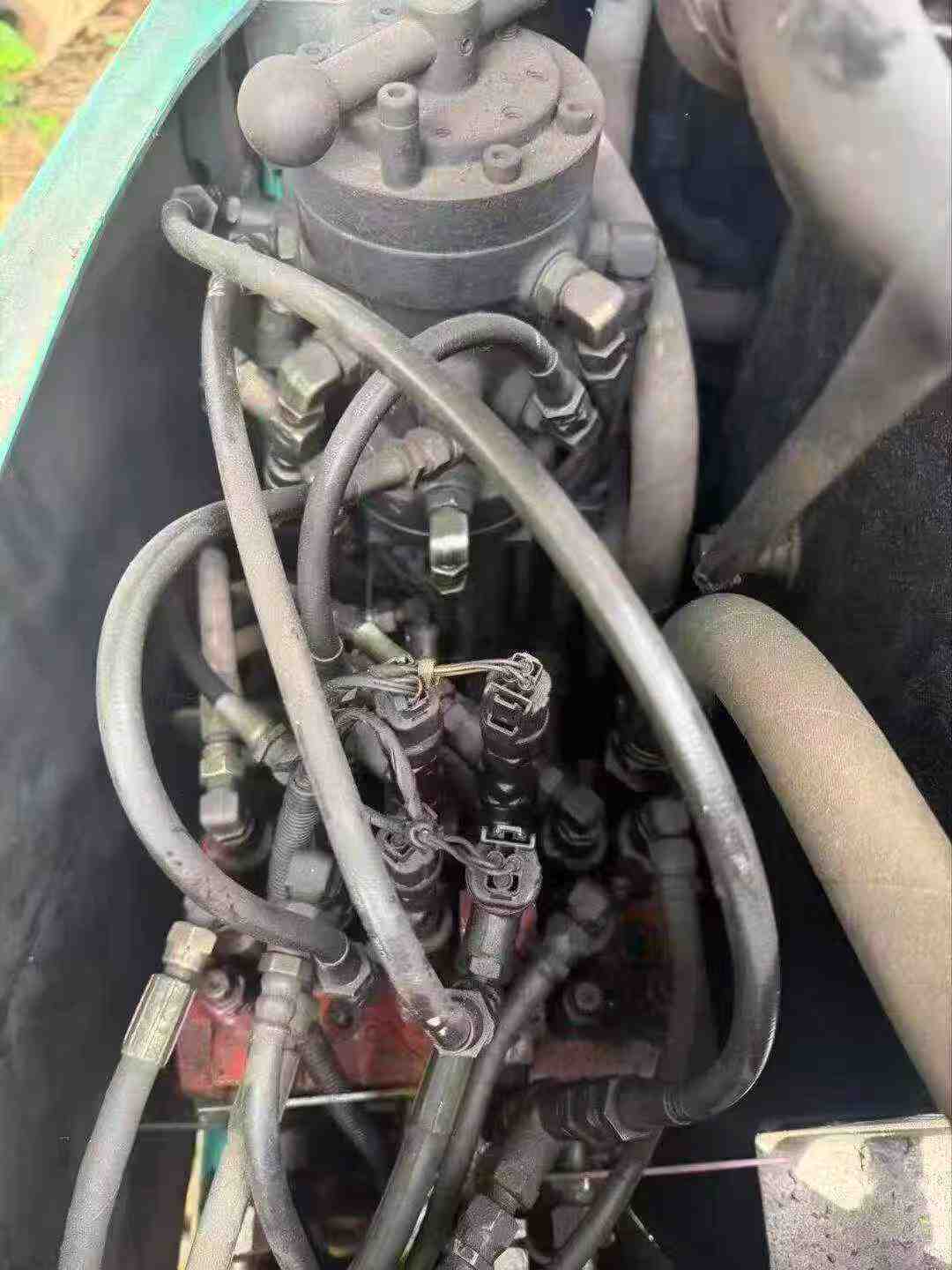

Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
see more

Overview

No.1166986

Brand Name:

Kobelco

Model Number:

SK70

Year:

2020

Location:

Sichuan China

Pub Date:
